SPECIFICATIONS

Application: Industrial Production

Application Field: Papermaking Industry

Brand Name: NONE

Capacity: 0.35mw to 2.8mw

Condition: New

Fuel: coal wood

Fuels: coal wood

Heat efficient: 85%

High-concerned chemical: none

Medium: water

Origin: Mainland China

Product name: Coal wood industrial steam boiler china

Stam temperature: 194

Style: Horizontal

Type: Gantry

Type of boiler: Horizontal type boiler

Warranty: 1 Year

Warranty Period: 1 year

Weight (KG): 5500

brand name: FL

core components: FIRE TUBE

dimension(l*w*h): 4213x1960x2893MM

key selling points: Long Service Life

machinery test report: Provided

output: Steam

place of origin: Henan, China

pressure: Low Pressure

structure: Fire Tube

type: Natural Circulation

usage: Industrial

video outgoing-inspection: Provided

PLEASE NOTE:

1.This is a custom-made item.The price only for reference, the specific cost based on your requirements and the destination port, please contact us for more product details and quotations

2.We ship you by sea !!!

3.Door to door please leave message or whatsapp or email for price !!!

4.please fell free contact us by email or whatsapp

email address : Fulai2025@163.com

whatsapp:+8617837198293
Dear Buyer,
This product is custom-made, and the price shown is not the final price.
We offer a variety of delivery methods, including DDP, DAP, EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT. Freight needs to be calculated based on the delivery mode.
We can customize the color, configuration, model, appearance, logo, engine type, and powertrain.
The most important thing is that you need to communicate with our customer service to confirm the product parameters.
Specific pricing varies depending on the country and custom requirements, please contact customer service.
Orders not confirmed by customer service will not be shipped.

PLEASE NOTE: THIS IS A CUSTOM ITEM
Please fell free contact us by Email or WhatsApp
Email:yugongsale1@yg797.com
WhatsApp:+8618339295069

Dear Buyer,
This product is custom-made, and the price shown is not the final price. We offer a variety of delivery methods, including DDP, DAP, EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT. Freight needs to be calculated based on the delivery mode.
We can customize the color, configuration, model, appearance, logo, engine type, and powertrain.
The most important thing is that you need to communicate with our customer service to confirm the product parameters.Specific pricing varies depending on the country and custom requirements, please contact customer service.
Orders not confirmed by customer service will not be shipped.

Low Price Industrial Fire Tube Low Pressure Horizontal Steam Boiler 1.4 MW Natural Gas Diesel Fuel High Efficiency
1. Agriculture: Breeding, greenhouse planting, seed factory.
2. Chemical industry: Fertilizer Plant, refinery, feed factory, coating factory, plastic factory, glass factory.
3. Manufacturing: Paper Mill, textile factory, food factory, shoe factory, ceramic factory furniture factory.
4. Construction Industry: Highway Use, site use.
5. Others: Accommodation and catering, bath cente, hotel, disinfection of medical instruments and clothing.

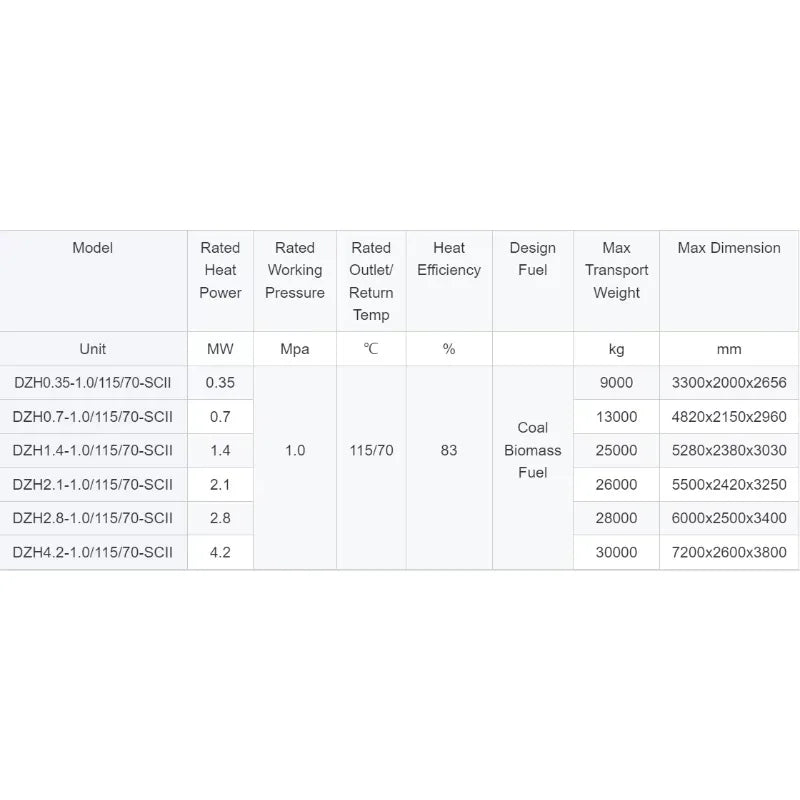

Model
Rated Heat
Power
Rated Working
Pressure
Rated Outlet/Return
Temp
Heat
Efficiency
Design Fuel
Max Transport
Weight
Max Dimension
Unit
MW
Mpa
℃
%
kg
mm
DZH0.35-1.0/115/70-SCII
0.35
1.0
115/70
83
Coal
Biomass
Fuel
9000
3300x2000x2656
DZH0.7-1.0/115/70-SCII
0.7
13000
4820x2150x2960
DZH1.4-1.0/115/70-SCII
1.4
25000
5280x2380x3030
DZH2.1-1.0/115/70-SCII
2.1
26000
5500x2420x3250
DZH2.8-1.0/115/70-SCII
2.8
28000
6000x2500x3400
DZH4.2-1.0/115/70-SCII
4.2
30000
7200x2600x3800
Name
0.35-2.8mw coal pellet fired hot water boiler
Pressure
0.7Mpa-2.5Mpa
Fuel
Coal, Biomass pellet, Rice Husk, Bagasse, etc.
Capacity
0.35mw-2.8mw/h

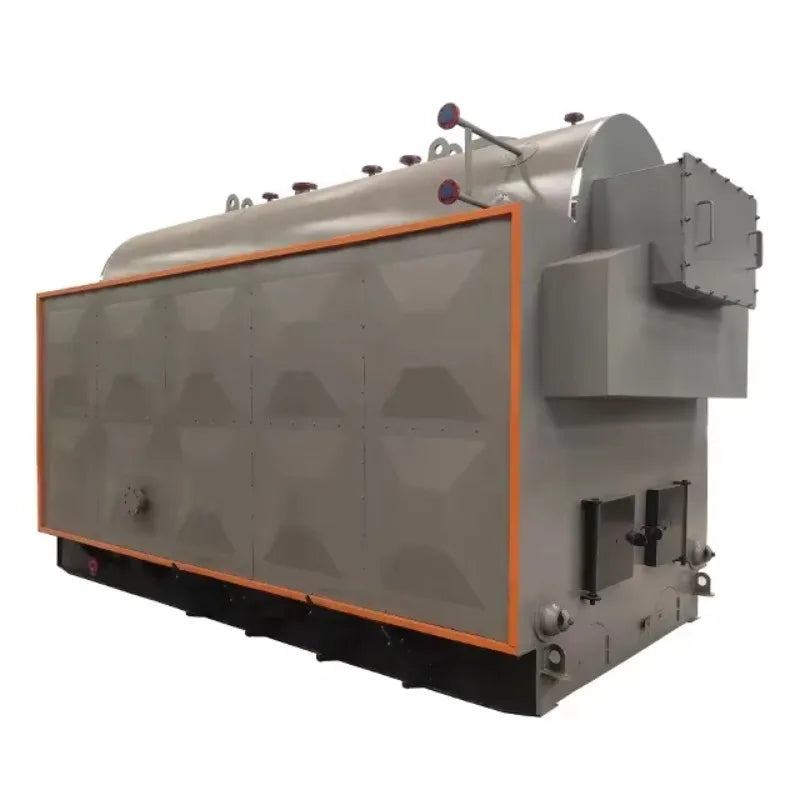

Description:

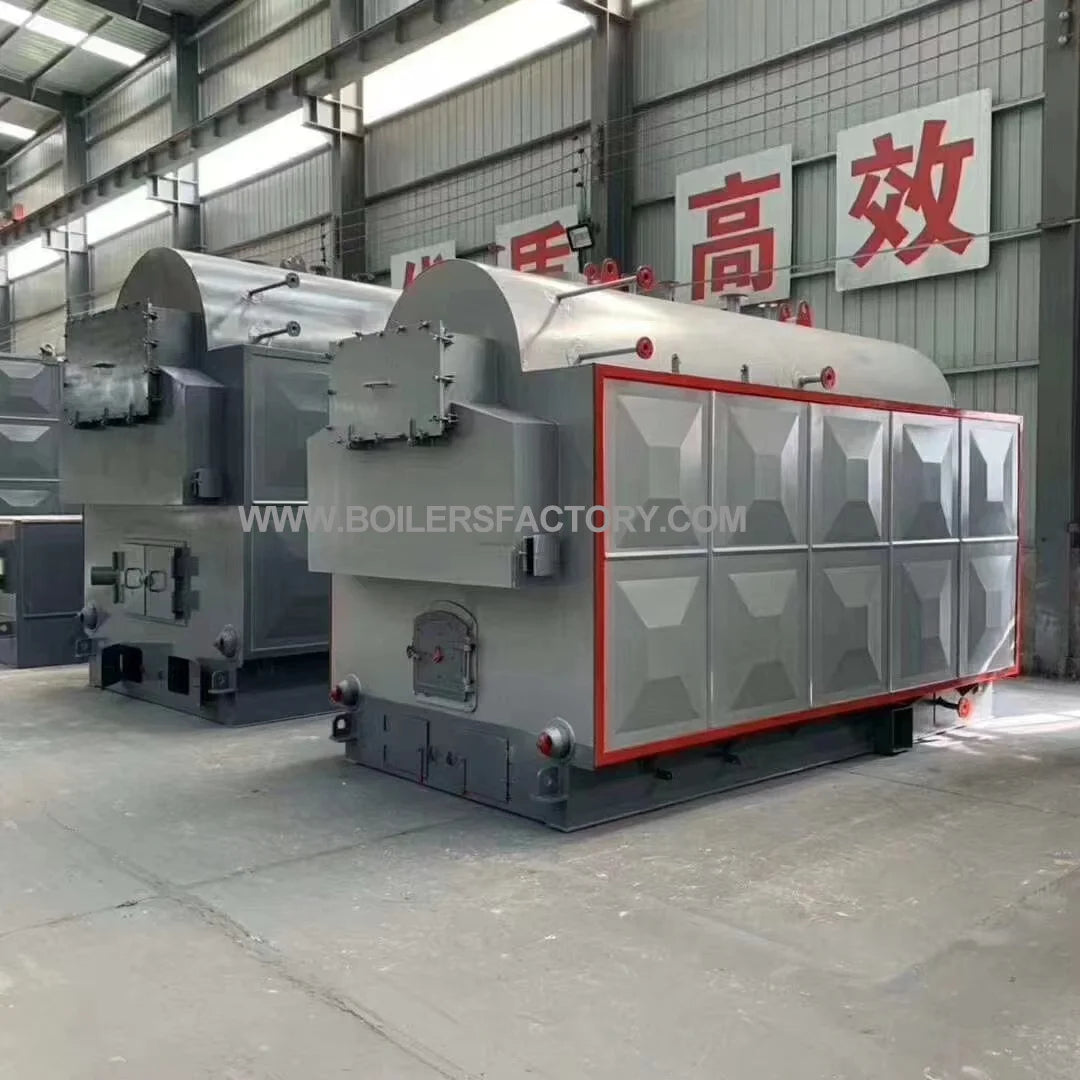

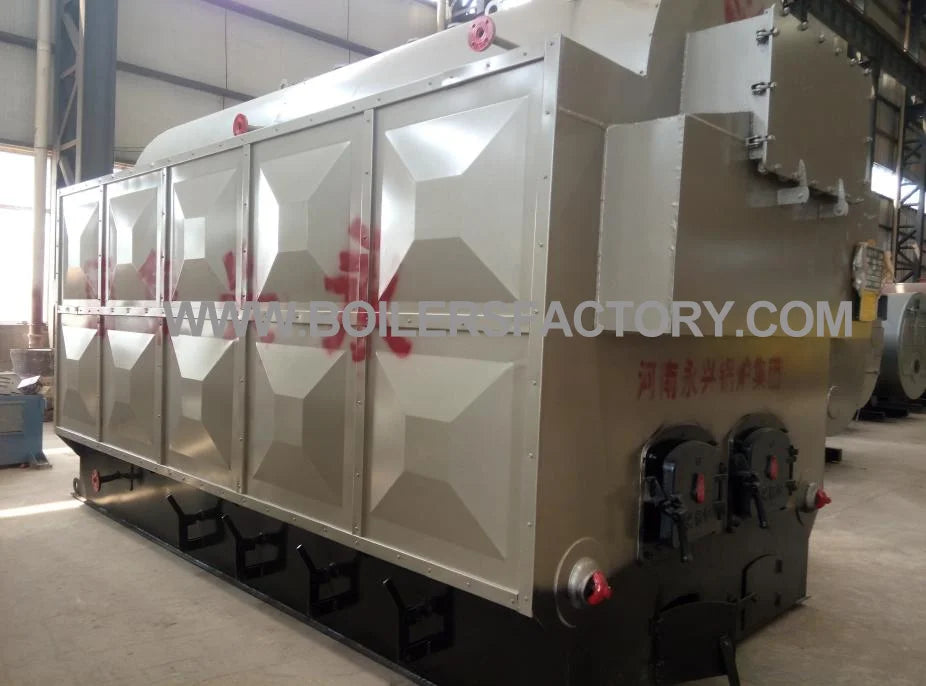

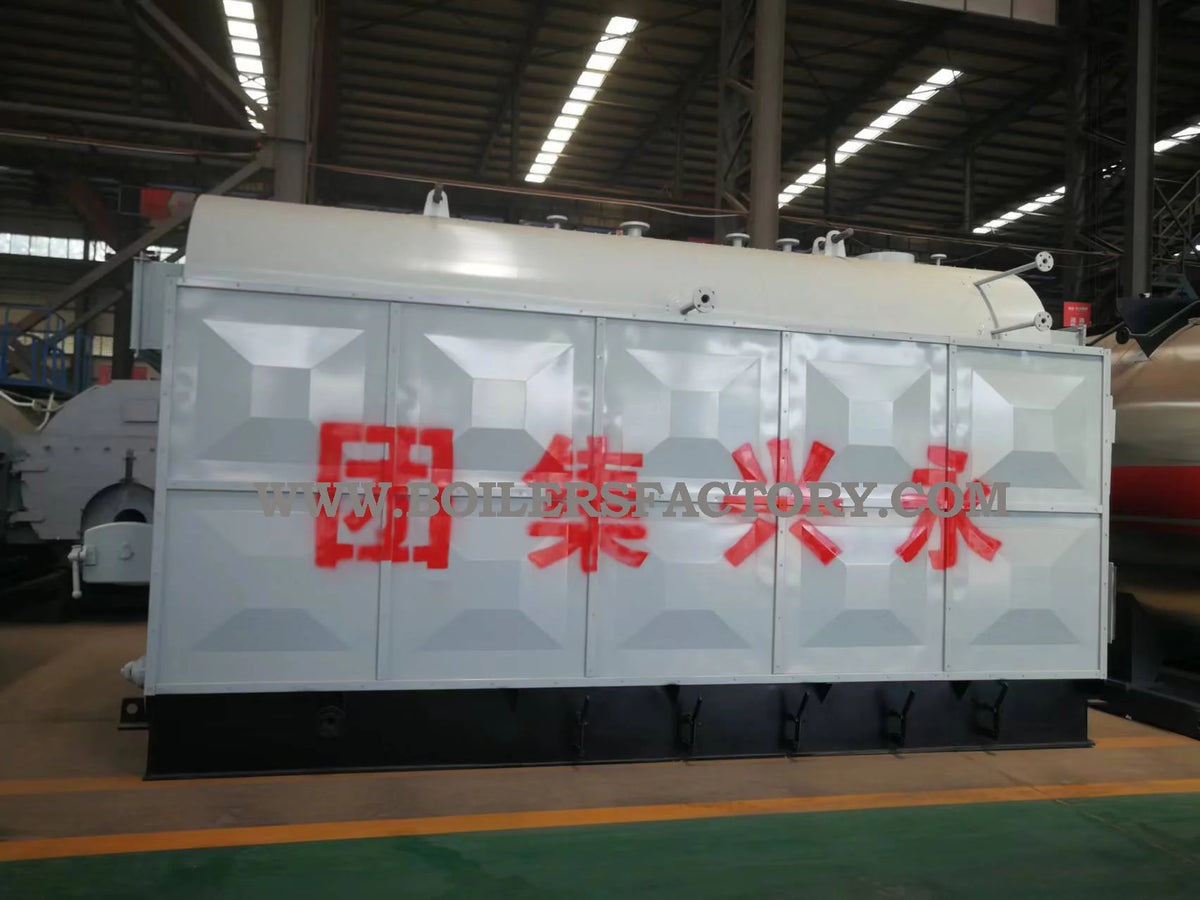

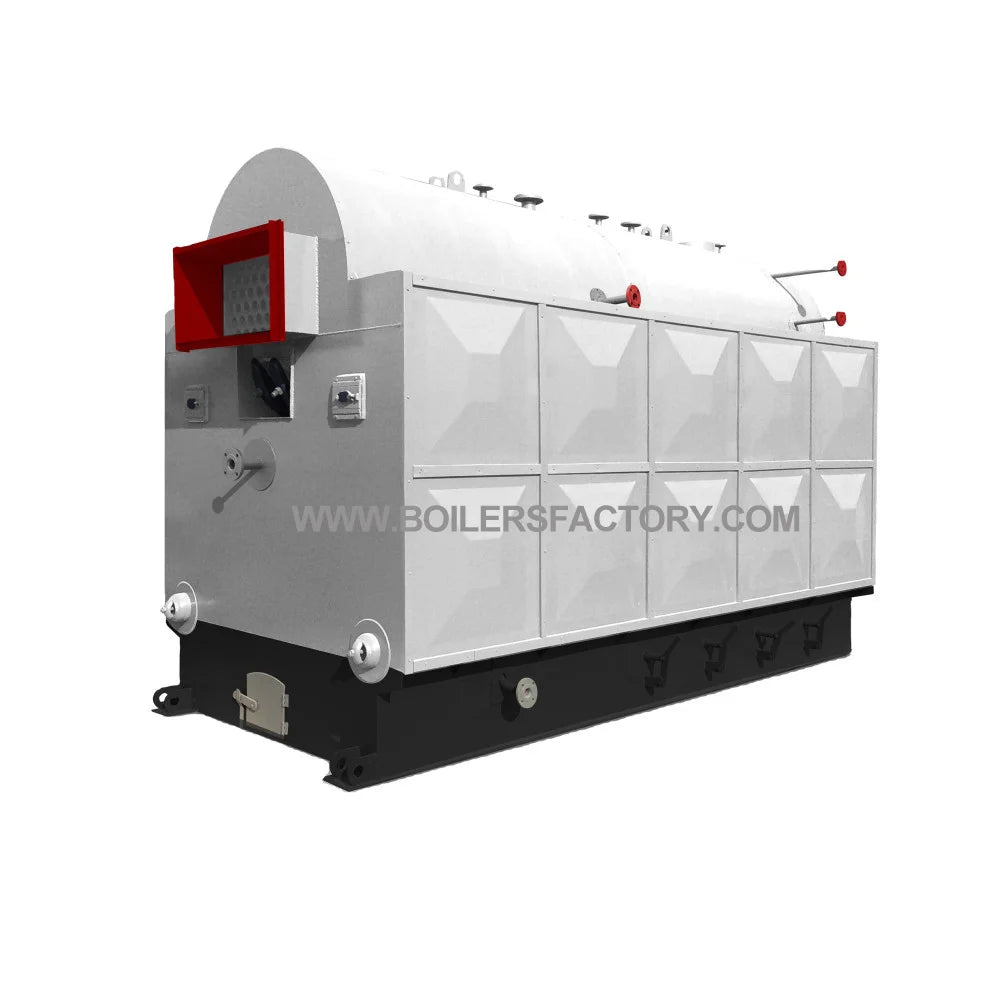

DZH-Horizontal Automatic chain steam boiler, DZH series is single drum fire tube chain grate boiler.
Boiler main body is a single drum longitudinal layout. Drum and water tubes at both side forms radiation heating surface. Water tube forms convection surface. While threaded fire tube in the drum forms fire tube convection surface. Boiler consists of upper body and lower grates Which is combined at work site. Economizer is at the rear. Electric control cabinet can supervise the over temperature and lower. Pressure alarming and interlock protection, Which makes DZH series safe and reliable. Easy to operate.

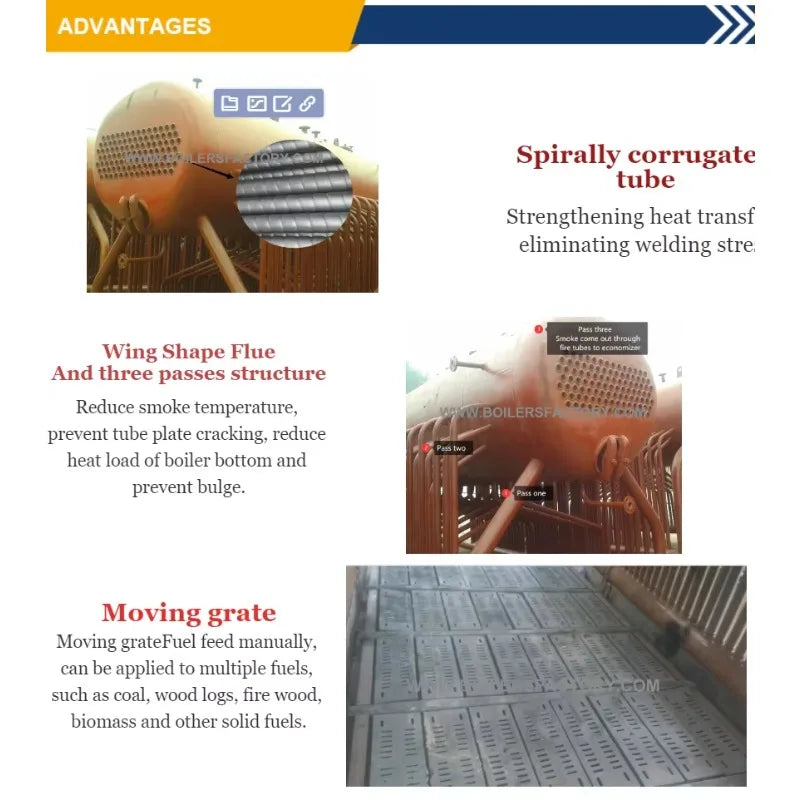

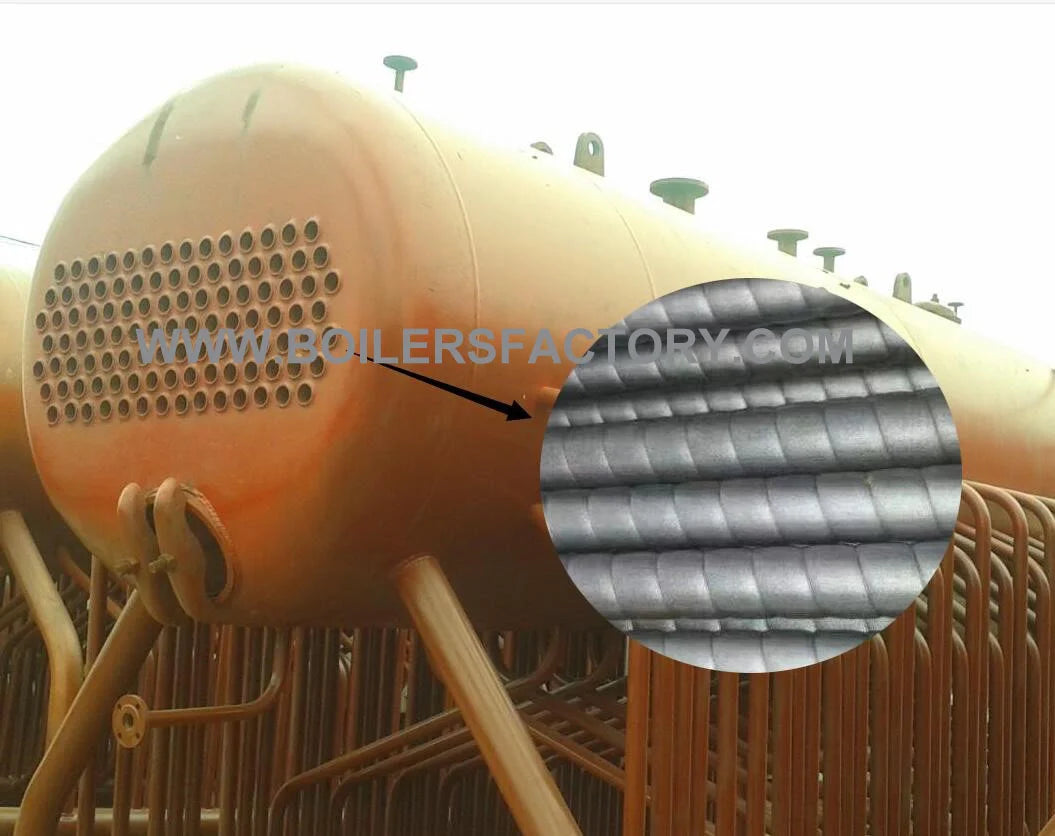

Spirally corrugated tube
Strengthening heat transfer, eliminating welding stress

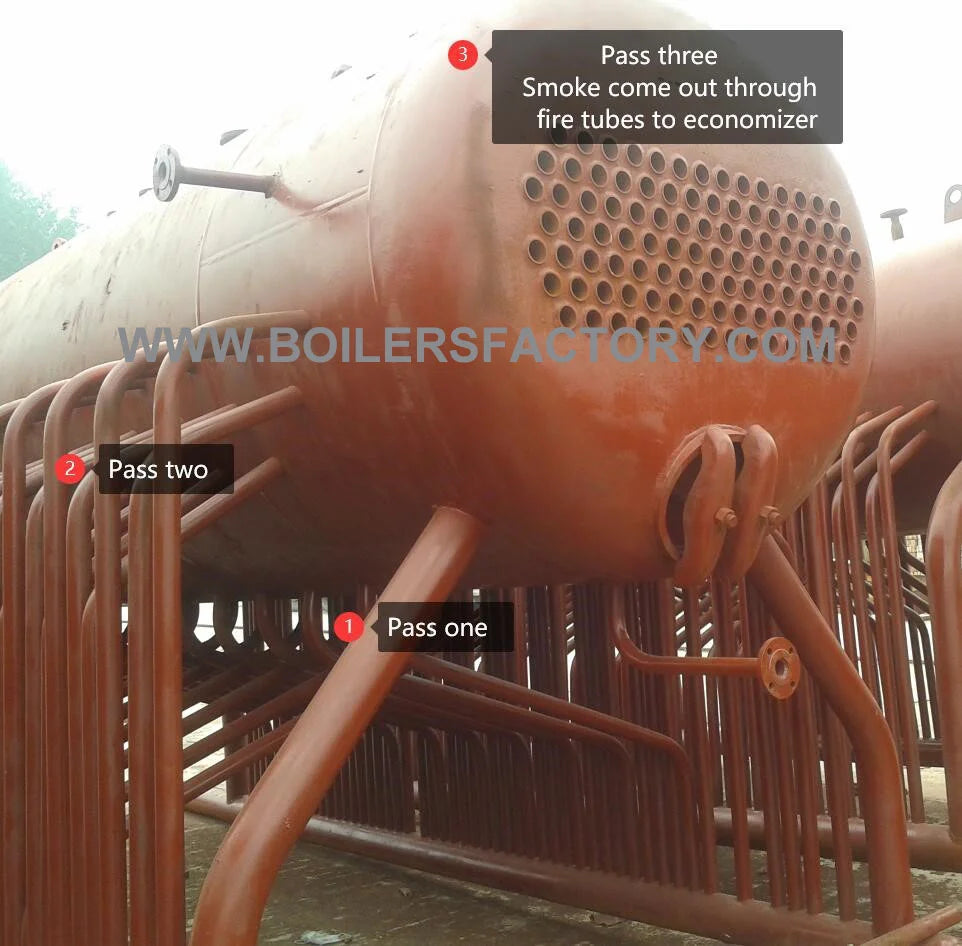

Wing Shape Flue
And three passes structure
Reduce smoke temperature, prevent tube plate cracking, reduce heat load of boiler bottom and prevent bulge.

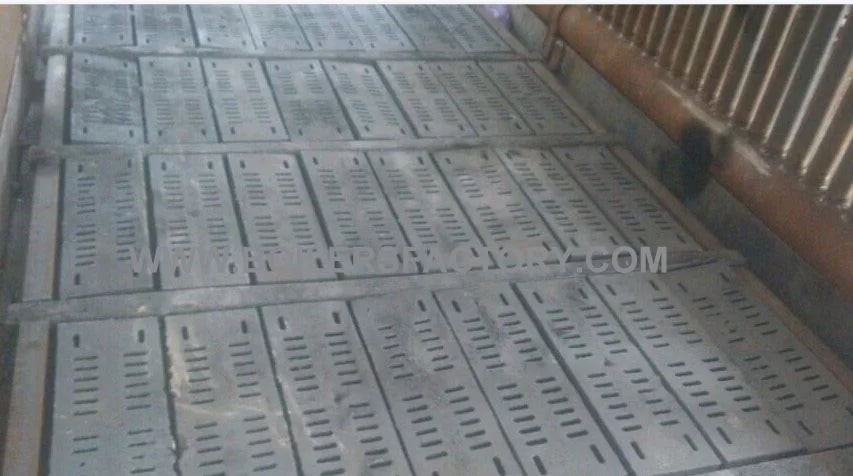

Moving grate
Moving grateFuel feed manually, can be applied to multiple fuels, such as coal, wood logs, fire wood, biomass and other solid fuels.

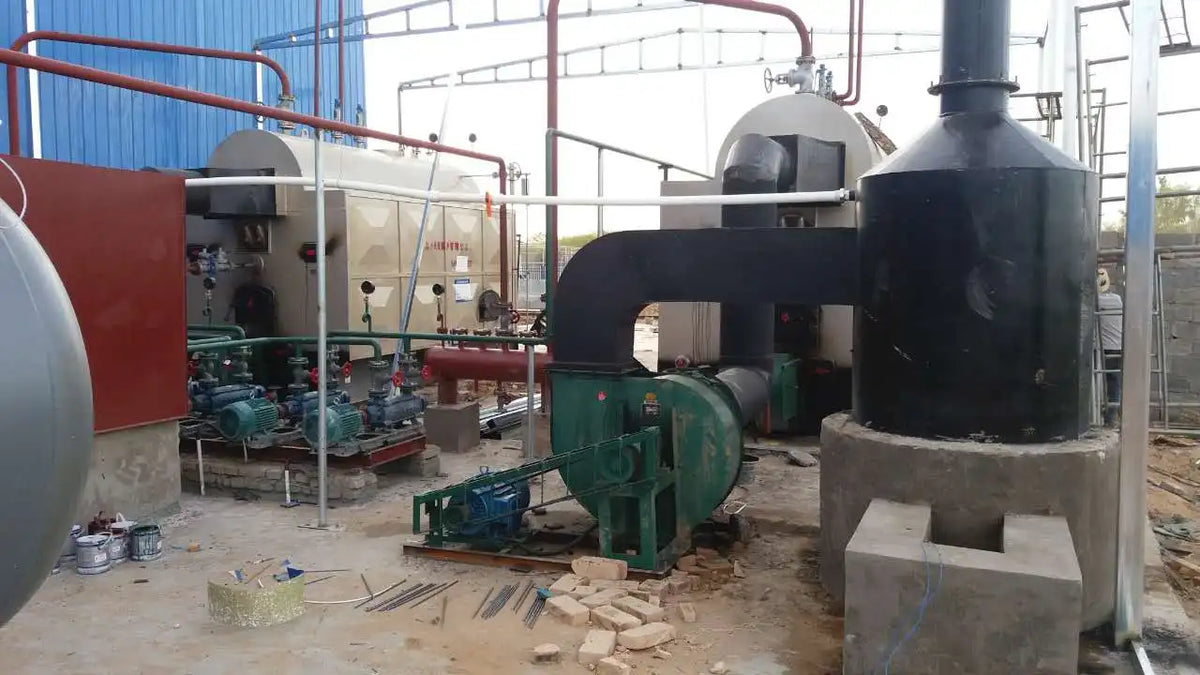

2tph steam boiler in UZ
4tph diesle steam boiler in Kenya
25tph steam boiler in Myanmar
Vertical coal fired steam boiler in Chile

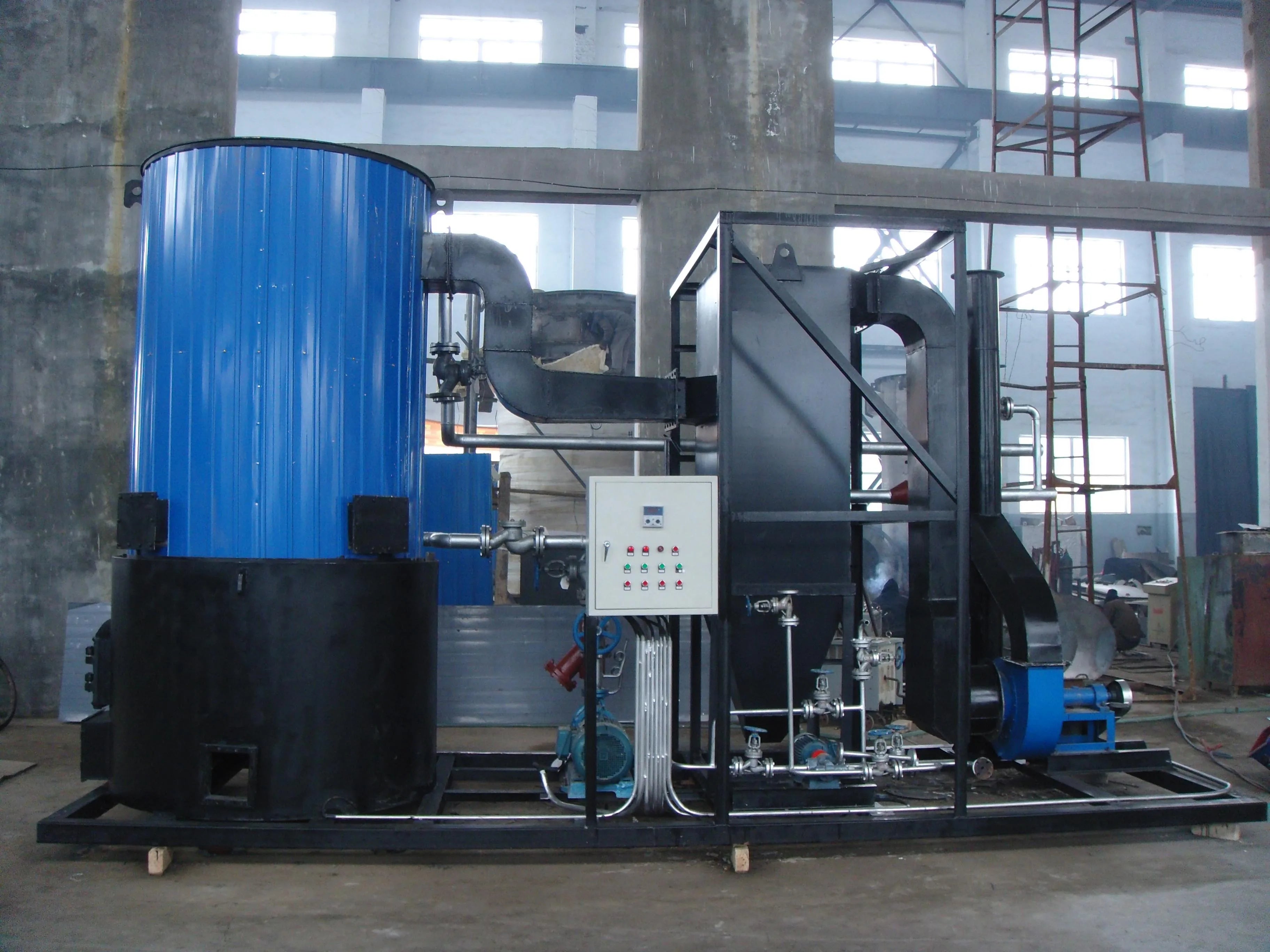

3mkcalph coal fired thermal oil boiler in Vietnam
2tph biomass boiler in Togo
1200kw diesel fired thermal oil boiler in Zimbabwe
2tph coal steam boiler in Philippines
10tph steam boiler in Ukraine
25tph coal fired steam boiler in Bangladesh

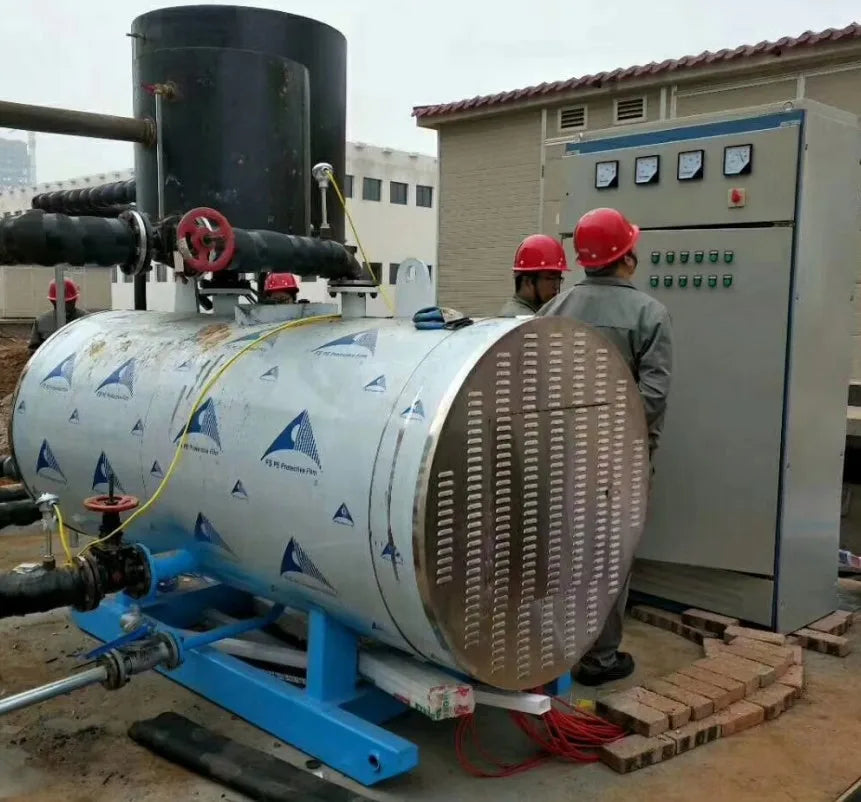

Electrical steam boiler in Ethiopia

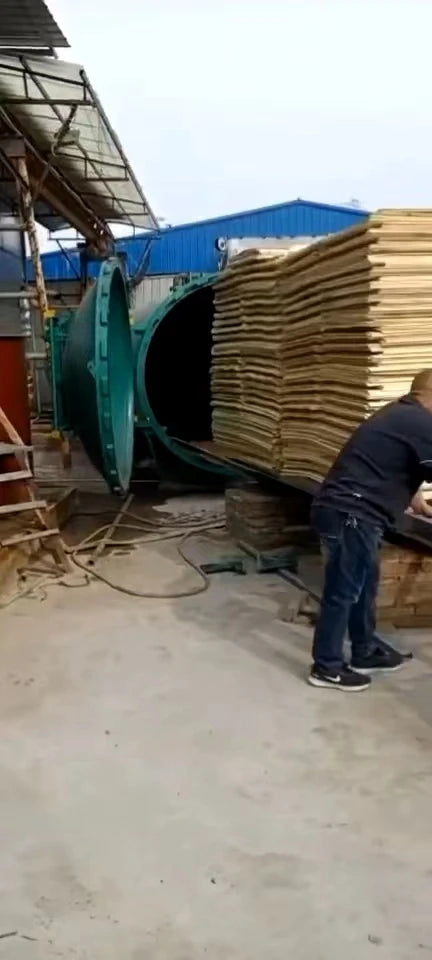

2x12m wood treatment equipment in Zambia
Q1: What are the difference between vertical type boiler and horizontal type boiler withe the same capacity?
1) Structure of vertical boiler is compact ,occupy a litimited area. 2) Convenient on installation and removal.
3) Low cost and investment on capital construction. Steam exhausted fast and sufficient.
4) The combustion space of horizontal is4 big, fuel can be burned completed.
5) The thermal efficiency is higher than the vertical boiler.
6) Horizontal type: less thermal loss, stronger output, and higher steam quality.
 Q2: What are the limitation (size, humidity, chemical element concentrations) of coal fuel/solid fuel/wood fuel?
Size requirement of coal:6-25mm
Size requirement of blending coal: <50mm (the coal less than 6mm should less than 30%)
Diameter of biomass particle: 6~10mm, length: 25~50mm, water content < 15%, ash content < 2%, sulphur content<0.07%, chlorinity <0.07%, nitrogen content < 0.5%
 Q3: What is the size of furnace door and blower hopper?
Size of furnace door:

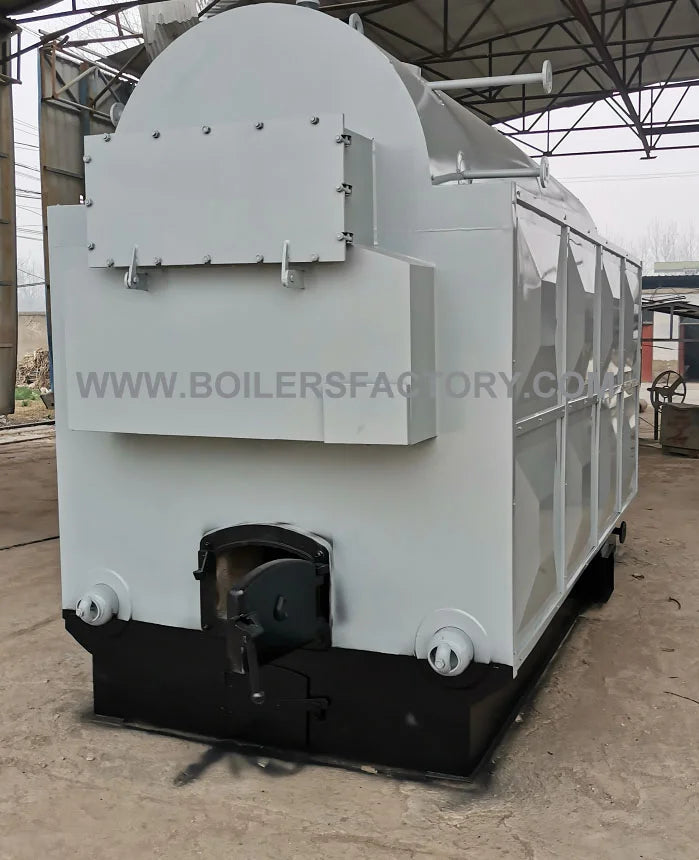

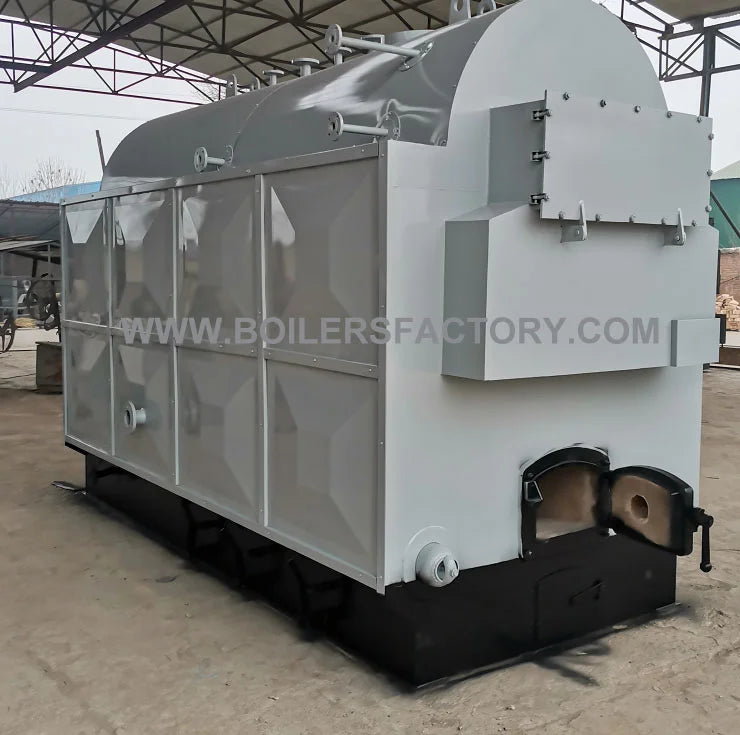

Standard elliptical furnace door:300*800*1500
Blower hopper size:
2 tons conical hopper: 1400*800*1500
4 tons conical hopper: 2200*1400*1500
 Q4: What is the combustion mode of coal/biomass fired boiler?
The combustion mode of coal/biomass fired boiler is layer combustion. Place the flue on the fixed or moved grate, to form an evenly fuel bed with a certain thickness, air comes from the bottom of grate, and combustion occurred on the fuel bed.



You may also like
