3 Axes RichAuto DSP A11 Controller for CNC Machine Motion Controller English Pannel Handheld CNC Controller
3 Axes RichAuto DSP A11 Controller for CNC Machine Motion Controller English Pannel Handheld CNC Controller
🔒 B2B Purchasing Managers: Log in via our Wholesale Portal to unlock contracted tier discounts (Up to 12% off). / Inicie sesión para desbloquear precios de mayoreo.
100% Encrypted Payment | 📦 Insured Shipping
SPECIFICATIONS
Application: Milling Machine
Brand: RichAuto
Brand Name: locenmaquina
Certification: CE
High-concerned chemical: None
Is Smart Device: No
Model: 3 axis cnc controller
Origin: Mainland China
working model: handheld
3 axis cnc motion controller RichAuto A11
1. New three-axis linkage motion mode to achieve comprehensive controlling
2. Support drive and spindle error alarm function
3. Large storage space, perfect U disk compatibility, fast reading speed, safe and reliable U disk-processing.
4. Support intelligent file checking function.
5. Parameter backup and restore function to prevent the loss of important parameters.
6. High anti-jamming intensity passes many CE tests.
7. Intelligent processing memory, supports power fail safeguard and breakpoint function.
8. Definable I/O interfaces provide customers a wide range of development platforms.
9. Support setting tool sensor
Product odel |
RichAuto----A11 |
CPU |
DSP |
Internal Memory |
512MB |
Display Screen |
128*64 Monochrome LCD |
Communication Port |
U disk、USB cable |
Controlled Axis Number |
3 axs |
Control Signal |
differential signal |
Drive System |
step motor/servo motor |
Min. Input Unit |
0.001mm |
No Volt Protection |
support |
Breakpoint Processing Function |
8 |
External Power Supply Voltag |
24V DC |
Manual Mode |
Continuous、point move、distance |
Interpolation Way |
Line、Arc |
Soft/Hard Limit |
Support |
Max. Pulse Frequency |
1M/S |
Password Protection |
support |
Support Language |
simple Chinese/traditional Chinese、English、other languages |

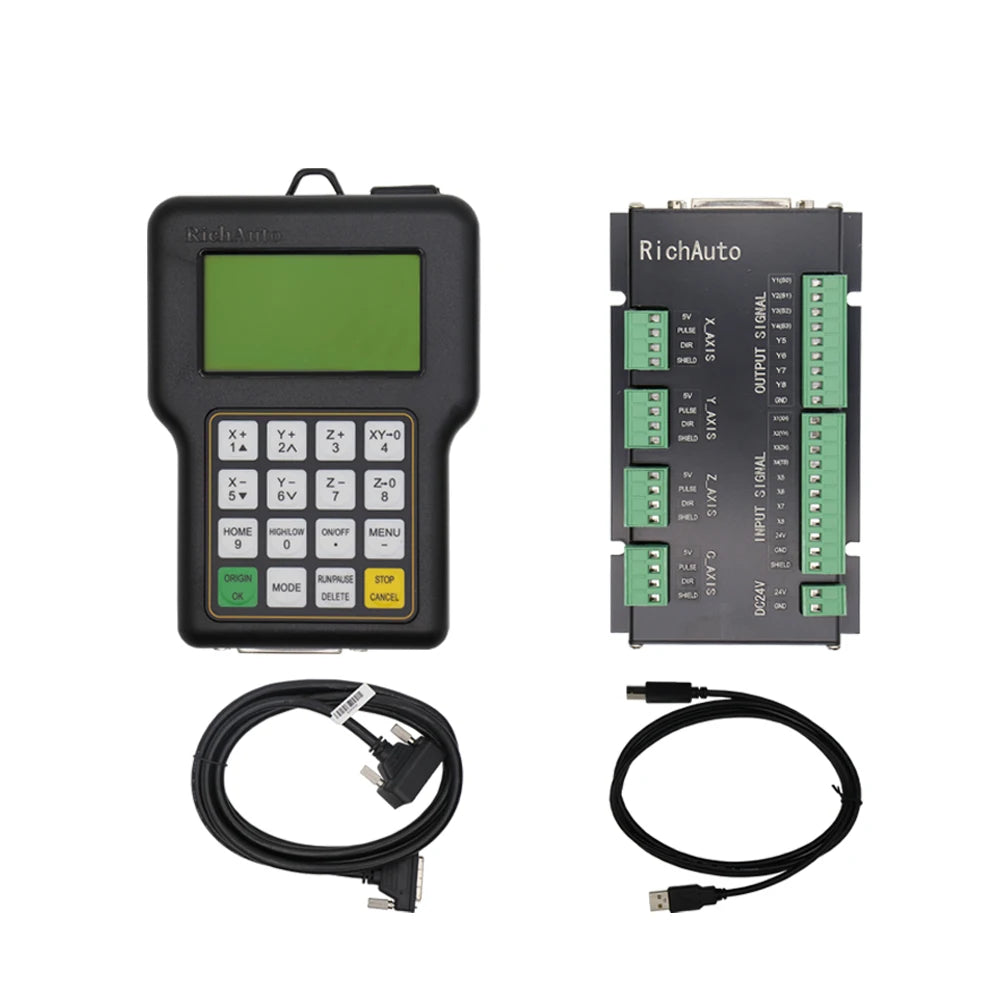

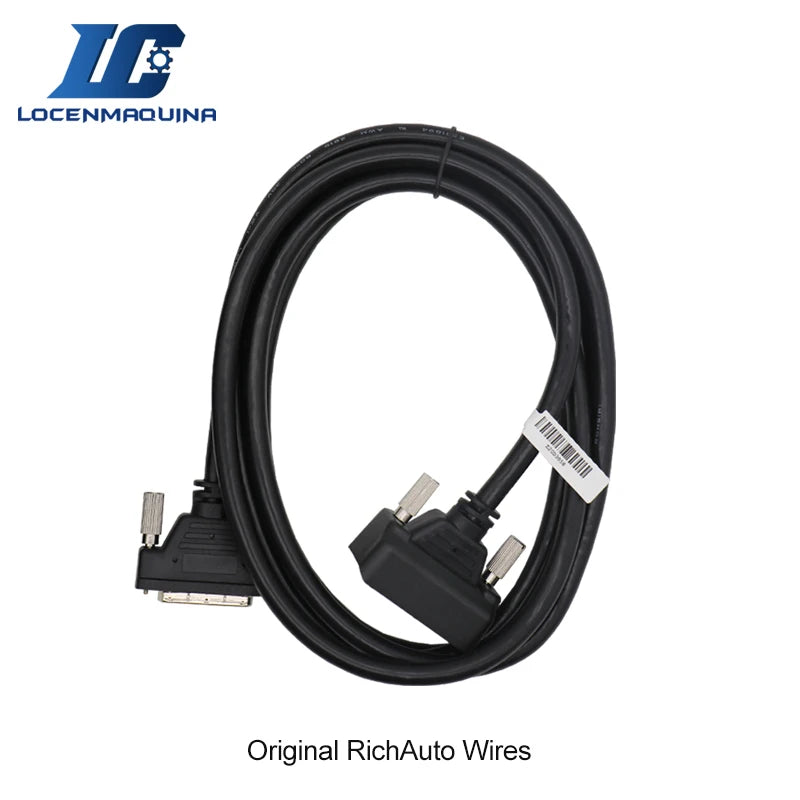

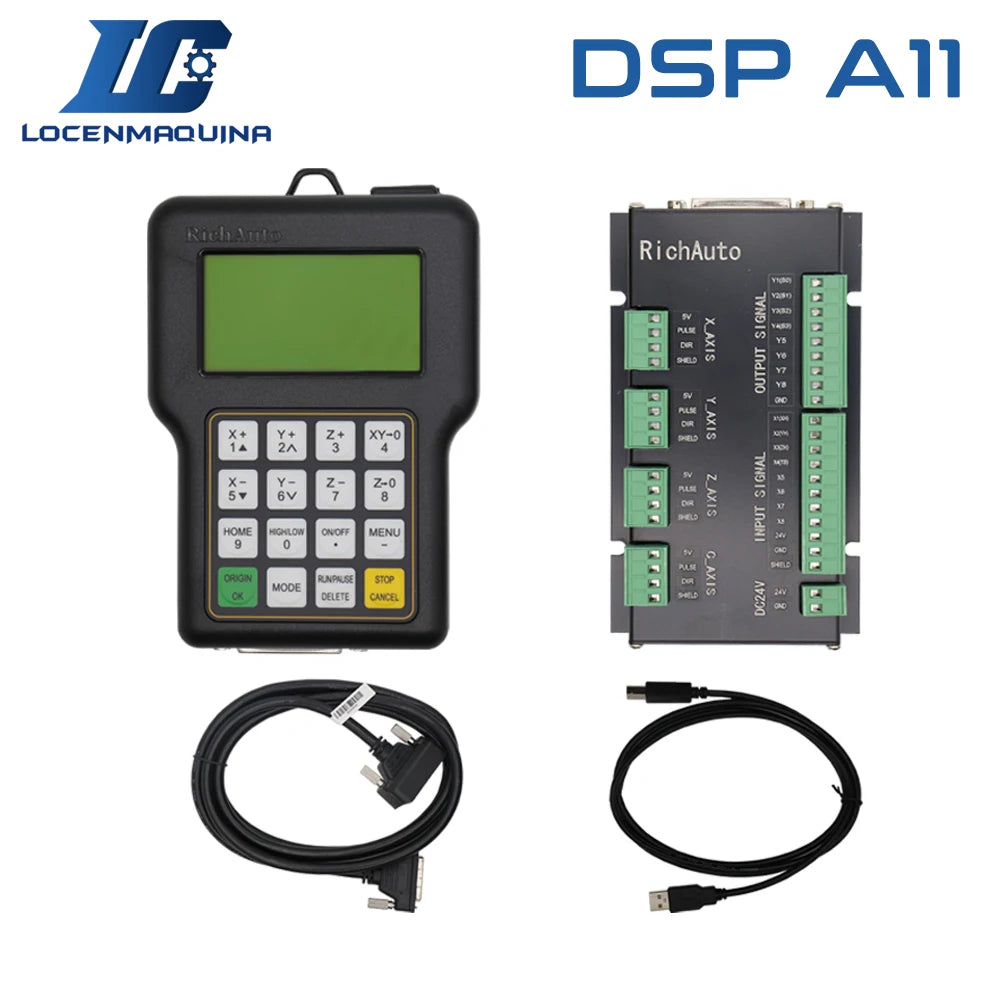

Standard Configuration |
(1) DSP Handle;(1) 50 Core Cable (1)USB Cable; (1)8 I/O Wiring |
