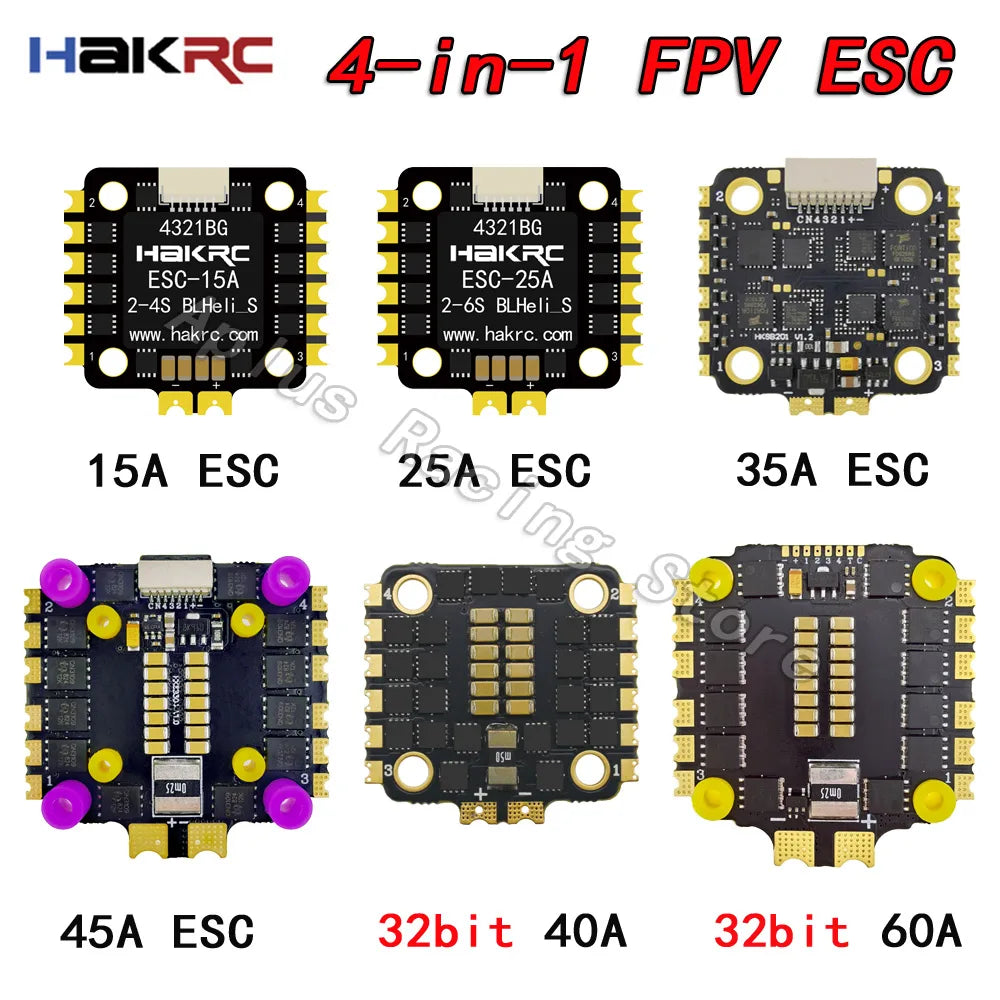

HAKRC 32BIT 40A 60A BLHeli-32 4in 1 ESC Speed Controller 8BIT 15A 25A 35A 45A BLHeli-S DShot150/300/600 STM32F051 Advanced PCB
HAKRC 32BIT 40A 60A BLHeli-32 4in 1 ESC Speed Controller 8BIT 15A 25A 35A 45A BLHeli-S DShot150/300/600 STM32F051 Advanced PCB
🔒 B2B Purchasing Managers: Log in via our Wholesale Portal to unlock contracted tier discounts (Up to 12% off). / Inicie sesión para desbloquear precios de mayoreo.
100% Encrypted Payment | 📦 Insured Shipping
SPECIFICATIONS
Brand Name: NONE
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: FPV ESC
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Radio Systems
Recommend Age: 14+y
Remote Control Peripherals/Devices: Remote Controller
Technical parameters: value 2
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Frame
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
HAKRC 32BIT 40A 60A BLHeli-32 4in 1 ESC Speed Controller 8BIT 15A 25A 35A 45A BLHeli-S DShot150/300/600 STM32F051 Advanced PCB

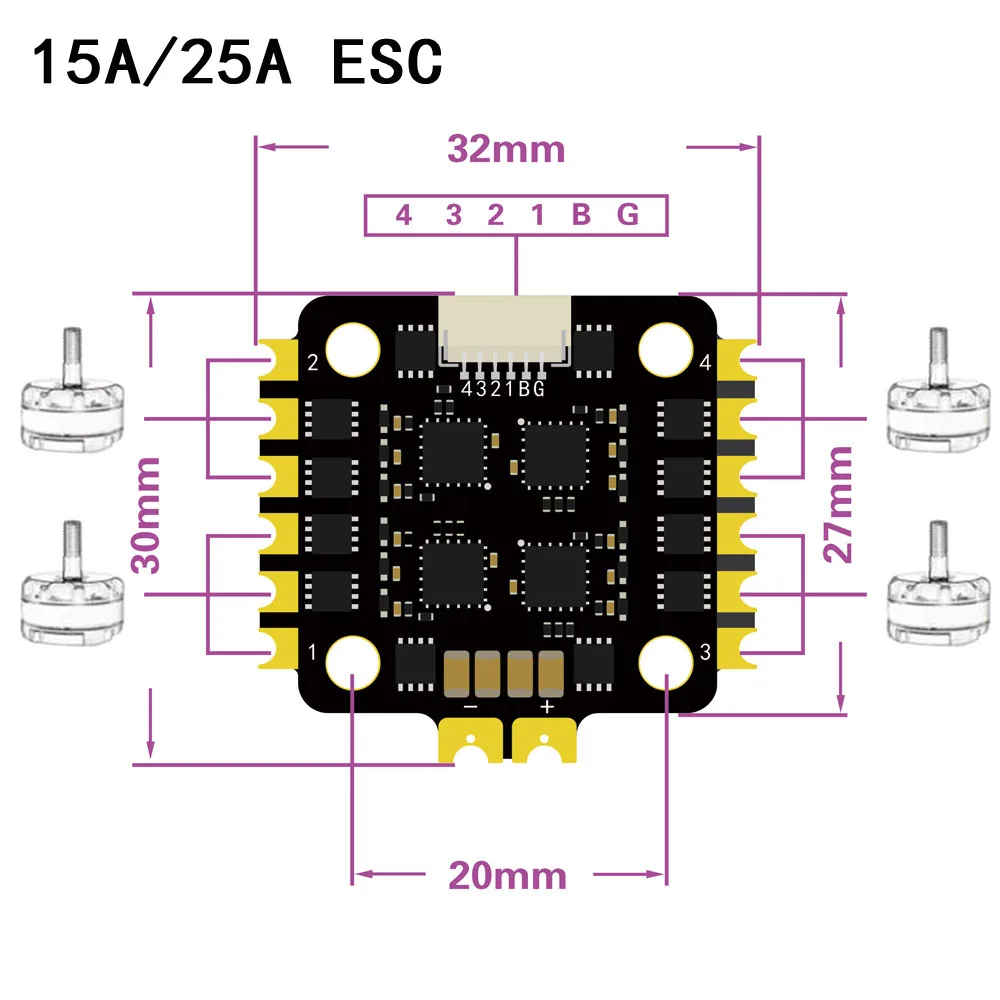

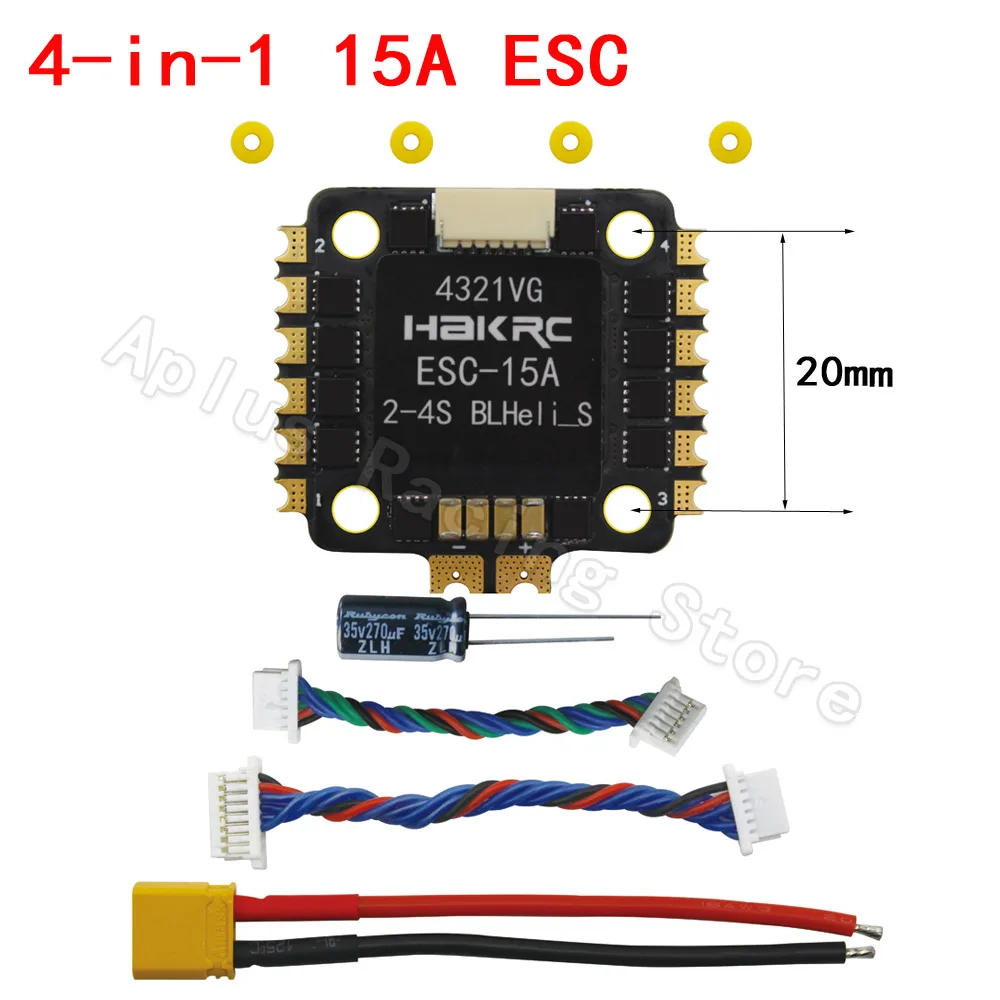

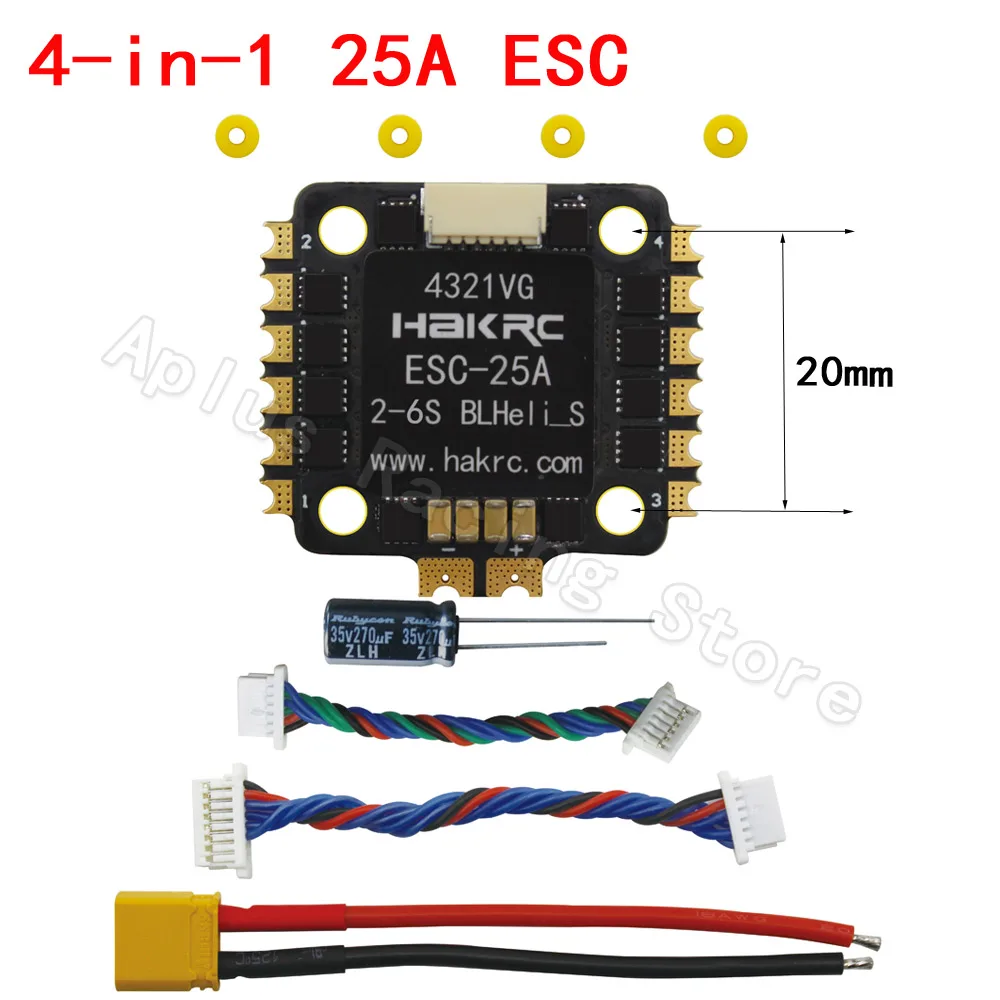

15A/25A Specification:
Item Name: mini 15A/25A Blheli_S BB2 4 In 1 ESC
Con. Current: 15A /25A
Max Current: 20A/35A (5S)
BEC: No
Lipo : 2-4S
Programmer: Yes
Weight: 4.8g
Size: 27x31mm (PCB)
Installing Hole: 20x20mm
Features:
- Blheli_S firmware
- BB2 Chip
- Mini Size 4 in 1 ESC ( 27x31mm) and weight (4.8g)
- With 20x20mm Installing Hole
- D-shot 600 indefault
- support D-shot 150, D-shot 300, Oneshot125 and Multishot

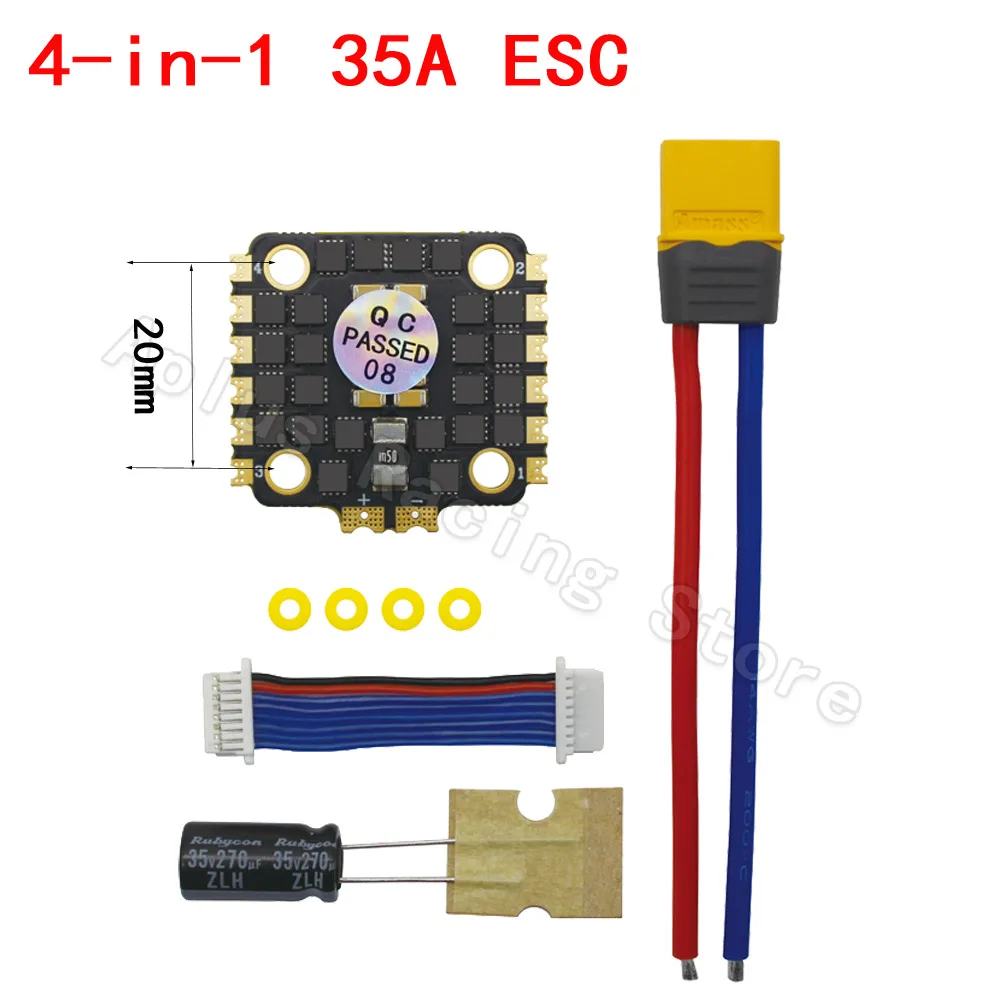

HK 8BIT 35A 4IN1 ESC Features
High quality hardware
Emf8bb21f16g main control chip, operating frequency up to 48mhz. MOSFET, three in one IC driver and high quality high frequency ceramic capacitor are imported. In high-end PCB production process, pads are metallized to avoid pad falling off when using; 3 oz copper thick, 6-layer board, greatly reducing heating and higher efficiency.
Highly integrated, compact
Integrate 4 high-performance 35A electric adjustment, built-in galvanometer, and purchase new advanced . After such high integration, the volume is only the same as that of the flight control of the traversing aircraft, so the installation and wiring will become very simple. This incredible size and volume is tailor-made for race class traversers.
Native support for blheli-s
Using blheli-s firmware has powerful performance and rich functions; it also supports setting electric tuning parameters in various ways, or upgrading electric tuning firmware (such as setting or upgrading electric tuning via throttle signal line, using other development boards, or using cleanflight or betaflight firmware flight control).
Hardware PWM, damped light
Hardware PWM drive motor, less noise, more smooth throttle response. Damp light technology, regenerative braking function, make motor deceleration more sensitive and effective, control more accurate; active freewheeling technology, let the battery recover power, prolong the endurance time;
DShot150/300/600 Ready
It not only supports ordinary PWM throttle signal mode, oneshot 125, oneshot 42 and multshot ultra-high speed throttle signals, but also supports the latest dshot150 / 300 / 600 digital throttle, with strong anti-interference ability and rapid response. Soft silicone wire is used for input and output line, which is very durable, high temperature resistant and easy to weld.

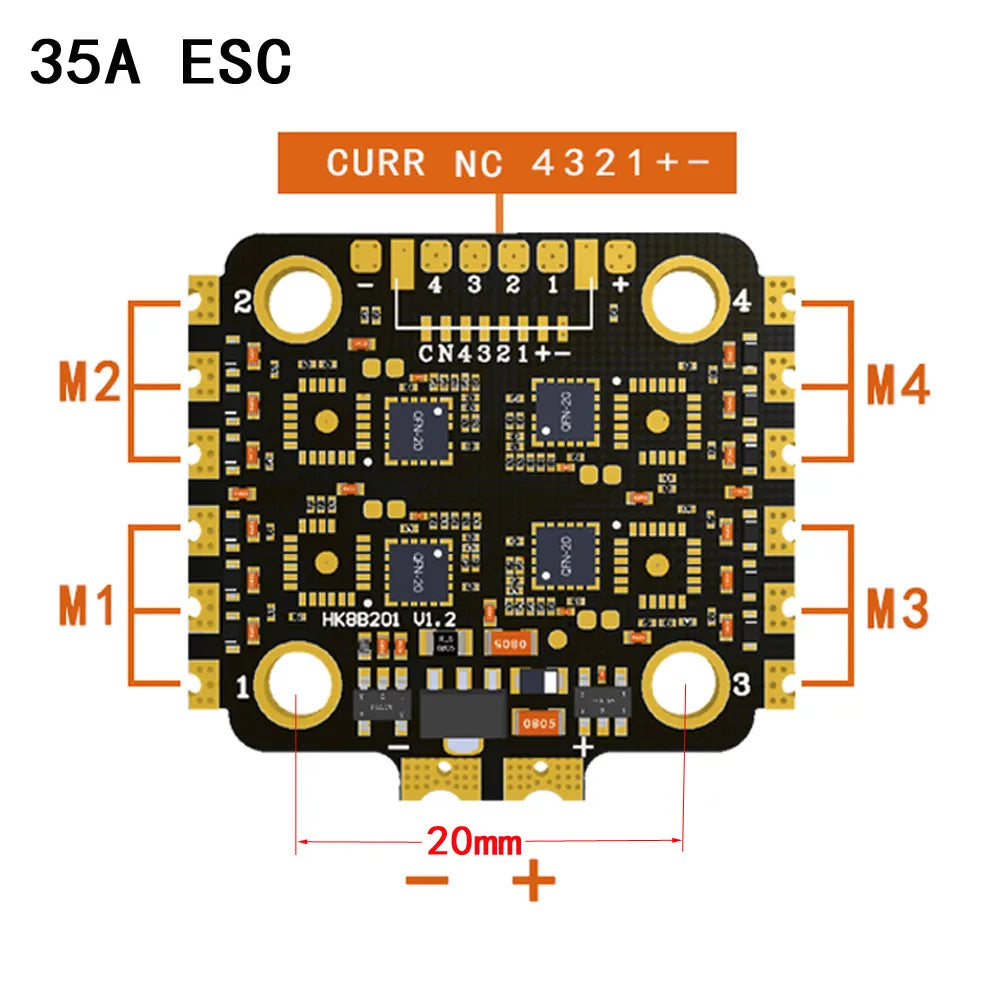

HK 8BIT 35A 4IN1 ESC Parameter
Working voltage: 2-6s
The maximum continuous working current is 35A
The maximum instantaneous working current is 40A
Support communication mode dshot150 / 300 / 600 PWM
Oneshot 125, oneshot 42 and multshot
Parameter adjustment software blhelisuite
Firmware version bl16.7
Installation hole spacing: 20 * 20MM
Product size: 31 * 30 * 6mm
Package size: 42 * 39 * 19mm
The net weight of the product is 6.1g
Package weight: 12.6g

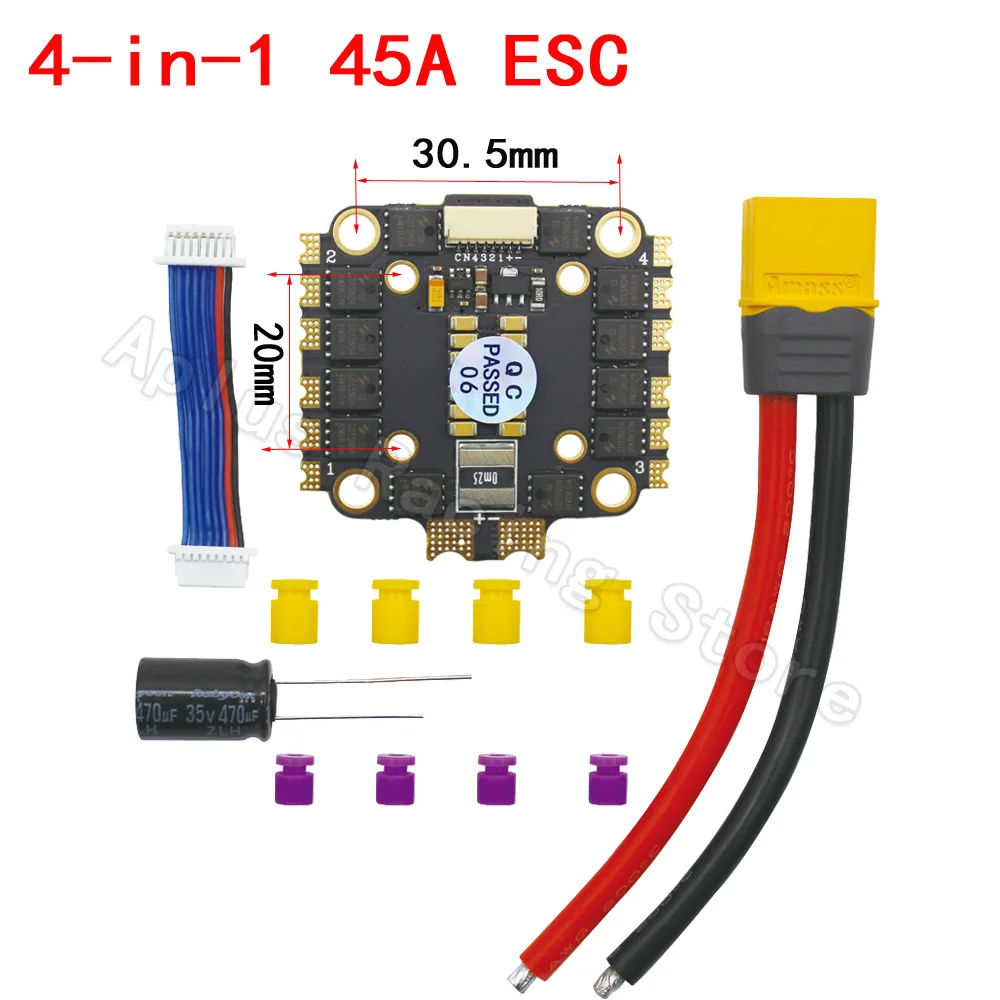

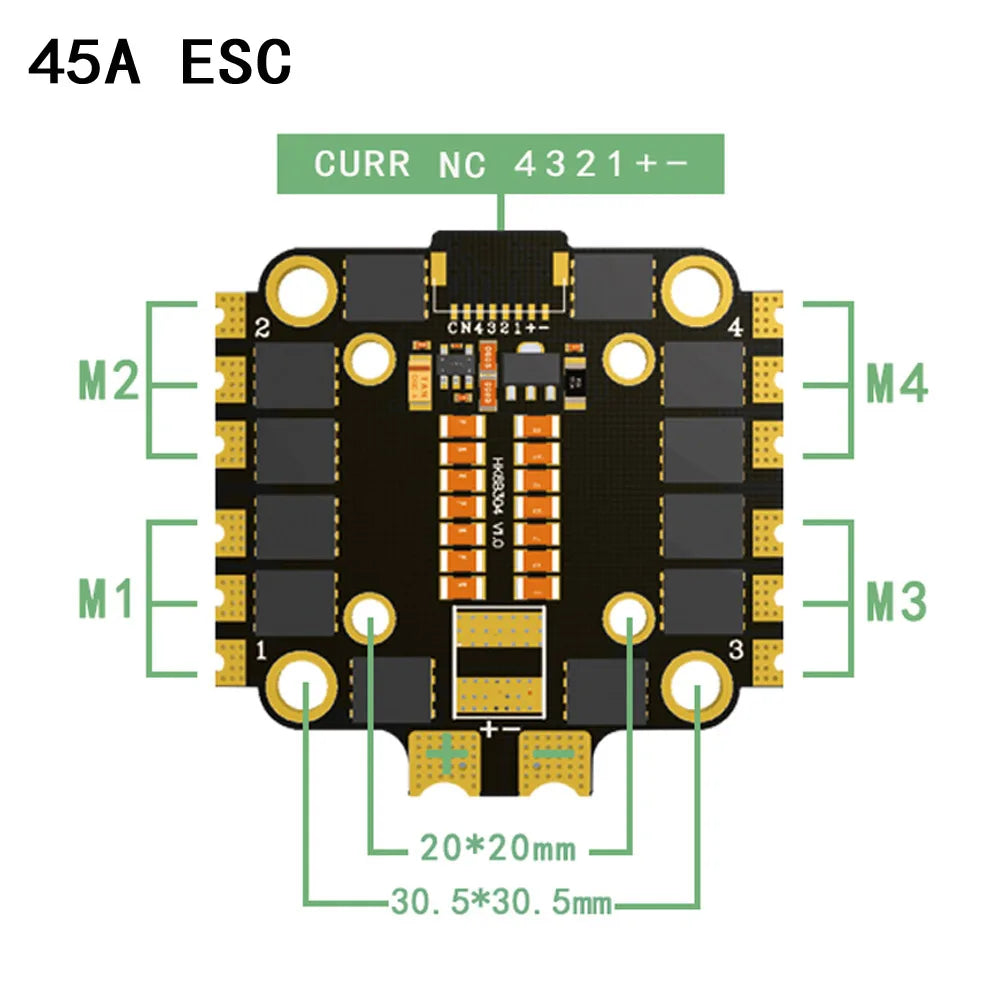

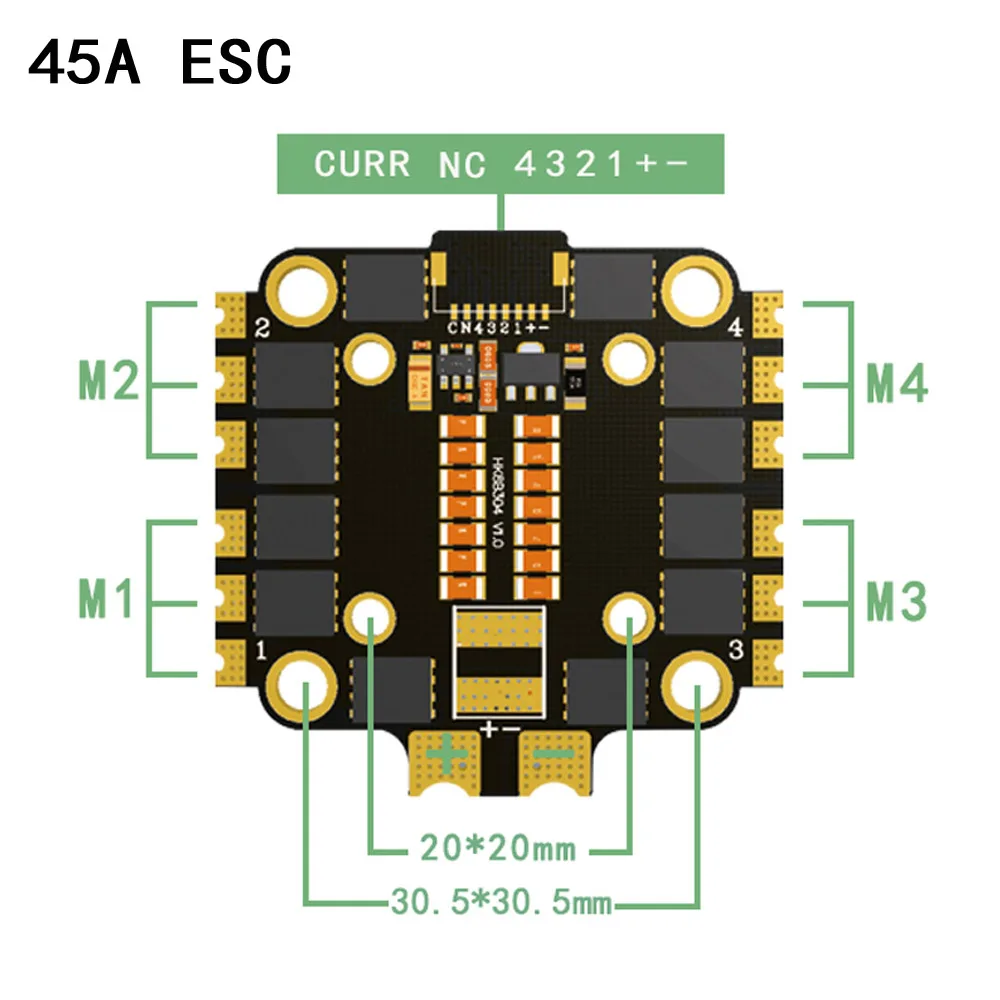

HK 8BIT 45A 4IN1 ESC Parameter
Working voltage: 2-6s
Maximum continuous working current: 45A
Maximum instantaneous working current: 50A
Support communication mode: dshot150 / 300 / 600 PWM, oneshot 125, oneshot 42 and multshot
Parameter adjustment software blhelisuite
Firmware version bl16.7
Installation hole spacing: 20 * 20MM / 30.5 * 30.5mm
Product size: 44 * 44 * 5.5mm
Package size: 62 * 58 * 18mm
The net weight of the product is 13.6g
Package weight: 27g

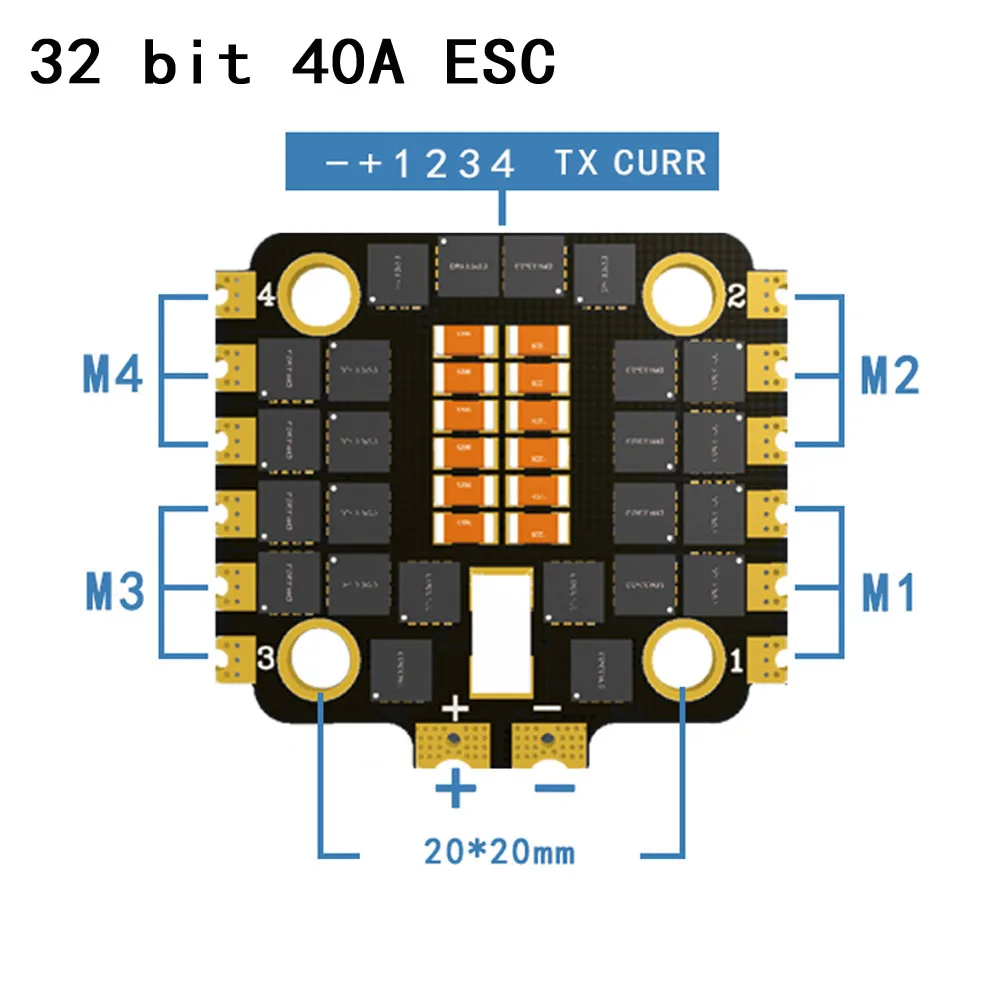

HK 32BIT 40A 4IN1 ESC Feature
High quality hardware
Stm32f051 is the main control chip, and the operation frequency is as high as 48mhz. MOSFET, three in one IC driver and high quality high frequency ceramic capacitor are imported. In high-end PCB production process, pads are metallized to avoid pad falling off when using; 3 oz copper thick, 6-layer board, greatly reducing heating and higher efficiency.
Highly integrated, compact
The built-in 40t is highly integrated with the new SMA in high performance after installation. This incredible size and volume is tailor-made for race class traversers.
Native support for blheli-32
Using blheli-32 firmware has powerful performance and rich functions; it also supports various ways to set electric tuning parameters, or to upgrade electric tuning firmware (for example, setting or upgrading electrical tuning via throttle signal line, using other development boards, or using cleanflight or betaflight firmware flight control).
Hardware PWM, damped light
Hardware PWM drive motor, less noise, more smooth throttle response. Damp light technology, regenerative braking function, make motor deceleration more sensitive and effective, control more accurate; active freewheeling technology, let the battery recover power, prolong the endurance time;
DShot150/300/600/1200 Ready
It not only supports ordinary PWM throttle signal mode, oneshot 125, oneshot 42 and multshot ultra-high speed throttle signals, but also supports the latest dshot150 / 300 / 600 / 1200 digital throttle, with strong anti-interference ability and rapid response. Soft silicone wire is used for input and output line, which is very durable, high temperature resistant and easy to weld.

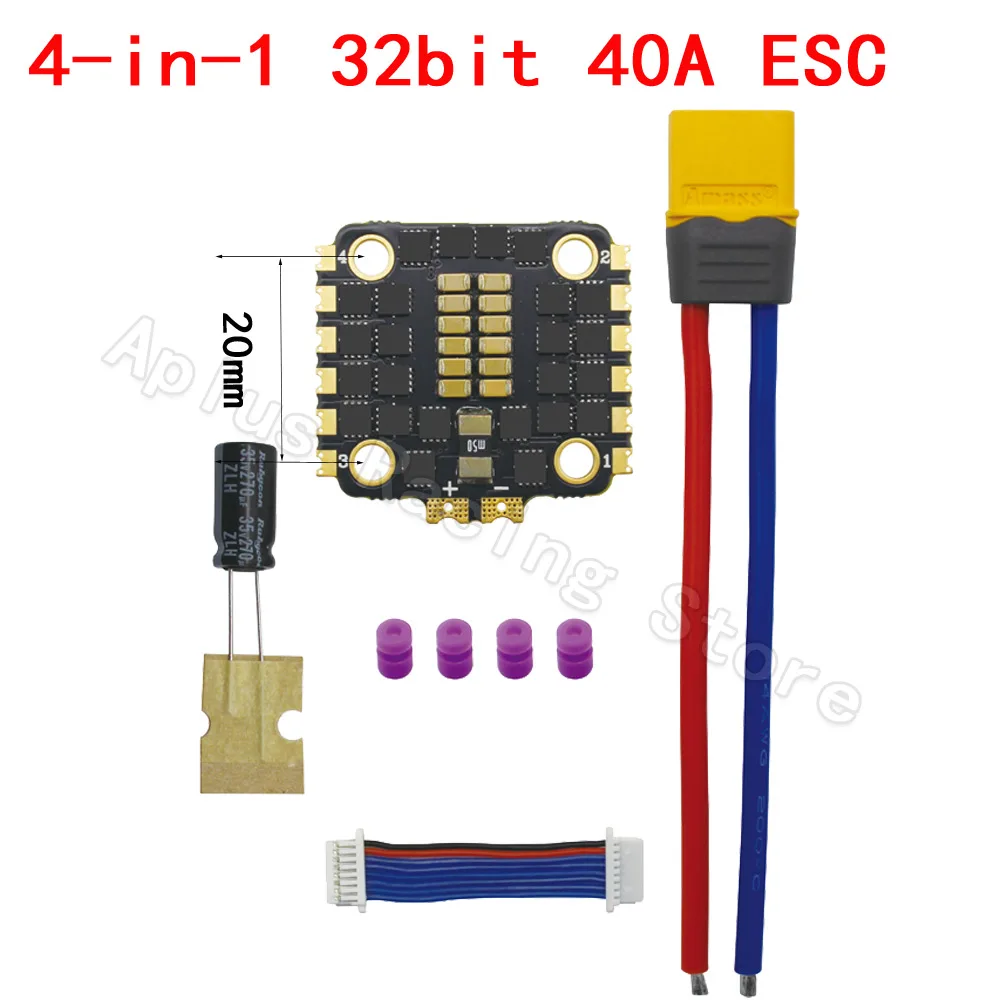

HK 32BIT 40A 4IN1 ESC Parameter
Working voltage: 2-6s
The maximum continuous working current is 40A
Maximum instantaneous working current: 45A
Support communication mode: dshot150 / 300 / 600 / 1200 PWM, oneshot 125, oneshot 42 and multshot
Parameter adjustment software blheli 32
Firmware version bl32.7
Installation hole spacing: 20 * 20MM
Product size: 31 * 30 * 6mm
Package size: 42 * 39 * 19mm
Net weight of product: 6g
Package weight: 15g

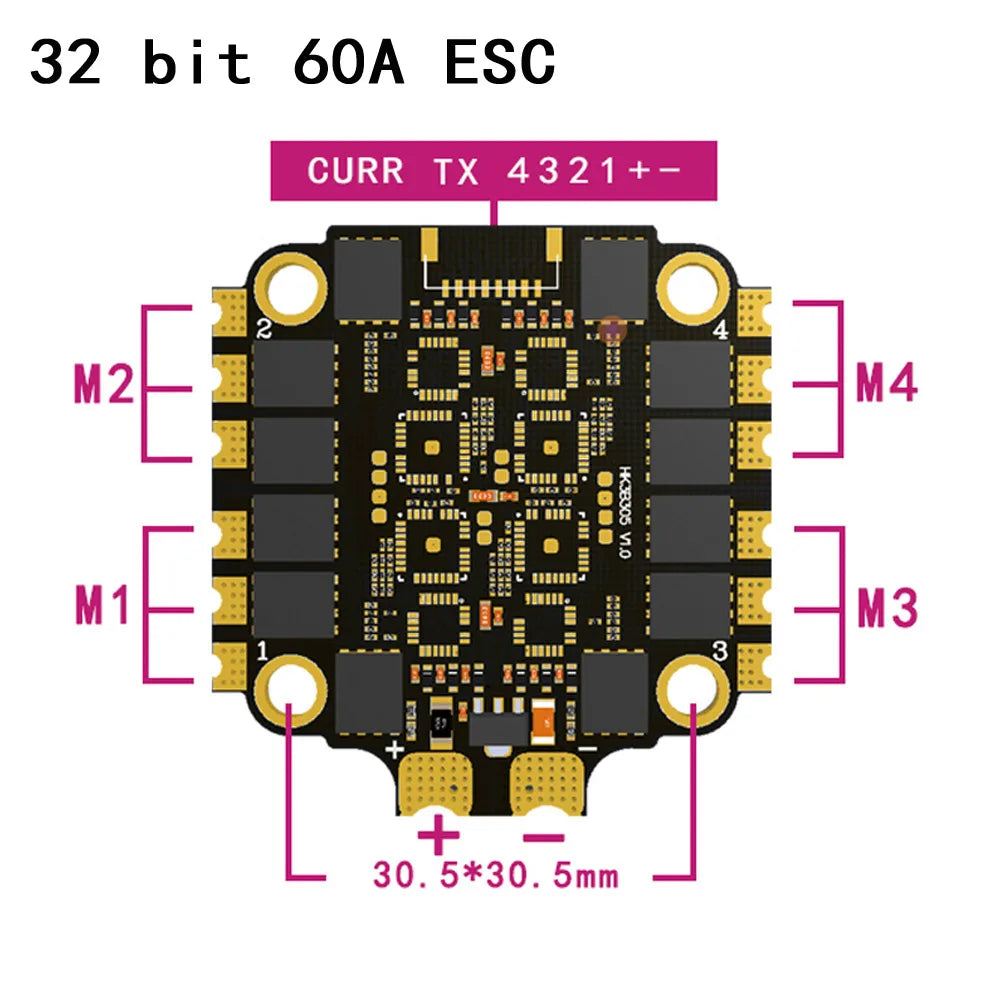

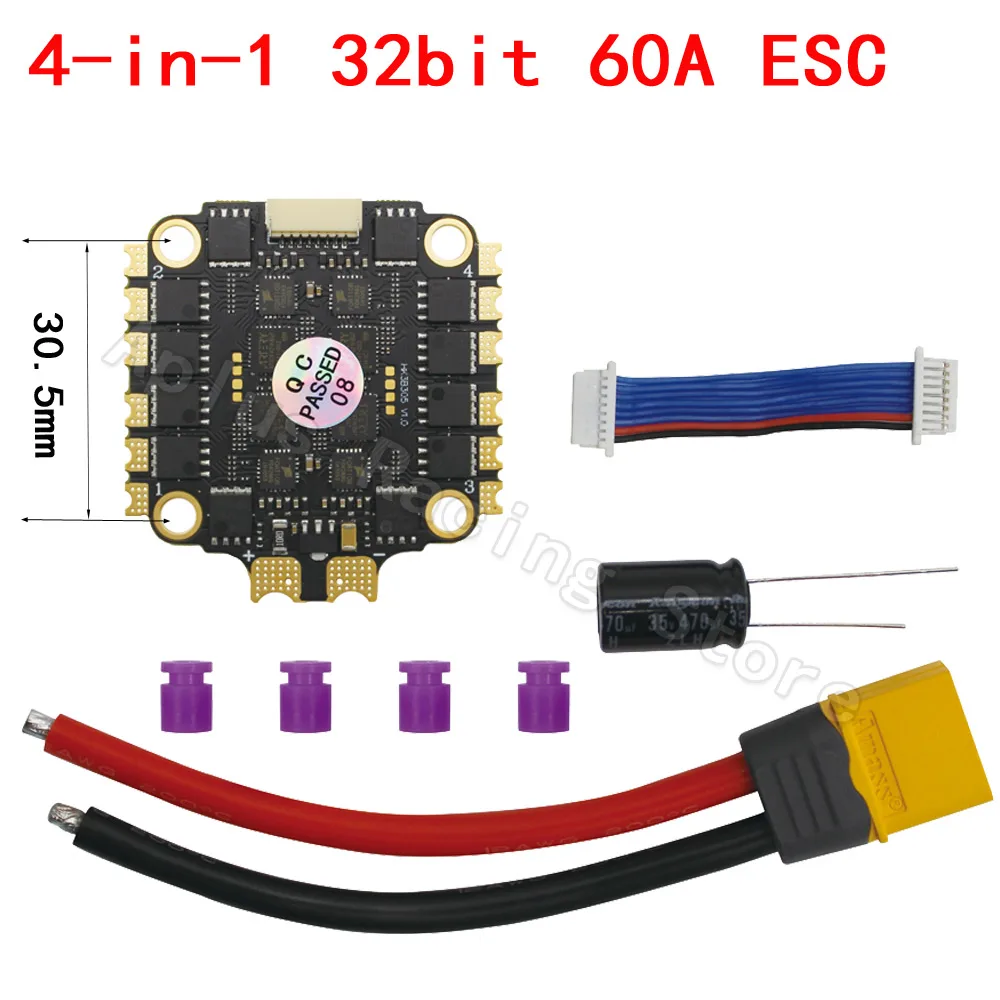

HK 32BIT 60A 4IN1 ESC Parameter
Working voltage: 2-6s
Maximum continuous working current: 60A
Maximum instantaneous working current: 70A
Support communication mode: dshot150 / 300 / 600 / 1200 PWM, oneshot 125, oneshot 42 and multshot
Parameter adjustment software blheli 32
Firmware version bl32.7
Installation hole spacing: 30.5 * 30.5mm
Product size: 45 * 42.5 * 6mm
Package size: Φ 62 * 33mm
The net weight of the product is 14.5g
Package weight: 40g
