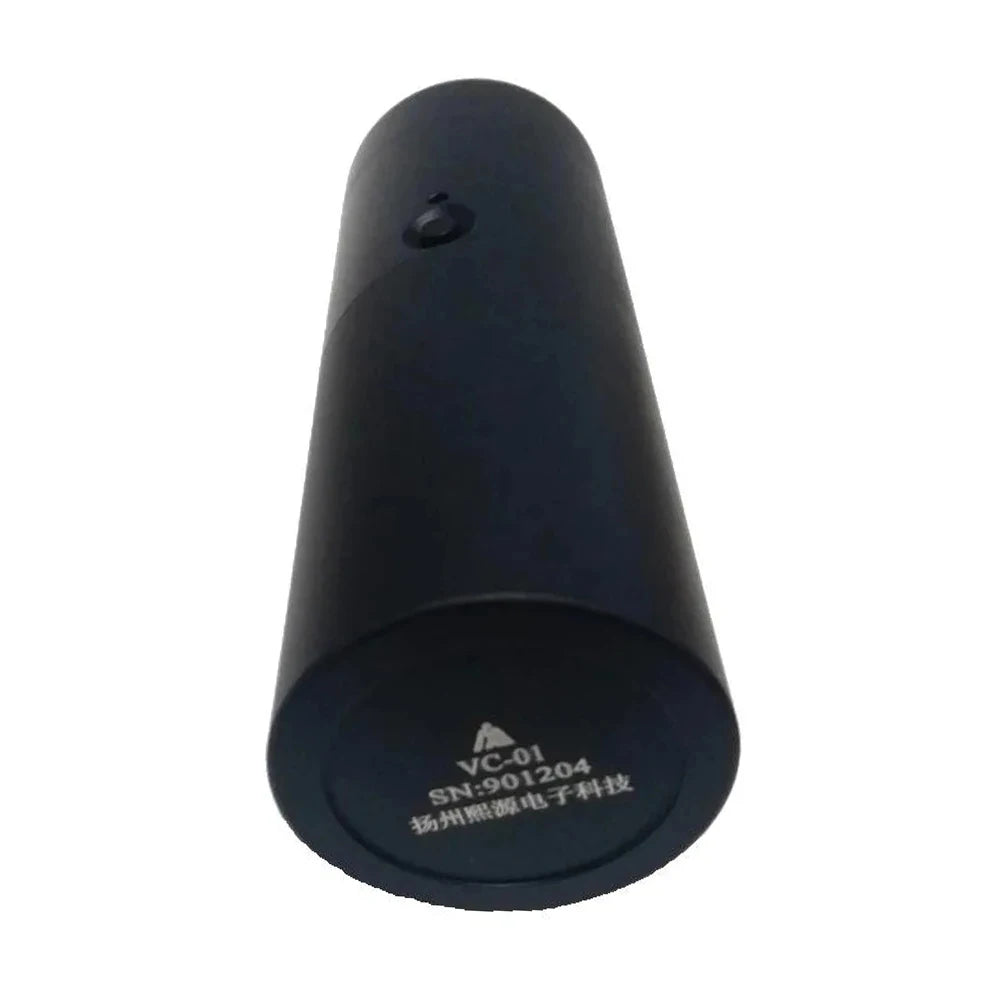

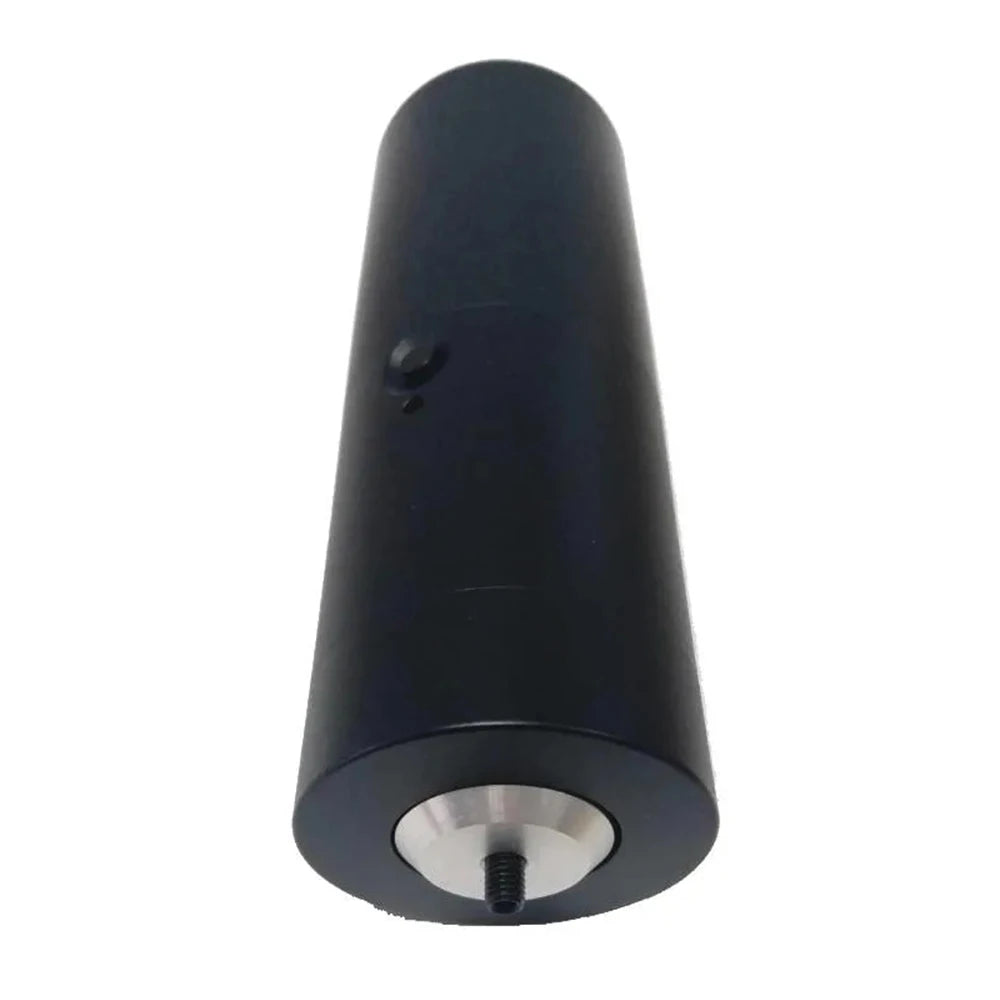

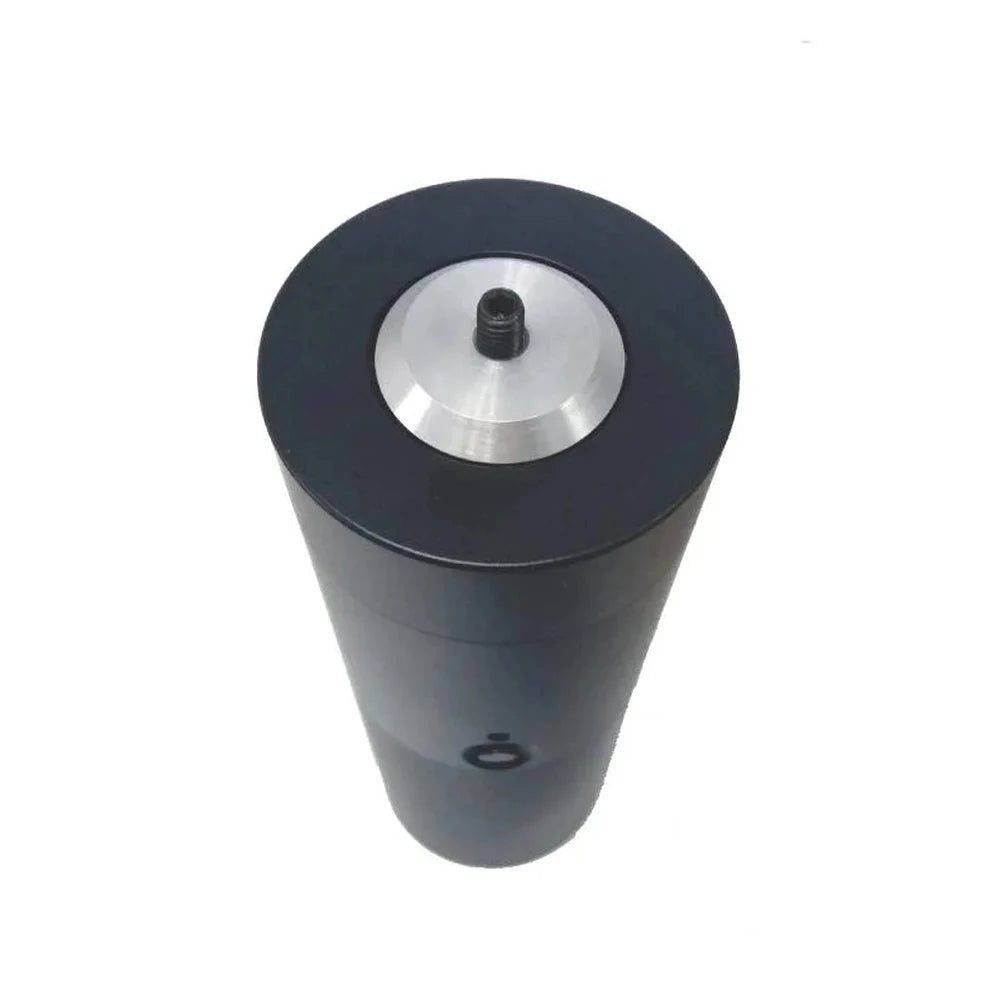

VC-01 Hand-held Vibration Calibrator

Rapid determination of acceleration, velocity and displacement sensor sensitivity
Built-in rechargeable battery, can produce sine vibration with 159.2Hz±0.5% (1000rads) of vibration frequency; acceleration
amplitude rms: 9.81m/s2 (1g) ±5%; vibration speed amplitude rms: 9.81vmm/s±5%; vibration displacement amplitude rms: 9.81µm±5%;
with automatic shutdown and under-voltage indication function; maximum load 100g; can be used as a on-site standard vibration
source or for calibration and detection of sensors; low distortion (<3%), light weight (500g), portable (size: Φ52 x 148).

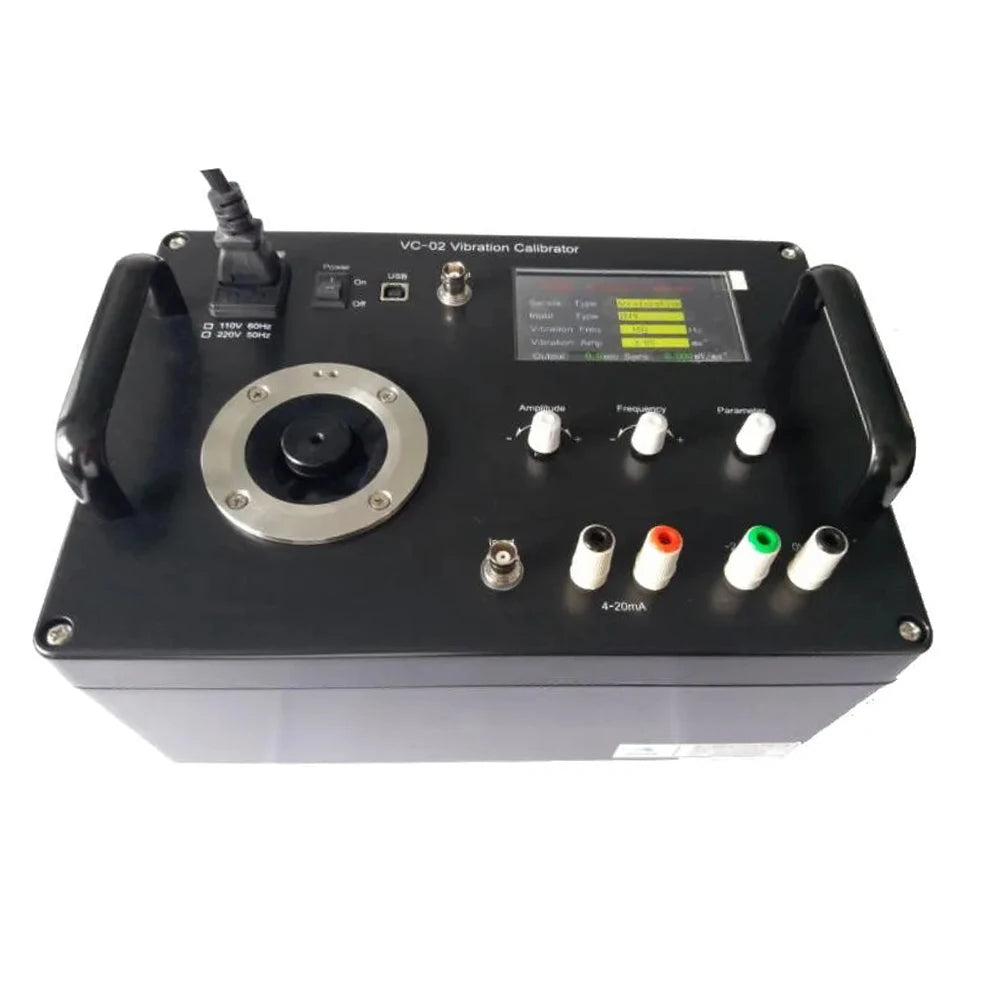

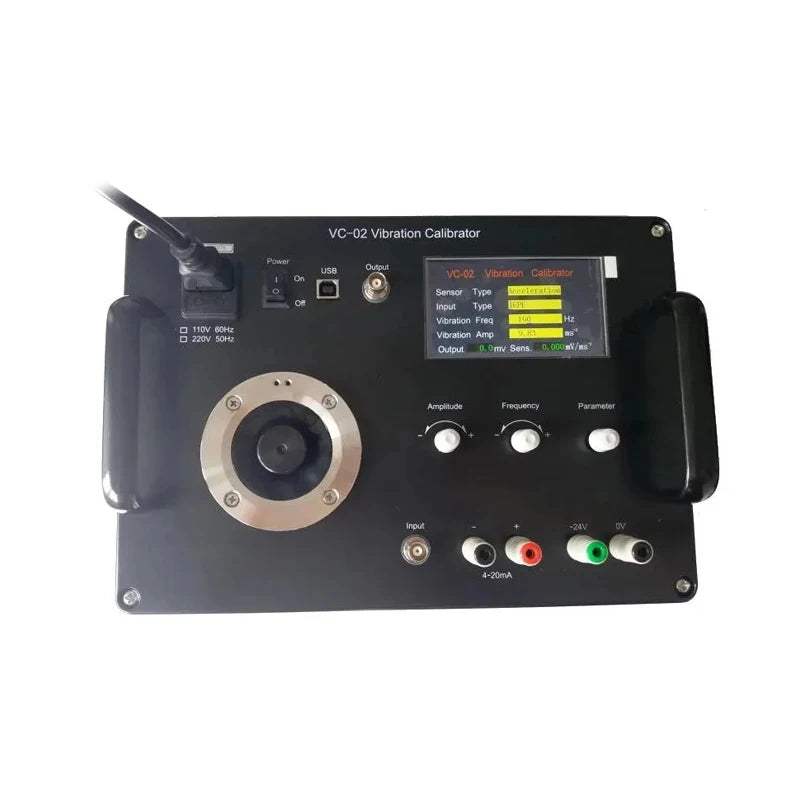

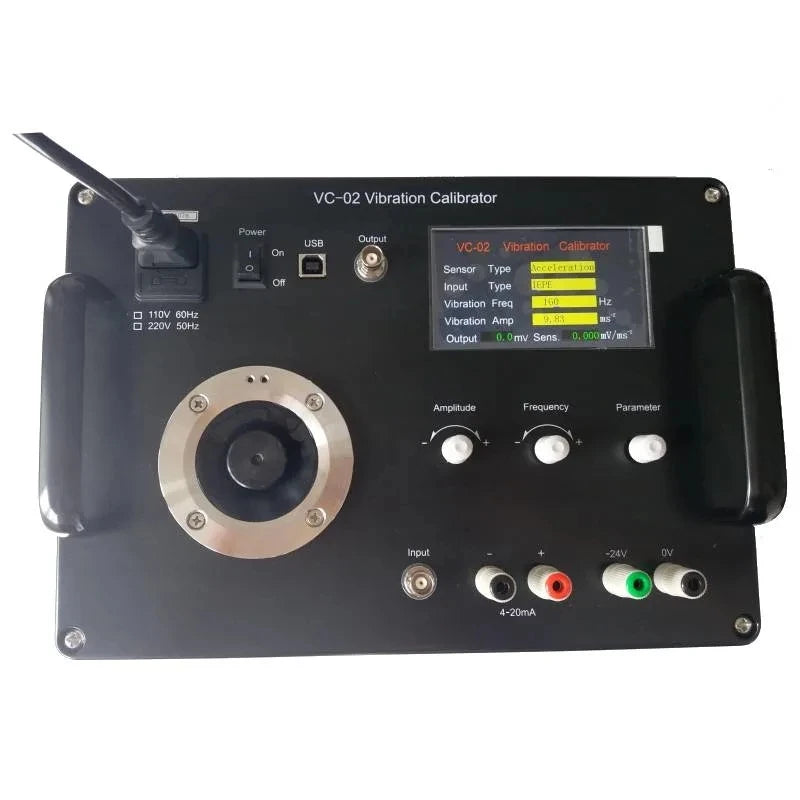

VC-02 Portable Vibration Calibrator

Direct display with continuously adjustable frequency and vibration amplitude
Continuously adjustable frequency: 10-10kHz, continuously adjustable vibration amplitude: 0-±10g(Peak); direct calibration of
charge output sensors, IEPE voltage output sensors and voltage output sensors, direct display of the output sensitivity and
frequency of the sensor under test; addition of eddy current fixture for dynamic calibration of displacement sensors; with the
addition of the software, the sensitivity, amplitude frequency, phase frequency and amplitude linearity of the sensor can be
automatically calibrated and reported; about 7 kg, DC power supply, with external rechargeable battery and power adapter.
