SPECIFICATIONS

Brand Name: SHALUO

External dimensions: 210mm x 152mm x 46mm

High-concerned chemical: None

Is it electrified: No

LXC6210: no AMF

LXC6220: AMF function

Model Number: LIXiSE AIG716

Opening size: 186mm x 141mm

Origin: Mainland China

Rated voltage for power generation: 30-620V

function: auto start generator

is_customized: Yes

1.Product Overview:

This series of controllers is designed for diesel, gasoline and gas generator sets to start, stop. parameter monitoring and fault monitoring, and has parameter setting function.

This controller has manual start and stop functions, and can also realize automatic start and stop control of the unit through remote switch; it adopts dot matrix high resolution LCD display, w hich can display a variety of parameters and fault status at the same time, so as to effectively im plement protection and stop when the generator set works abnormally.

The controller has a choice of display interface in simplified Chinese, English and other langu ages,and can be customized according to customer requirements. All parameters of the controller can be adjusted by pressing the button on the controller panel, or adjusted and monitored through the PC through USB interface (AlG716). lt can be widely used in various types of generator set a utomation systems.

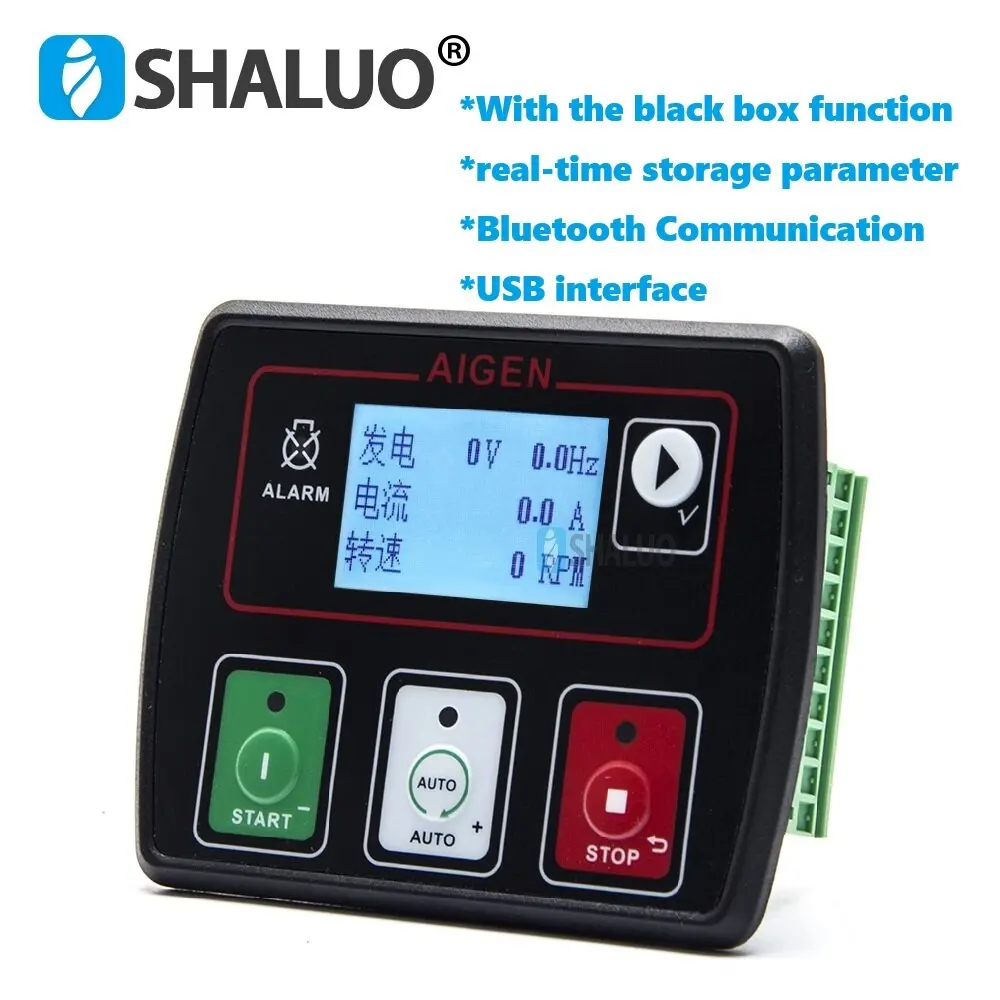

The controller has built-in Bluetooth module communication function, which can be operated a nd controlled by the mobile APp to perform convenient functions such as parameter modification and fault analysis

2.Performance and features:

32-bit high performance microcontroller is used for control;

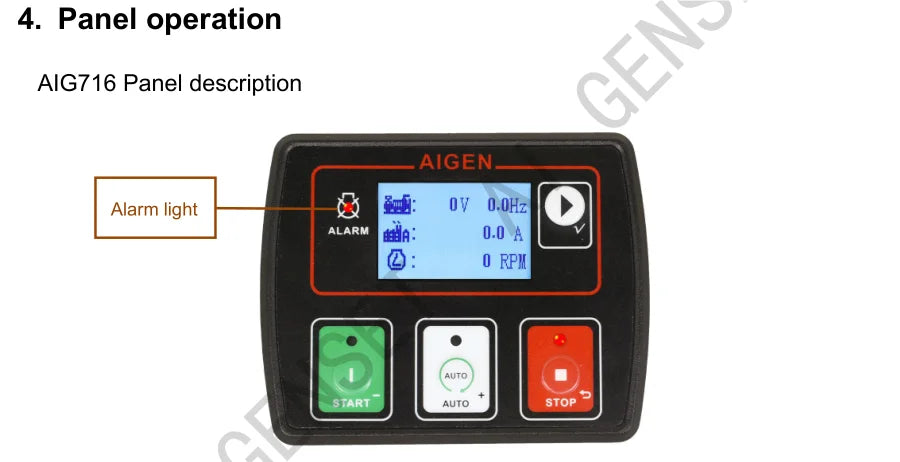

Dot matrix high-resolution LCD display, language pack can be customized according to customer requirements;

The PC material button panel is used, which can effectively prevent water, oil and ultra violet rays,has good operation feel and long service life;

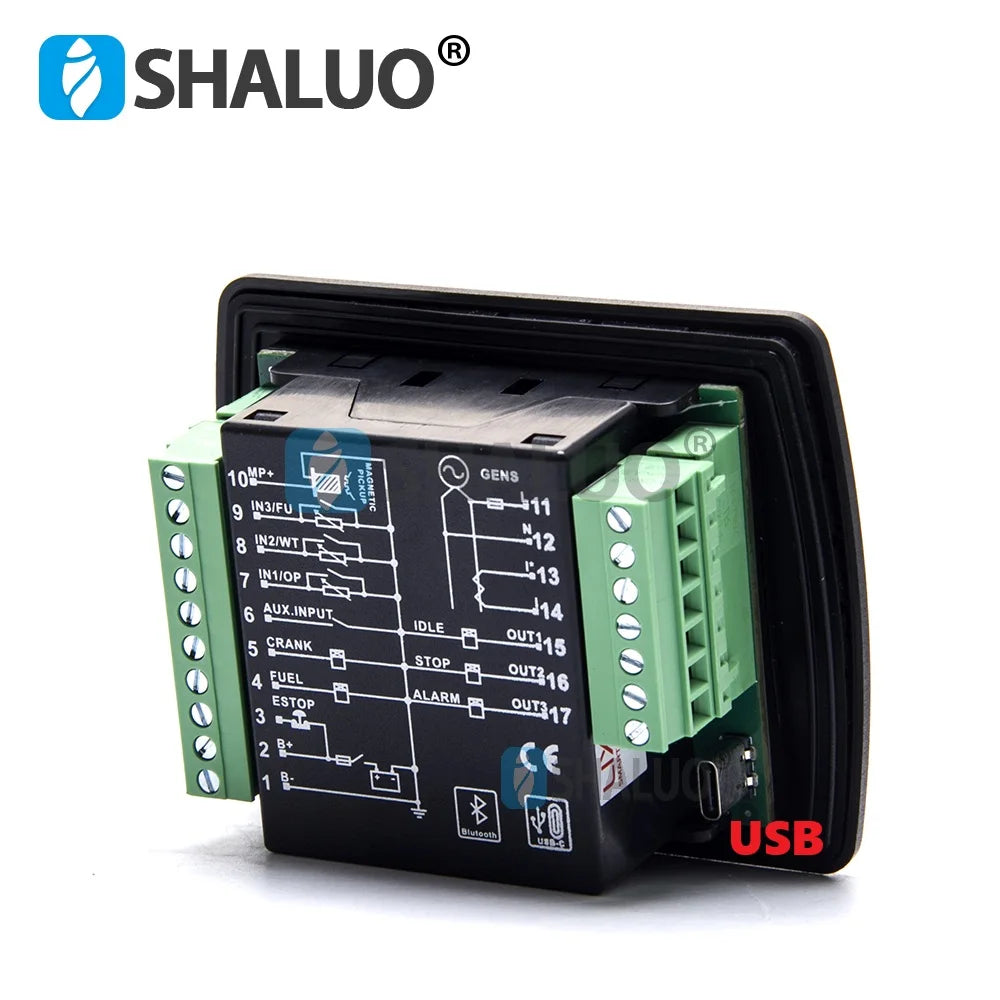

With TYPE-C interface, parameters can be set and real-time monitoring can be monitord through TYPE-C interface;

Collect and display engine RPM,oil pressure kPa/PSl, temperature ℃C/F, oil level%, batte ry voltage V, running time H, cumulative running time H, load rate% and other paramet er

Collect and display the generator frequency Hz, voltage V, current A, power KW, load r ate%:

Maintenance countdown and reminder functions:

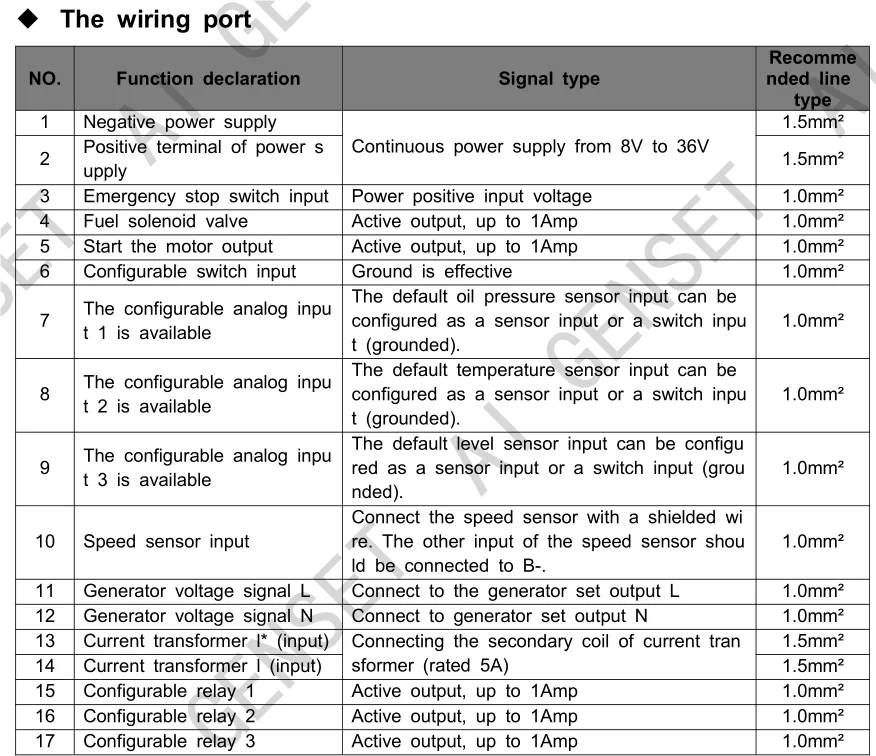

5 relay outputs, of which 3 output functions can be configured;

1 switch input, configurable functions, and nearly 10 functions are available;

3 analog inputs, configurable functions, and can be selected as sensor input or switch input;

A combination of multiple starting conditions (speed, frequency, and oil pressure) can be selected;

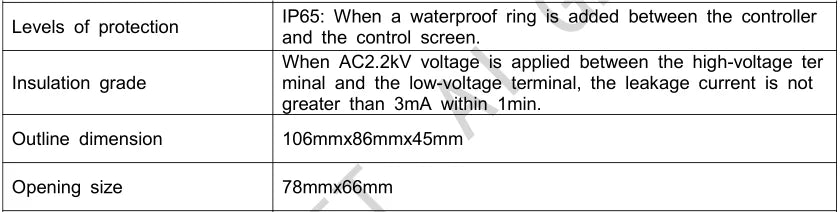

The waterproof ring is standard, and the protection performance of the rear panel reaches IP65 level:

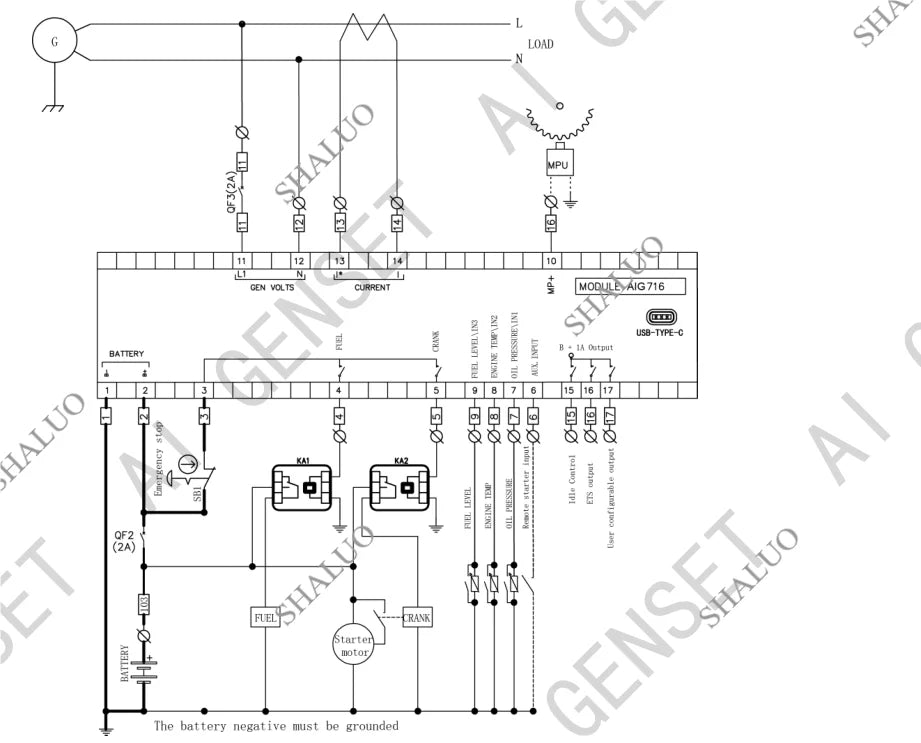

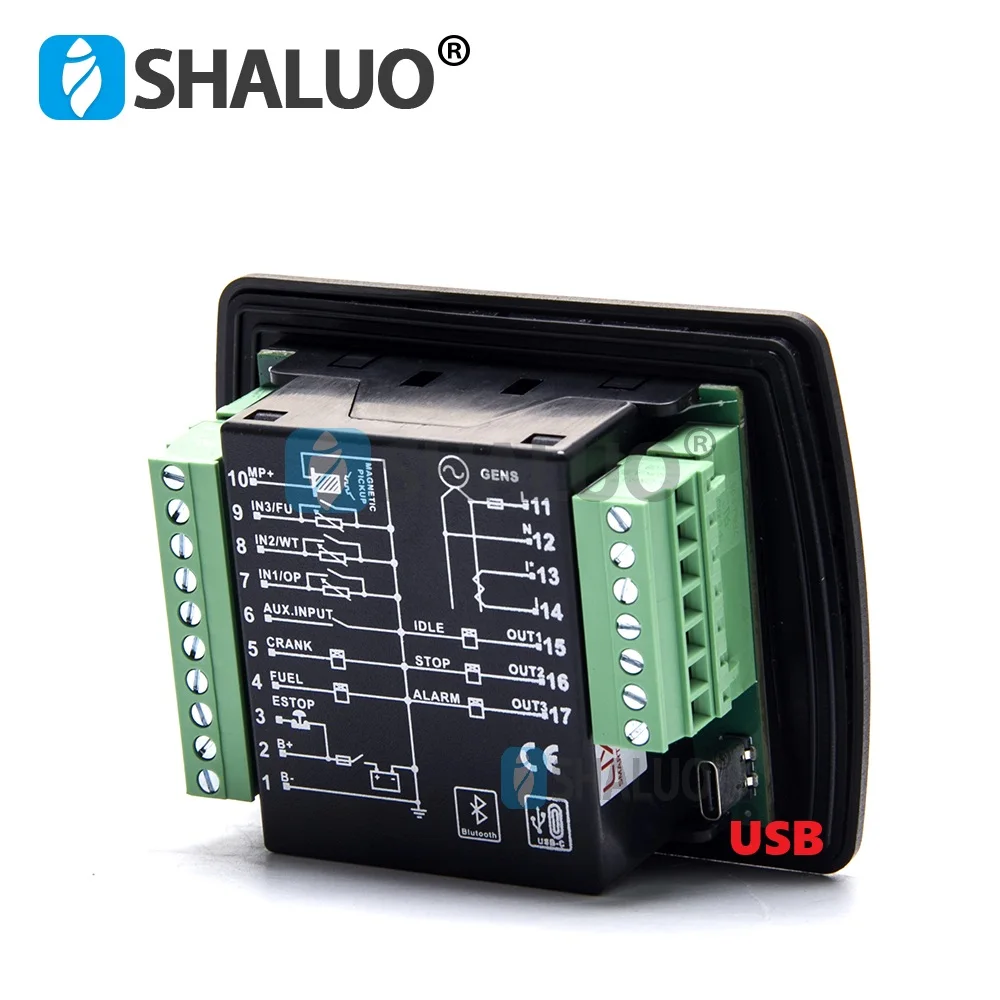

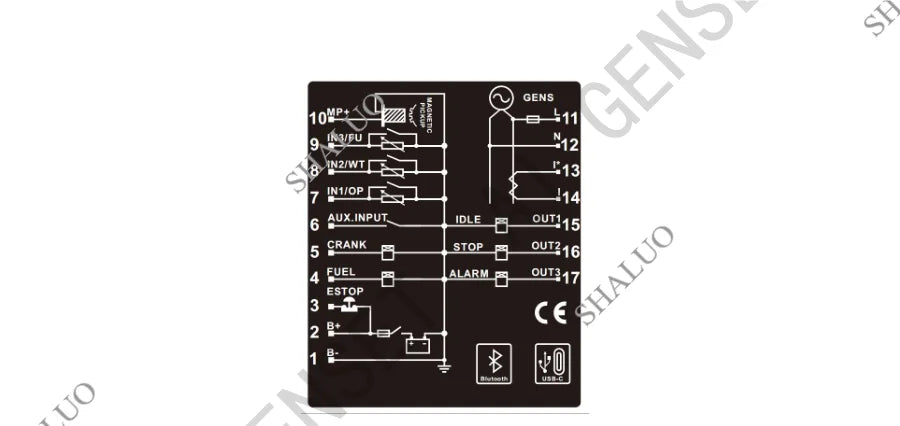

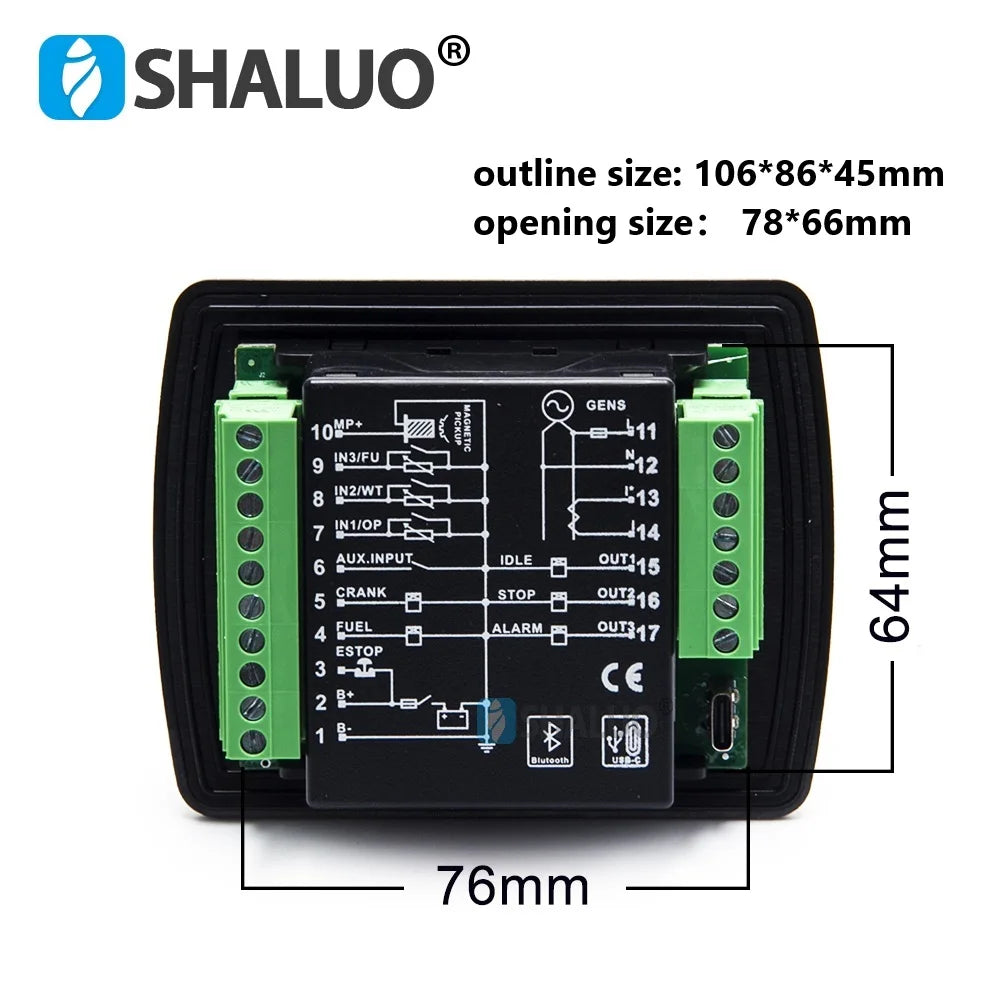

Modular design: All connections are completed through European terminals, and the assembly, wiring, repair and replacement of the equipment is very easy and convenient;

Black box patent technology: records the operation data before the fault occurs, saves the relevant parameters of the unit when the fault alarm occurs in real time, which is to find the cause of the unit fault, and helps users quickly diagnose the fault;

Bluetooth communication function: Direct connection to the generator, no need for a traffic

card to view black box curve data, power generation records, and alarm history records;

User (fault) feedback .Quick response to users, solve after-sales service problems, reduce after-sales service costs:

Battery aging detection · prevent starting failure caused by battery aging, and improve the reliability of starting:

High reliability design and production . ensure a failure rate of one in ten thousand within one year.
