SPECIFICATIONS

Brand Name: SHUAICHI

Certification: CE

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: AM32 2-4S 40A ESC

Origin: Mainland China

RC Parts & Accs: Speed Controllers

Recommend Age: 14+y

Remote Control Peripherals/Devices: for Drone 1/18 1/24 SCX24 RC Crawler Car 1/16 Tank

Size: as shown in picture

Tool Supplies: Assembled class

Upgrade Parts/Accessories: On-board 5V2A BEC Module

Use: Vehicles & Remote Control Toys

AM32 2-4S 40A ESC 32-bit Brushless Speed Controller On-board 5V2A BEC Module for Drone 1/18 1/24 SCX24 RC Crawler Car 1/16 Tank

Attention:

- If you need to adjust the parameters by yourself, please contact our customer service personnel to obtain the official AM32 parameter-tuning software. We will not provide after-sales service if the ESC fails to function properly due to the improper use of parameter-tuning tools.

- Products may have minor appearance adjustments based on customer feedback, which will not affect usage. Please place your order cautiously if you mind this.

4 types for your refer:

- AM32 ESC enhanced

- AM32 ESC with wire

- parameter adjuster

- ESC w wire adjuster: 1pcs AM32 ESC with wire + 1pcs parameter adjuster

Description:

- A new 32-bit ESC product, with a super mini size, very suitable for compact installation, it is a driving tool for various small model airplane brushless motors.

- Selected low-power MOS tube with layout placed on the same side for convenient heat dissipation and strong power.

- Mini size and high power, it is the preferred power for small aircraft, crawler, climbing vehicles.

Suitable for 1/24 SCX24, 1/18 RC crawler car. It can also be used on 1/16 RC tanks.

- The enhanced version integrates the BEC module (5V2A) on the basis of the standard version's unchanged size, adds overcurrent copper bars, adds thermal conductive silicone sheets, and takes all performance to a higher level.

- Supports mainstream control signals such as DSHOT and PWM, with linear at low speeds, violent at high speeds, and smooth speed regulation. It uses AM32 open-source firmware, which can be freely adjusted. It supports bidirectional operation, adjustable drag braking, sine start, and other functions, and fast forward and reverse switching is very smooth.

- Attention! It is strongly recommended to install a large capacity electrolytic capacitor(NOT include, prepare by yourself) outside the ESC to improve its working condition! (The AM32 ESC with wire version has a 470uF 35V capacitor to improve its working condition.)

- Add low voltage protection function, improve low-speed linear performance.

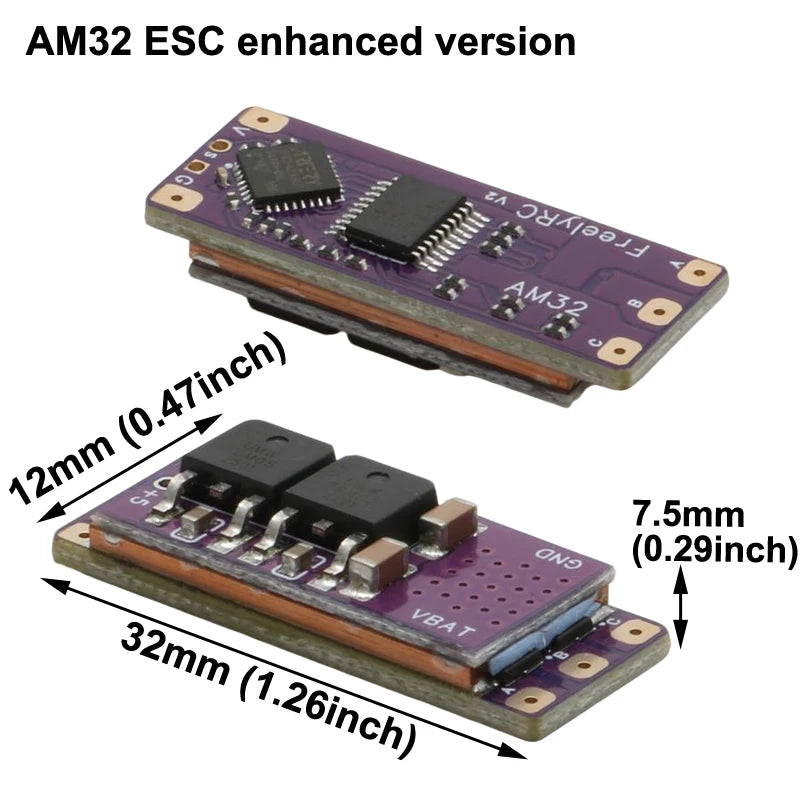

Specification of AM32 ESC enhanced:

- Item name: 32-bit ESC

- Item type: enhanced version

- Model: A01-3012

- Firmware: AM32

- Master control: AT32

- Working voltage: 2-4S Lipo

- Max current: 40A

- BEC module: with BEC module, 5V2A

- Support signal: PWM/DSHOT/Sine, etc.

- Size: 32x12x7.5mm/1.26x0.47x0.29inch

- Weight: 6.3g (0.0139 pounds)

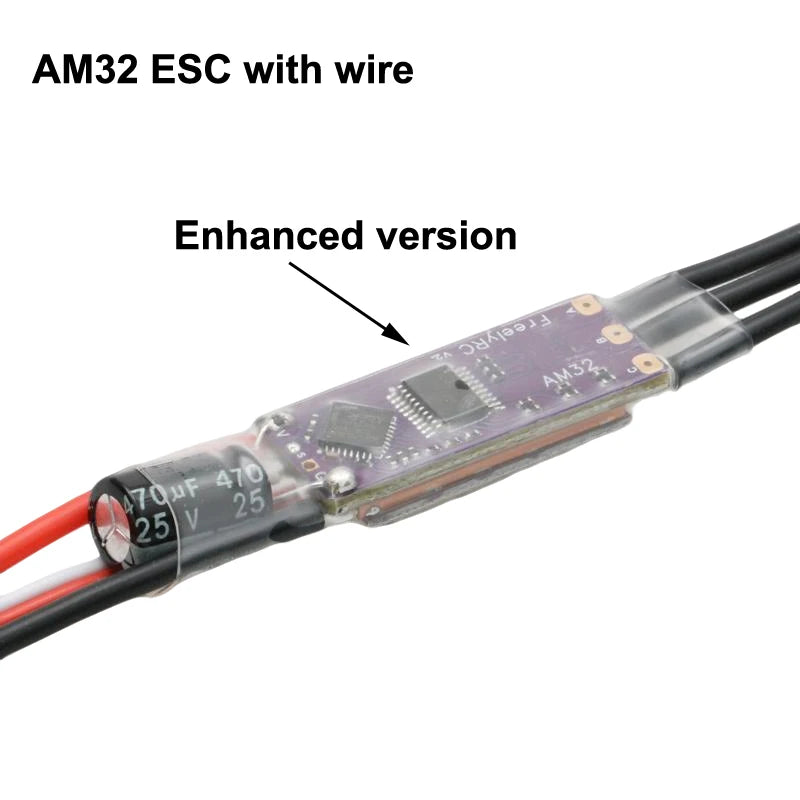

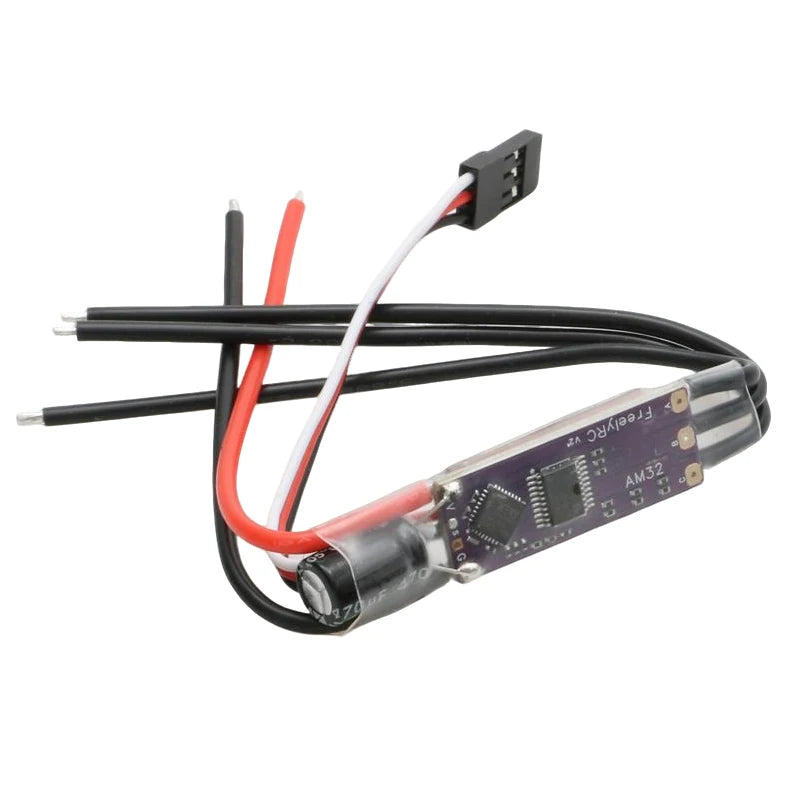

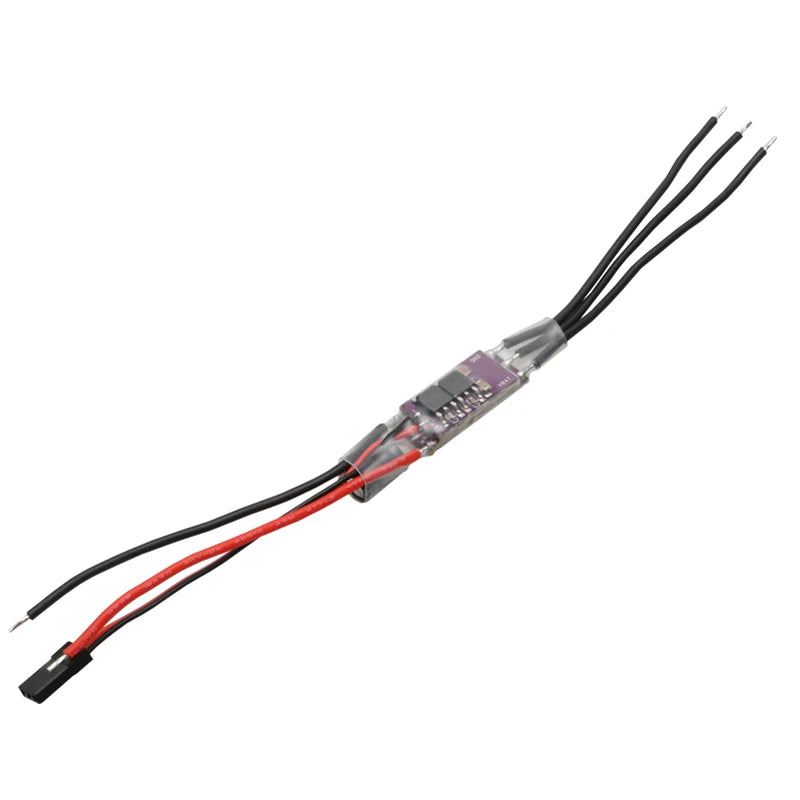

Features of AM32 ESC with wire:

- It is equivalent to the AM32 ESC enhanced version with wires soldered on.

- Signal cable length: about 106mm

- Weight: about 13.7g (0.03 pounds)

Strongly recommended! When using the AM32 ESC, it is necessary to use in conjunction with a parameter adjuster.

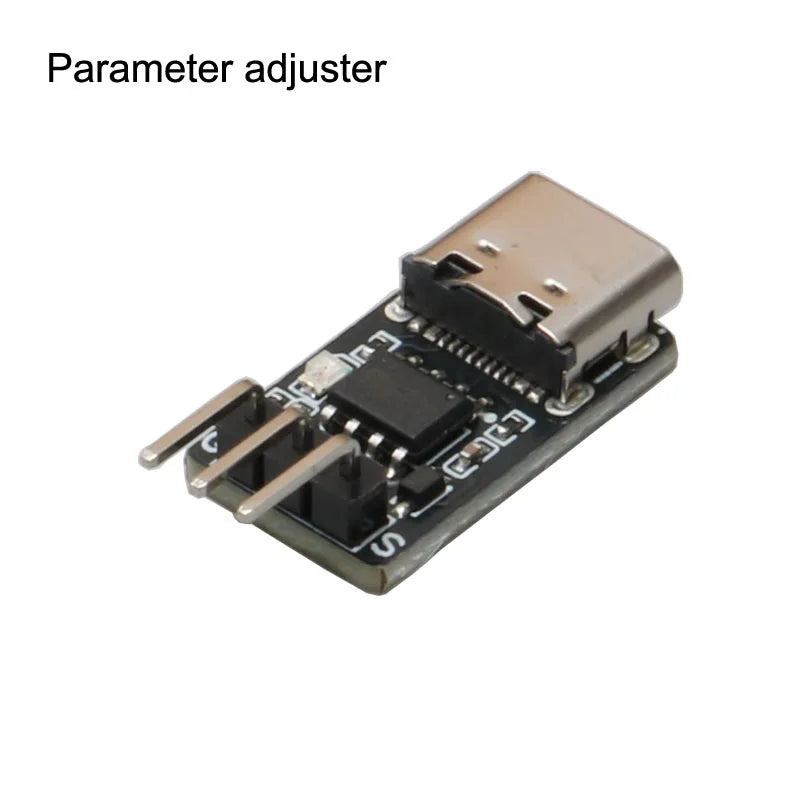

Parameter adjuster:

- Type-C port

- Special for AM32 32-bit ESC

- Weight: about 2.5g (0.0055 pounds)

Parameter adjustment instructions:

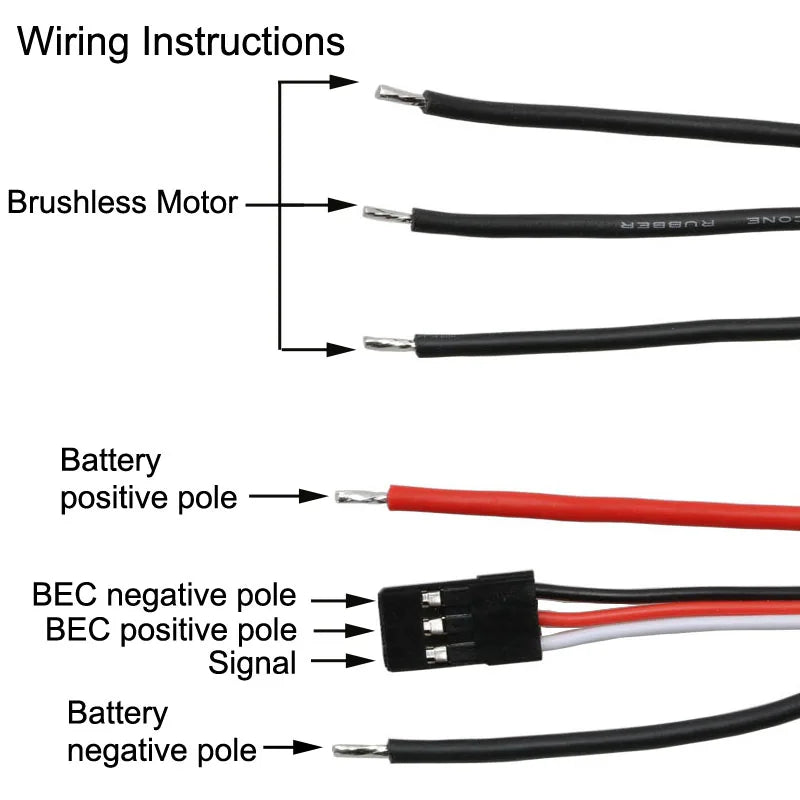

1. The 3P plug of the ESC, the white signal line corresponds to S, and the black BEC negative line corresponds to G, plug into the S and G of the parameter adjuster.

2. Plug the parameter adjuster into the USB port of the computer (win10 is recommended), and plug in the battery of the ESC.

3. In the FreelyRC product manual and tool library, download the parameter adjuster driver (win10 does not require installation), and the parameter adjustment software package Esc_Config_Tool_1.82 (unzip it without installation).

4. After ensuring that the parameter adjuster driver is normal (the CH340 serial port device is recognized in the device manager), open the unzipped parameter adjustment software folder and run "SerialPortConnector.exe"

5. Operate the software in the order shown below:

In step 2, select the COM number corresponding to the adjuster in the drop-down box.

Note: This COM number is different for each computer. You need to select the COM port corresponding to the tuner device on your computer.

6. Click the "Connect" button, and an "M1" button will appear in the software interface. Click "M1".

7. Start parameter adjustment (example: bidirectional car, turn on FOC)

8. Press Save Settings to save the settings and then unplug the ESC.

Note:

- Size is manual measurement, there are exist errors.

- If you find that the capacitor has fallen off after receiving the product, you can weld it yourself, this will not affect its use. If you mind this, please do not place an order.

- If you need to customize plugs (motor output plug, power input plug), please contact customer service personnel.

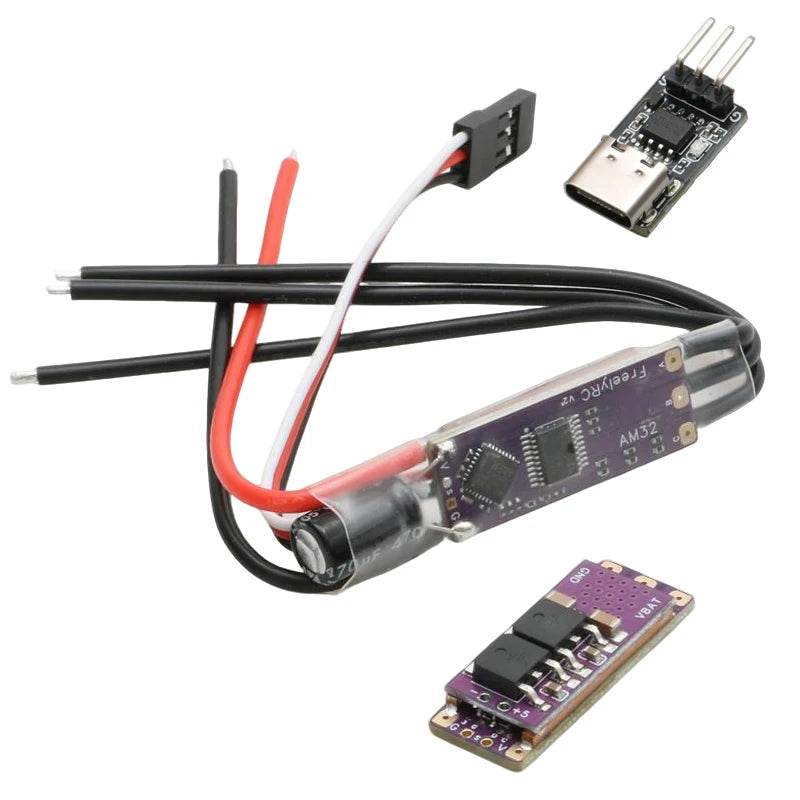

Package include is optional:

1pcs x AM32 ESC enhanced version

or

1pcs AM32 ESC with wire

or

1pcs x parameter adjuster

or

1pcs x AM32 ESC with wire + 1pcs x parameter adjuster
