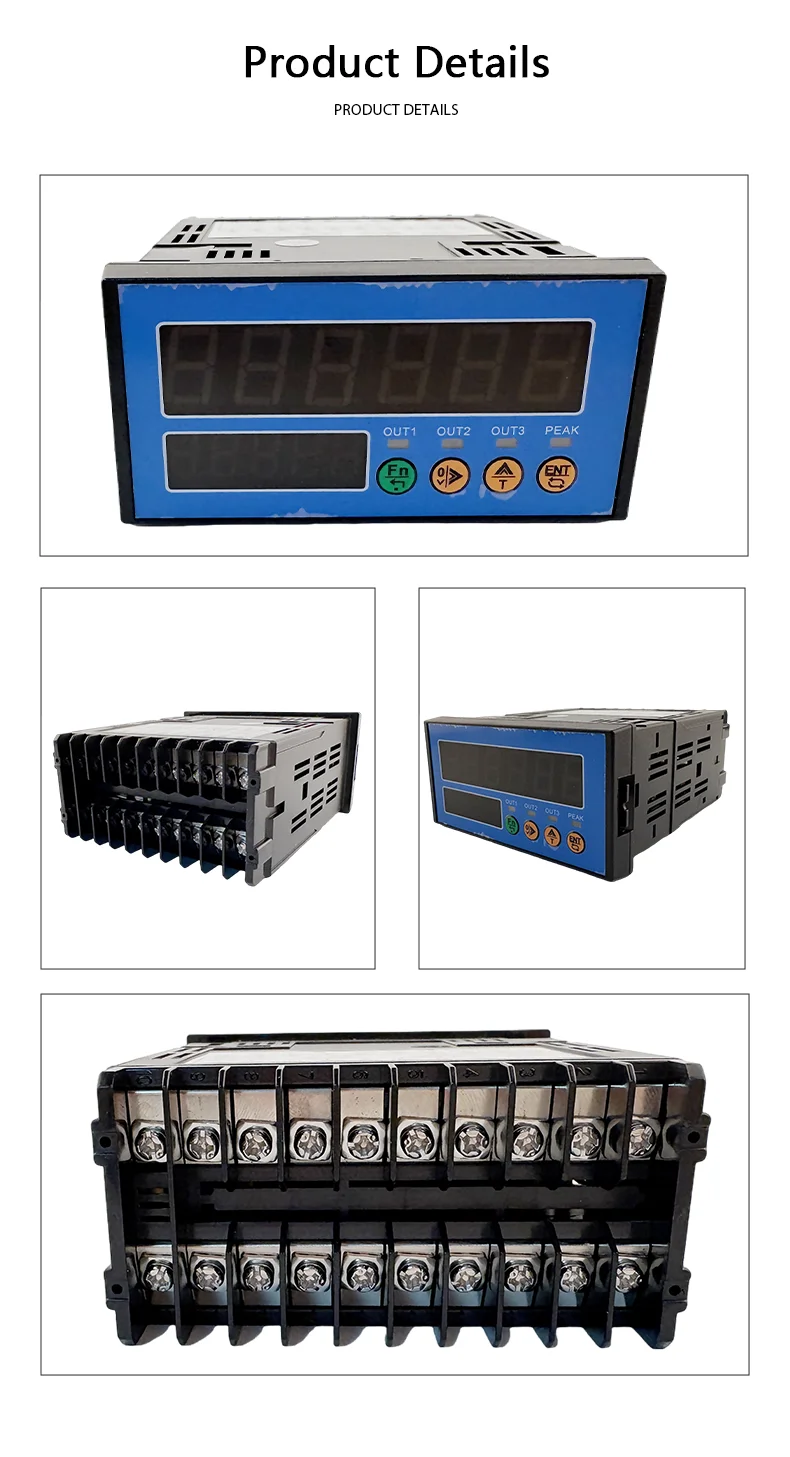

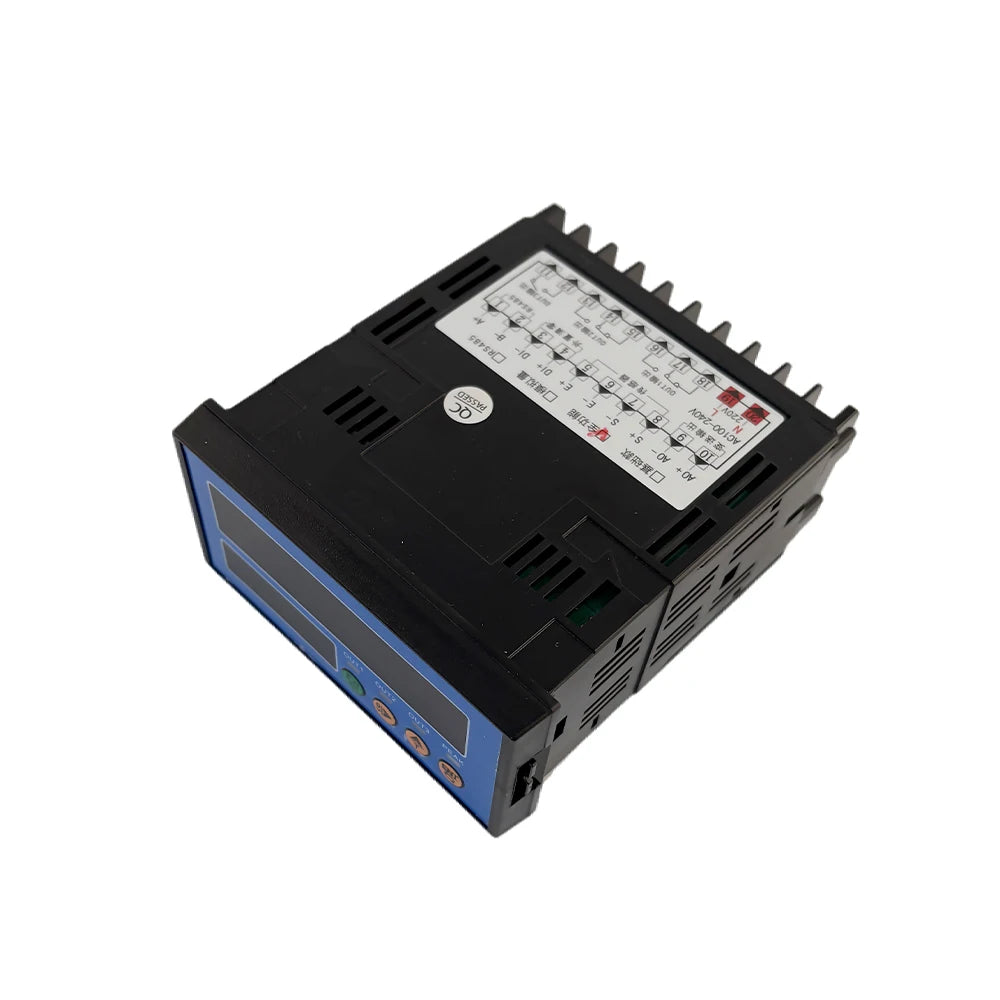

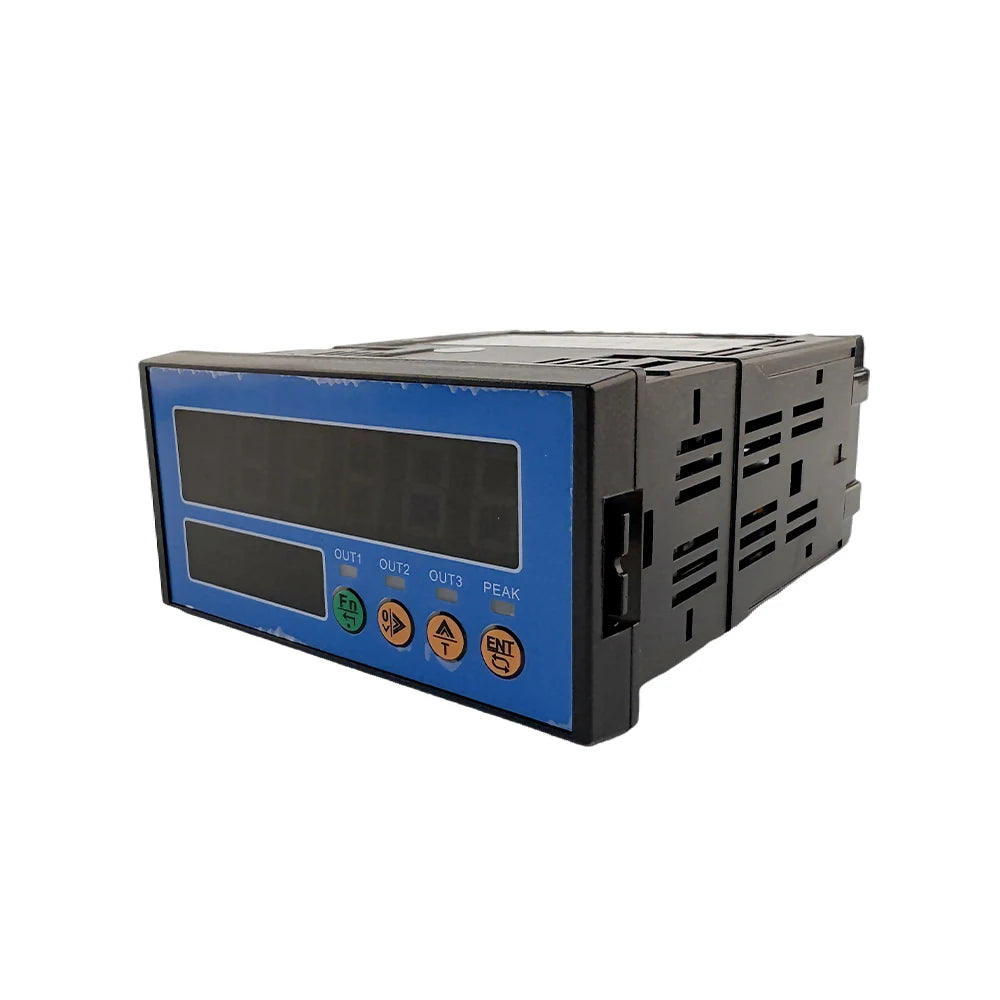

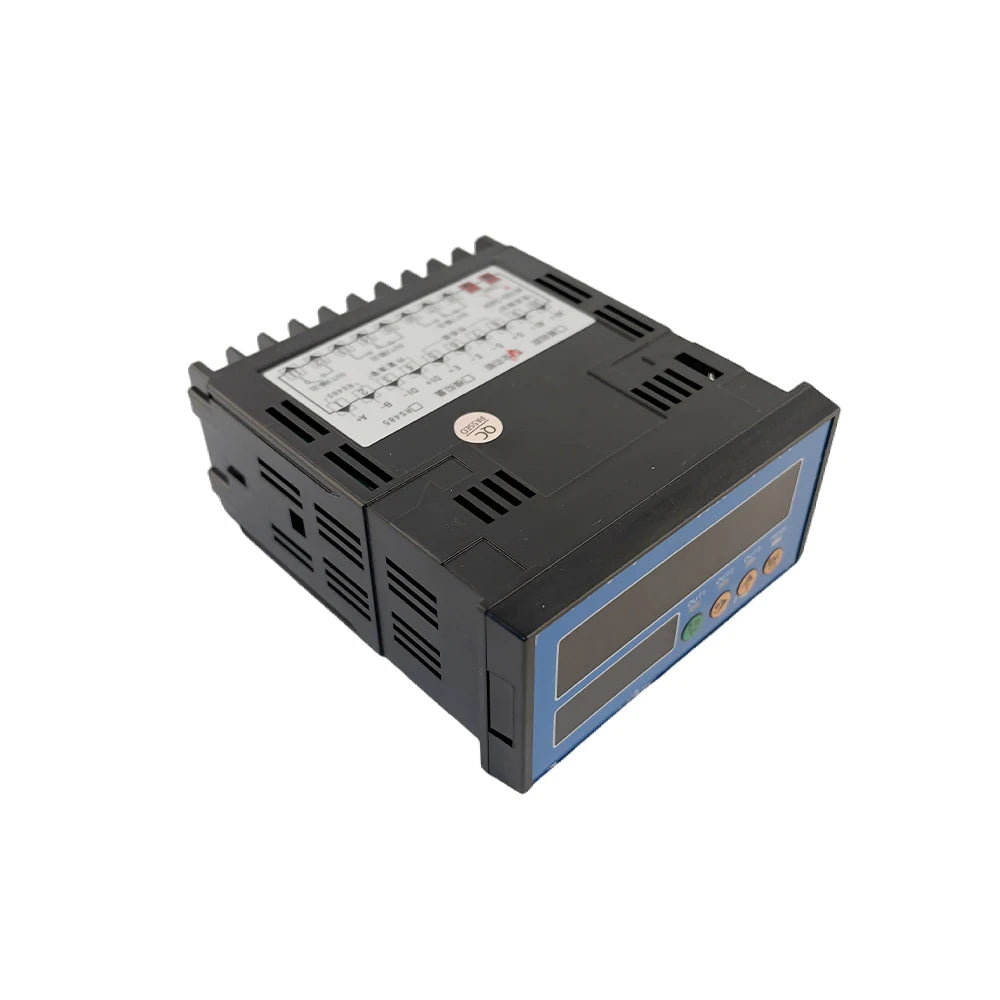

Industrial-Grade Weighing Controller - High Precision Acquisition Instrument, TFT LCD Display, Supports 8 Load Sensors
Industrial-Grade Weighing Controller - High Precision Acquisition Instrument, TFT LCD Display, Supports 8 Load Sensors
🔒 B2B Purchasing Managers: Log in via our Wholesale Portal to unlock contracted tier discounts (Up to 12% off). / Inicie sesión para desbloquear precios de mayoreo.
100% Encrypted Payment | 📦 Insured Shipping
SPECIFICATIONS
ADC Resolution: 24-bit Sigma-Delta, internal 1/1,000,000
Accuracy: 0.005% F.S
Brand Name: BENGBUZZYQ
Dimensions: 110 X 62 X 101 mm

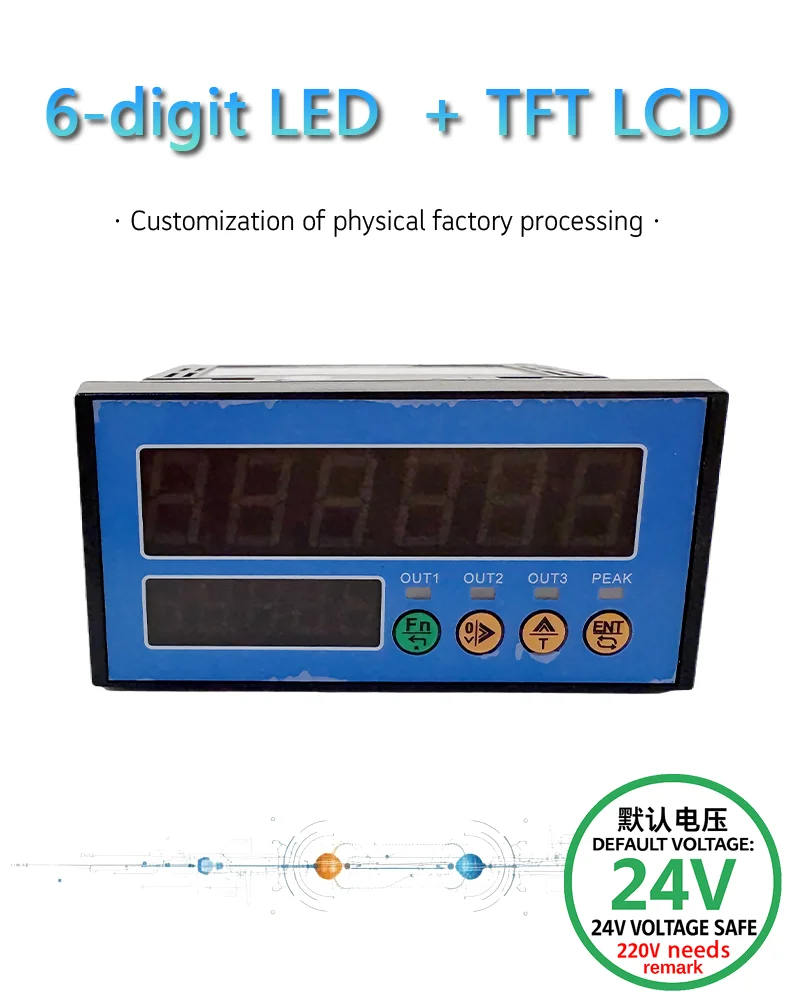

Display: Upper: 6-digit LED;,Lower: TFT LCD
Display Resolution: 1/100,000
Excitation Voltage: 5V
High-concerned chemical: None
Material: Polymer
Operating Temperature: -25~+45℃
Origin: Mainland China
Output: Digital Sensor
Outputs: Analog (0-10V, 0-20mA, 4-20mA),3 Relays, RS485 (optional)
Panel Cutout: 94 X 47 mm
Power Supply: DC 10-28V,AC 85-265V(100-240V, 50/60Hz)
Relative Humidity: <85% RH
Sampling Rate: Adjustable 10 / 40 / 640 / 1280 Hz
Signal Range: 0.5 - 3.0 mV/V

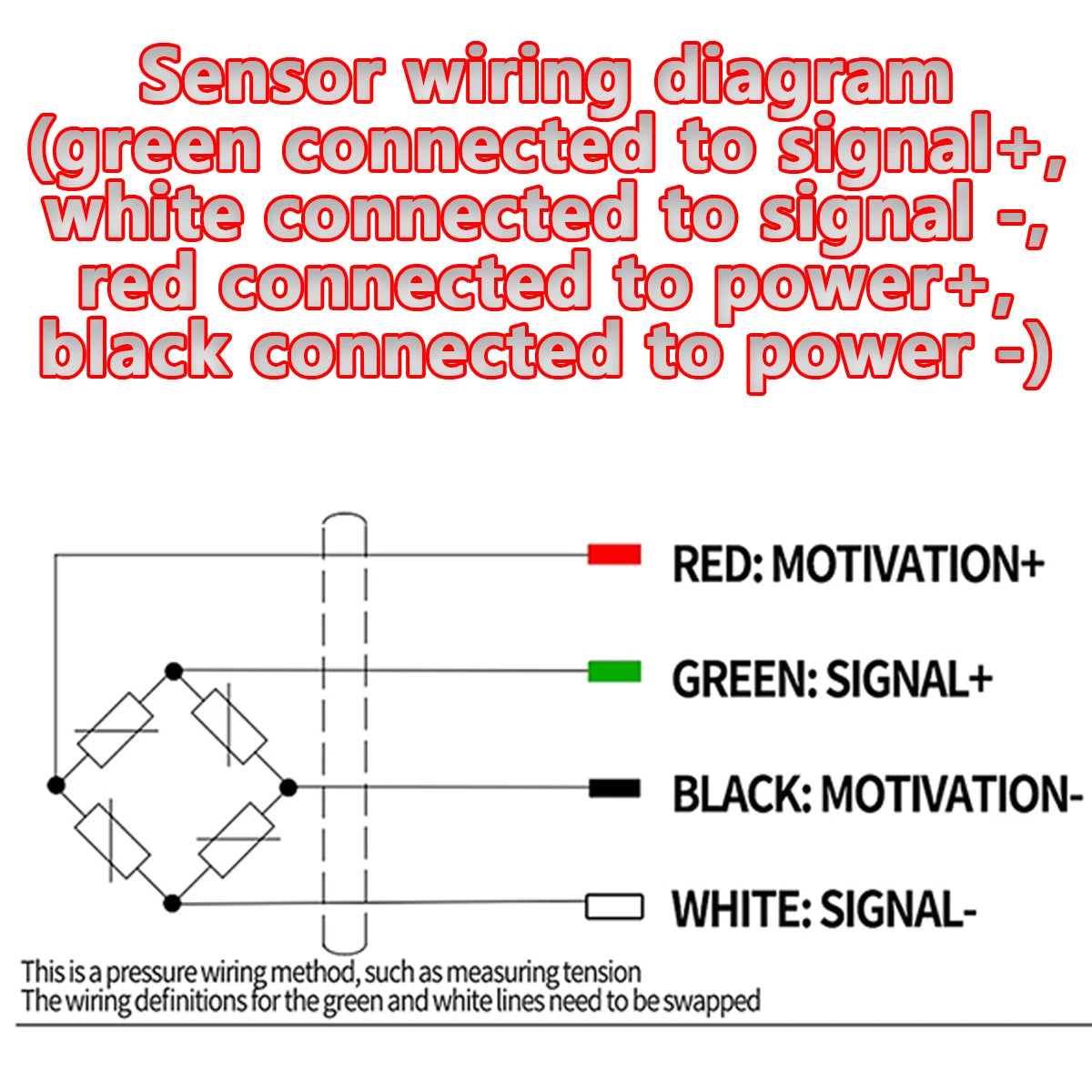

Theory: Resistance Sensor
Type: Optical-Electronics Sensor
Use: Pressure Sensor
is_customized: Yes

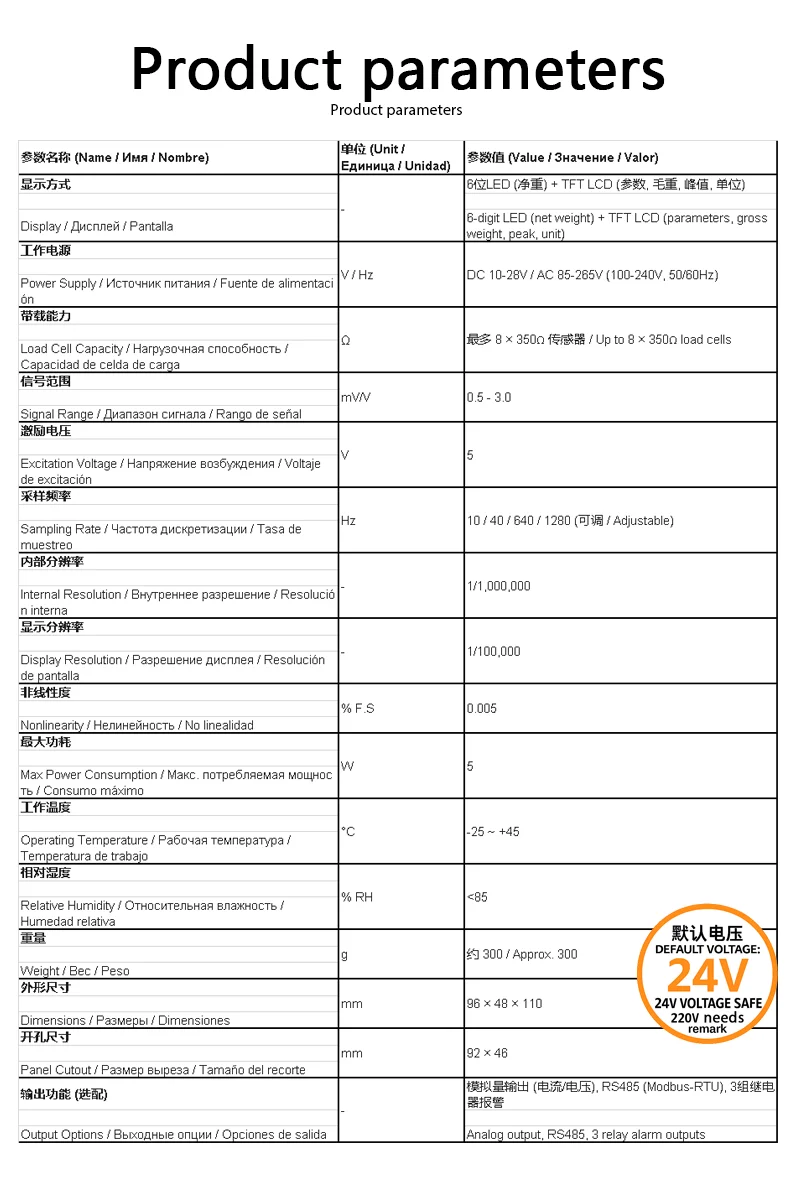

Item |
Specification |
Display |
Upper: 6-digit LED; Lower: TFT LCD |
Power Supply |
DC 10–28V / AC 85–265V (50/60Hz) |
Max Sensors Supported |
Up to 8 × 350Ω load cells |
Signal Range |
0.5–3.0 mV/V |
Excitation Voltage |
5V |
Sampling Frequency |
10, 40, 640, 1280 Hz |
ADC Resolution |
24-bit Sigma-Delta, internal 1/1,000,000 |
Display Resolution |
1/100,000 |
Accuracy |
0.005% F.S. |
Outputs |
Analog (0–10V, 0–20mA, 4–20mA), 3 Relays, RS485 (optional) |
Operating Temperature |
−25~+45℃ |
Humidity |
<85% RH |
Protection Level |
IP65 |
Dimensions |
110 × 62 × 101 mm |
Panel Cutout |
94 × 47 mm |
Weight |
≈500 g |
