SPECIFICATIONS

Brand Name: DUTRIEUX

Certification: CE

Choice: yes

Electronic: No

External Testing Certification: ce

Hardware Version: NEW

High-concerned chemical: None

Item Type: Code Readers & Scan Tools

Model ID: EOS019

Origin: Mainland China

Product Name: super mini pic18f25k80 elm327

SUPER MINI ELM327: V1.5

Software Version: NEW

elm 327 1 5: elm v1.5

elm 327 bluetooth v1.5: scaner elm327

elm 327 version 1.5: elm pic18f2480

elm327: 0.042KG

elm327 bluetooth obd2 v1.5: always in stock

elm327 bluetooth v1.5: elm327 bluetooth adapter

elm327 bluetooth v1.5 obd2: elm 327 bluetooth

elm327 bt: elm 327 obd2

elm327 obd: elm 327 pic18f25k80

elm327 obd2 scanner: elm327 ford

obd2 bluetooth adapter: elm327

obd2 elm327 v1.5: elm 327 1.5

odb2 elm327: scanner elm 327

pic18f25k80 elm327: universal car models

semi_Choice: yes

v1.5 pic18f25k80 elm327: elm 327

HOT!!! NEW Super ELM327 V1.5 Bluetooth PIC18F25K80 Automatic OBD2 Scanner Code Reader Car Suitable all OBDII protocols Diagnostic ToolS

Note: It only supports android platform,it does not works iOS system . If buyer need works for iOS For iPhone, please buy ELM327 WIFI.

Q&A:

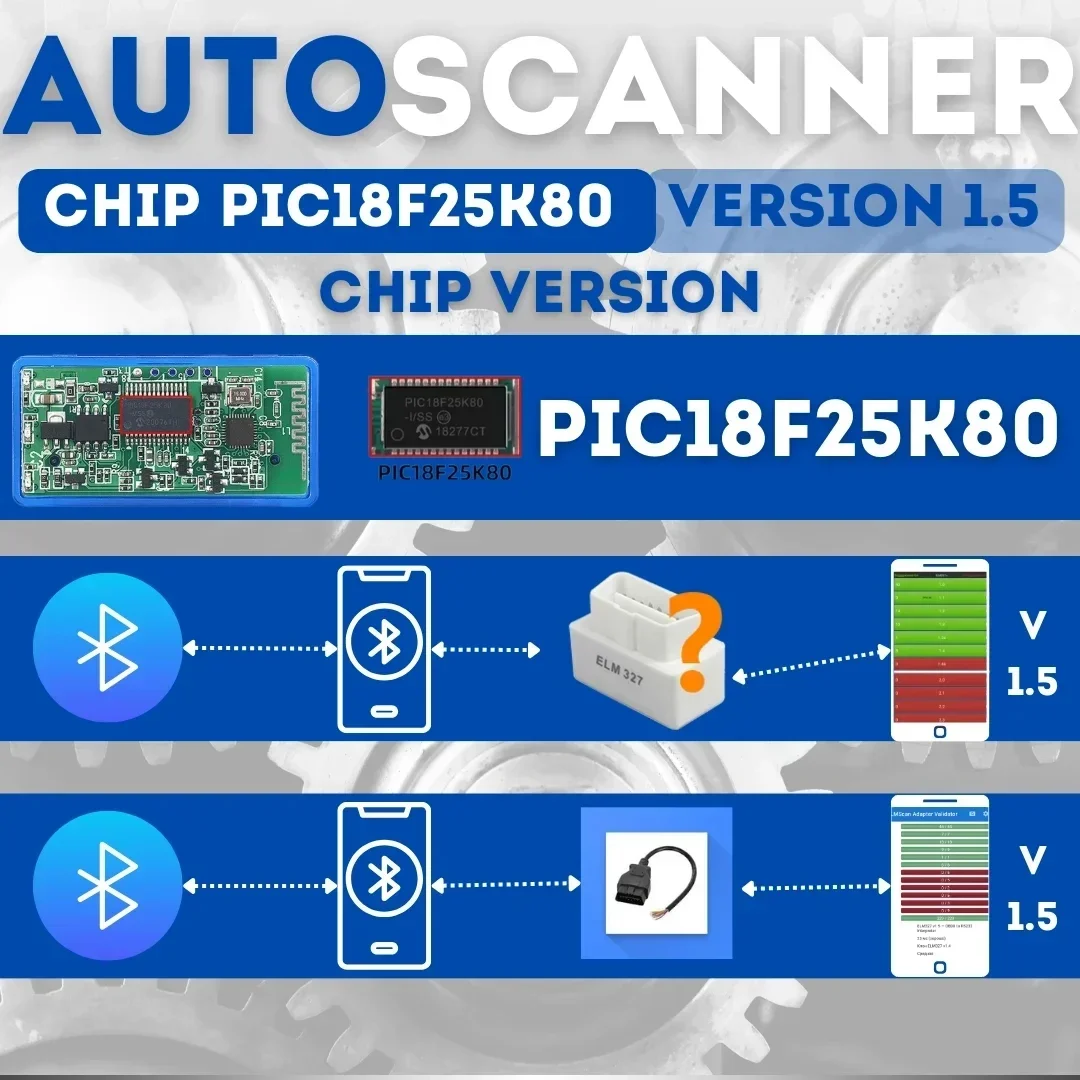

Q: Is your ELM327 1.5 built on original Microchip PIC18F25K80? What's the frequency of crystal oscillator there, 4mhz or 16mhz? Does it support commands ATAL and ATPPS?

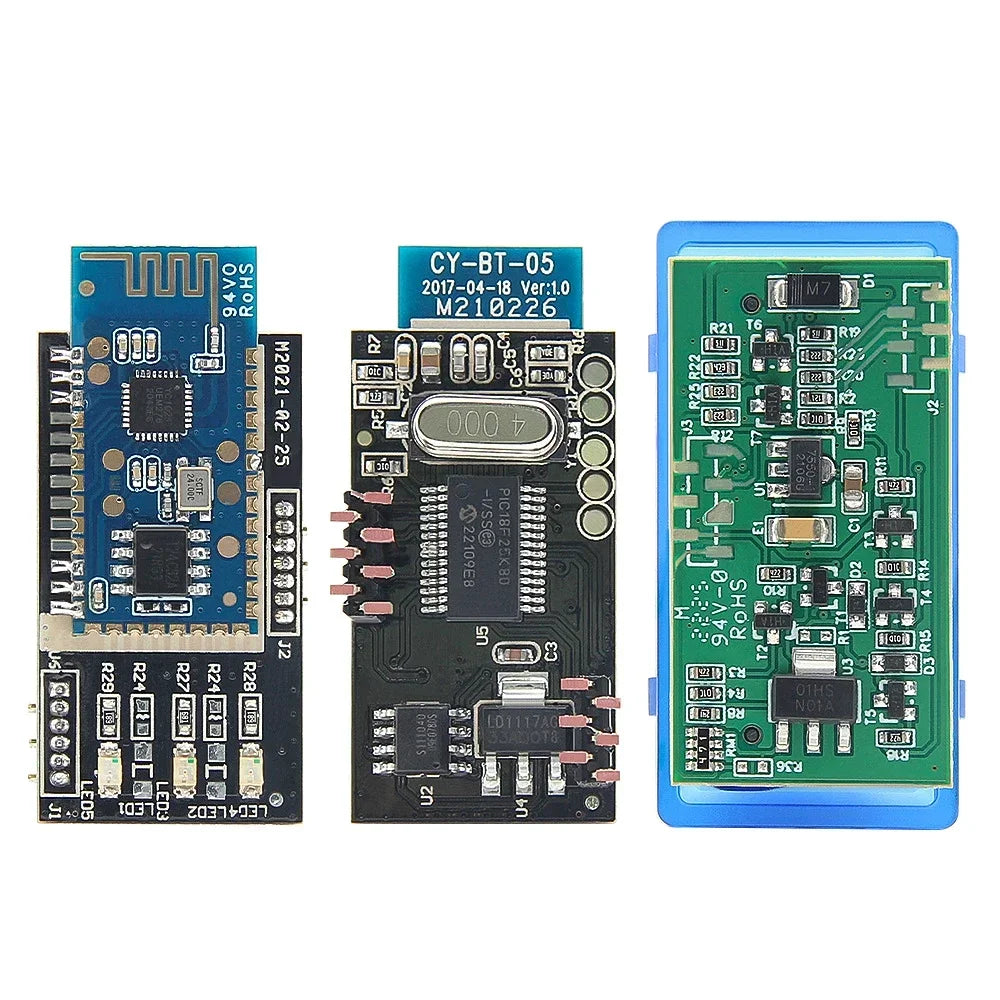

A: 2PCB Board With PIC18F25K80 Chip 4mHz, Bluetooth module 16mHz.

     1PCB Board with PIC18F25K80 Chip 4mHz, Bluetooth Chip 24mHz.

Both model supports commands ATAL and ATPPS.

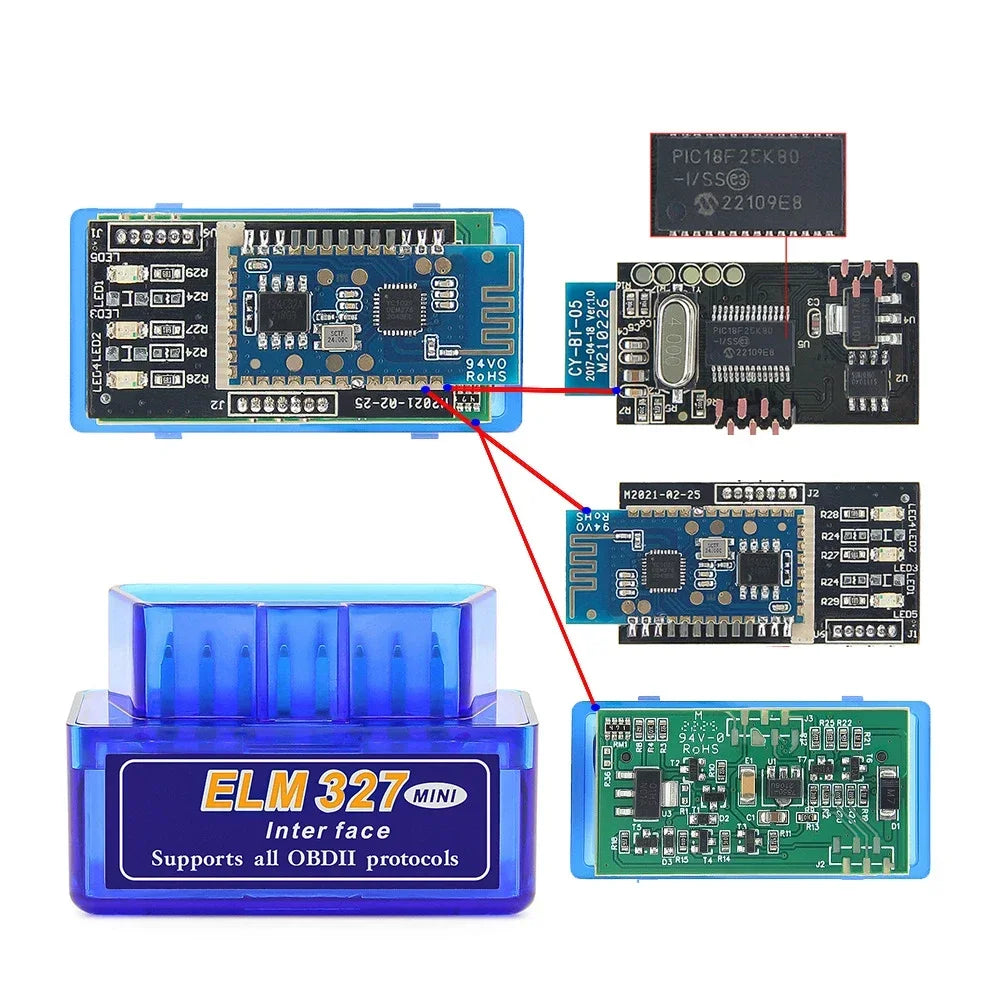

Model 1 Old 2PCB Board Display:

It is Bluetooth 2.0 Module+PIC18F25K80 Chip Hardware V1.5,please check Real PCB Board(2PCB Board on Main Unit):

2PCB Board Version MAC Address:

AA:BB:CC:11:22:33

Model 2 New 1PCB Board Display:

It is Bluetooth 2.0 Module+PIC18F25K80 Chip Hardware V1.5,please check Real PCB Board(1PCB Board on Main Unit):

1PCB Board MAC Address will be Random

Hardware V1.5, it is more stable and supports more cars than ELM V2.1. Hardware V1.5 is More Powerful than V2.1.

Hardware V1.5 Supports SAE J1850 PWM and SAE J1850 VPW.

V1.5

item description

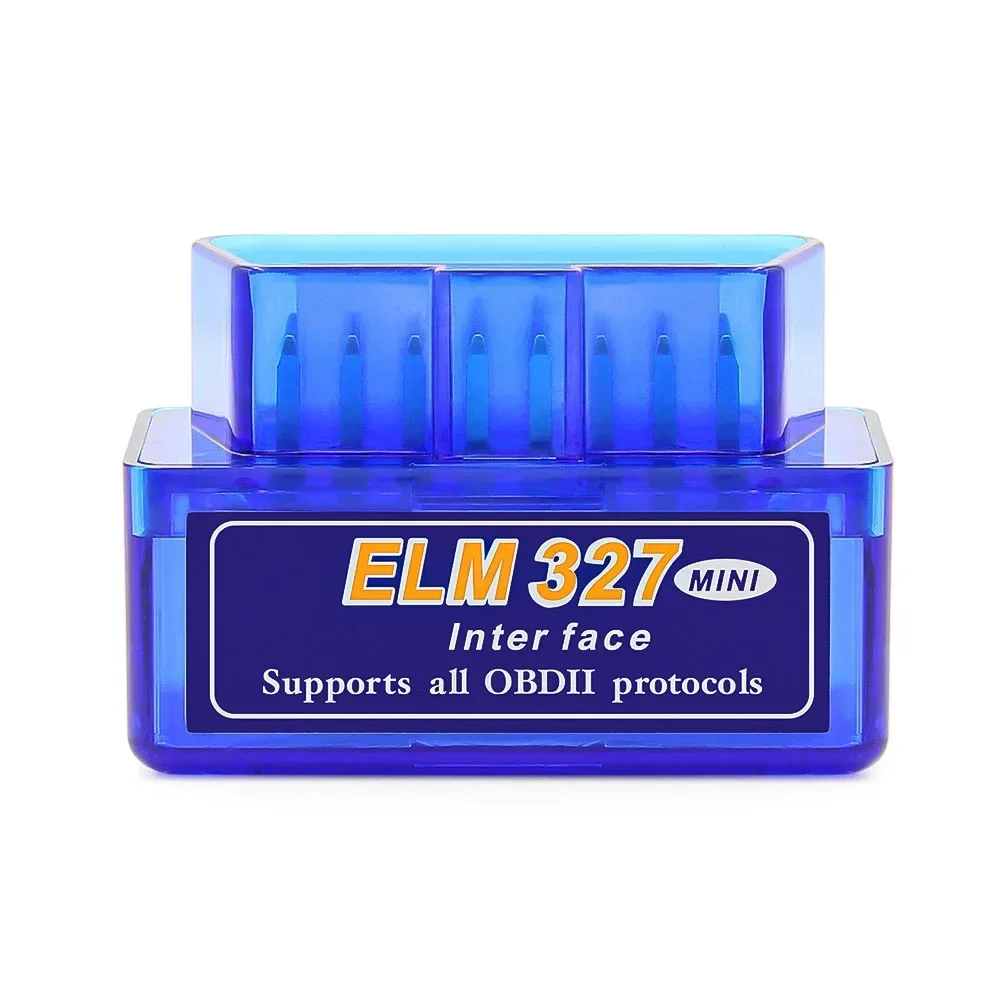

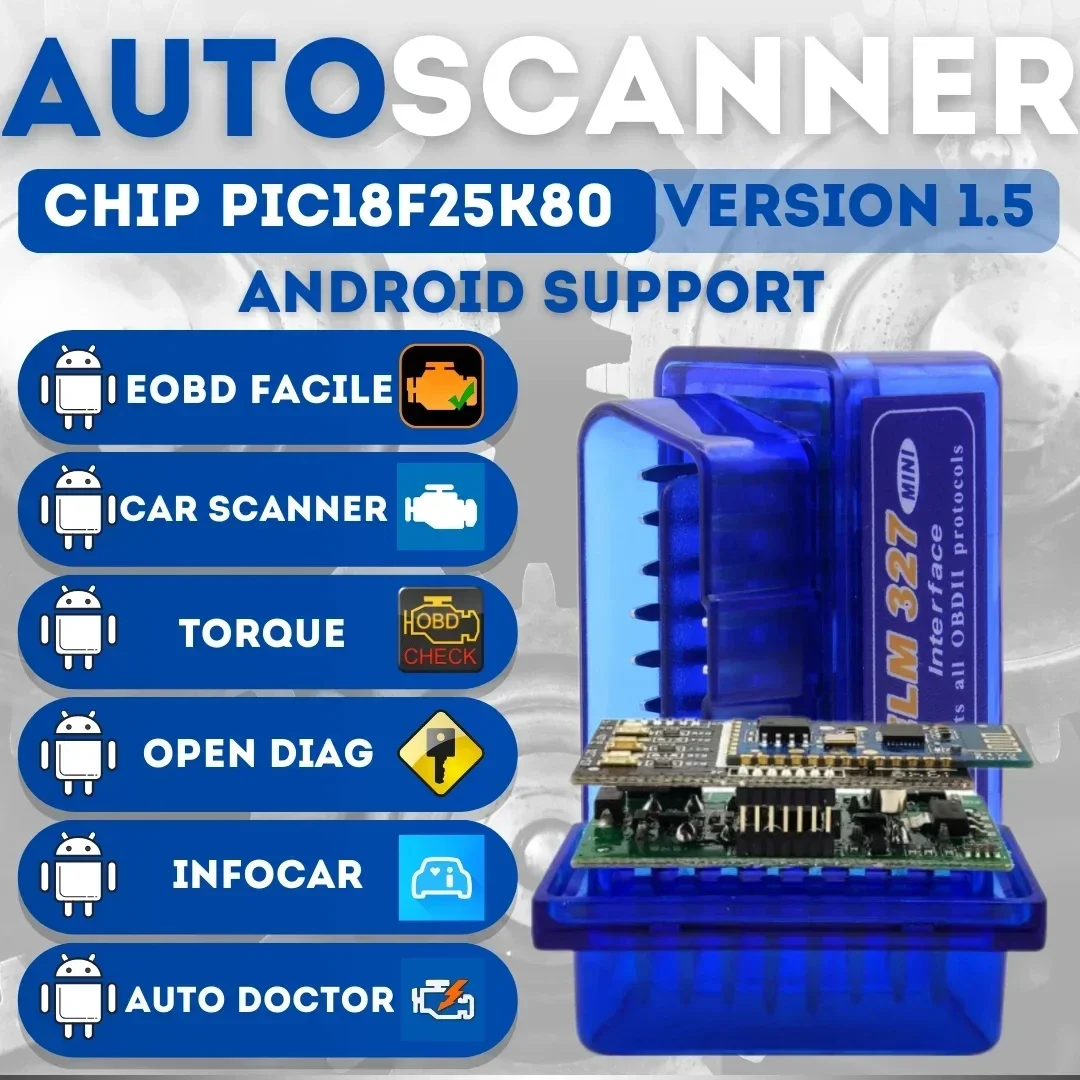

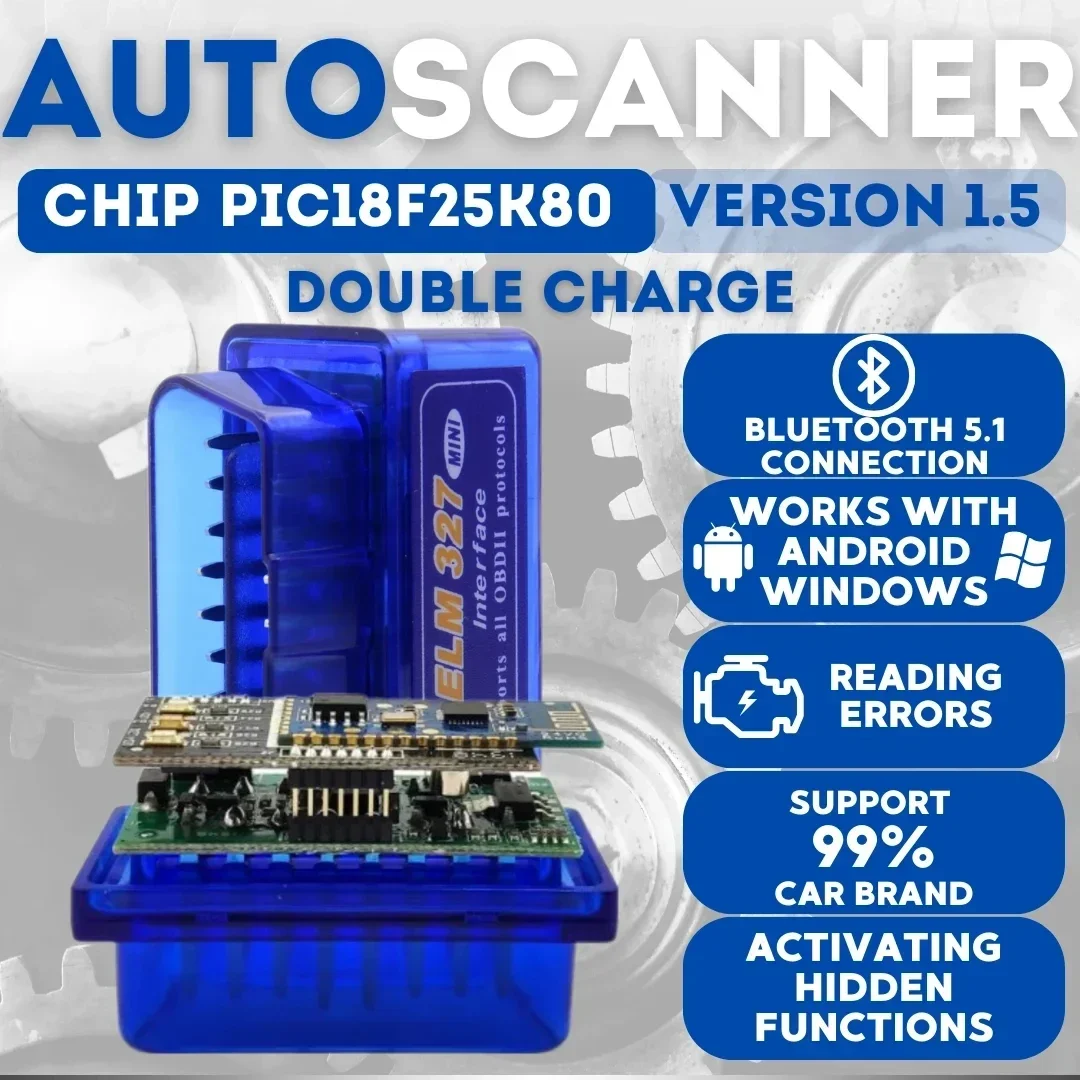

Super MINI 100% V1.5 Hardware ELM327 Bluetooth Scanner

Bluetooth 2.0+Best PIC18F25K80 Chip, best quality to send!

PIC18F25K80 ELM327 V1.5 Highlights:

ELM327 MINI OBD SCAN is the newly developed wireless scan tool. It supports most standard OBD-II protocols

 Hardware V1.5  ,Soft ware V2.1

Bluetooth Password  :0000 / 1234 / 6789

Woks on Android Torque   (support Android smart phone System with Android 4.0-Android 4.4 version)  /PC( win XP/WIN 7 32bits and close anti-virus programm)

It can not supports iOS,if u need works iOS,please buy ELM327 WIFI.

It CAN'T support Trucks.

This ELM327 Hardware V1.5. supports most of OBD-II protocols cars,but it can not do all models

With Chip PIC18F25K80,it supports Diesel&Gasoline Multi-Cars.

Supprots All OBD2 Protocols:

SAE J1850 PWM (41.6 kbaud)

SAE J1850 VPW (10.4 kbaud)

ISO9141-2(5 baud init,10.4Kbaud)

ISO14230-4 KWP(5 baud init,10.4 Kbaud)

ISO14230-4 KWP(fast init,10.4 Kbaud)

ISO15765-4 CAN(11bit ID,500 Kbaud)

ISO15765-4 CAN(29bit ID,500 Kbaud)

ISO15765-4 CAN(11bit ID,250 Kbaud)

ISO15765-4 CAN(29bit ID,250 Kbaud)

This link is ELM327 Hardware V1.5,it is more stable and supports more cars than ELM V2.1. Hardware V1.5 is More Powerful than V2.1.

Hardware V1.5 Supports SAE J1850 PWM and SAE J1850 VPW.

Supports CAN Protocols also other protocols.

Default Settings(user adjustable)

1.Works with OBD-II compliant vehicles

2.Wireless (Bluetooth) 5~10 meter

3.Soft ware included for Pa, PDA,Mobile

4.Soft ware included for Windows PC ,Can also be used with a PC with a Bluetooth Card.

5.Soft ware included for Windows Smartphone Android torque

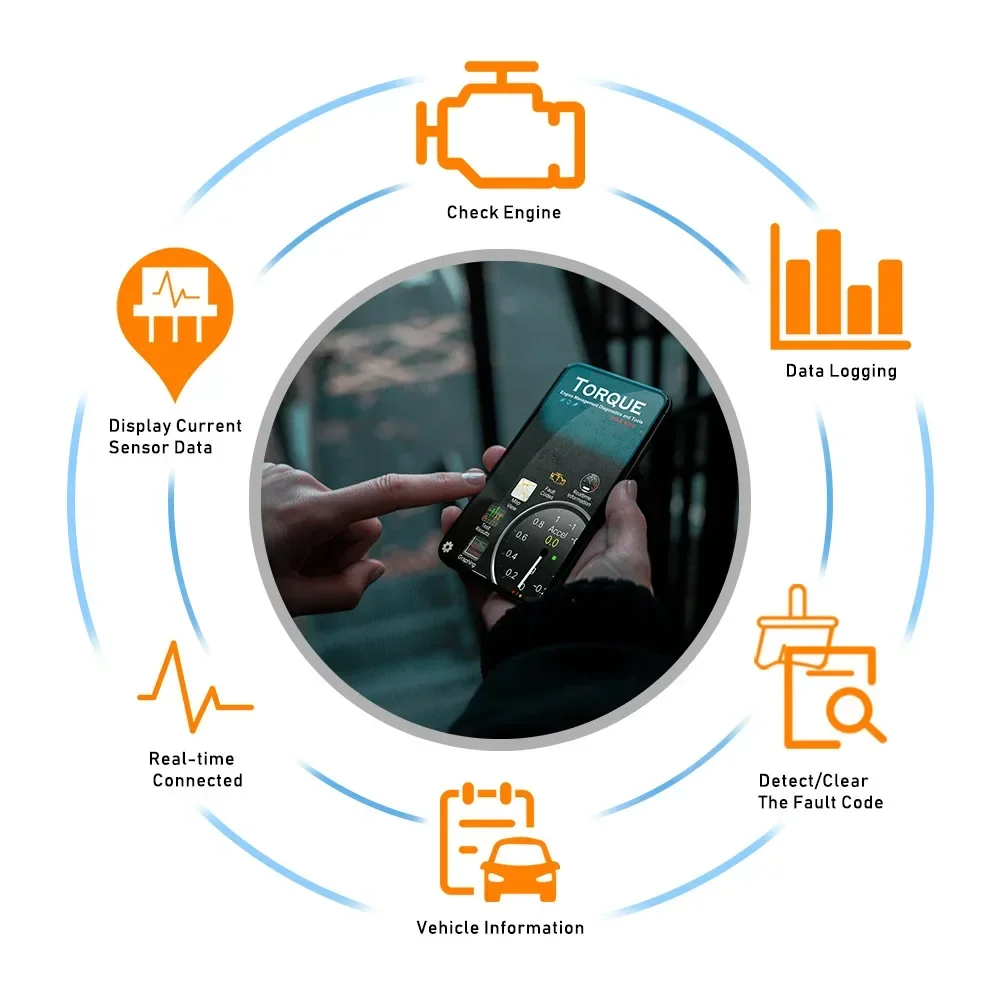

Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

Clear trouble codes and turn off the MIL ("Check Engine" light)

Set the maximum number of responses to obtain

Remove spaces from ECU responses (to speed data transmission)

Store a unique identifier in EEPROM

Set the CAN mask and filter with one command

Easily switch between variable and fixed CAN message lengths

Send CAN remote frames (RTRs)

Display current sensor data, including:

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure

Many others.

Multi-Language 12kinds:

Czech,Danish,German,English,Spanish,French,Croatian,Hungarian,Italian,Polish,Serbian,Turkish

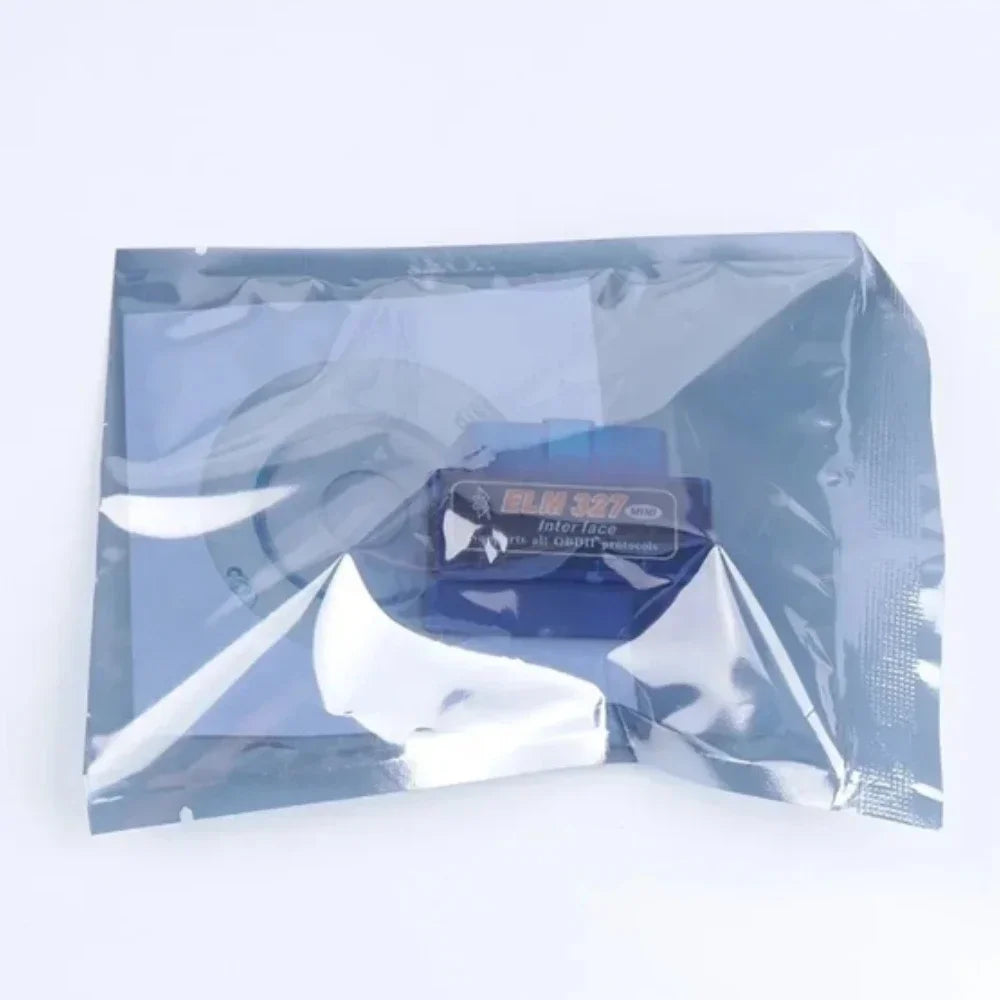

Packing List:

1 x ELM327 Bluetooth

Supports Car List Tips:

About Car supports list, this ELM327 works most gasoline car brand model ,but honestly we cant to test all cars one by one .

Each car brand has many series, maybe it works one brand this model, but no supports another model is possible .Like for Citroen works C3/C4,but no sure if works C5 or not.

So you can buy one to try and test .As this is cheap elm327,but it has powerful function for your car !

QA:

Q:What version of this ELM327?

A: 100% Hardware V1.5,Latest Soft ware is V2.1

Q:What Chip of this hardware V1.5?

A:Best PIC18F25K80 Chip

Q:How many language of this device soft ware?

A:Czech,Danish,German,English,Spanish,French,Croatian,Hungarian,Italian,Polish,Serbian,Turkish

Q:Does it supports Russian Language?

A:Sorry,the soft ware has no Russian yet.

Q:Does it supports WIFI and iOS?

A:No,it only supports bluetooth android torque and windows XP/WIN7 32bits

Q:Does Hardware V1.5 better than V2.1?

A:Yes,Hardware V1.5 is more stable than V2.1 ,also from many buyer feedback,V1.5 supports more protocols and car brand .

Q:Does this device works diesel car or truck?

A:No,it works only gasoline cars ,supports most OBDII Standard protocols.

Q:How can i know if this device works my car or not ?

A:this ELM327 works most gasoline car brand model,but we can not sure if your car supported,we have no test each car .You can buy one to test. (If you dont sure and also do not want to buy one to try ,please do not buy ,we do not want any negative feedback about no supports your car else ! thanks in advance .)

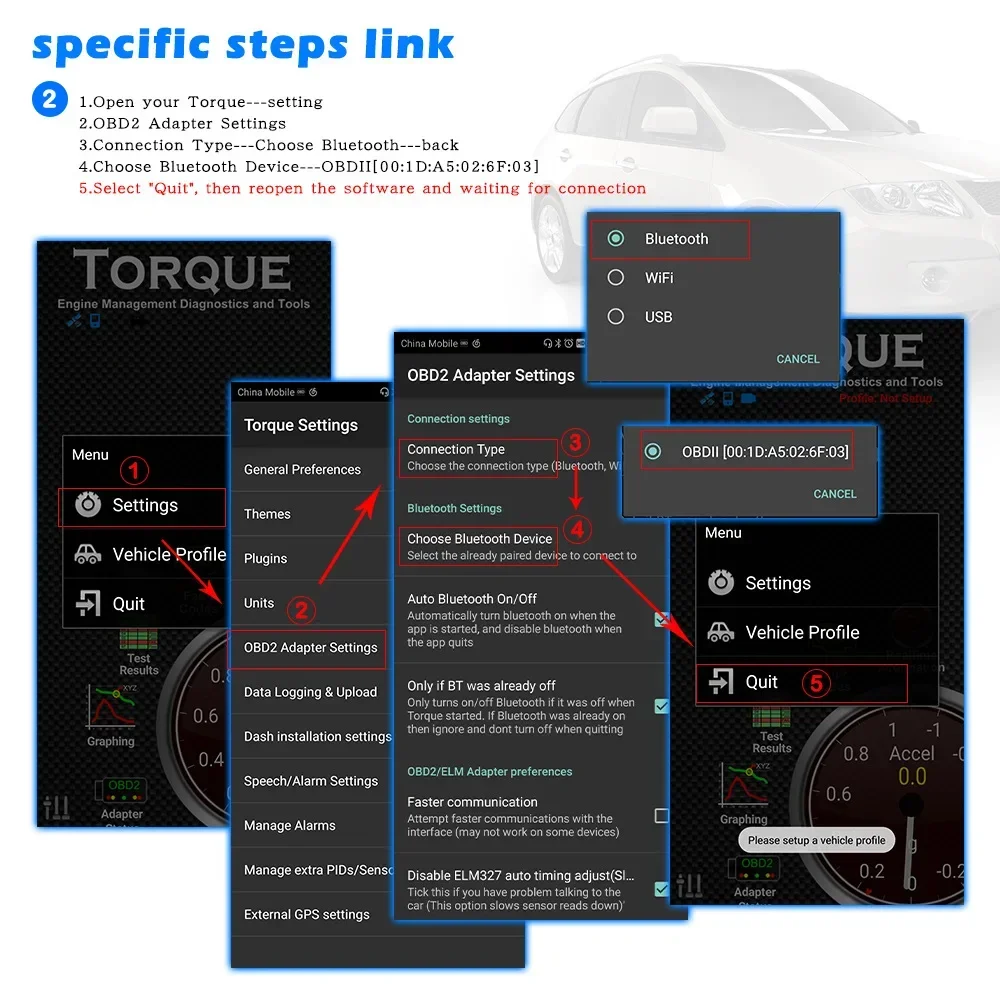

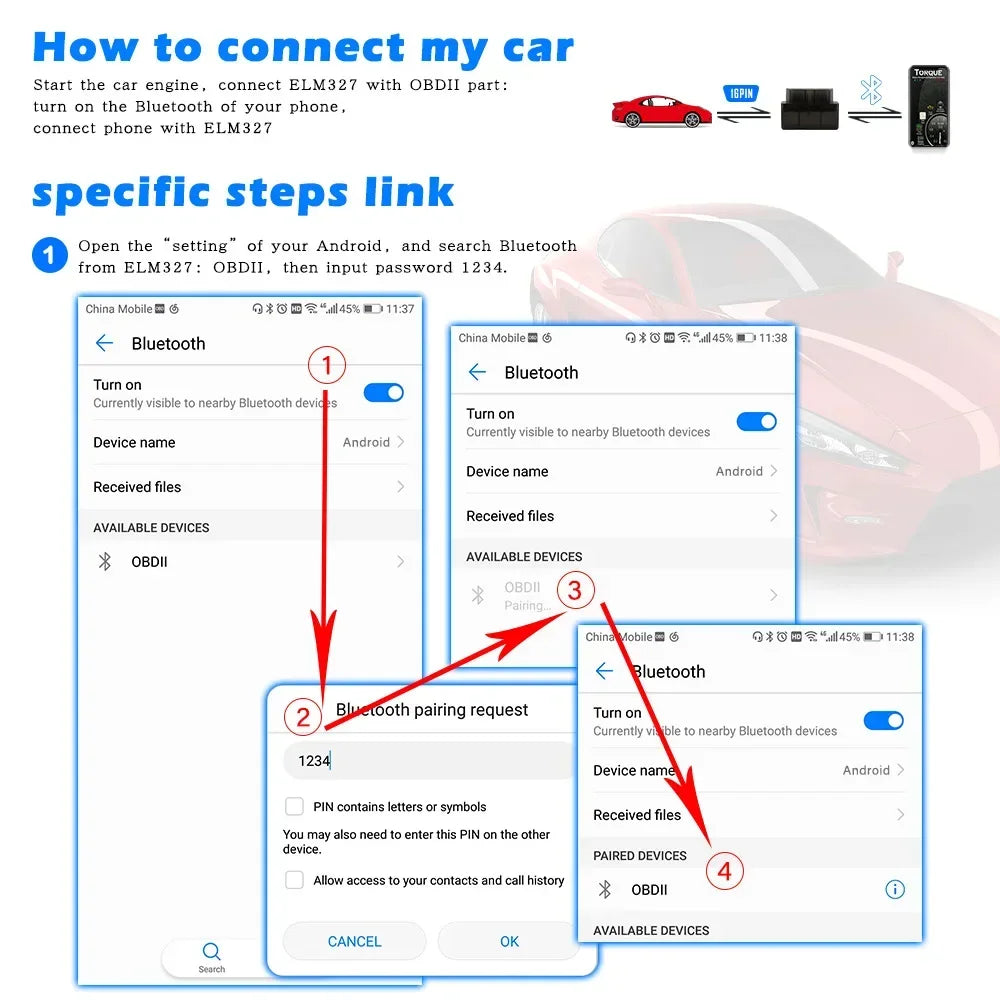

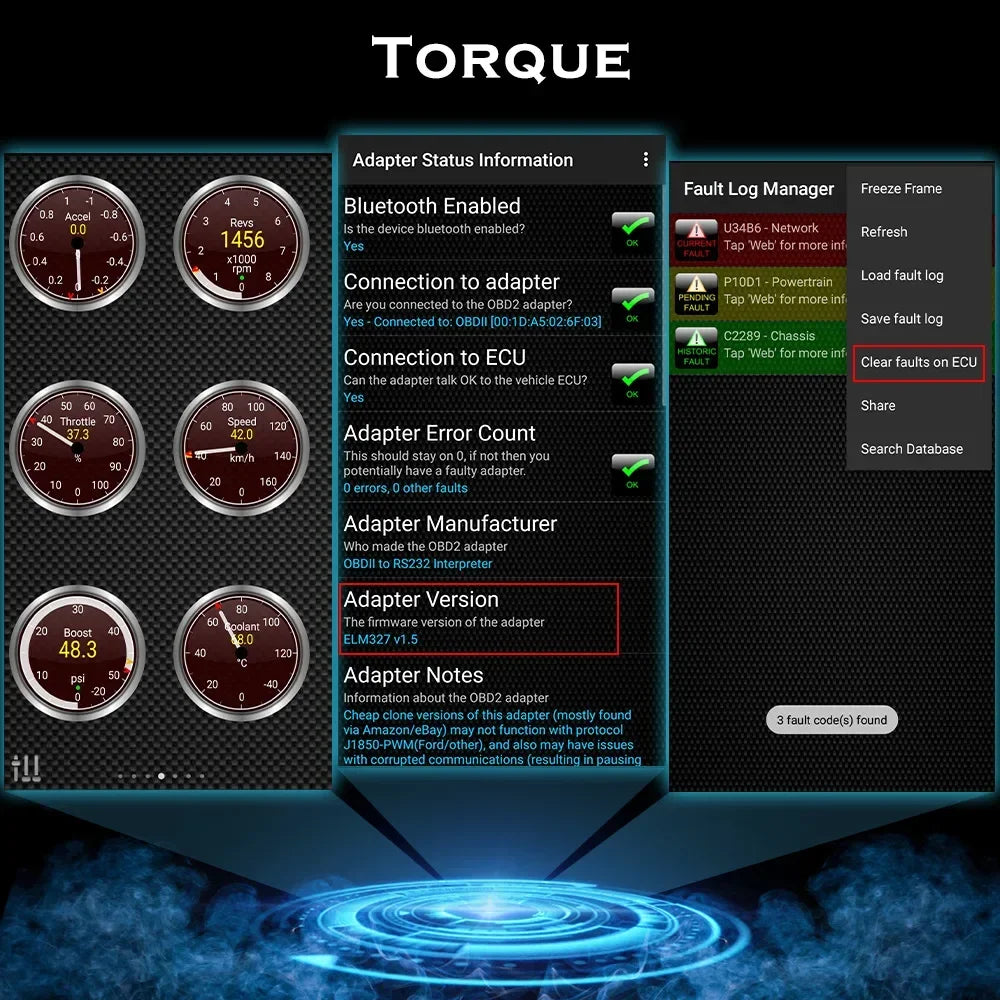

Q:How is the step for Run soft ware on android phone?

A:Open your android phone soft ware--Setting--Connecting Type--OBD2 Adapter Setting--Bluetooth--Choose Bluetooth Device--OBDII.

Q:My android phone connect to my old ELM327 before ,do i need delete previous informations?

A:Yes,please delete all old informations ,so make sure you can connect your new ELM327.
