SPECIFICATIONS

Brand Name: RCXAZ

Certification: CE,FCC

Choice: yes

For Vehicle Type: Cars

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: AM32

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Speed Controllers

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

Note: 1. This is a programmable AM32 30A brushless outrunner ESC, only for outrunner motors 1621, 2204, 1224 brushless motors
2. When programming, pay attention to the front and back of the USB (plugging in is invalid)

ESC:

Specification:
Name: AM32 30A
Battery: 2~3S Lipo

Current: 30A/80 (Continuous/Burst current)

BEC: Max 2A, Output 6V,.

Suitable for 1224 1621 2204 and other externally-turned brushless motors
for: 1/18 1/24 tracked vehicle axial SCX24TRX4M

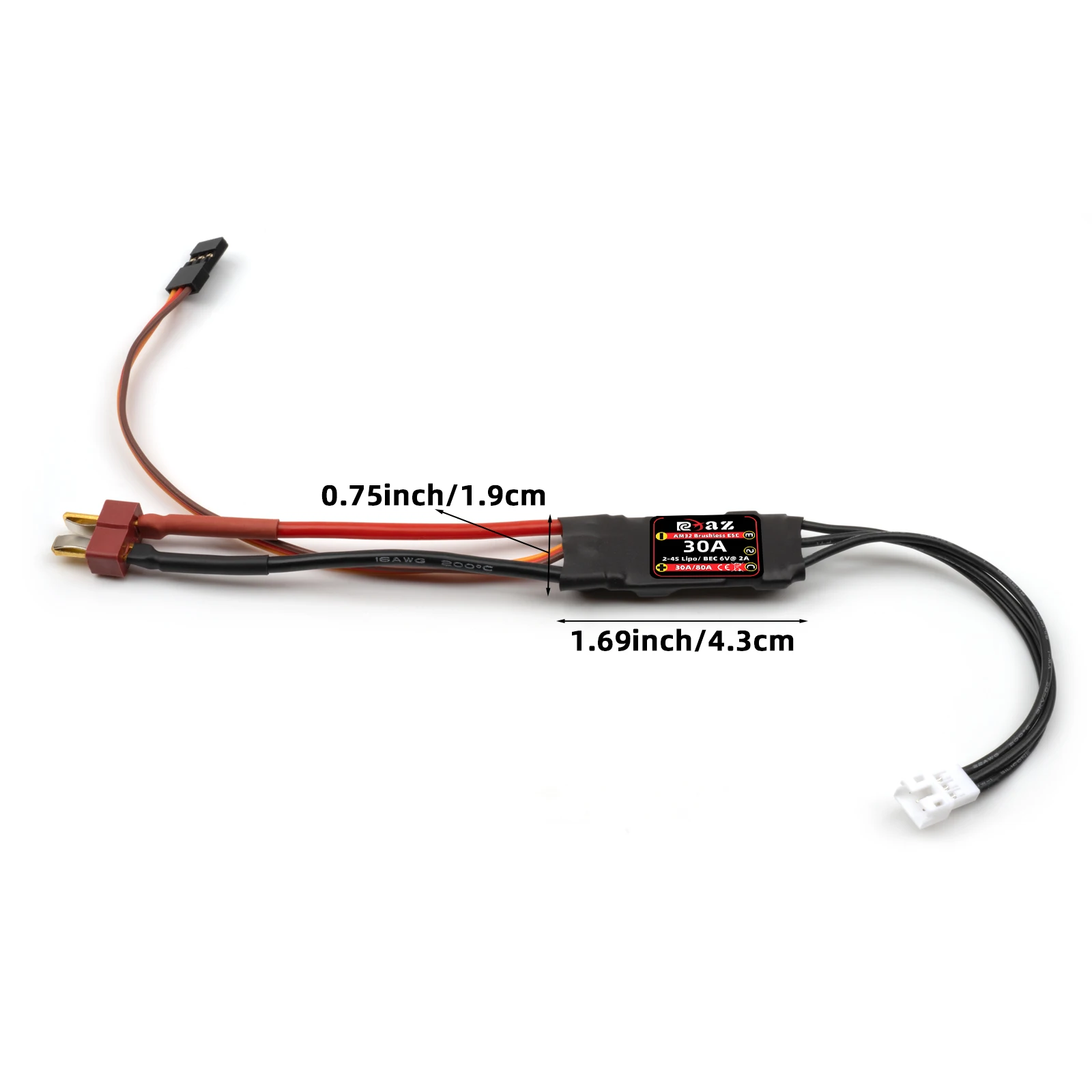

Size: 4.3x1.9cm
Weight: 12g

ESC Fault handling quickly:

(1)Faultphenomenon(2)Possiblecauses(3)Solution

1. (1) After powering on, the indicator light does not turn on, does not self-check, and there is no sound. (2) ESC has no working power supply; The ESC switch is damaged. (3) Check whether the power input path from the battery to the ESC has any welding defects, and re-weld; Replace the ESC switch.

2. (1) The red LED flashes after powering on, and the motor cannot start. (2) The ESC throttle wire is plugged in reverse or the channel is plugged in incorrectly; ESC cannot successfully complete the throttle self-check and adjustment process (3) Insert the throttle cable of the ESC into the throttle channel (Throttle, usually the second channel Channel 2) in the correct direction; Adjust the midpoint trim "TRIM" of the remote control's throttle channel to 0 or adjust the corresponding knob to the midpoint position.

3. (1) The remote control does the forward operation, and the car goes backwards. (2) The throttle channel direction of the remote control is set incorrectly or the motor wiring is wrong. (3) Swap the two lines of the motor; Reverse the remote control throttle channel, from "NOR" to "REV" or from "REV" to "NOR".

4. (1) The car cannot reach full speed, the throttle trigger is hit to the maximum position, and the red light is not always on. (2) The remote control is set incorrectly. (3) Adjust the parameters of the remote control throttle channel such as "D/R", "EPA", "ATL" to 100% or the corresponding knob to the maximum position, and the midpoint fine-tuning "TRIM" of the throttle channel to 0 or the corresponding knob to the midpoint position.

5. (1) The car cannot be reversed. (2) The position of the jumper cap in "operation mode" is wrong; The remote control throttle midpoint offset. (3) Insert the "operation mode" jumper cap into the correct position; Set the midpoint trim "TRIM" of the remote control's throttle channel to 0 or the corresponding knob to the midpoint position.

6. (1) Sudden stop during motor rotation (2) Throttle signal is lost; The ESC enters the battery low voltage protection or overheat protection state. (3) Check whether the battery voltage of the remote control is too low and whether the receiver is working normally; The ESC red light flashing indicates low voltage or overheating protection, please replace the battery pack or check the ESC temperature.

7. (1) The car cannot move forward or reverse, and the indicator light is normal. (2) The connection between the ESC and the motor is interrupted; The motor is damaged. (3) Check the connection between the motor and the ESC to ensure that the connection is reliable; Replace the motor with a new one.

8. (1) When the motor starts, it accelerates sharply, and the motor is stuck or stopped. (2) The battery discharge capacity is insufficient; The motor speed is too high, and the gear ratio is too aggressive; There is a problem with the car's drivetrain. (3) Replace batteries with strong discharge capacity; Replace the low-speed motor or increase the reduction ratio; Check that the frame drivetrain is smooth.
