13.56MHz RFID Payment Smart Card Reader Writer for Windows Android System ACR1552U-M1
13.56MHz RFID Payment Smart Card Reader Writer for Windows Android System ACR1552U-M1
🔒 B2B Purchasing Managers: Log in via our Wholesale Portal to unlock contracted tier discounts (Up to 12% off). / Inicie sesión para desbloquear precios de mayoreo.
100% Encrypted Payment | 📦 Insured Shipping
SPECIFICATIONS
Brand Name: NONE
Certification: NONE
High-concerned chemical: None
Humidity: 90% (non-condensing)
Model Number: ACR1552U-M1
Operating Frequency: 13.56 MHz
Origin: Mainland China
Power Supply: DC 5V
Smart card type: Recorded
Supported OS: Windows, Linux, iOS, Android etc.
Temperature: 0 - 60°C
Notice:Our product price is not include Buyers' Local Customs Clearance Fee!
We will provide SDK and should to develop application software by customer side.
Won't accept any order cancel with reason: supplier don't send software!

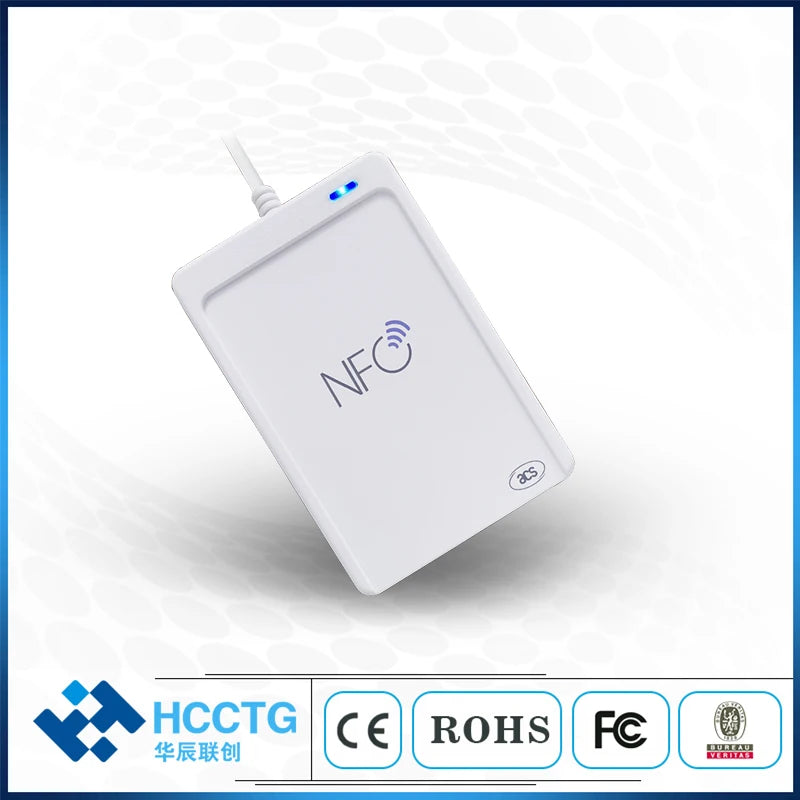

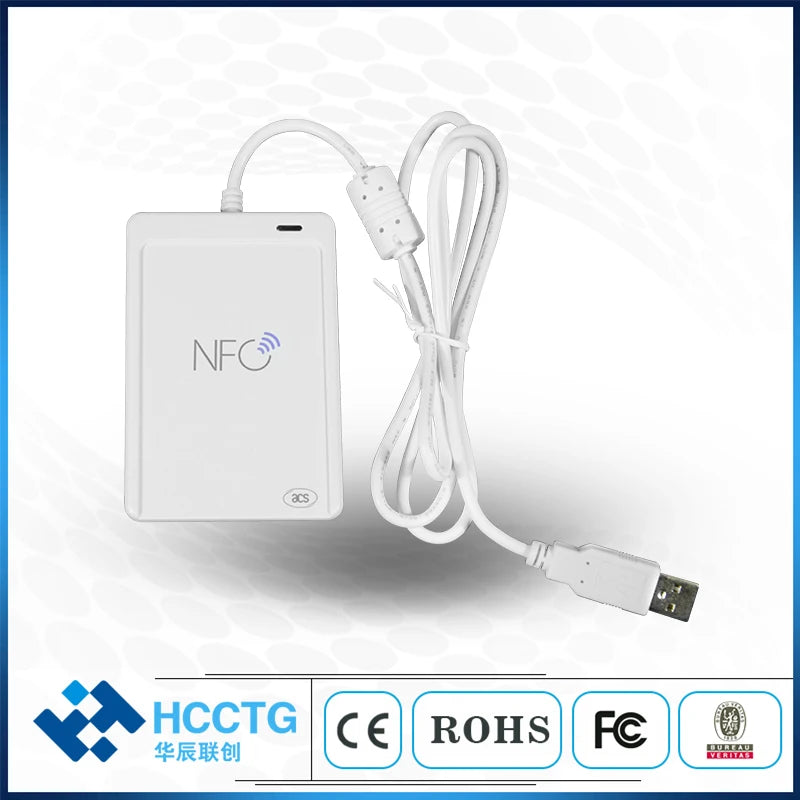

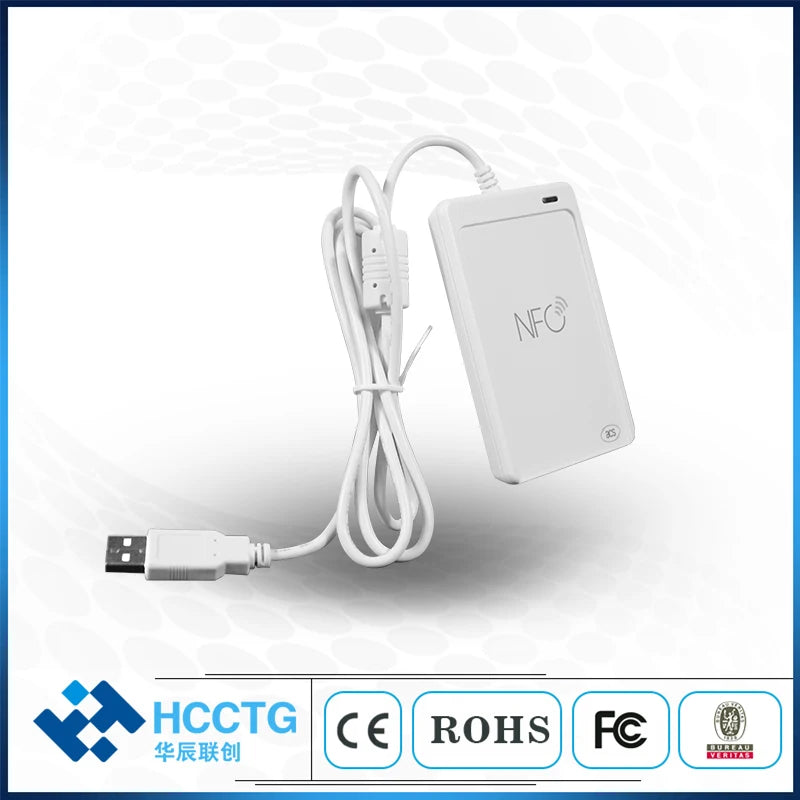

USB NFC ReaderACR1552U-M1
General
ACR1552U-M1 USB NFC Reader IV is the fourth generation of USB NFC Reader developed based on 13.56 MHz contactless technology. It can access contactless cards and devices following the ISO 14443 Type A and B, ISO 15693, and ISO 18092 standards.
Compliant with both CCID and PC/SC standards, this plugand-play NFC reader is equipped with a high-speed communication capability of up to 848 kbps. The reader has USB firmware upgradability and extended contactless APDU commands, making it versatile and cost-effective hardware for various industries, such as finance, healthcare, and government.
It also offers intelligent support for three modes of NFC features:reader/writer, card emulation, and keyboard emulation. The flexibility of NFC readers allows for various potential applications, such as e-payment, access control systems and transportation ticketing.
Features
l ISO 14443 Type A & B Parts 1-4
l ISO 15693
l ISO 18092 NFC
l MIFARE® (T=CL), FeliCa, NFC Tags
l SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card
l Read/Write ISO 14443A & B speed of up to 848 kbps
l Read/Write ISO 15693 speed of up to 53 kbps
l Card Reader/Writer Mode
l Card Emulation Mode
l Keyboard Emulation Mode
l 1*ISO 7816 Standard SAM slot for improved security
l Certified for international regulations
l Mean time between failures (MTBF) up to 500k Hours
l Short Circuit Protection
l Support for all major operating systems
Windows®, Linux®, macOS, AndroidTM
Specifications
Contactless Smart Card Interface | |
Supported Card Types |
ISO 14443 Type A & B Parts 1-4,ISO 15693, ISO 18092 NFC,MIFARE®, FeliCa, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card |
Operating Frequency |
13.56 MHz |
Reading Distance |
Up to 70 mm (Depending on tag type) |
Read/Write Speed |
106/212/424/848kbps (ISO14443) 26/53kbps (ISO15693) |
Supported NFC Mode |
Card Reader/Writer, Keyboard Emulation, Card Emulation |
Standard |
1* ISO 7816 Class A (5V) Standard SIM size slot |
Read/Write Speed |
13.4kbps -1,250kbps |
Clock Frequency |
5 MHz, up to 10MHz (Upon request) |
Protocol |
T=0, T=1 |
Protocol |
USB CCID |
Connector Type |
USB Type-A |
Speed |
USB 2.0 Full Speed (12 Mbps)compatible with USB 3.0 |
Supply Voltage |
5VDC |
Current Consumption |
Max.300mA |
USB FirmwareUpgrade |
Supported |
|
Dimension (L *W *H) |
Main Body: 98.0 *65.0 *12.8 mm Antenna size: 50.0 *40.0 mm |
Weight(±5g) |
89g(USB Type-A) |
USB Cable Length |
1 m (Non-detachable) |
Buzzer |
1 *Programmable Buzzer (Mono-tone) |
LED |
1 *Programmable LED (Blue & Green) |
Temperature |
0-60°C |
Humidity |
90% (Non-condensing) |
MTBF |
500,000 Hours |
Certifications |
IEC/EN 62368, CE, UKCA, FCC, VCCI,KC, RoHS, REACH, WEEE, J-LIS, Microsoft® WHQL |
Compliances |
USB CCID, PC/SC |
Libraries |
CT-API |
Tools |
Software Development Kit |
Driver Supported OS |
Windows®, Linux®, macOS, AndroidTM |
Warranty |
1 Year |
Model |
Interface |
ACR1552U-M1 |
USB Type-A |
ACR1552U-MF |
USB Type-C |
Application
Ø e-Government
Ø e-Banking and e-Payment
Ø e-Healthcare
Ø Transportation
Ø Network Security
Ø Access Control
Ø Loyalty Program
Ø Smart Poster/URL Marketin

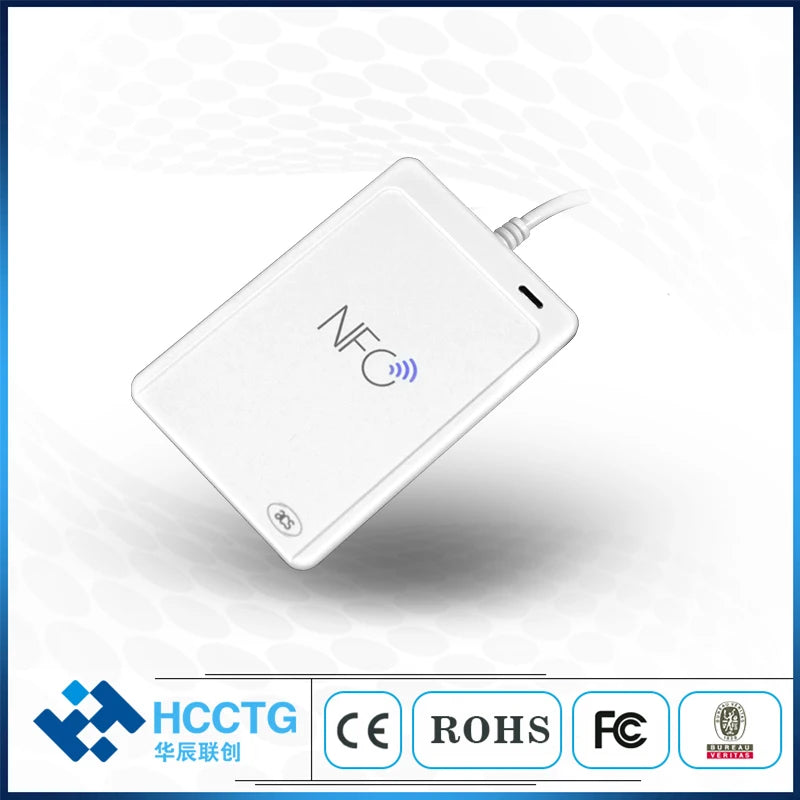

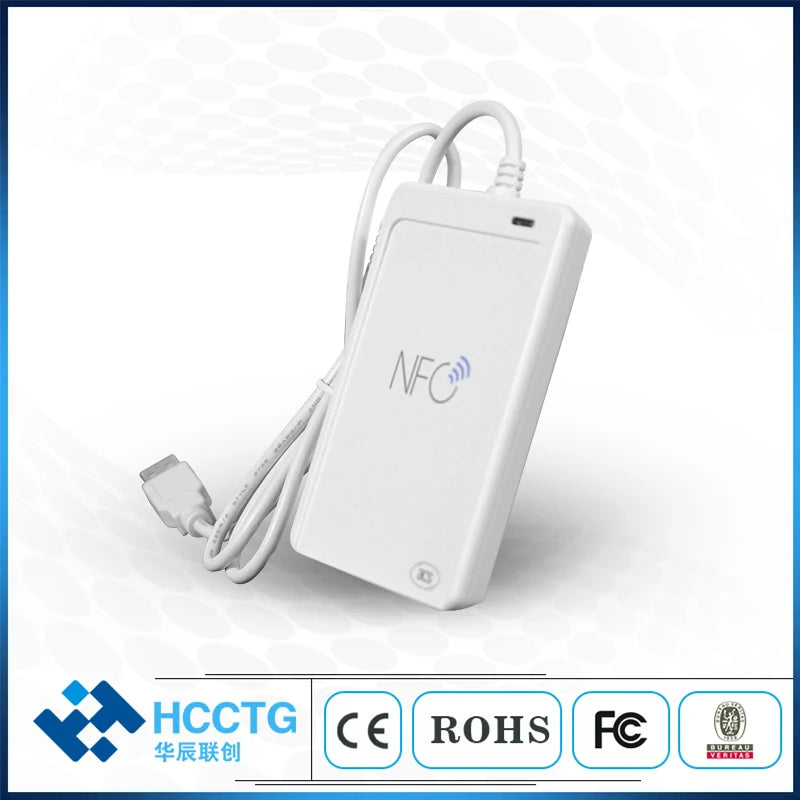

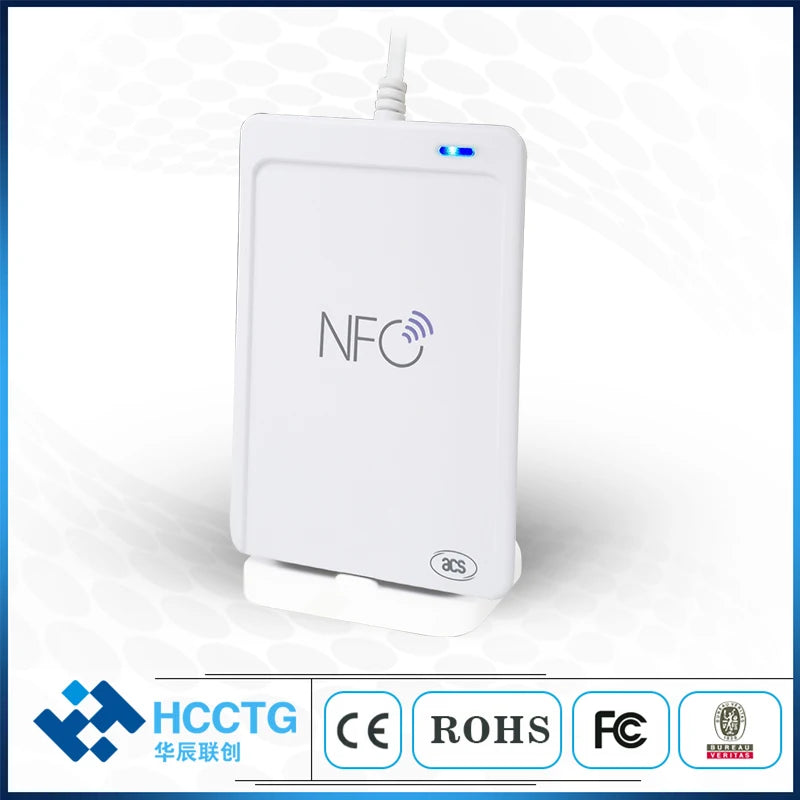

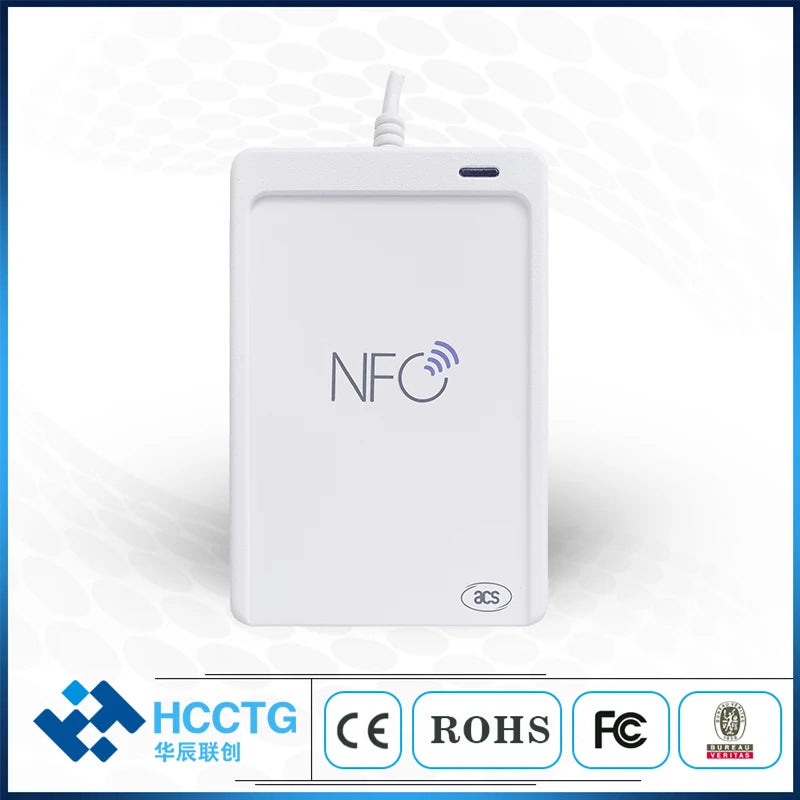

Pictures
FAQ
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for 14+ years. We can provide OEM / ODM customized service according to our customers’ various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4.What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales
department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C, Secure payment (Escrow Service from Alibaba) and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
