Features:

Brushless Construction: The 38mm brushless DC motor ensures long life and quiet operation.

Efficient 38mm BLDC Motor: This 38mm BLDC motor utilizes permanent magnets for efficient and long-lasting performance.

Compact and Lightweight Design: This 38mm BLDC motor is lightweight and compact, easily integrating into portable devices.

Optimum Performance at 7.4V: Operating at 7.4V, the 38mm BLDC motor can reach speeds of up to 3700 rpm, making it for ideal for energy-efficient applications.

38mm BLDC Motor with for PWM: Using for PWM to control the speed of the 38mm BLDC motor is for ideal for , high-torque applications.

Specifications:

Part Name: Brushless Motor

Material: Metal

Color: Silver

size: As shown

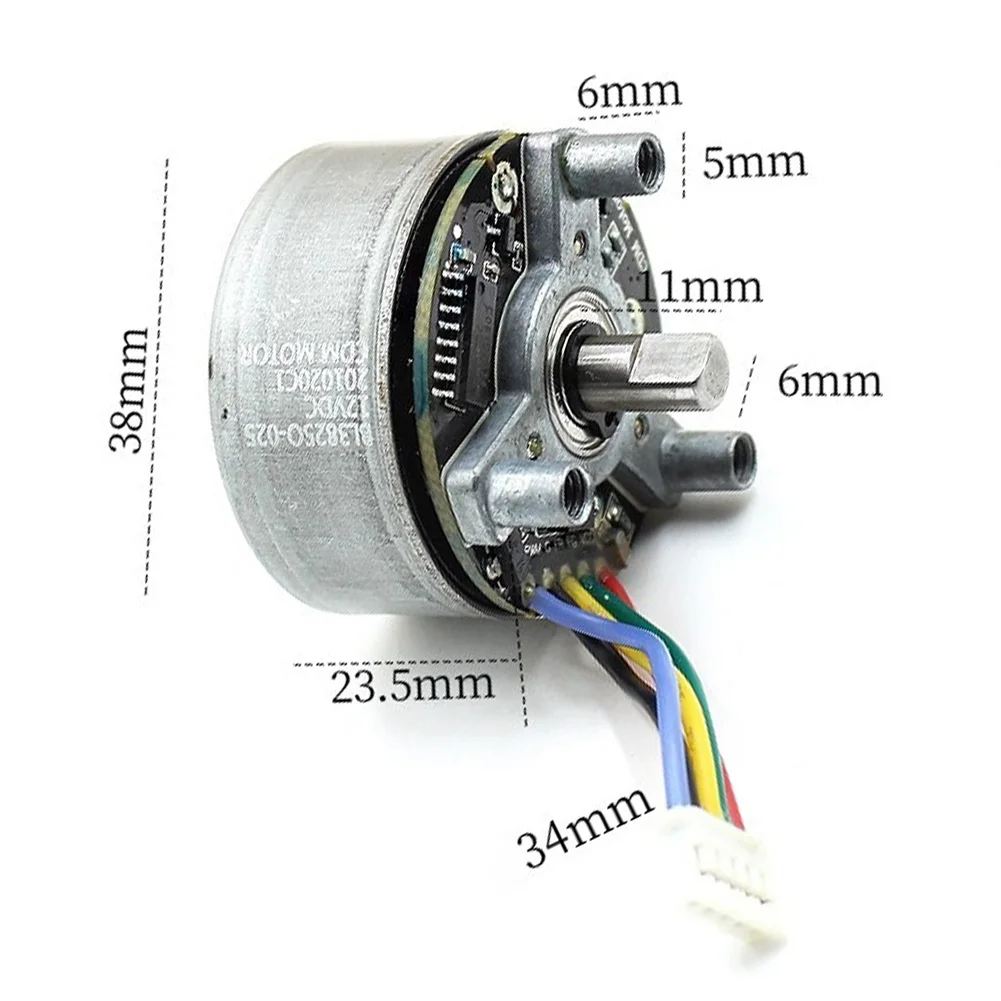

Motor Diameter: 38mm

Motor Length: 23.3mm

Shaft Diameter: 6mm

Shaft Length: 11mm

Applicable Voltage: DC 7.4V-12V

Rated Voltage: 12V

No-Load Current: 0.29A

No-Load Speed: 3800RPM

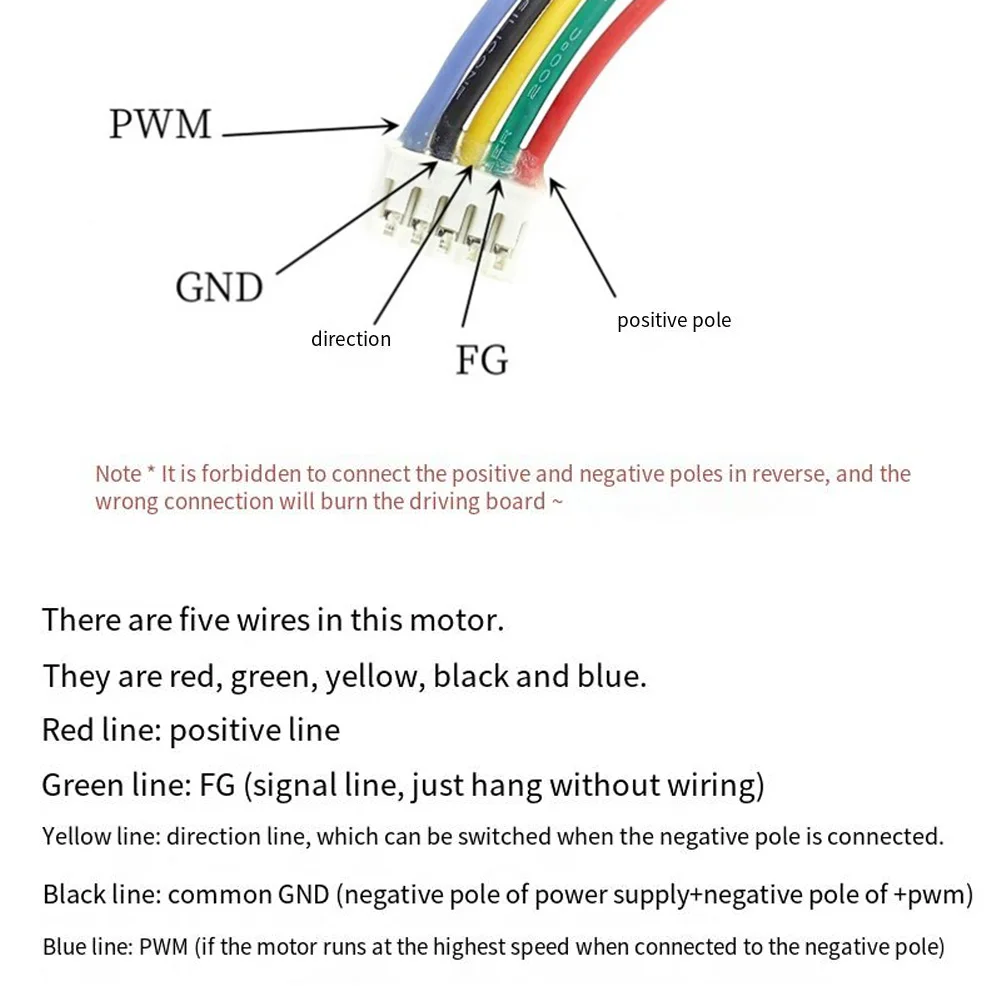

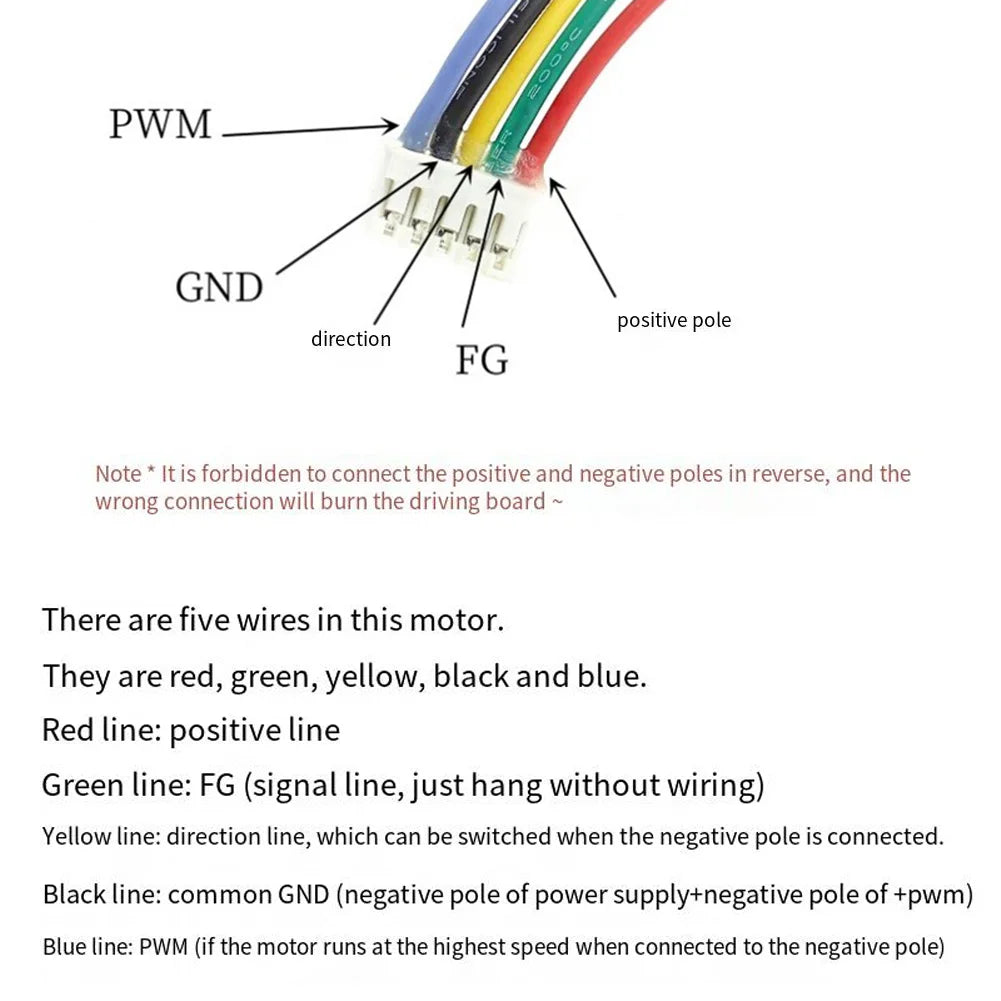

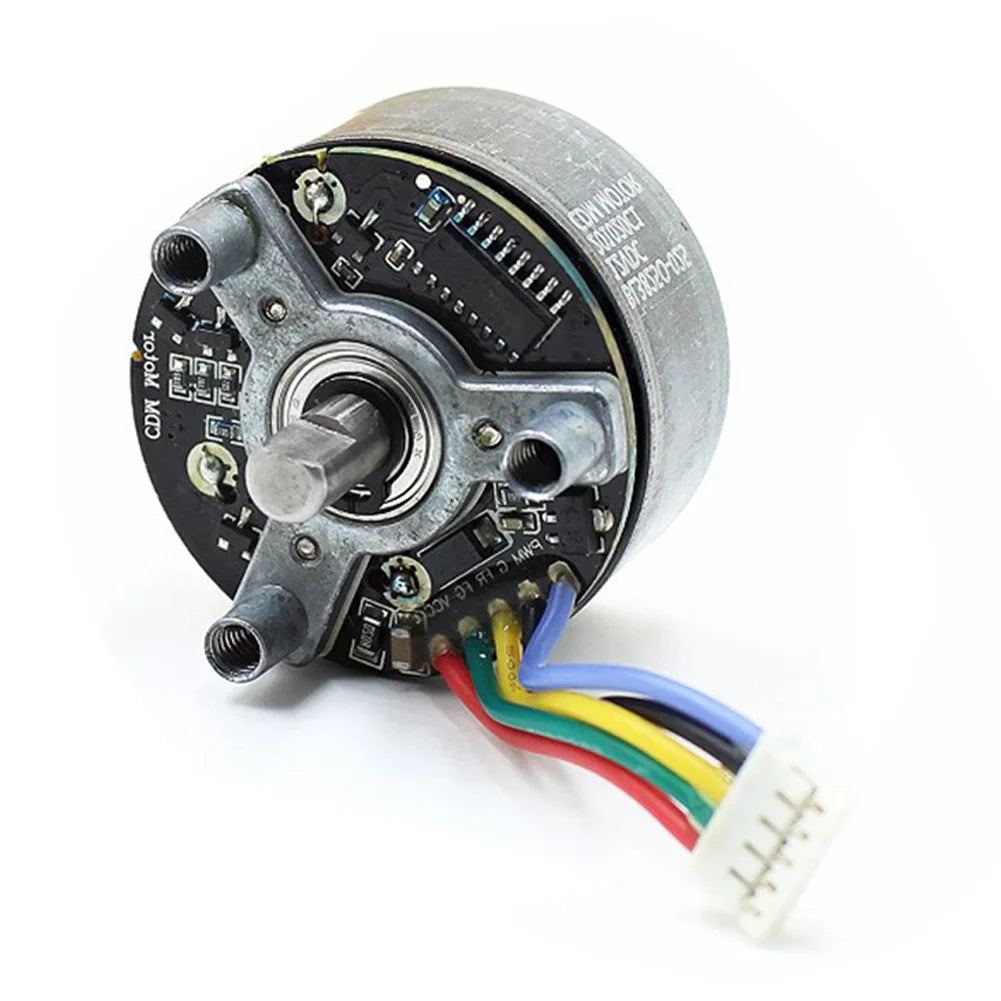

The motor has five wires: red, green, yellow, black, and blue.

Red Wire: Positive

Green Wire: FG (Signal and Line, optional)

Yellow Wire: Direction Line (adjustable during operation, forward and reverse when stationary)

Black Wire: Common GND (motor negative + for PWM negative)

Blue Wire: for PWM (connecting the black wire will operate the motor at maximum speed)

Reminder: Connect the red wire to the positive terminal and the black wire to the negative terminal. Do not connect the positive and negative terminals incorrectly, as this will damage the driver board.

Package content:

1 * Motor

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
