SPECIFICATIONS

BEC Output: 5V 3A

Baro: BMP280

Black Box: 16MB

Brand Name: NONE

Compatible Drone Brand: Autel Robotics

Compatible Drone Model: Air Force

DJlAir Unit Connector: YES

High-concerned chemical: None

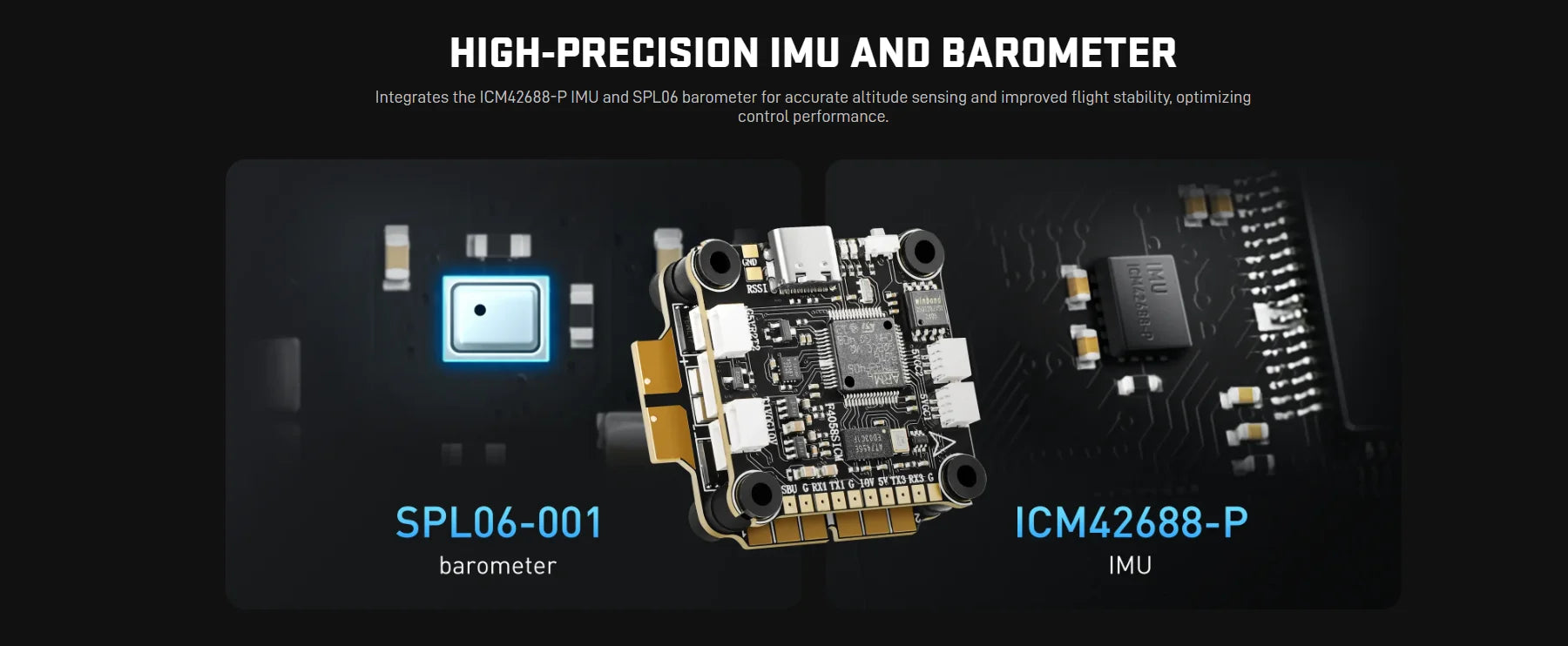

IMU(Gyro): ICM42688-P

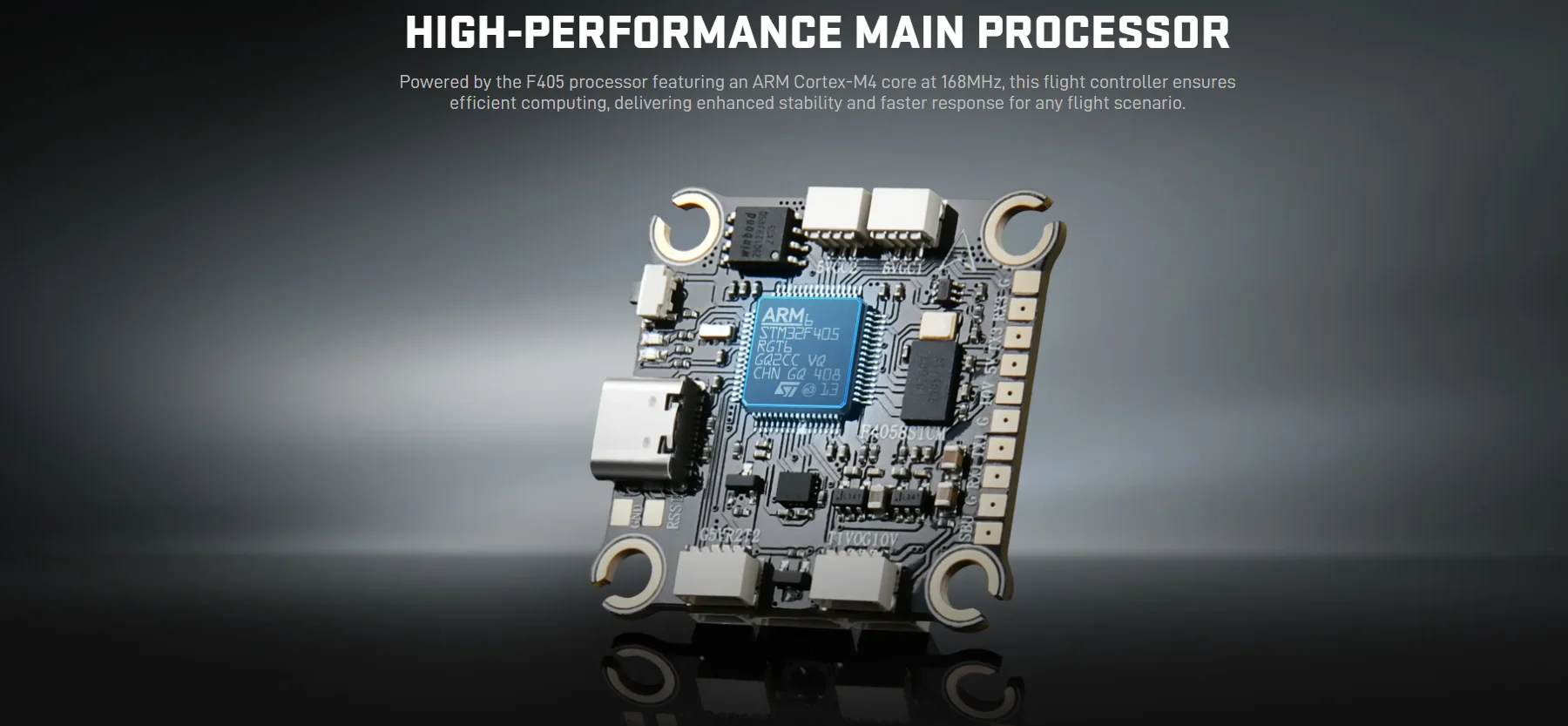

MCU: STM32F405

OSD: BetaFlight OSD

Origin: Mainland China

UART interfaces: 5 sets

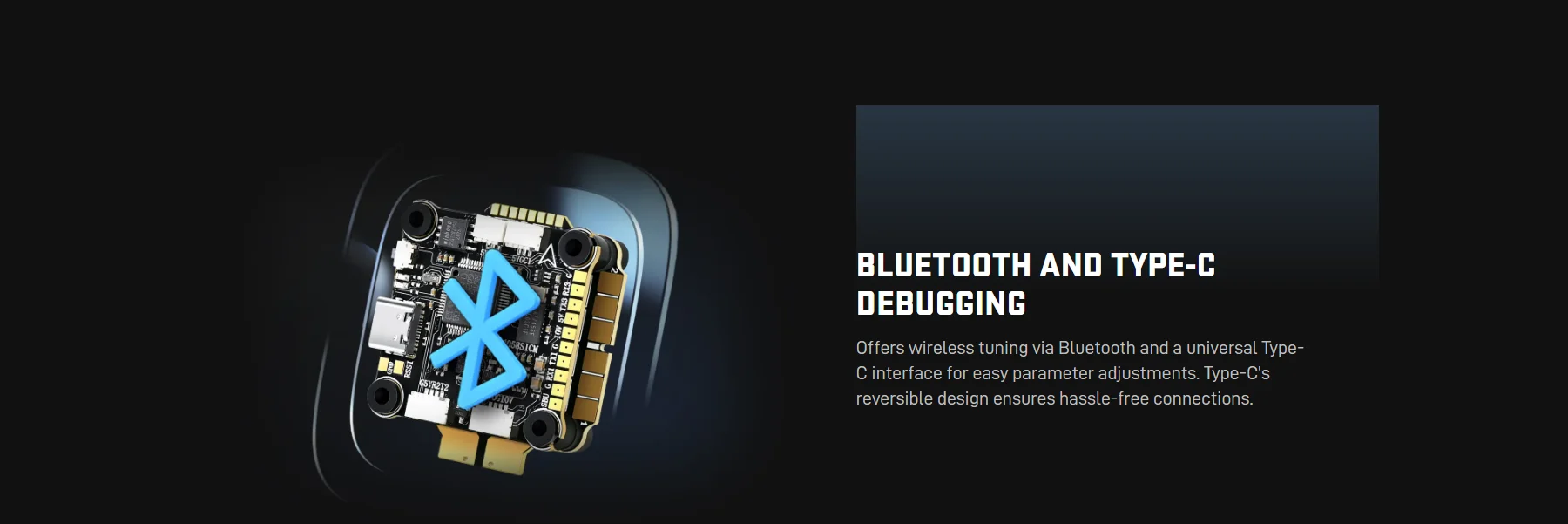

USB Port: Type-C

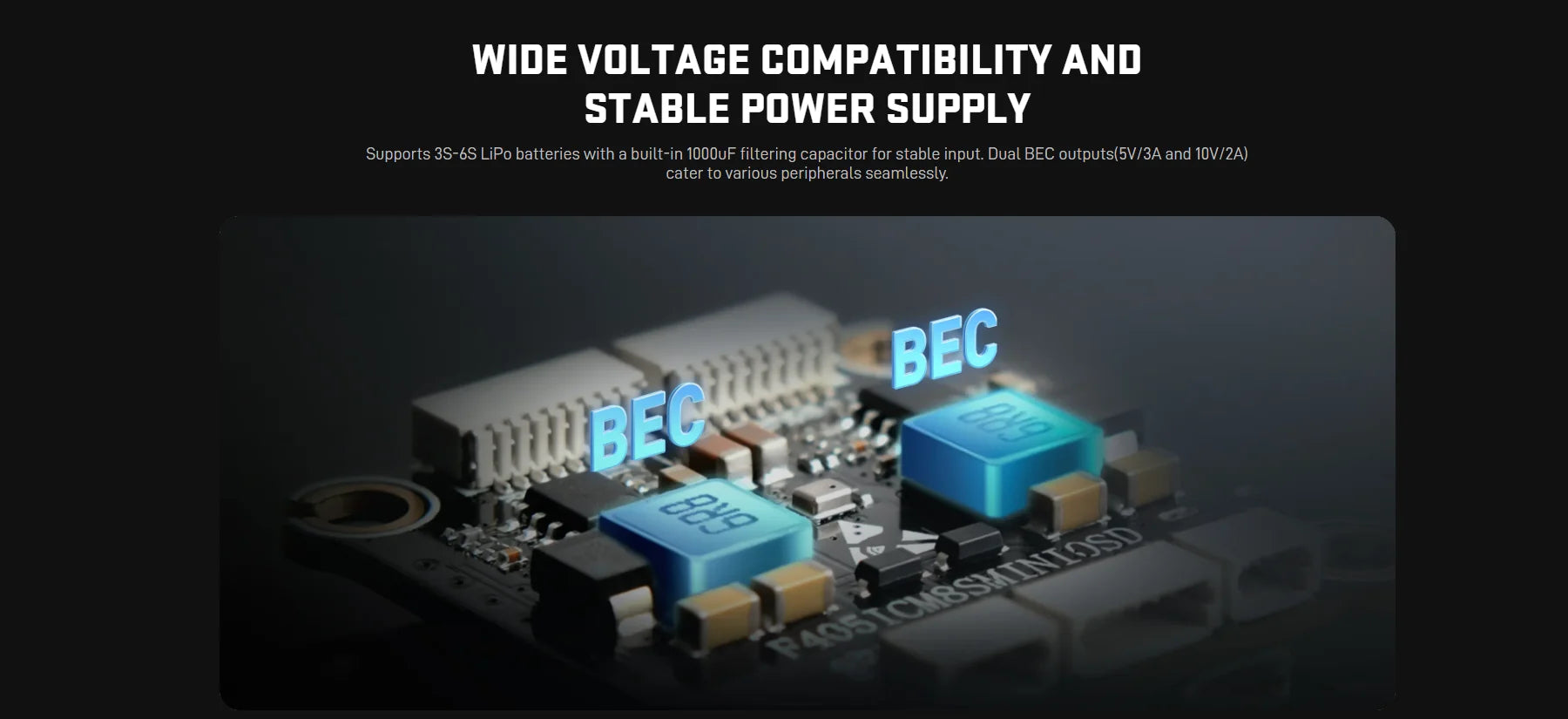

Voltage Input: 3S-6S LiPo battery

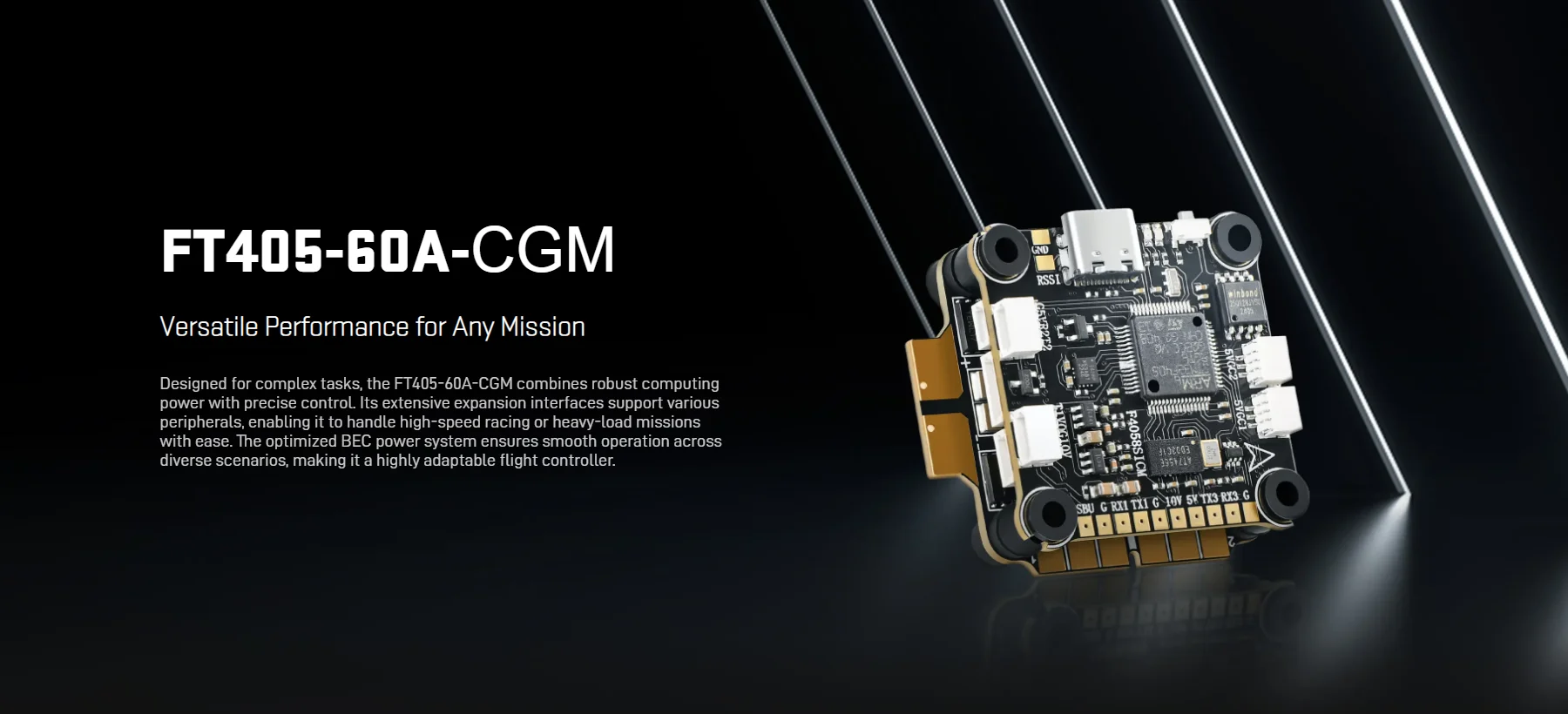

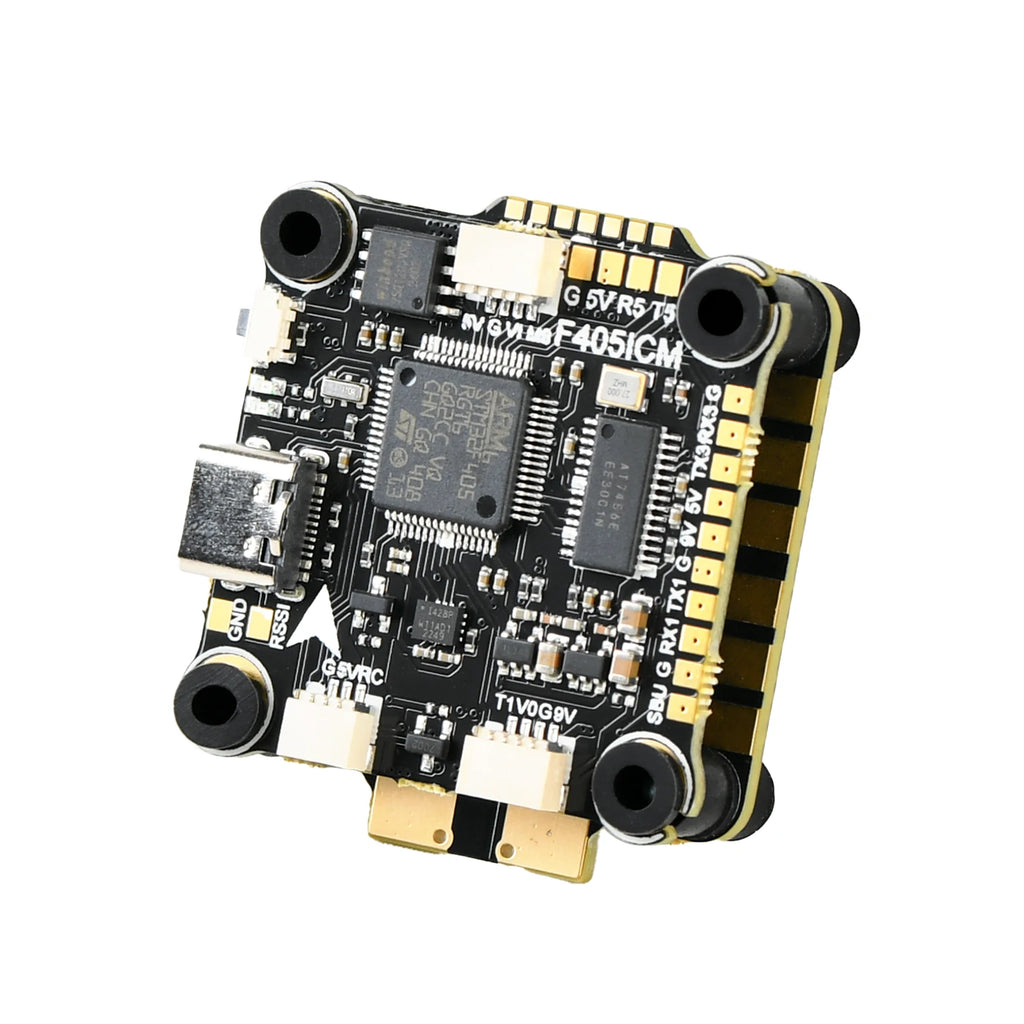

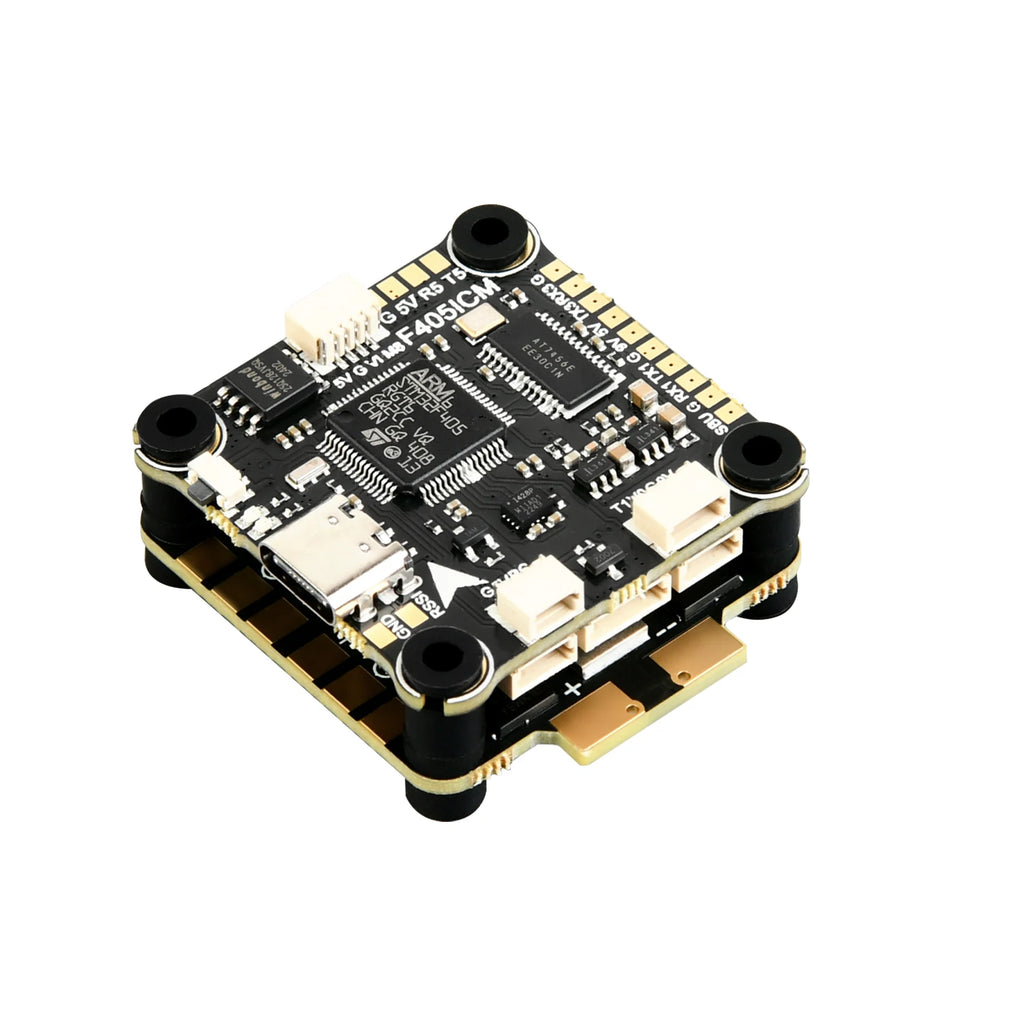

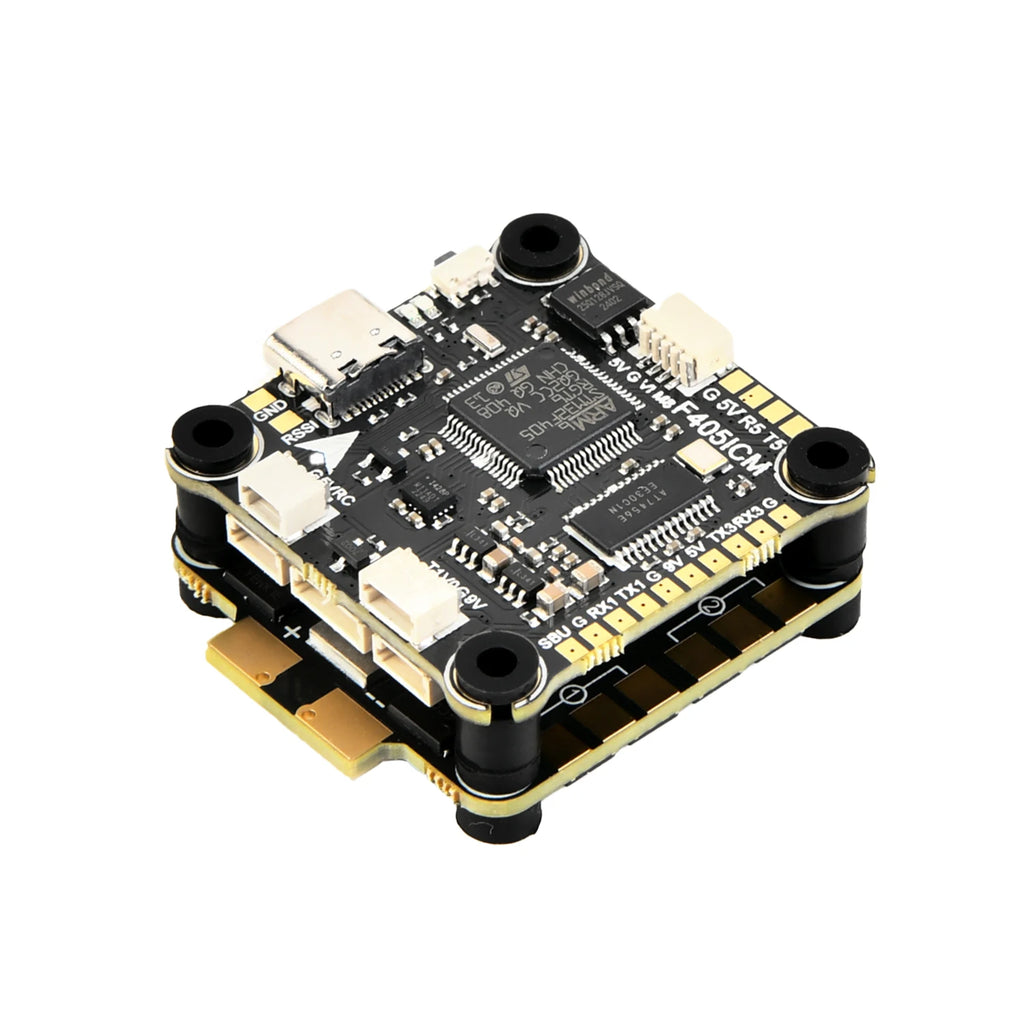

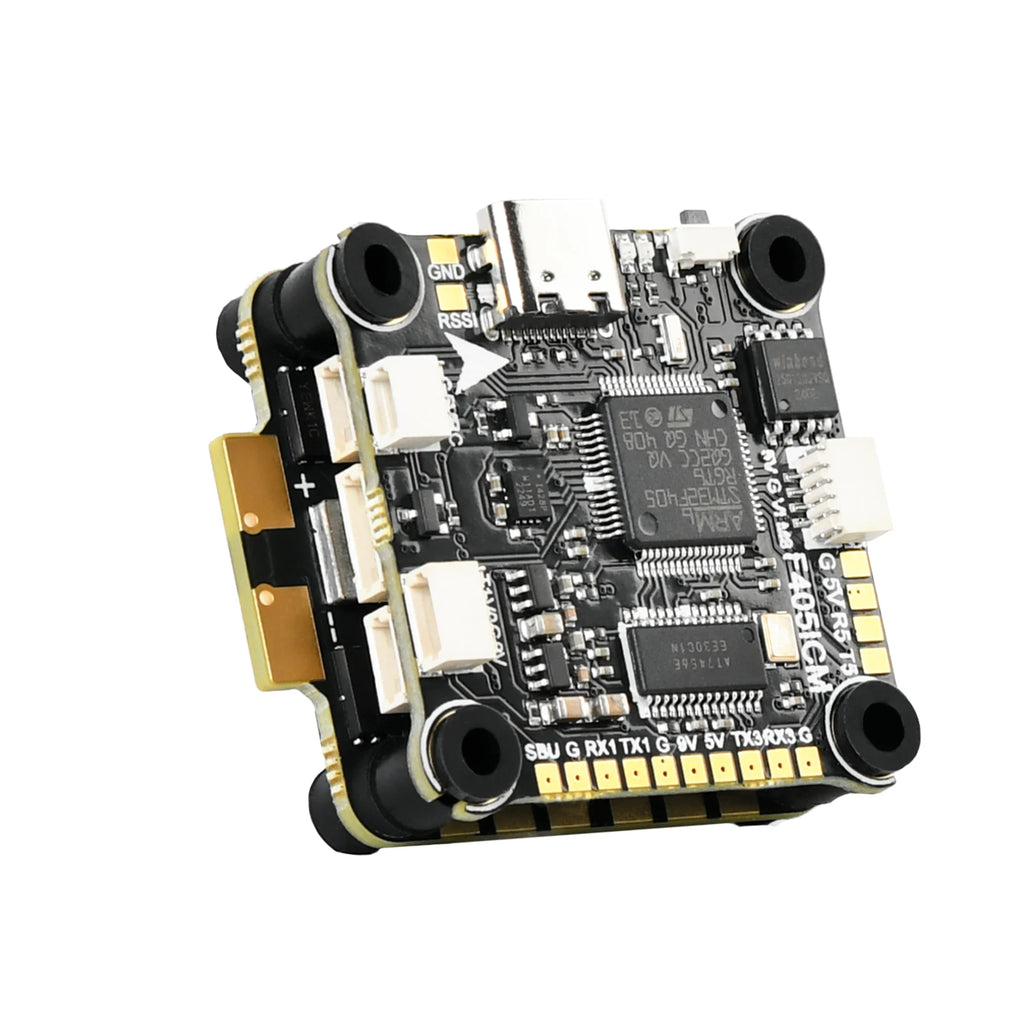

Air Force FT405-60A-CGM Flight Controller & Electronic Speed Controller Mini Stack for FPV Freestyle Drones Racing Drone

Description:

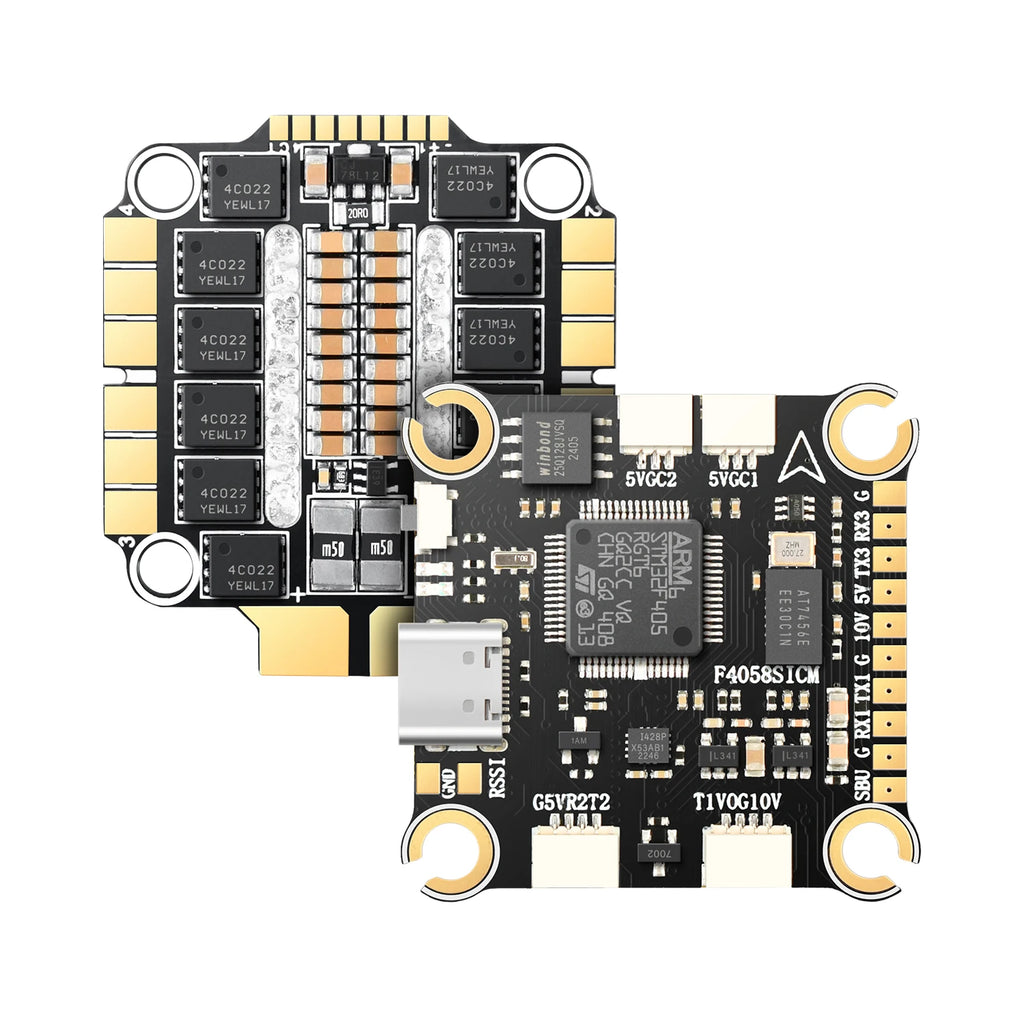

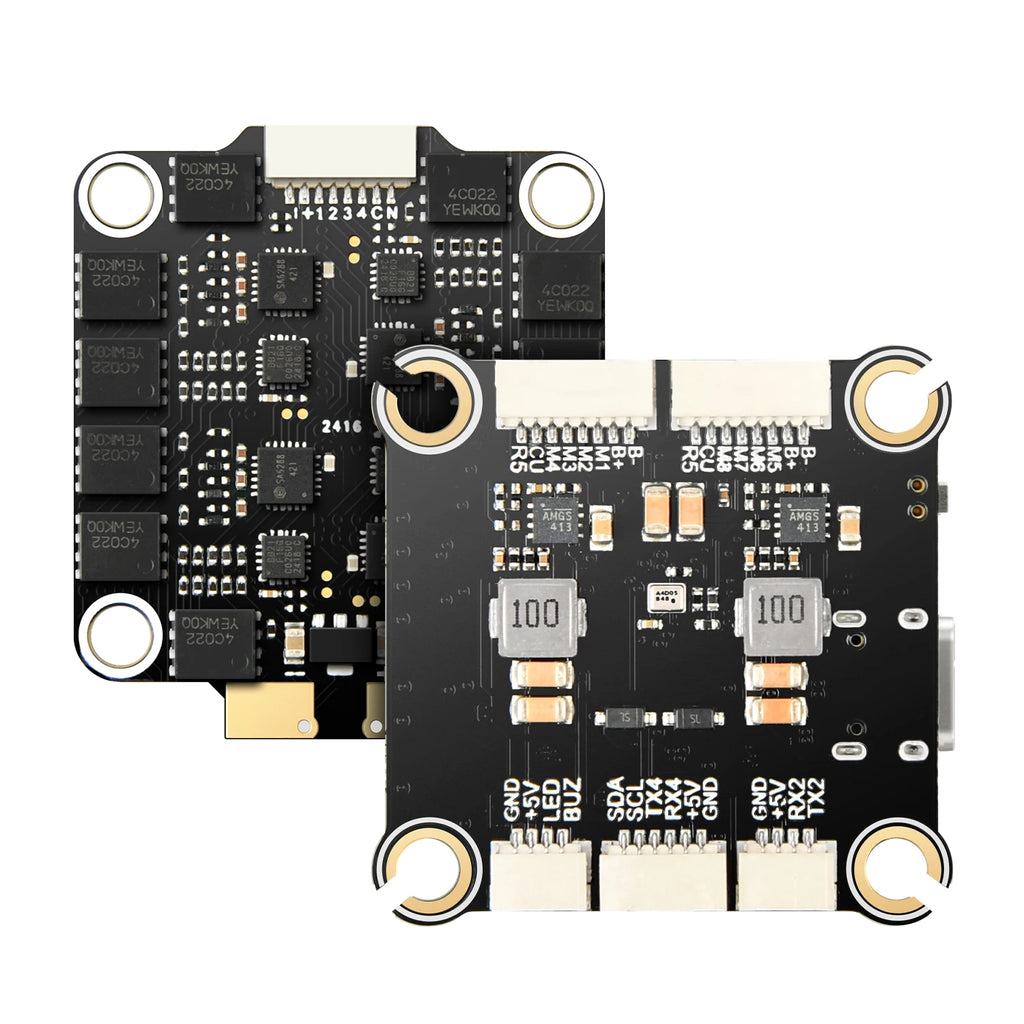

FT405-60A-CGM Fly Tower Stack is consists of FC405-6S-CGM Flight Controller and ESCBL60A-4IN1M ESC.Equipped with the industry-leading ICM42688-P Gyro and onboard 5.8G VTX, which takes your drone's posture and movement accurately to the next level.

Function:

BlackBox: 16MB

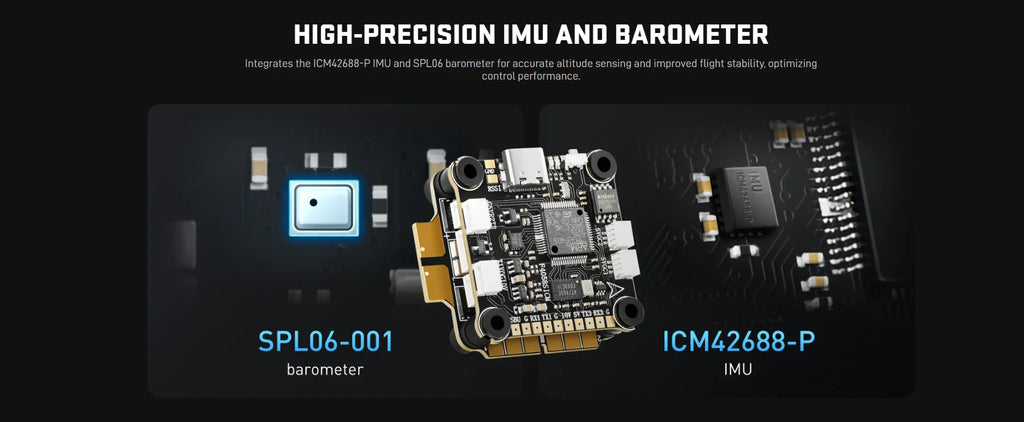

ICM42688-P Gyro

UART interfaces: 5

DJlAir Unit Connector Supported

GPS Supported

Packing list

FC405-8S-CGM flight controller x 1

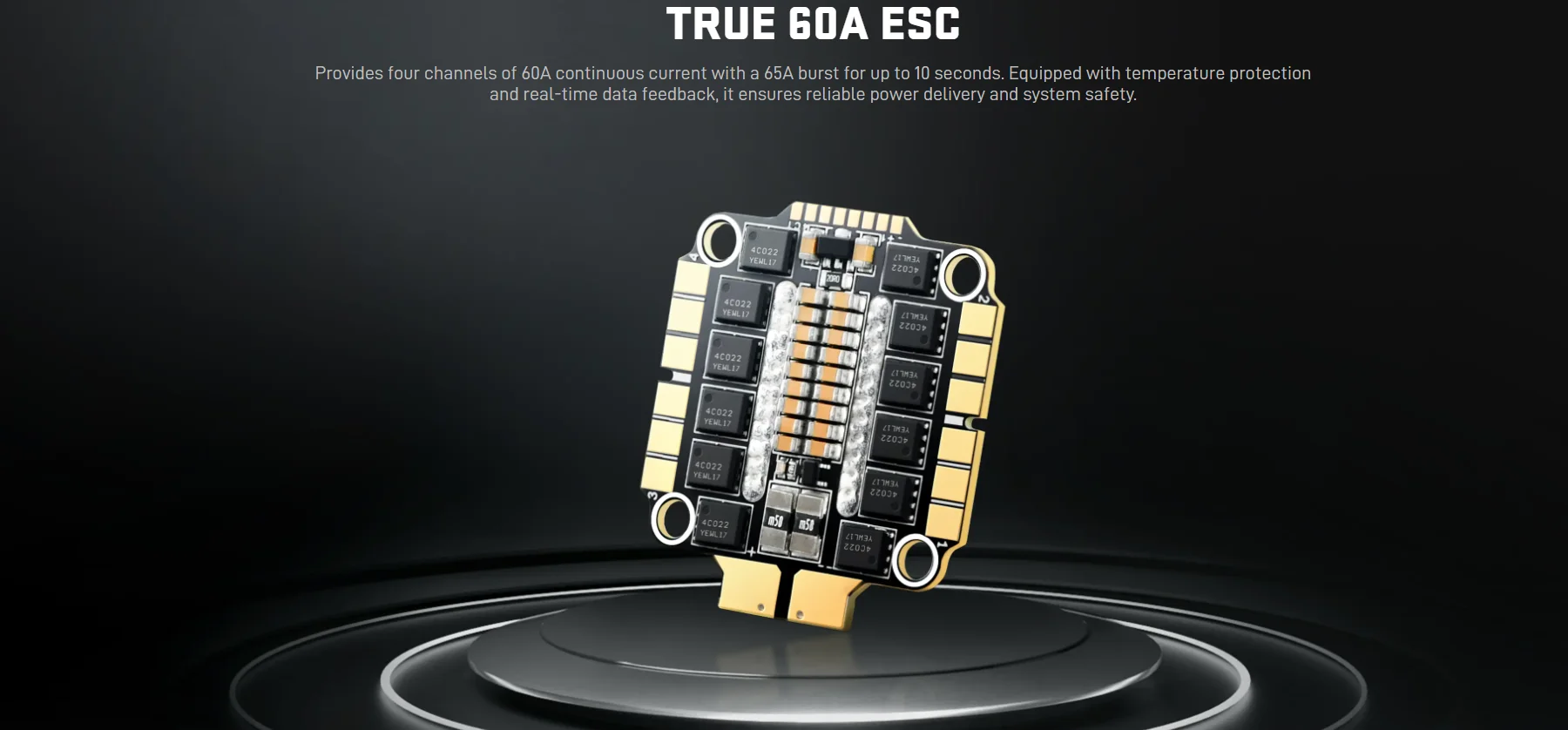

ESCAM60A-4IN1M ESC x 1
M3*30 hexagon socket screws x4
M3 Nylon Nut x4
M3 Shock Absorbing Ball x 8
8pin co-directional ESC cable x2
3pin camera cable x1
4pin receiver cable x1
6pin GPS cable x1
4Pin Transmission Cable x1
35V 1000uf capacitance x1
XT60 connector (male) x1
12Awg Power Cord (10cm) x2"
