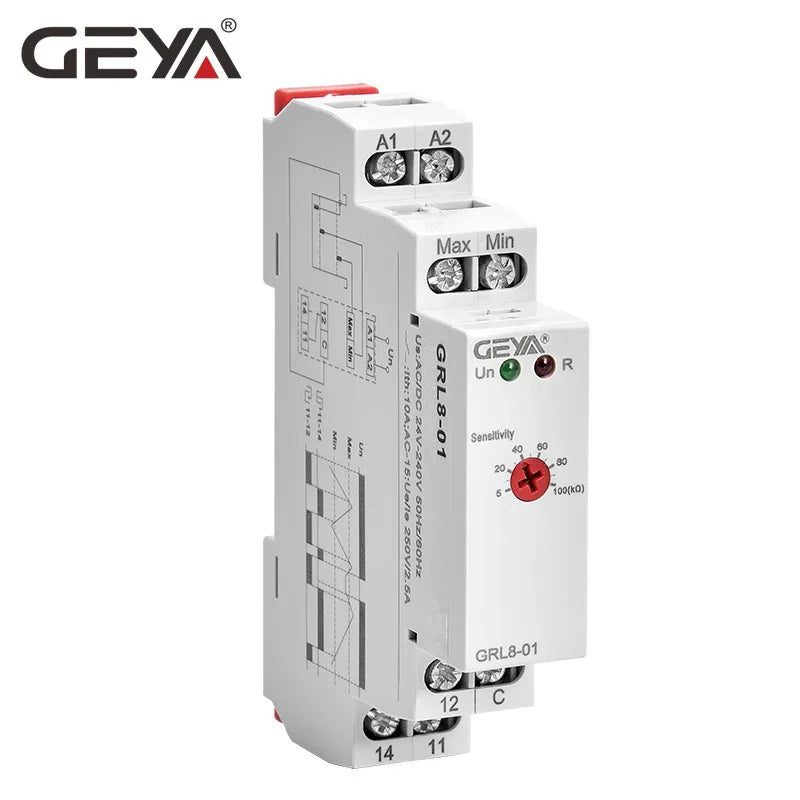

GEYA GRL8 Liquid Level Control Relay Electronic Liquid Level Controller 10A AC/DC24V-240V
GEYA GRL8 Liquid Level Control Relay Electronic Liquid Level Controller 10A AC/DC24V-240V
🔒 B2B Purchasing Managers: Log in via our Wholesale Portal to unlock contracted tier discounts (Up to 12% off). / Inicie sesión para desbloquear precios de mayoreo.
100% Encrypted Payment | 📦 Insured Shipping
SPECIFICATIONS
Applicable Object: Other
Brand Name: GEYA
Certificate: CE CB ROHS
Certification: CE,RoHS
Choice: yes
Contact Arrange: SPDT
Contact Load: Low Power
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Function: Liquid Level Controller
High-concerned chemical: None
Model Number: GRL8 Level Control Relay
Origin: Mainland China
Output Contact: 1SPDT
Power Source: Ac,Ac
Product Name: GRL8 Level Control Relay
Protect Feature: Sealed
Rated Current: 10A
Rated Frequency: 50/60Hz
Theory: Voltage relay
Time Delay: adjustable 0.5s-10s
Use: General Purpose
Voltage: 240V,AC/DC24V-240V
is_customized: Yes
semi_Choice: yes
General
Applications
-Designed for monitoring level in wellss, basins, reservoirs, tanks...
Function Features
-In one device you can choose the following configurations:

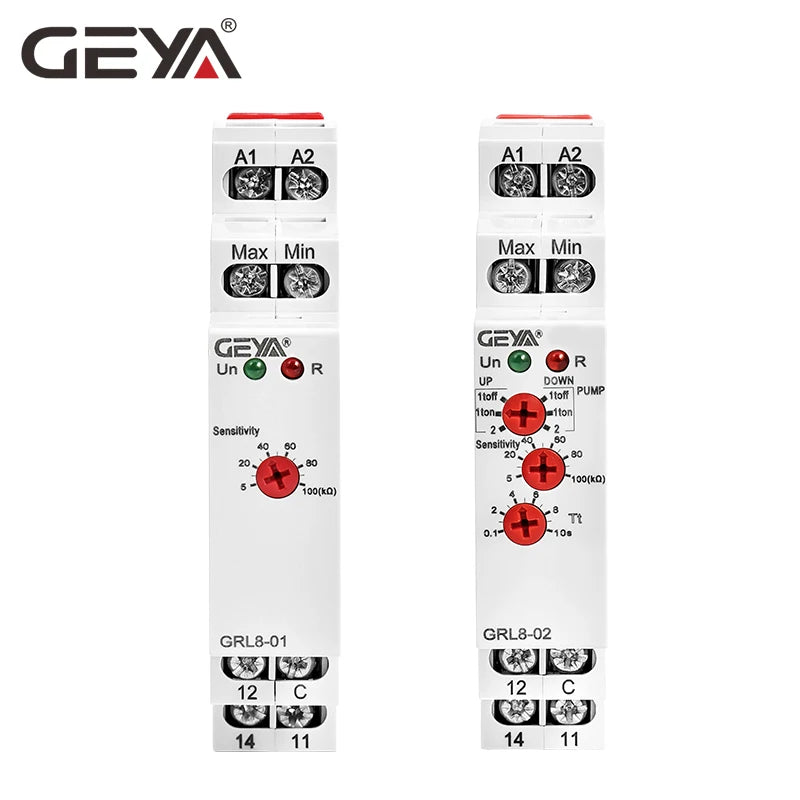

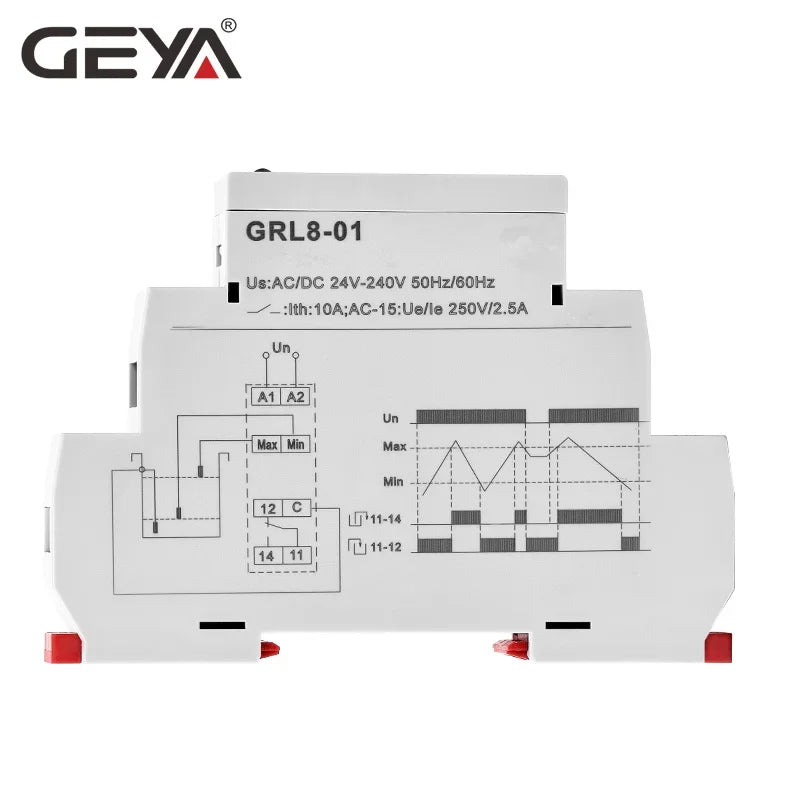

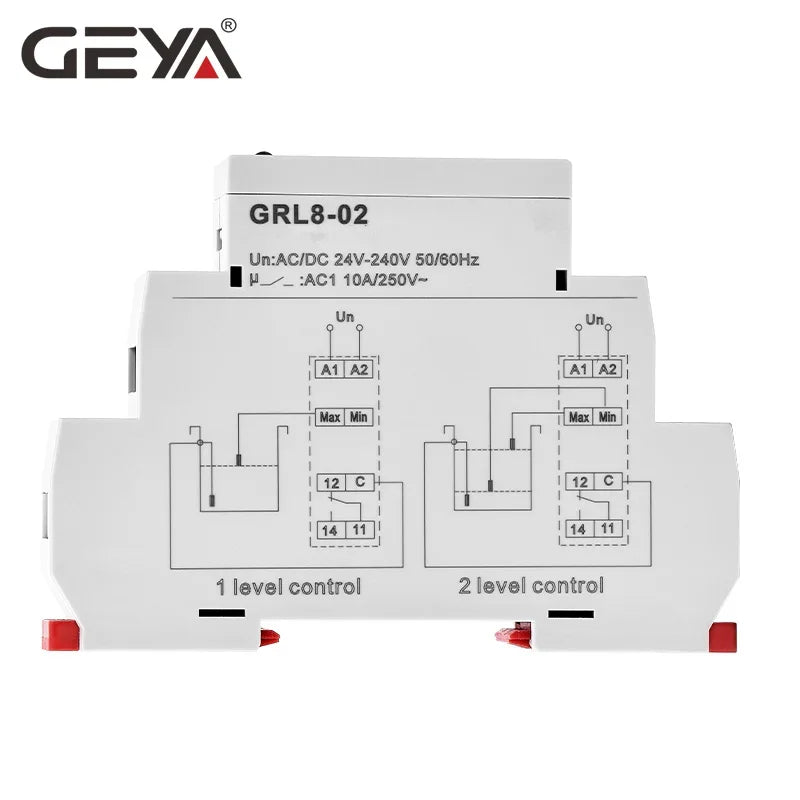

- GRL8-01 = 2 level control mode

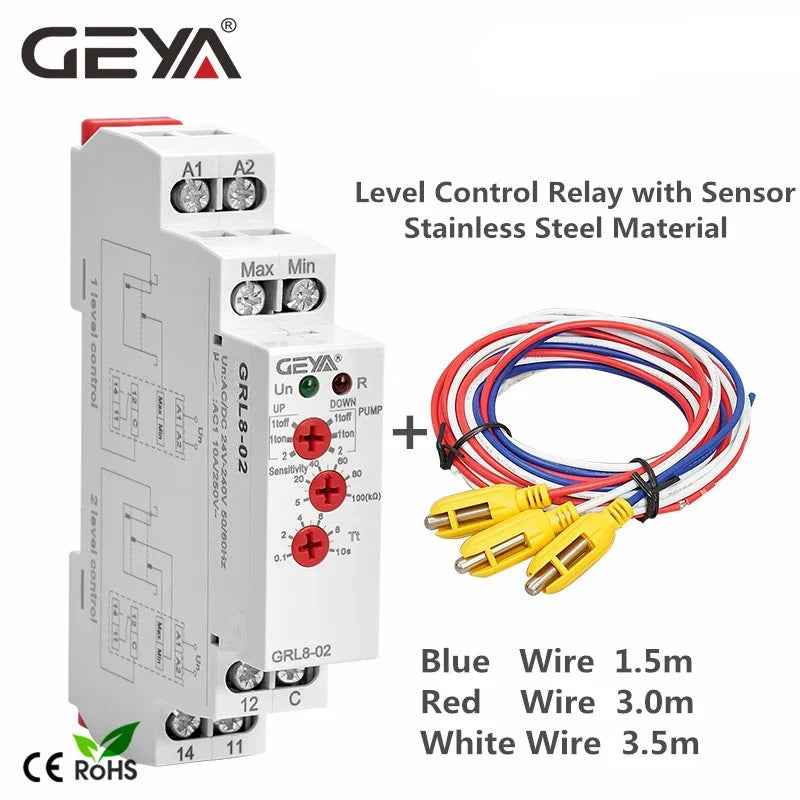

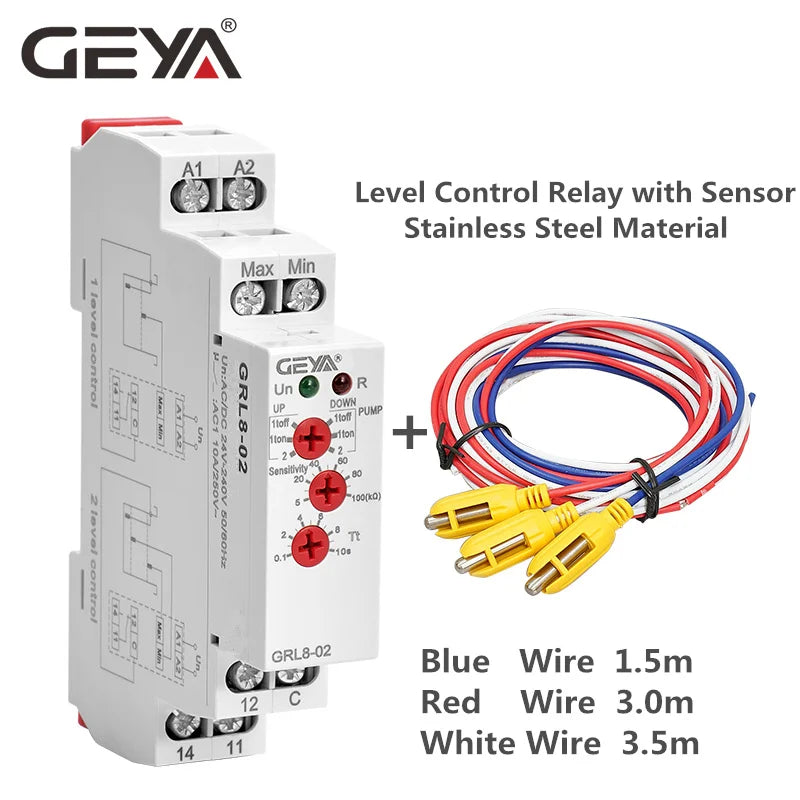

- GRL8-02 = 2 or 1 level control mode
-Choice of function PUMP UP, PUMP DOWN.
-Adjustable time delay on the output (0.1 - 10s).
-Sensitivity adjustable by a potentiometer (5-100K).
-Galvanically separated supply voltage AC/DC 24-240V.
- Output 1SPDT 10A/AC1
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
Technical Data
