SPECIFICATIONS

After-sales Service Provided: Free spare parts, Onsite Installation

Application: Laboratory use

Brand: JUNMU

Brand Name: BMAD,JUNMU

Capacity: 100L,180L,280L,380L,500L800L,1000L,1680L

Digital timer: Yes

Display Type: LCD Display

High-concerned chemical: None

Humidity Control: Yes

Origin: Mainland China

Place of Origin: Henan, China

Power: AC220V.50Hz

Protection Class: IP57

Temperature Resolution: 0.1 °C, 0.1℃

Temperature Setting: 0-80℃

Temperature Uniformity: ±1℃

Timer Function: Yes

Application scenarios

Core applications:

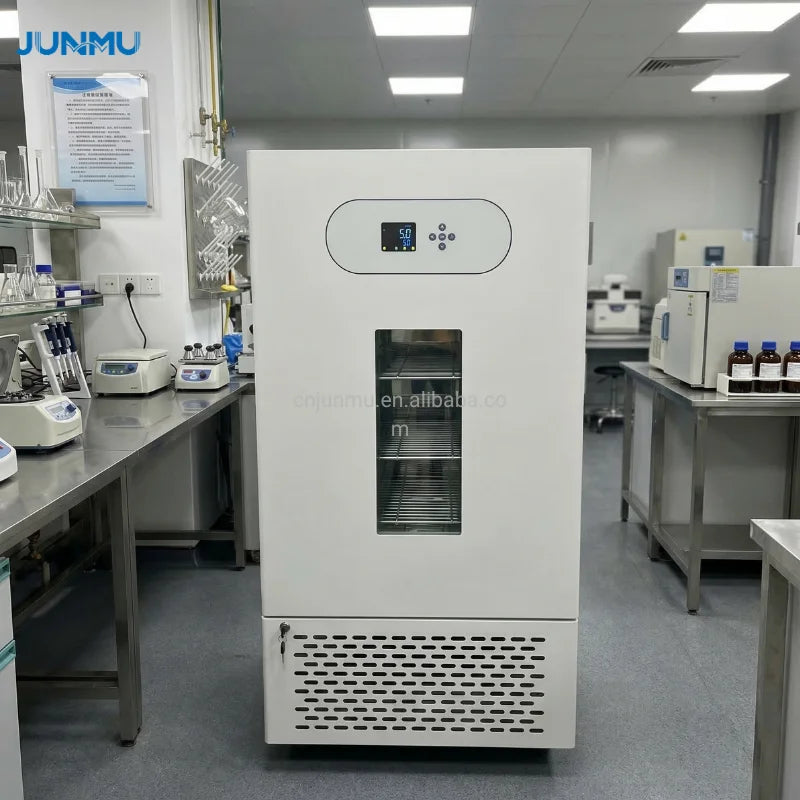

The Advanced JUNMUSHP Series Biochemical Incubator is a high-precision, climate-controlled system integrating intelligent temperature regulation and advanced forced-air convection. Designed with a mirror-polished SUS304 stainless steel chamber and a microcomputer PID controller, it provides an exceptionally stable and uniform environment for sensitive scientific research and

industrial applications.
Core Applications
►Environmental Analysis: Essential for BOD (Biochemical Oxygen Demand) determination in water quality monitoring and environmental simulation.
►Microbiology & Research: Provides a reliable constant temperature environment for bacteria, mold, and microorganism cultivation and preservation.
►Life Sciences: Specialized for biological sample storage, cell culture, and long-term stability testing in high-purity laboratory settings.
►Agricultural Research: Ideally suited for seed germination and breeding experiments requiring precise thermal stability and a contaminant-free atmosphere.
Target Sectors
Ideally suited for Environmental Protection, Health and Epidemic Prevention, Agriculture, Animal Husbandry, Fisheries, and Quality Inspection departments in universities, research institutes, and corporate R&D centers.

Product Description

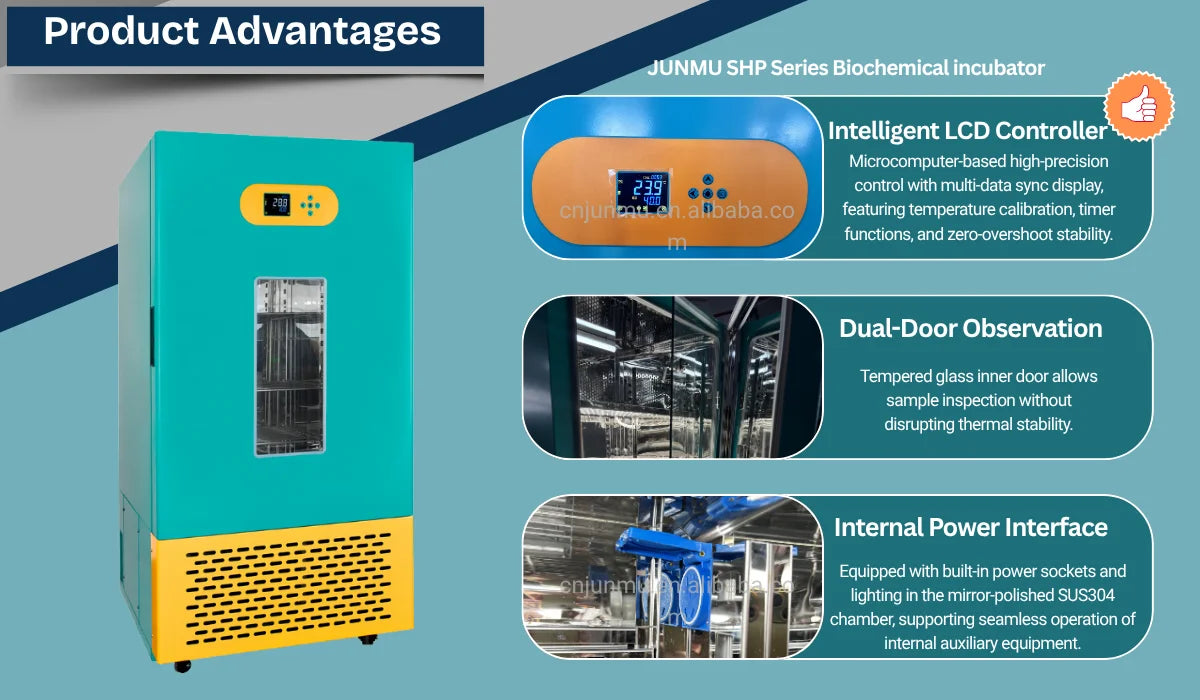

JUNMU SHP Series Constant Temperature & Humidity Incubator Main Features

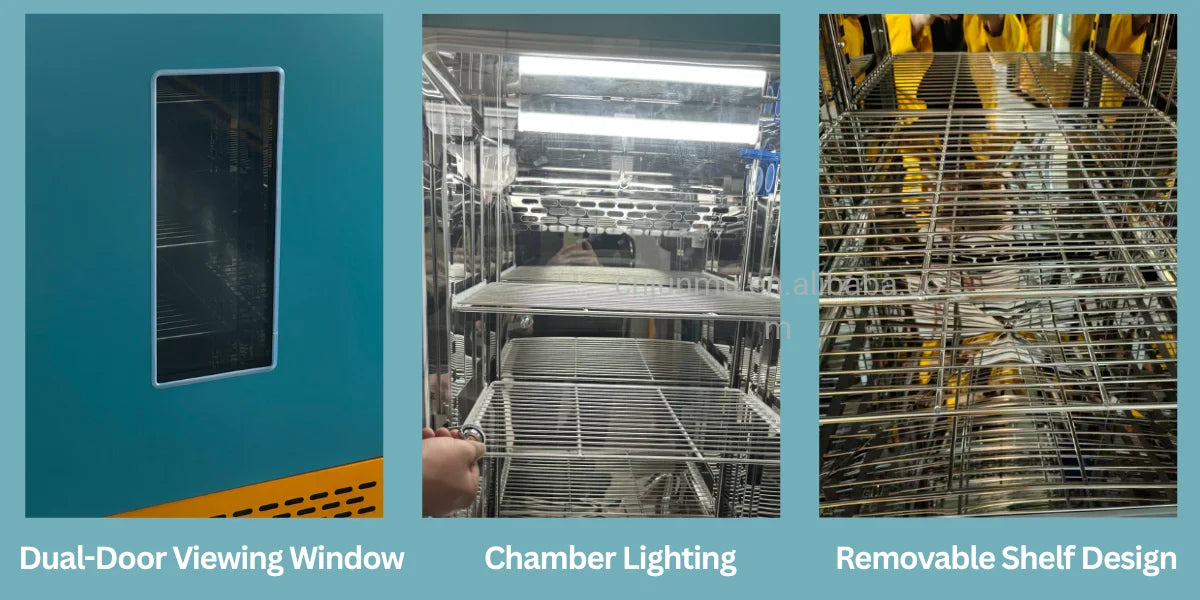

Outer Casing:Constructed from cold-rolled steel plate base material, treated with electrostatic baking paint process to form a dense protective layer. This ensures high hardness, robustness, and exceptional anti-corrosion capability. Features anti-pinch rounded edges for enhanced durability and operational safety. Working Chamber:Equipped with a UV sterilizing lamp. Made of stainless steel with mirror polishing treatment. Designed with smooth rounded corners and quickly detachable shelf brackets for easy removal and chamber cleaning. Insulation Layer:An insulation protection system is applied between the outer casing and working chamber, providing excellent thermal retention. This effectively guarantees temperature stability and accuracy inside the chamber while minimizing ambient environmental impact. Sealing Technology:Utilizes high-density synthetic heat-resistant silicone sealing strips to prevent heat loss. Ensures long-term high-temperature operation and extended service life. Observation Window:Double-layer design with tempered observation panes. The outer door can be opened directly to view samples without affecting internal temperature. Note: 800L/1000L models feature dual doors (outer door without observation window). Temperature Control:Automatic heating/cooling control system integrated with high-sensitivity sensors ensures stable operation. Air Flow System:Forced convection ventilation structure enhances temperature response speed, improves temperature uniformity, and reduces fluctuations. Control Panel:Microcomputer-based intelligent LCD temperature controller with high precision, overshoot-free performance, and menu-driven operation. Includes temperature calibration and timer functions. Safety & Convenience:Earth Leakage Circuit Breaker (ELCB) and RS485 communication interface for PC connectivity, enabling real-time data monitoring/recording and secure experiment data storage/playback. Humidification System:Internal steam humidification technology with 316 stainless steel heating tube minimizes humidity fluctuations and ensures uniformity. 25L external water tank requires refilling only every 15-20 days.

Specification

Model

SHP-80L-AC

SHP-180L-AC

SHP-280L-AC

SHP-380L-AC

SHP-500L-AC

SHP-800L-AC

SHP-1000L-AC

SHP-1680L-AC

Door

Single Door

Double door

Power Supply

AC 220V,50HZ

Temperature Fluctuation

±0.5℃

Temperature Uniformity

±1℃（Tested at25℃）

Temperature Resolution

0.1℃

Temperature Adjustment Range

0～80℃

Timer Range

1～9999min

Refrigerant

R134a

Rated Power

600W

800W

1100W

1200W

1400W

2400W

2600W

3000W

Inner Dimension WxDxH

45x40x45

50x46x78

58x52x94

58x54x122

70x57x125

120x52x129

120x70x130

146x85x136

Overall Dimension WxDxH

62x65x95

66x72x128

74x76x147

74x70x172

85x88x185

136x78x188

135x102x191

162x122x200

Shelves (Standard/Max)

2/6 pcs

3/10 pcs

3/14 pcs

4/16 pcs

5/16 pcs

6/16 pcs

6/16 pcs

7/16 pcs
