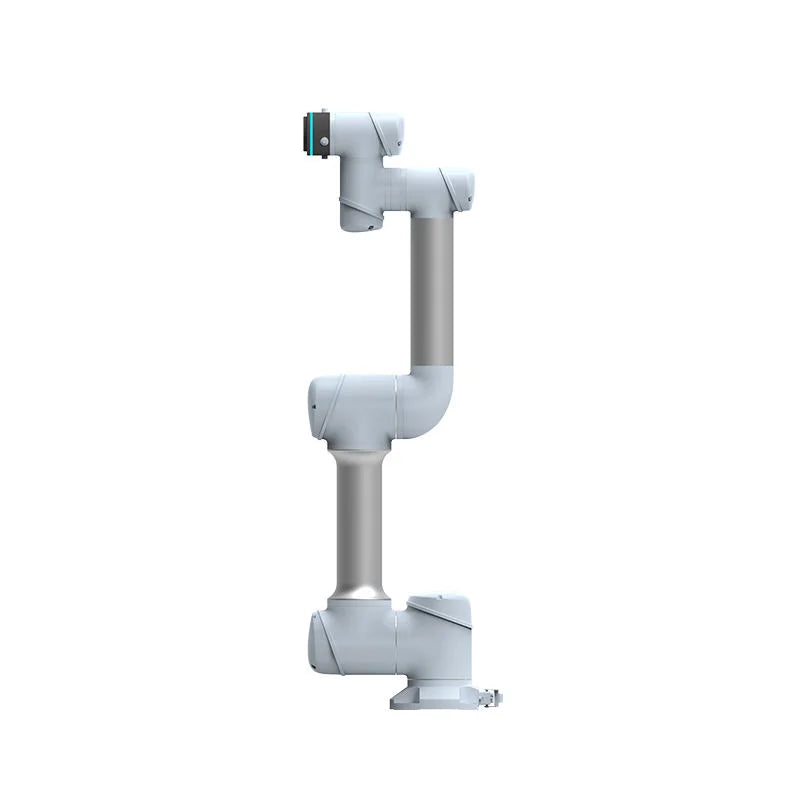

SPECIFICATIONS

Material: Alloy

Warranty: 1 Year

application: punching machine

brand name: ONA

core components: PLC,Engine,Gearbox

dimension(l*w*h): 80*45*45cm(31.50*17.72*17.72in)

machinery test report: Provided

place of origin: Jiangsu, China

power(w): 0.3 kW

production capacity: 500

video outgoing-inspection: Provided

voltage: 220 V

weight (kg): 13.6

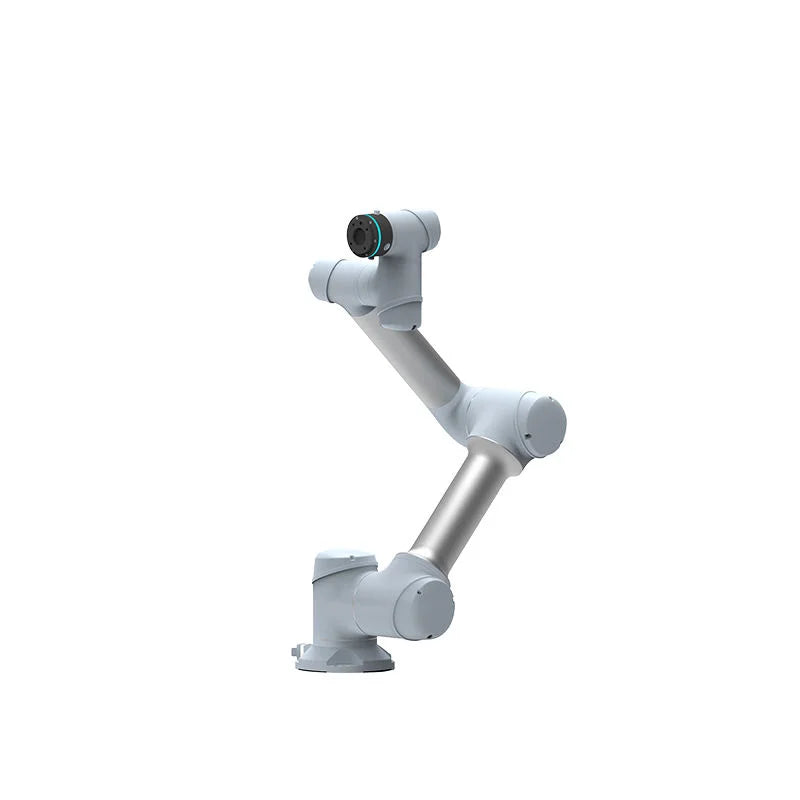

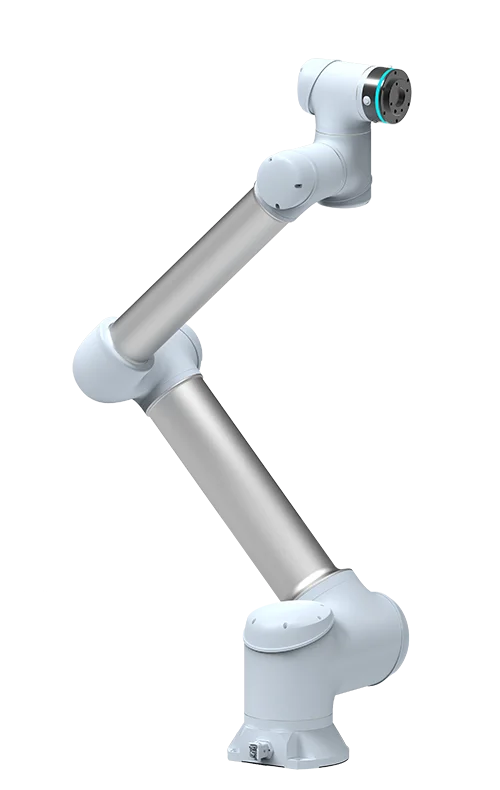

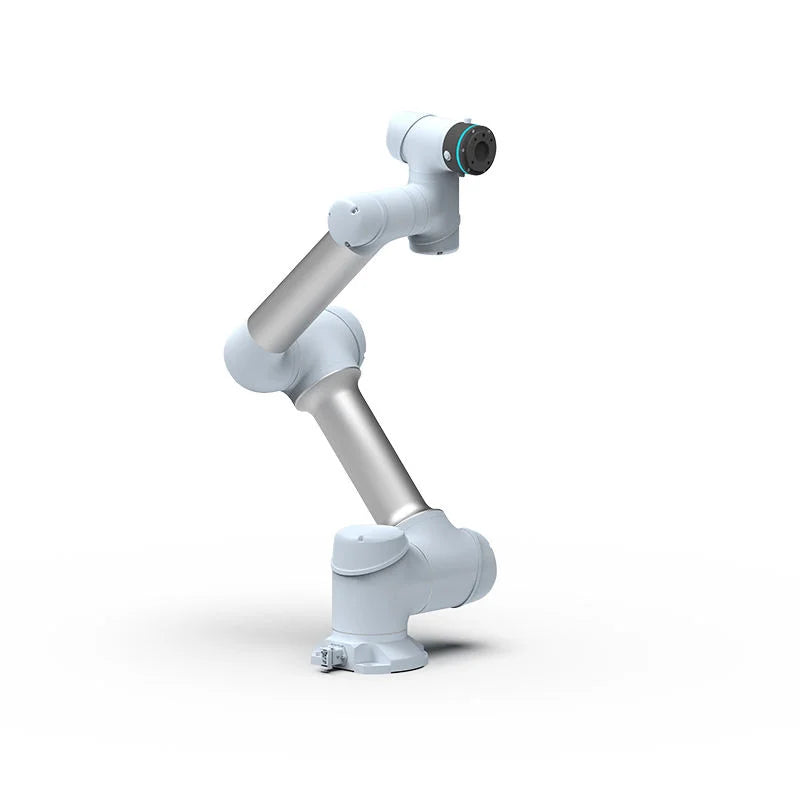

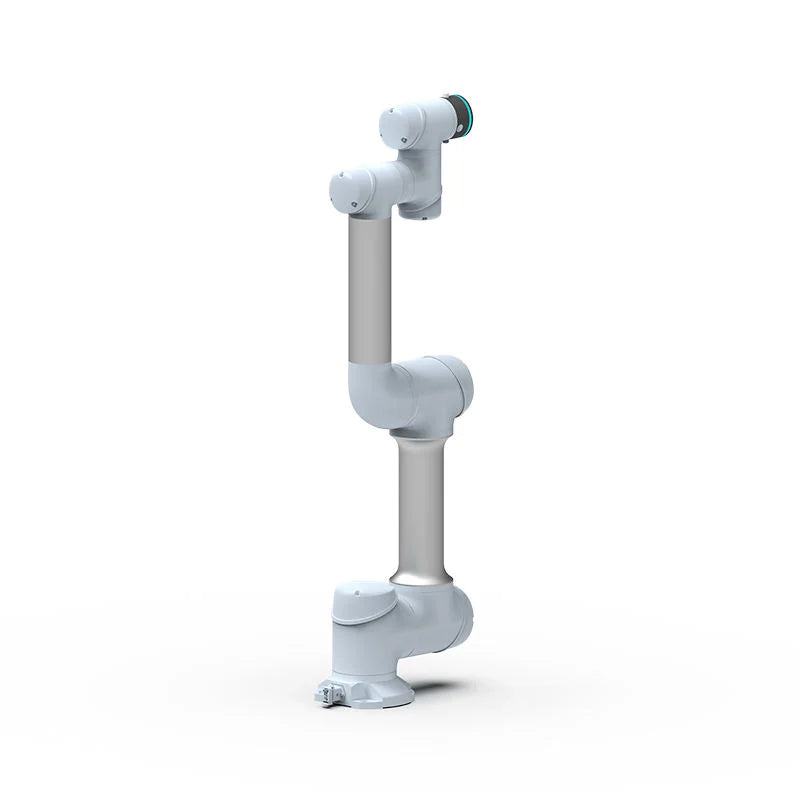

specification	Payload	5kg
		Reach	910mm
		Degrees of freedom	6 rotating joints

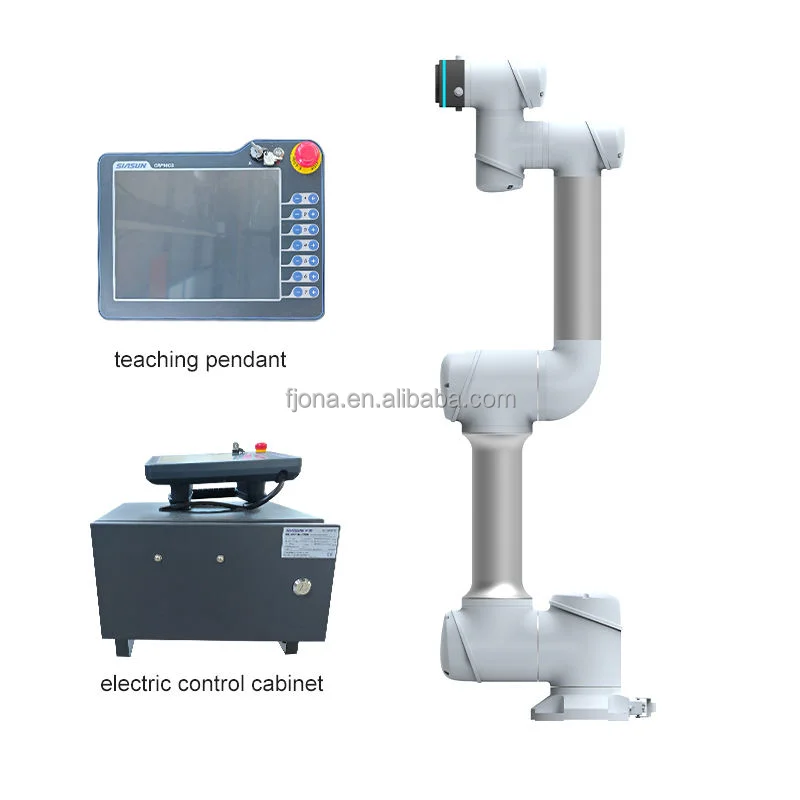

		HMI	10.1 inch teach pendant or mobile terminal Web APP
Movement	Repeatability	±0.02mm
		Pose repeatability oer ISO 9283	±0.03mm
		Axis movement	Working range	Maximum speed
		1 axis	±175°	±120°/s
		2 axis	﹢85°/﹣265°	±120°/s
		3 axis	±160°	±180°
		4 axis	﹢85°/﹣265°	±180°/s
		5 axis	±175°	±180°/s
		6 axis	±175°	±180°/s
		Typical TCP speed	1m/s
Features	IP classification	IP54(IP65 Optional)
		Noise	＜65db
		Robot mounting	Any orientation
		I/O Ports	digital input (DI) 2 digital output (DO) 2 analog input(AI) 2 analog ouput(AO) 2 High speed pulse input 2
		Tool I/O power supply	24V/1.5A
Physical	Footprint	190mm
		Weight	≈40kg(Weight without wire)
		Operating temperature	0-45℃
		Operating humidity	90%RH(non-condensing)
		Materials	Aluminium、Steel

Product Paramenters

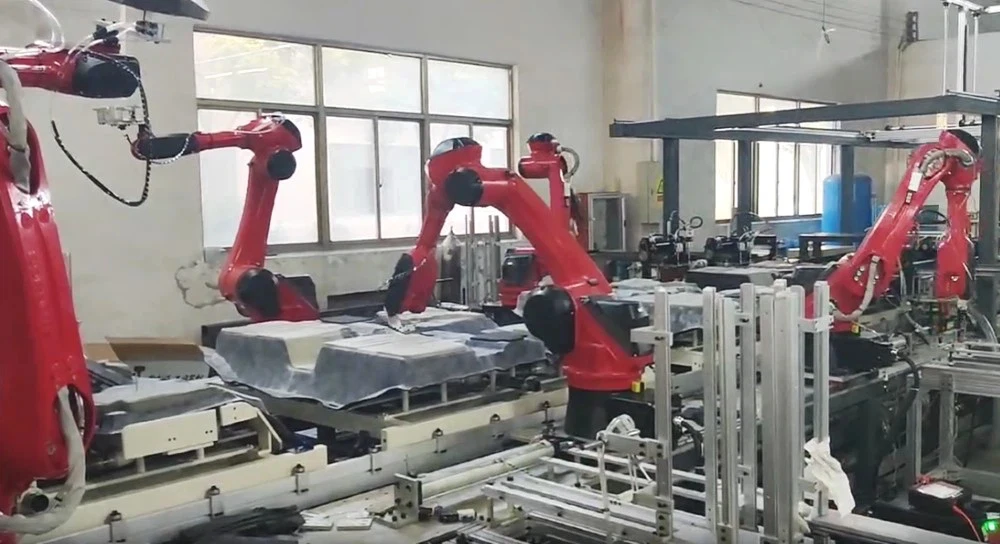

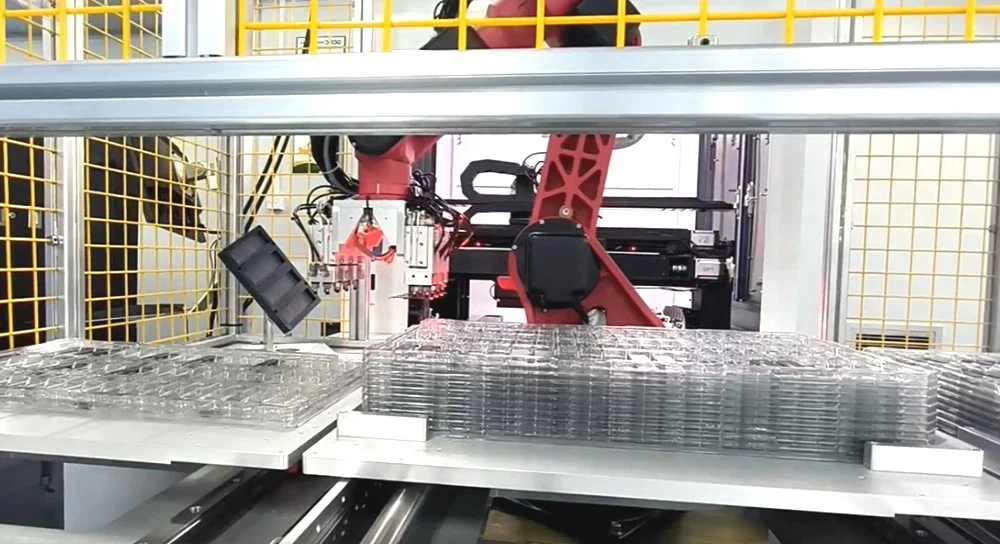

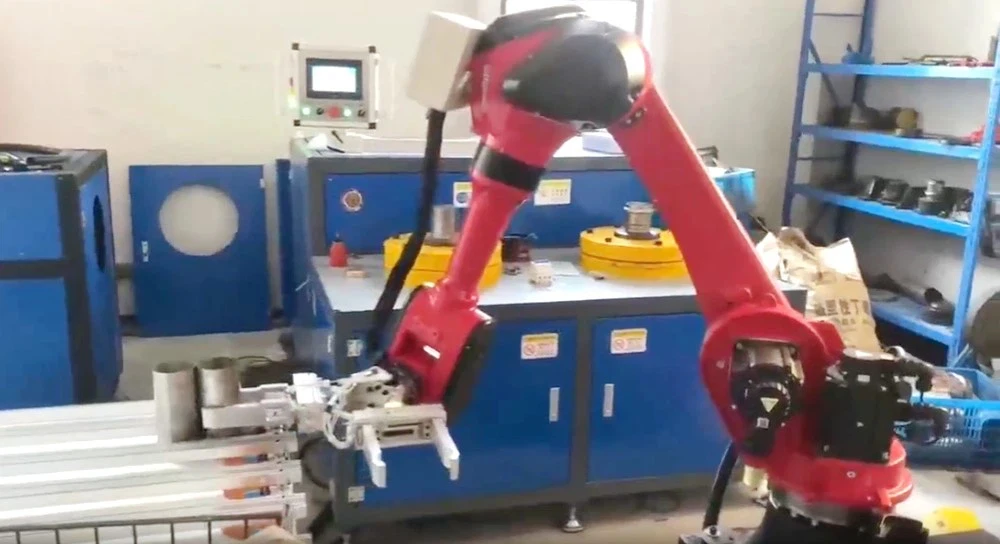

Applications

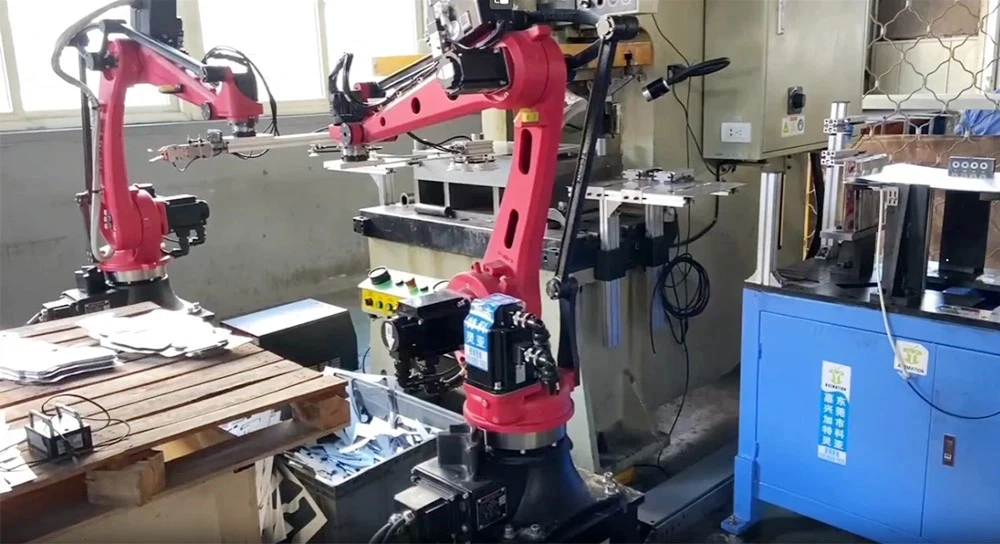

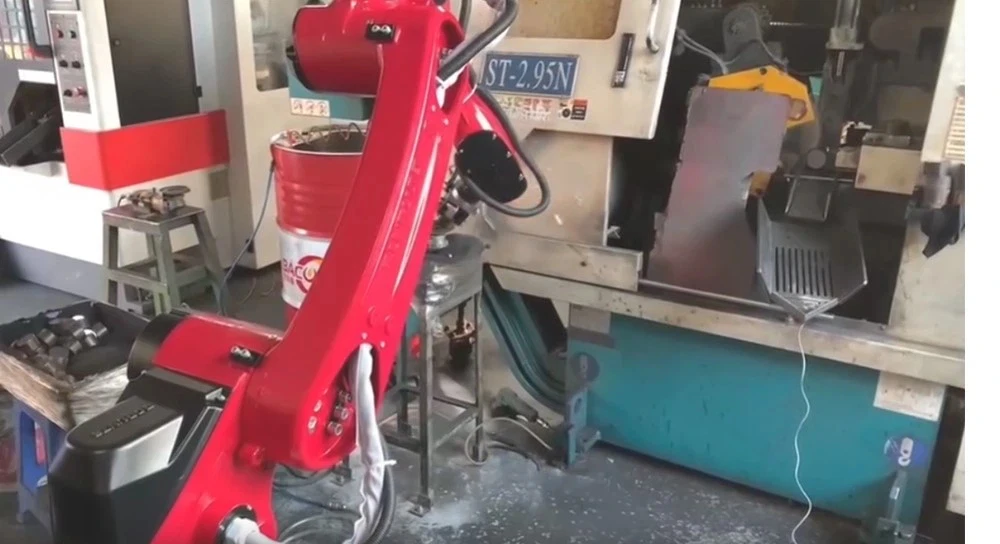

Punching press

Polishing

Tracking

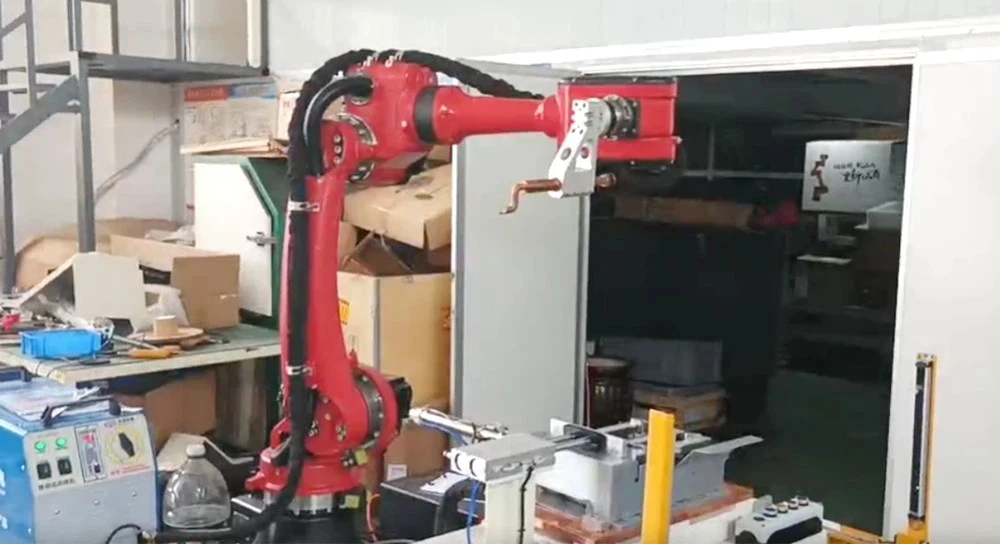

Welding

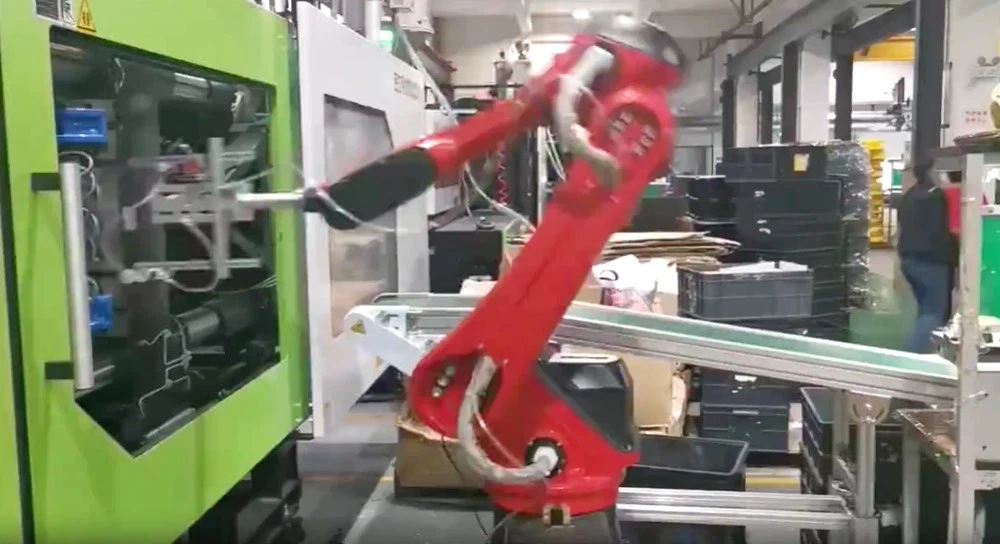

Machine tool

Palletizing

Spraying

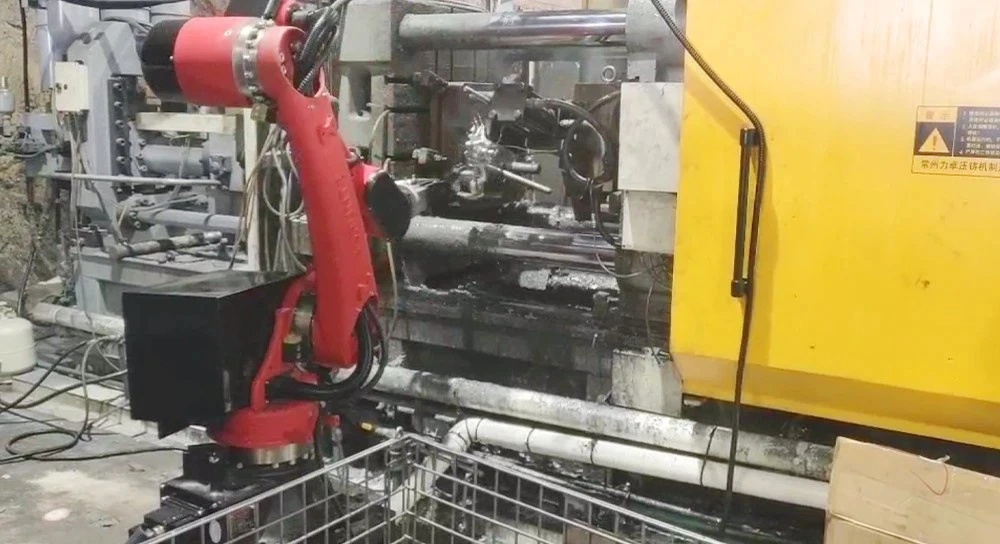

Die-casting

Mold lnjection

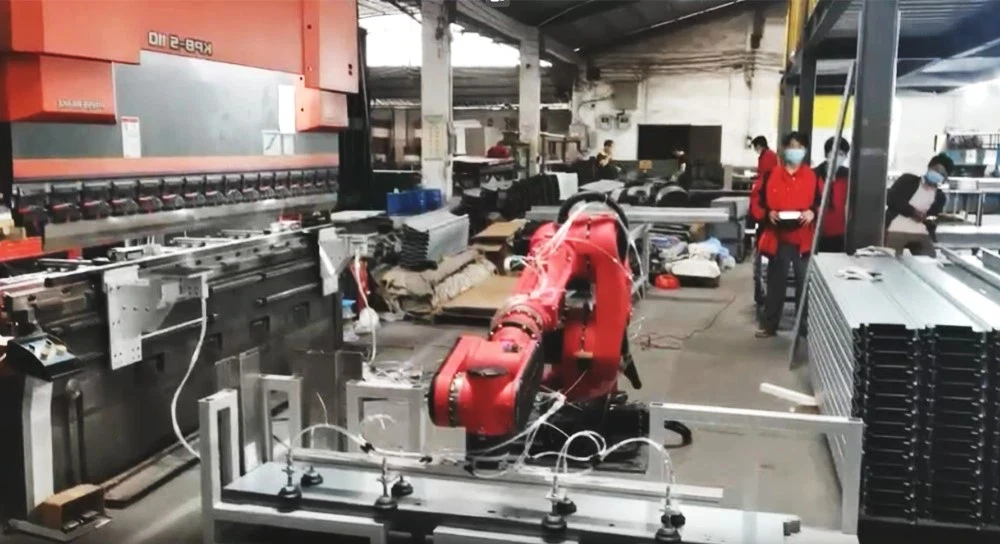

Bending

Vision

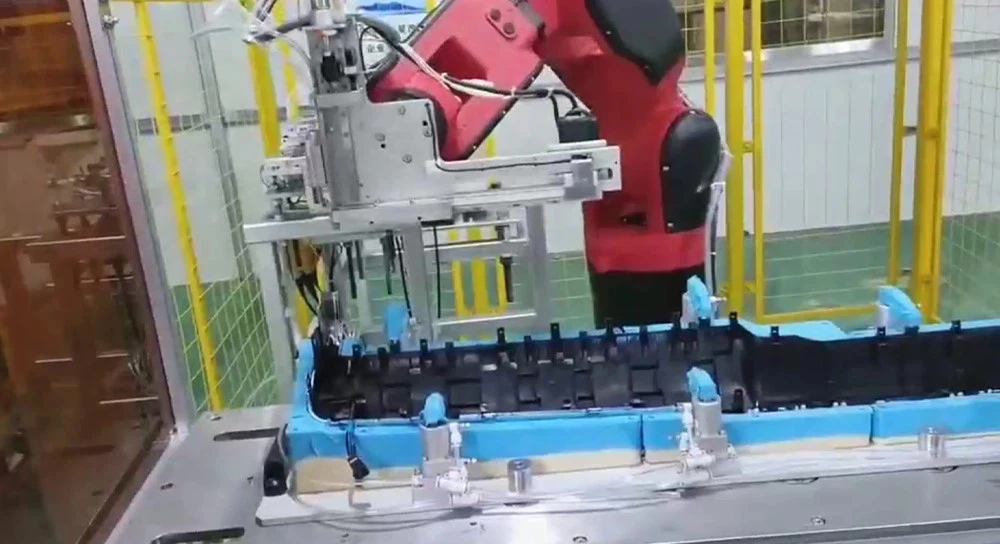

Assembly

Related Accessories

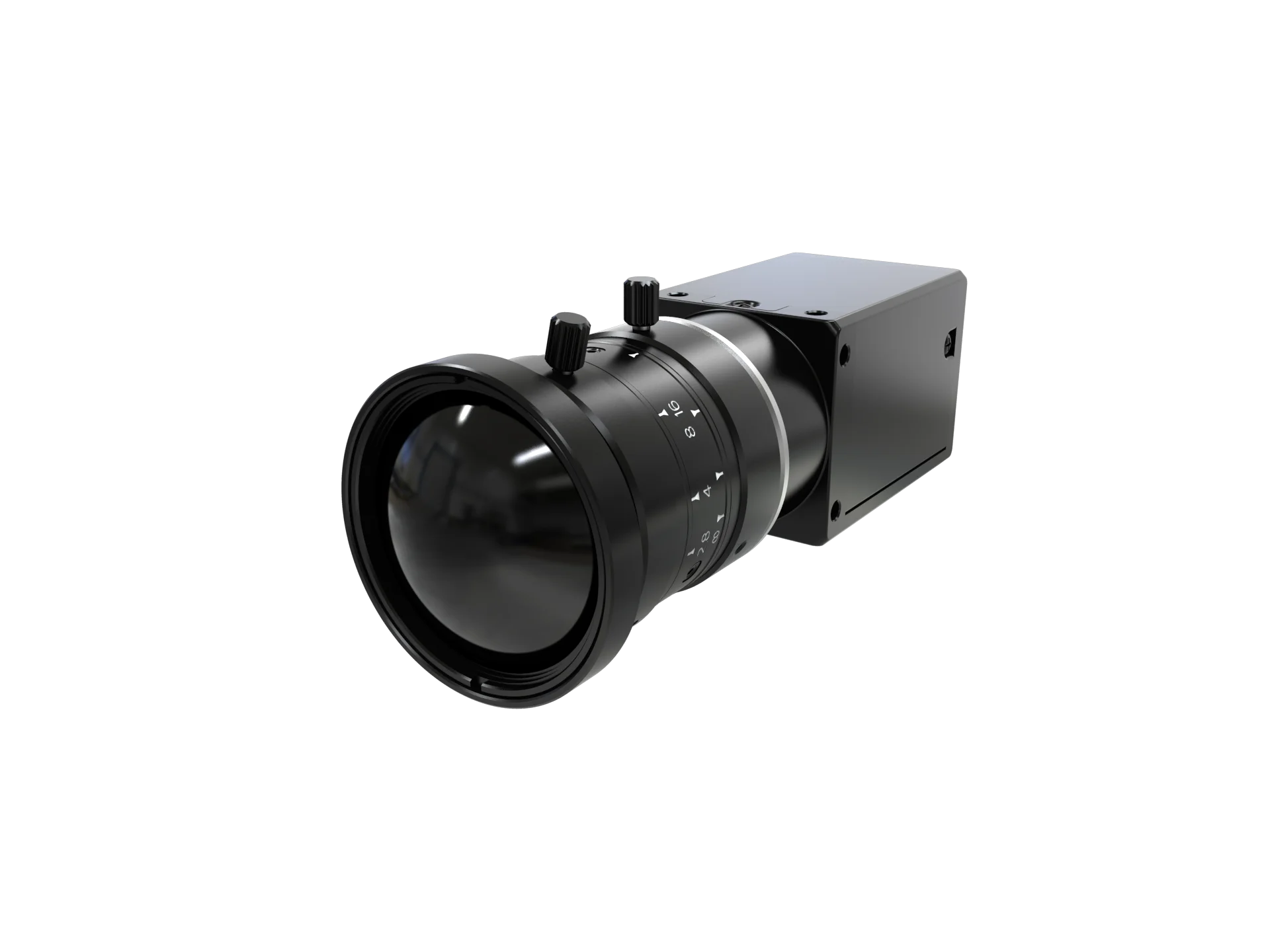

2D Vision System

3D Structured Light

Vision System

Suction Cup

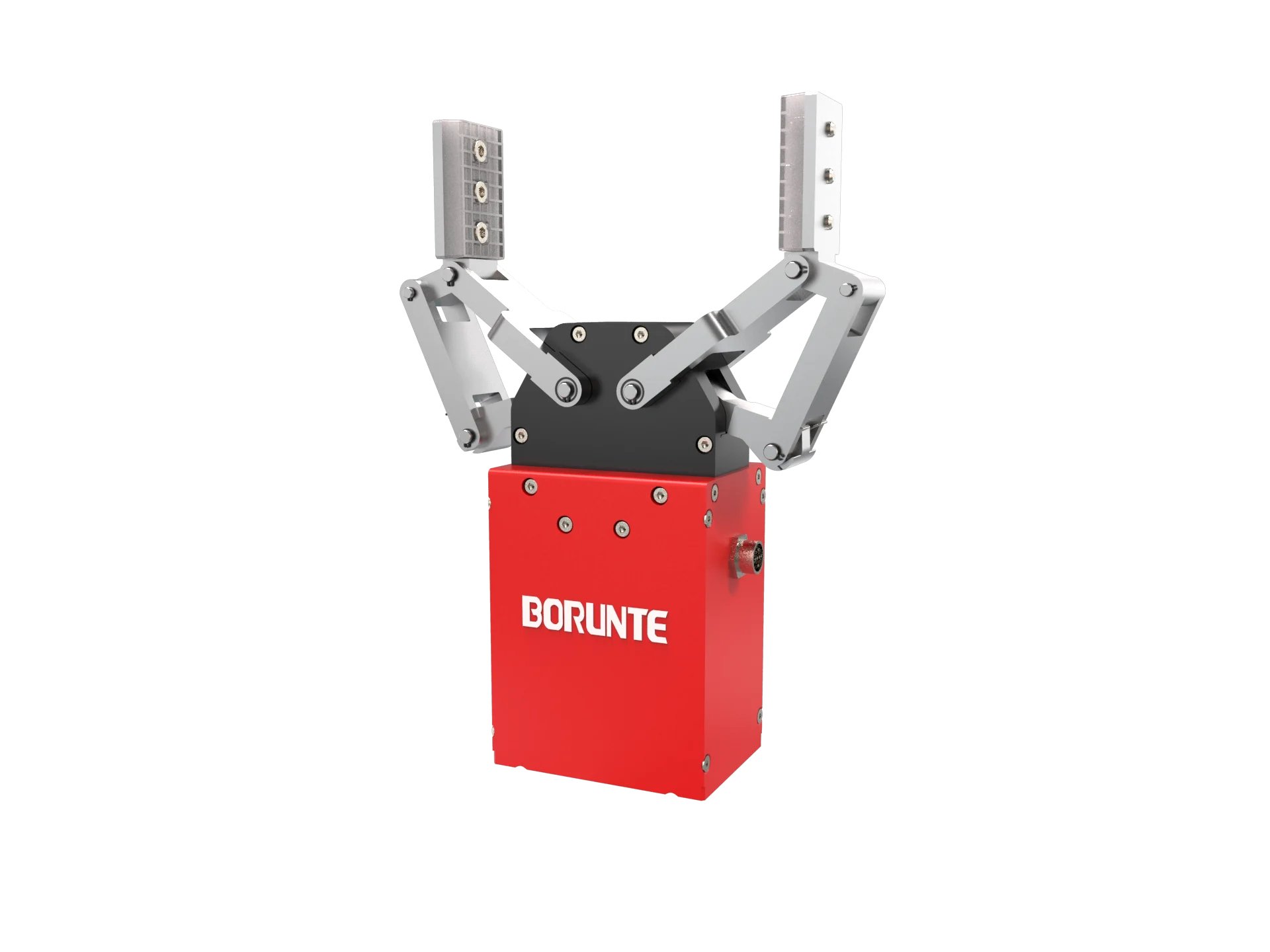

Servo Electric Gripper

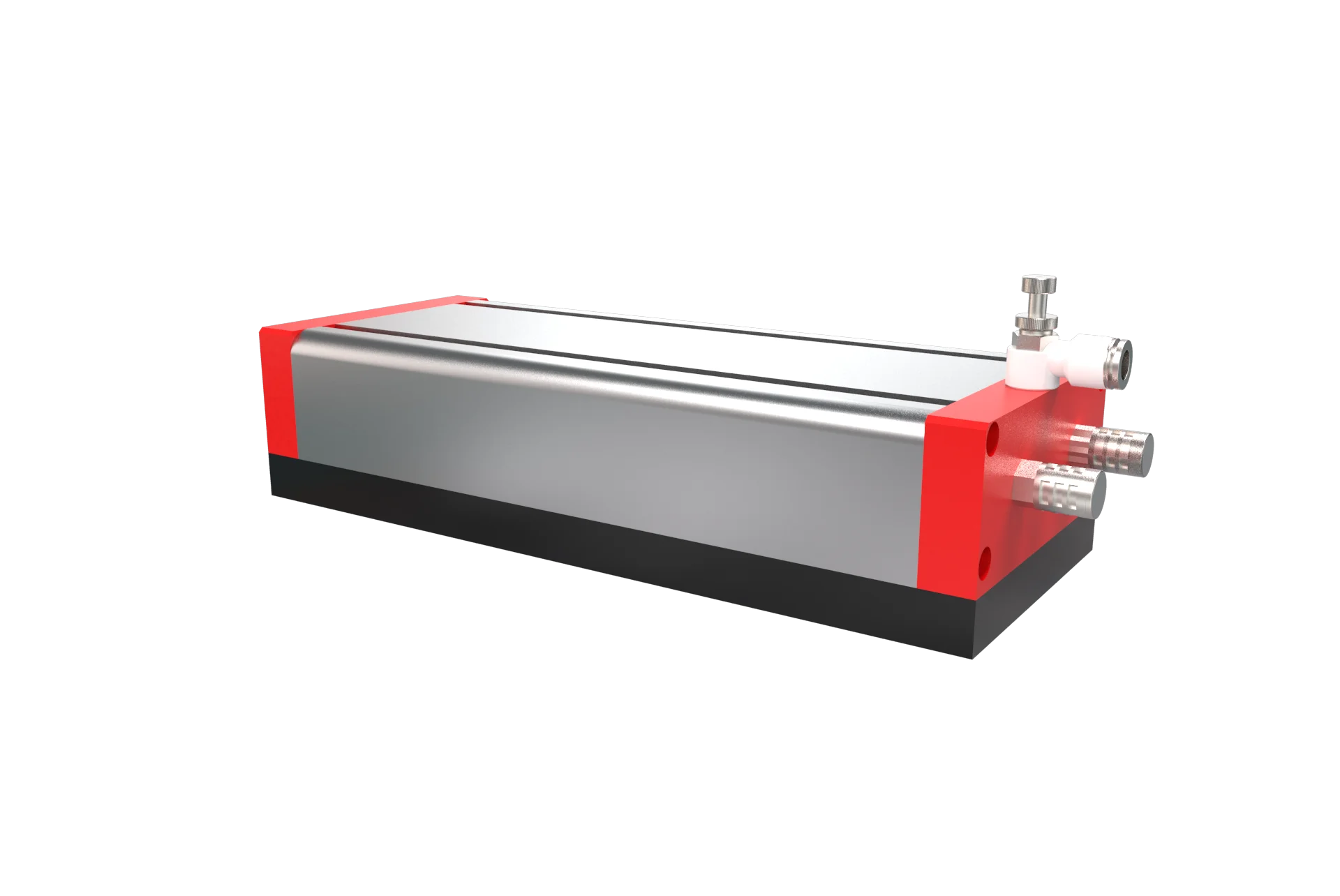

Pneumatic Floating

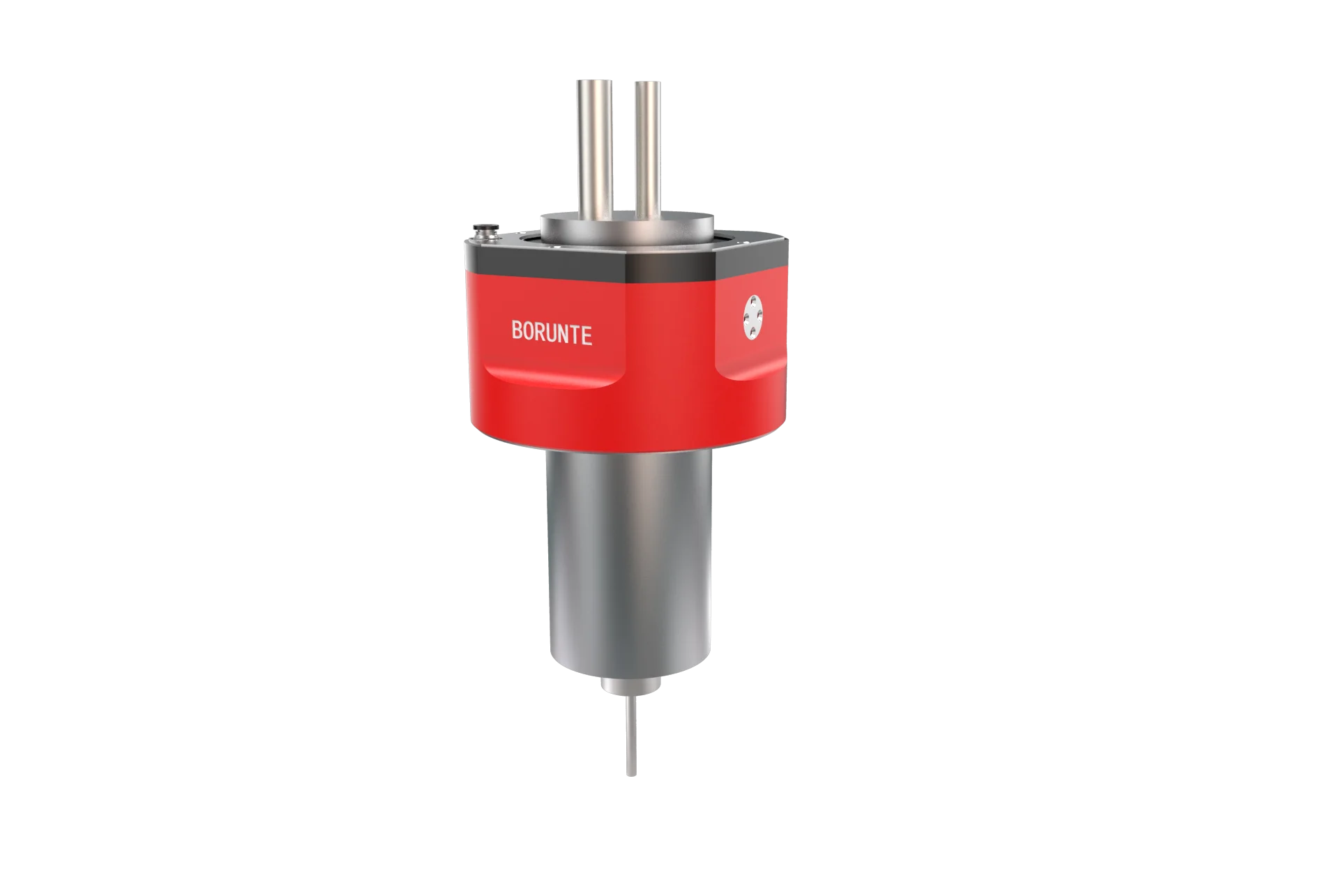

Electric Spindle

6-DOF Force-Guided Device

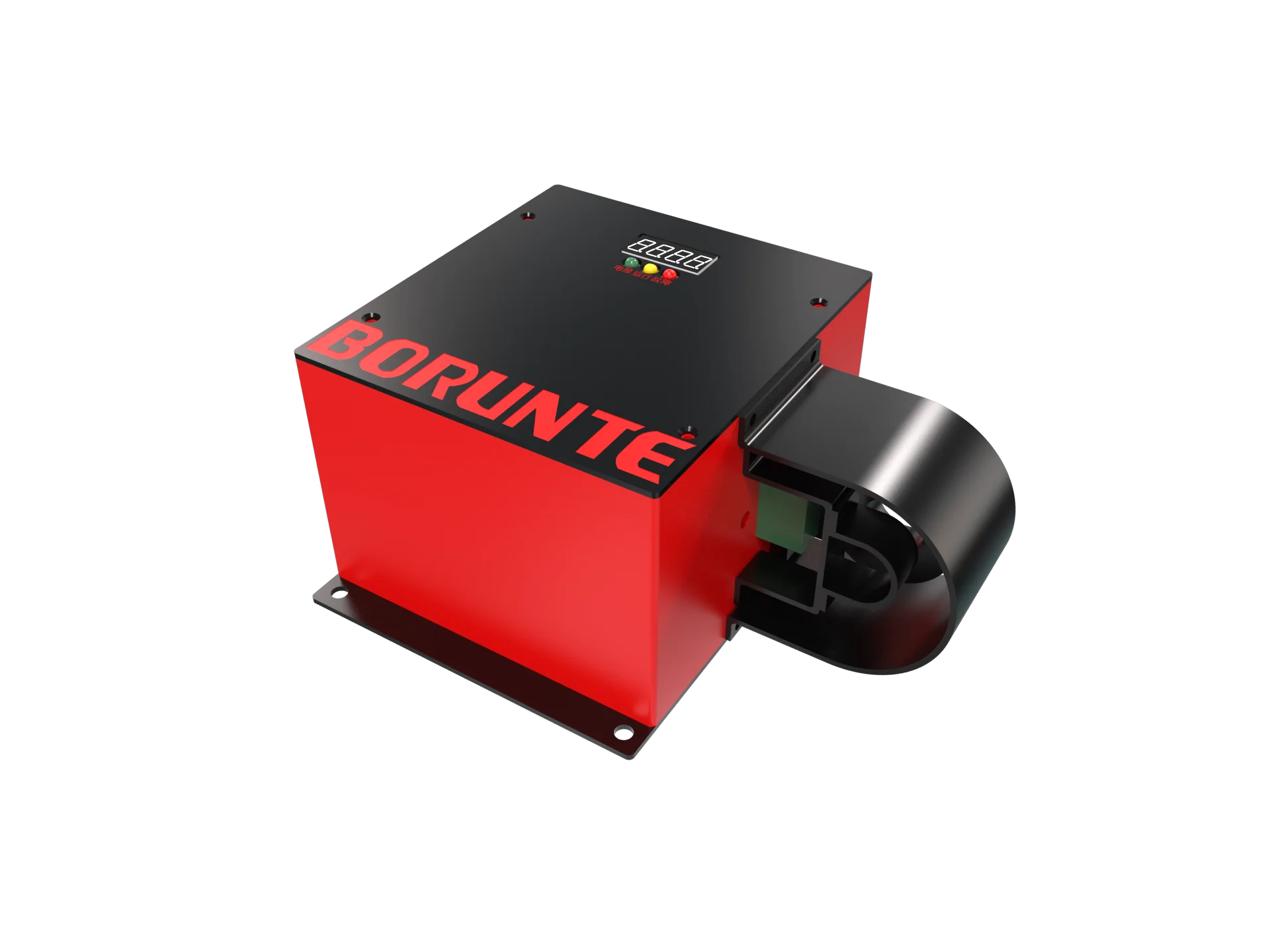

Arc Tracker

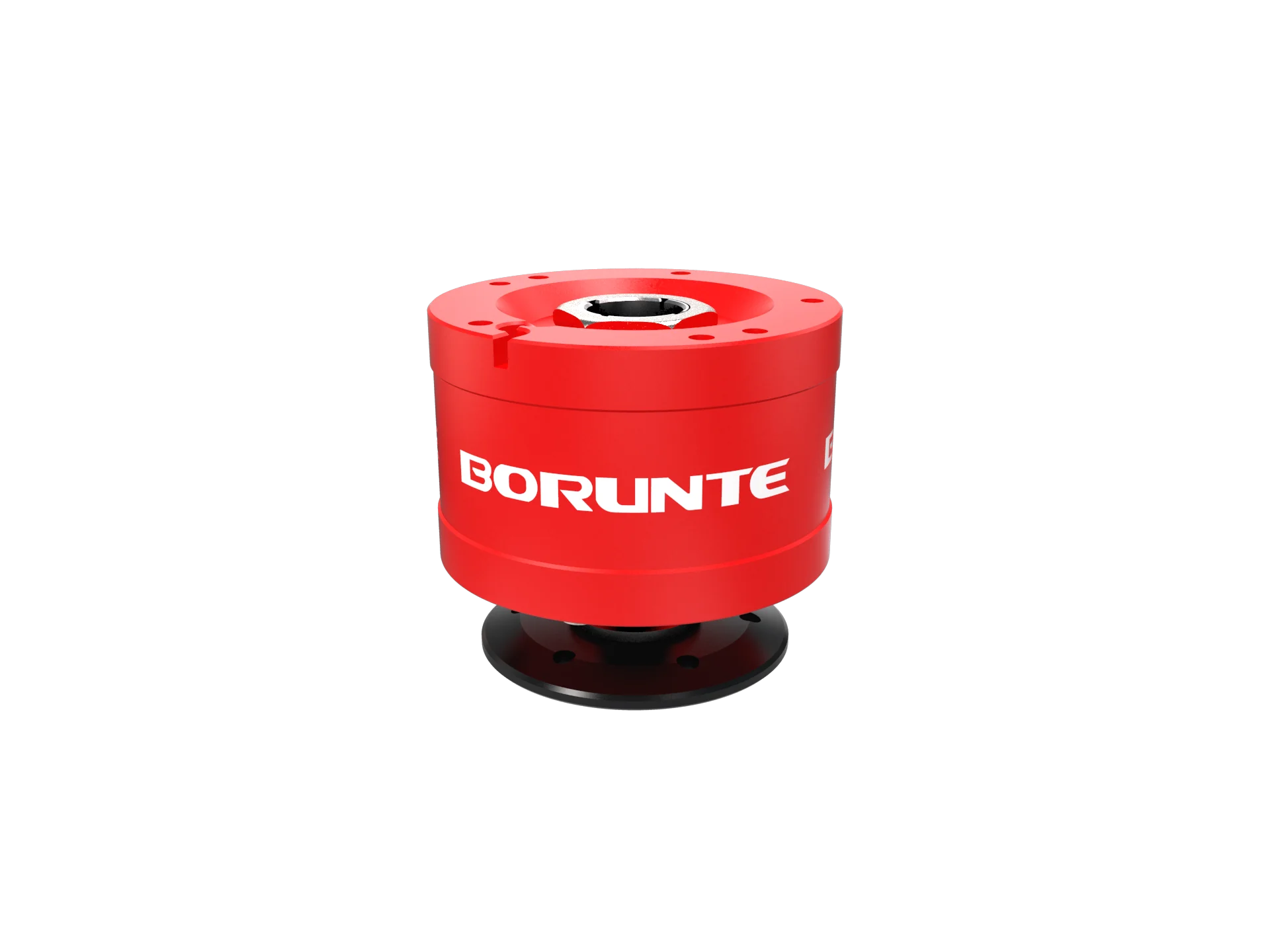

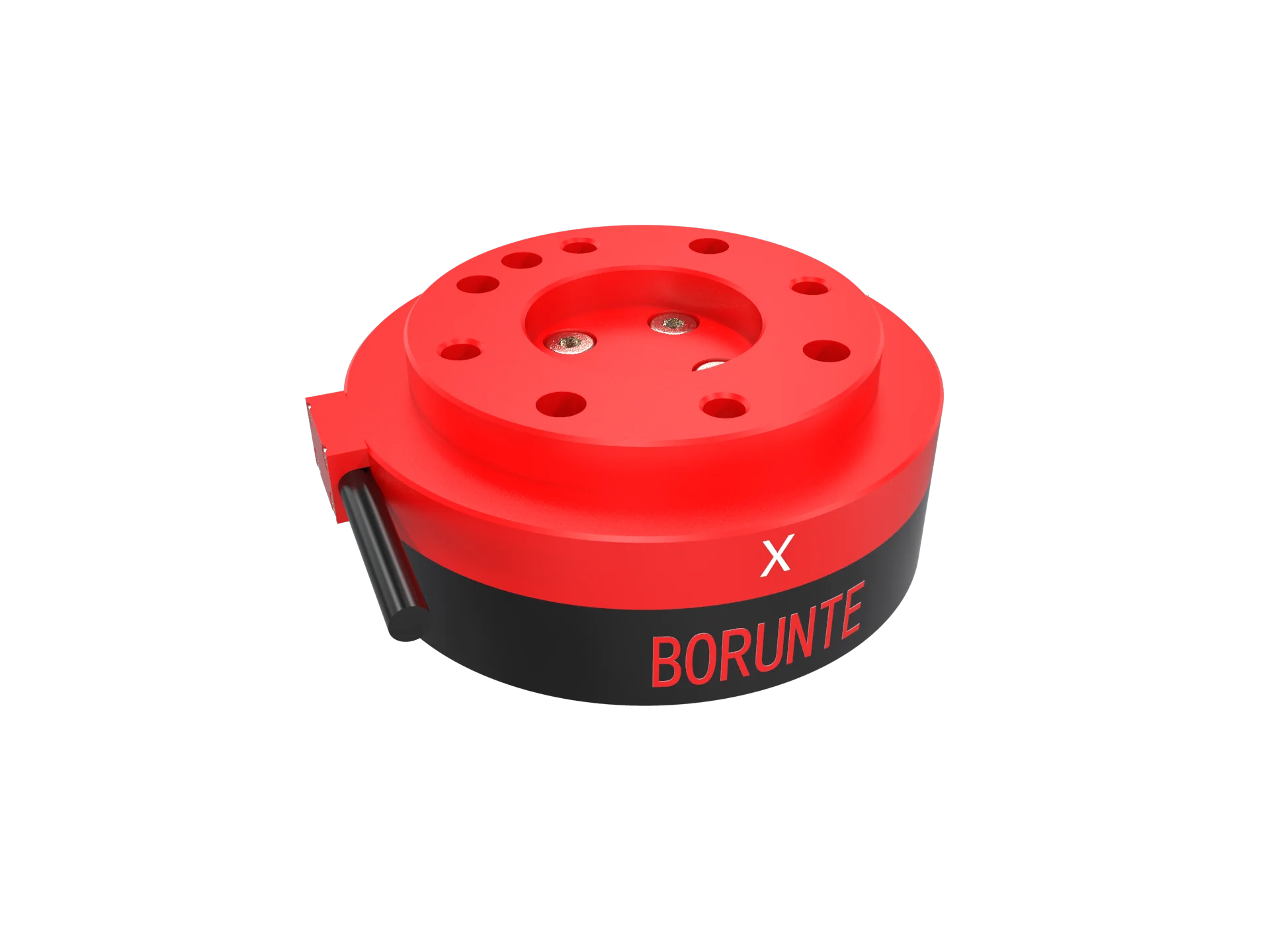

Anti-Collision Flange

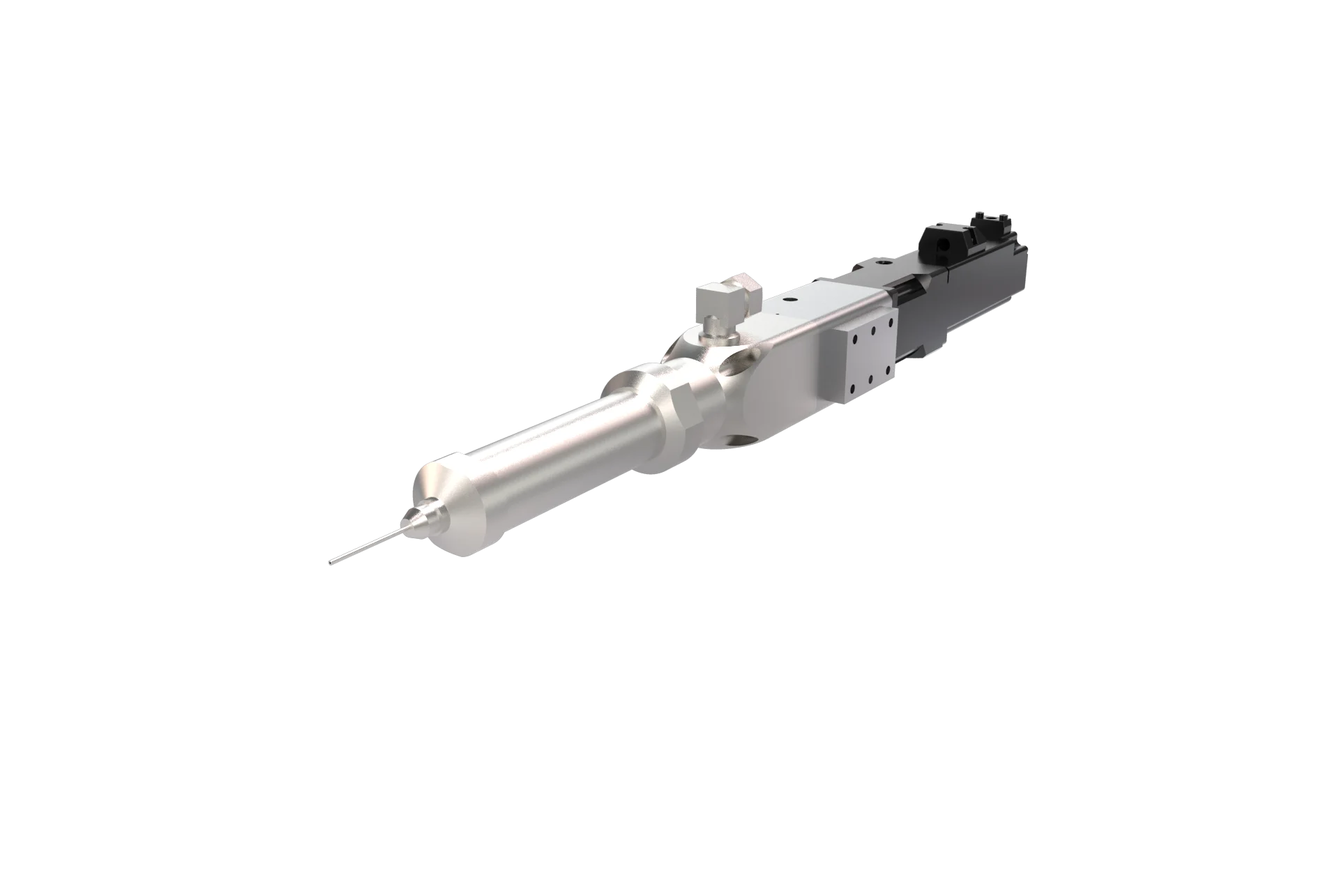

Servo Gluing Valve

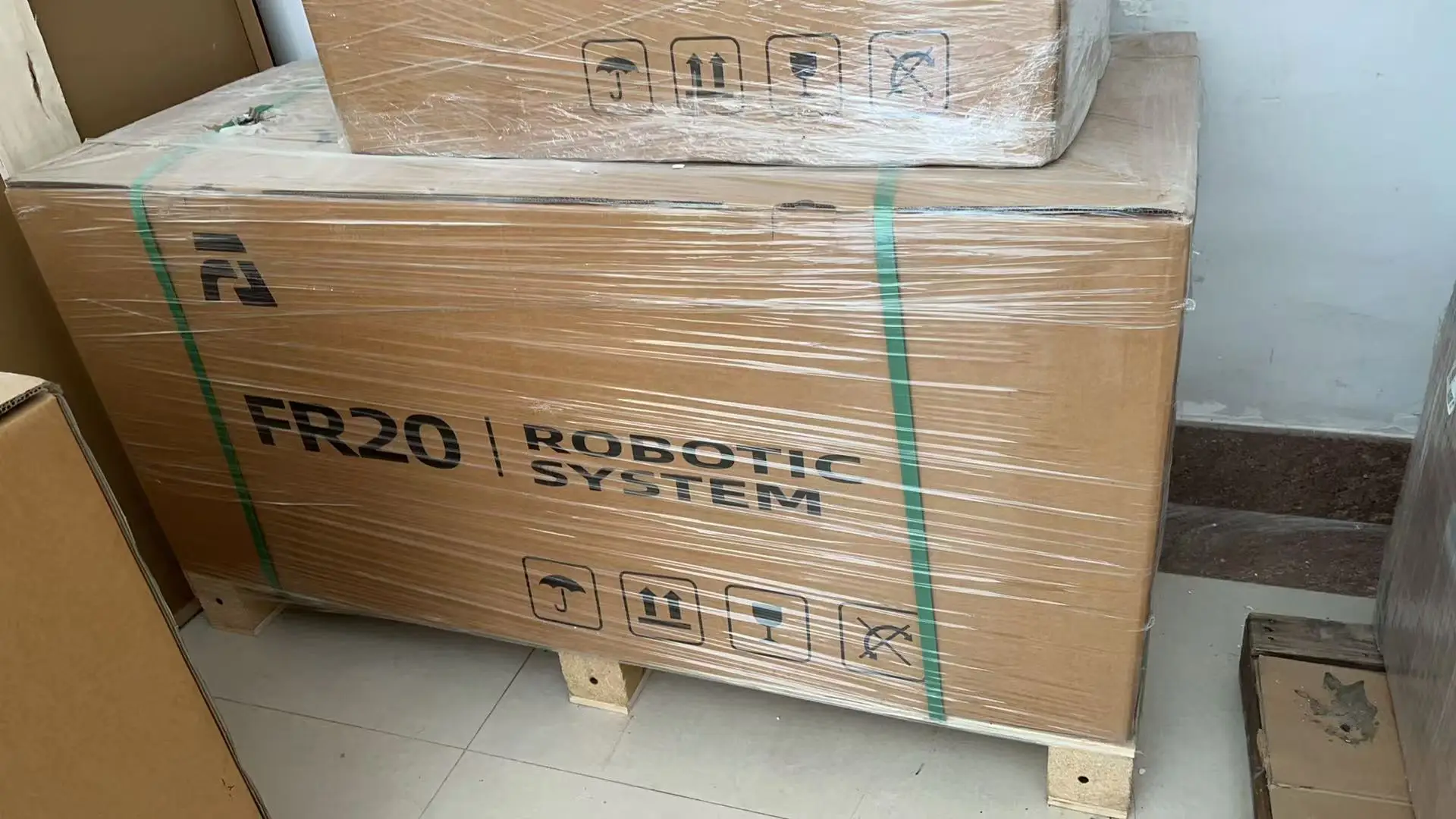

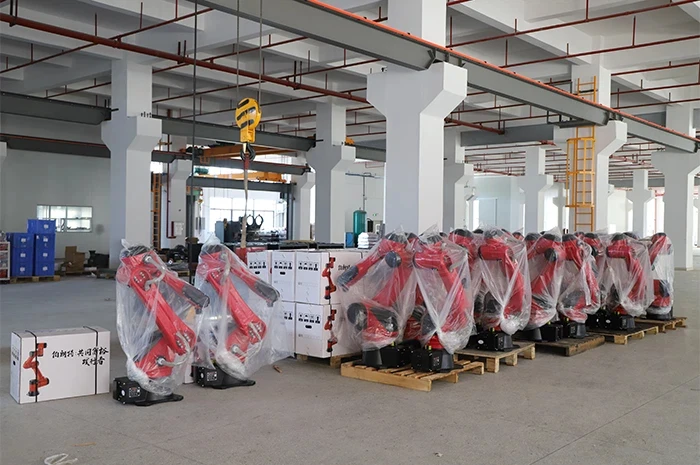

Packaging & Delivery

Original Carton + Wooden Pallet

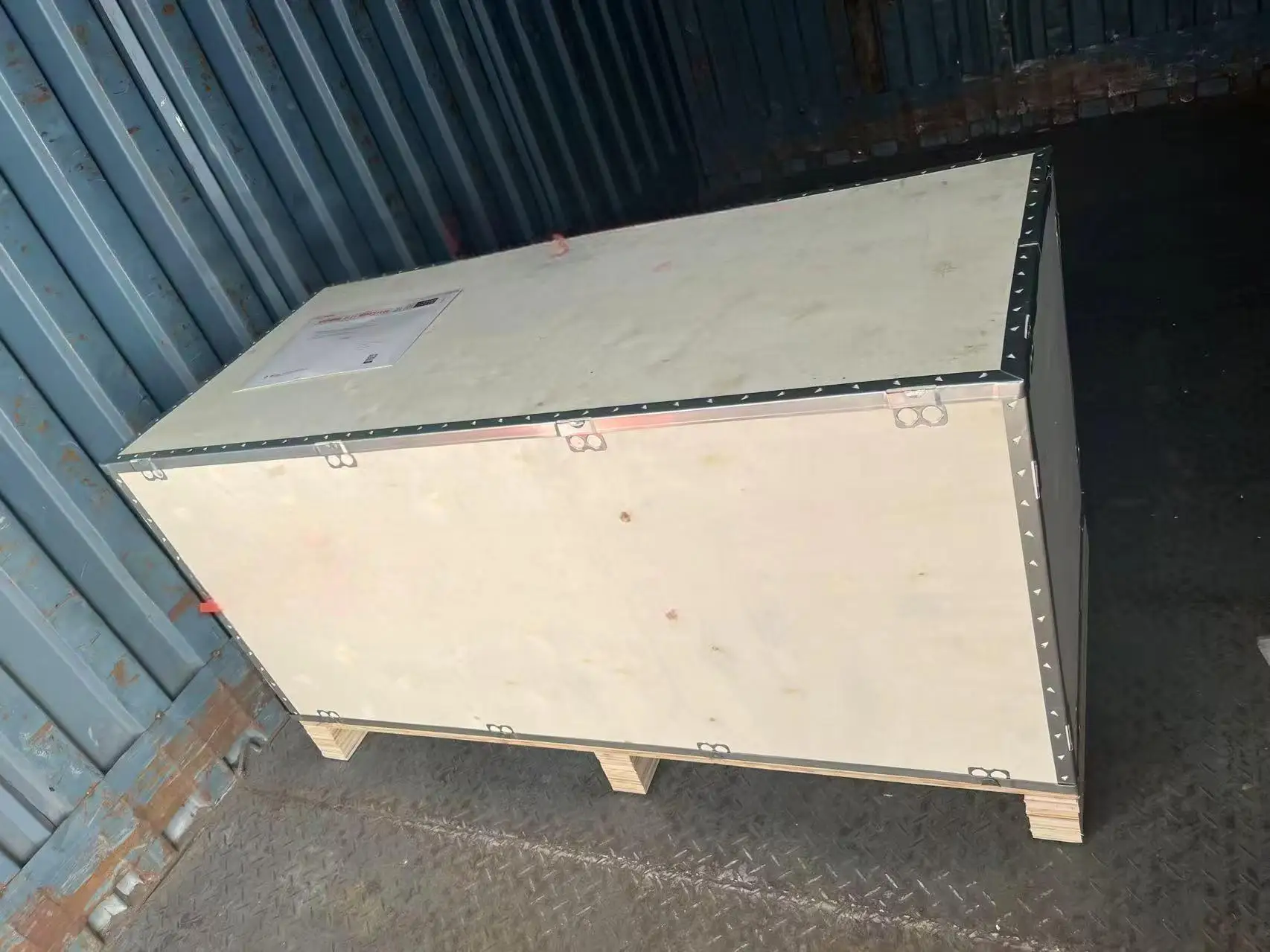

Wooden Case Packaging

International Express Delivery

Company Profile

One-Stop Robot Service Provider

Ounaian Electronic Technology (Fuzhou) Co., Ltd. is located in Liando U Valley Internet of Things Industrial Park, Mawei District, Fuzhou City, Fujian Province. As a comprehensive service provider in the robot field, it acts as both a "Robot Supermarket" – offering new and used robots of all brands (covering low, medium and high-end segments) as well as robot-related accessories – and a robot integrator and solution provider. With a professional team, it delivers customized solutions to meet customers' needs in a one-stop manner.
