SPECIFICATIONS

Brand Name: LUCKING DOOR

Certification: CE,FCC

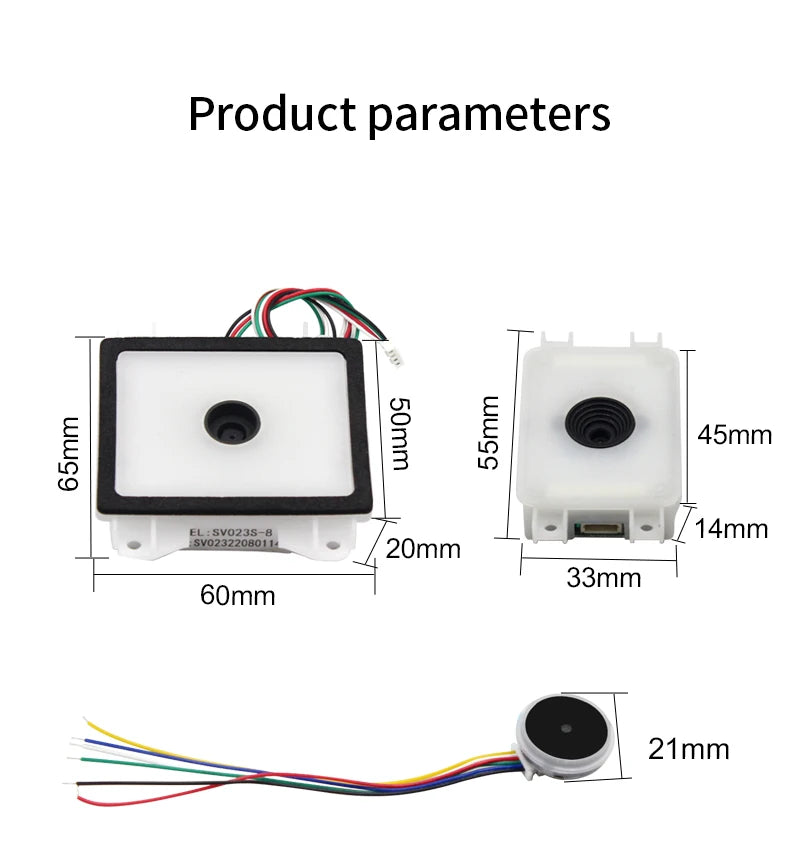

Dimensions: 44.5mm x33.4mm x 13.8mm

Field of View: 93°(H),55°(V)

High-concerned chemical: None

Image (Pixels): 1280 pixels (H)x720 pixels

Interface: USB

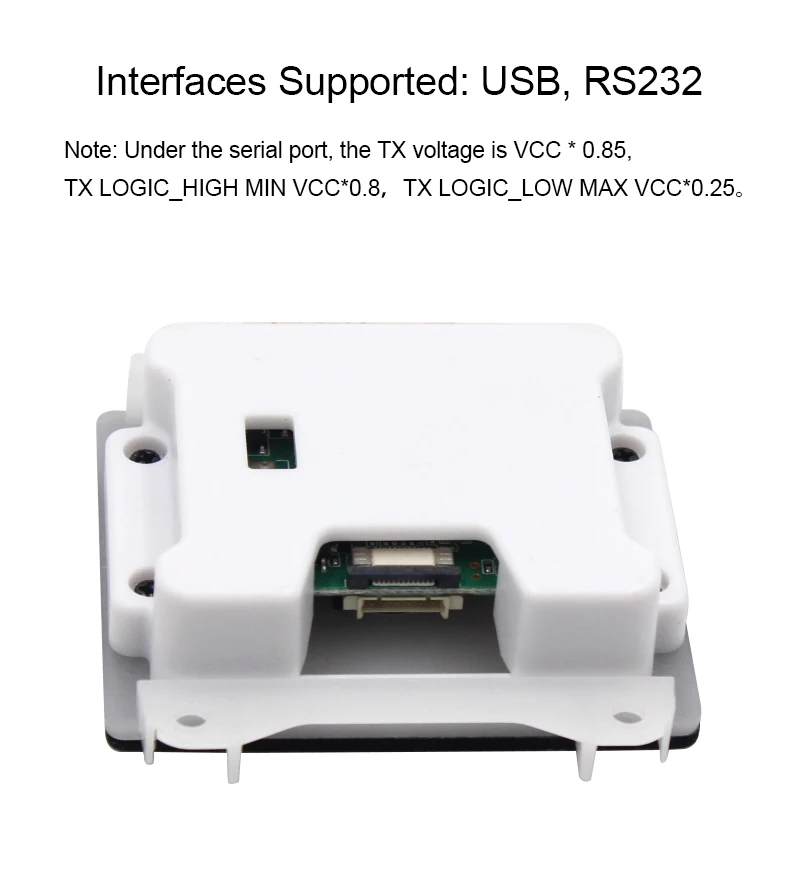

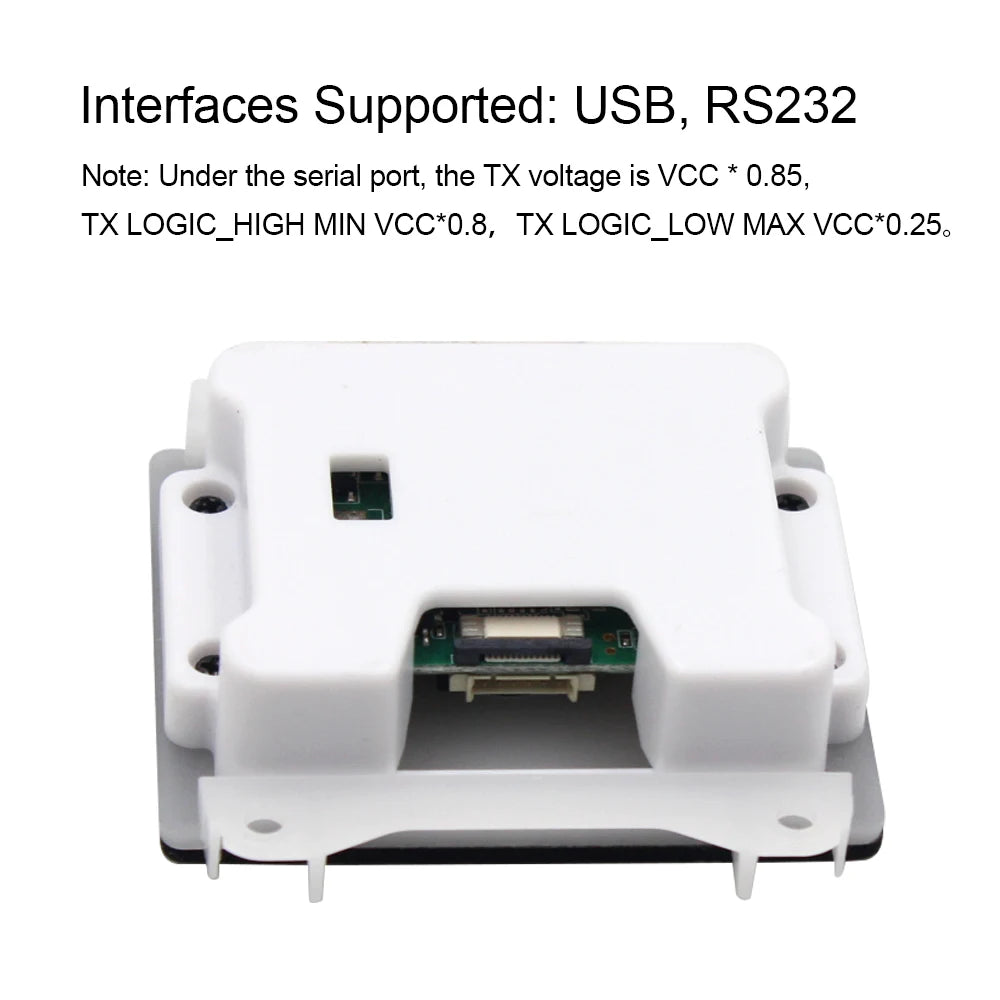

Interfaces Supported: USB,RS232 Note: Under the serial port, the TX voltage is VCC * 0.85, TX LOGIC HIGH MIN VCC*0.8, TX LOGIC LOW MAX VCC*0.25

Light Source: white color LED

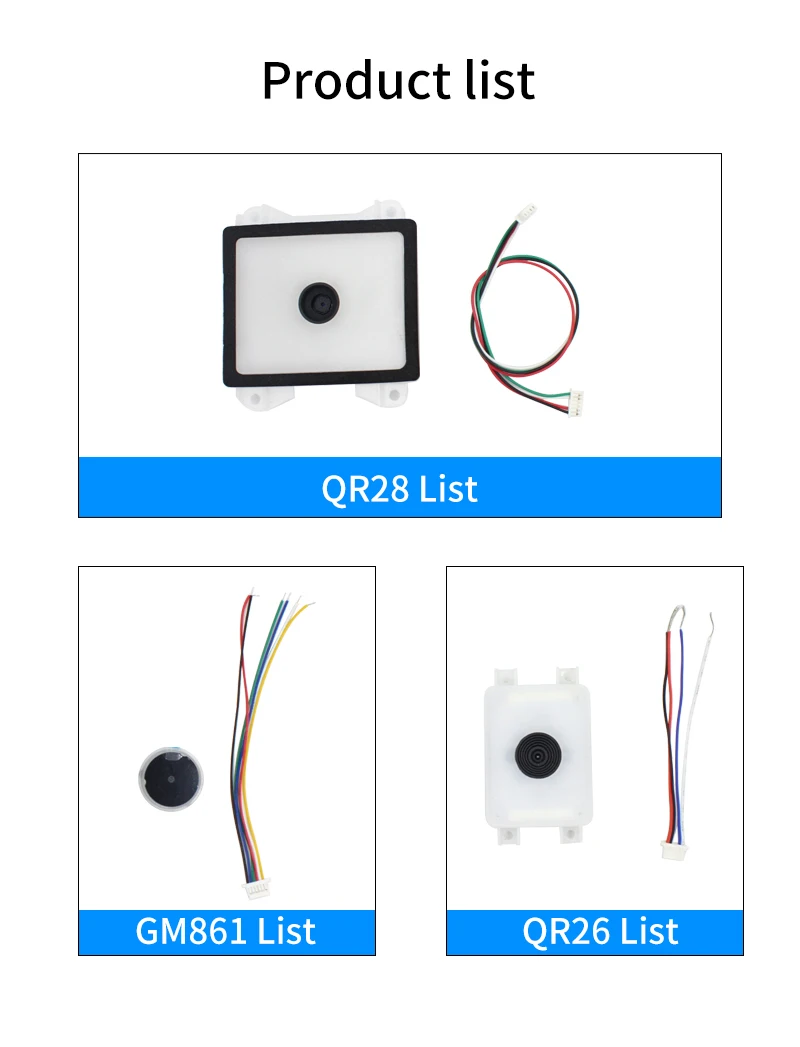

Model Number: GM861/QR26/QR28

Motion Tolerances: ≤40cm/s

Origin: Mainland China

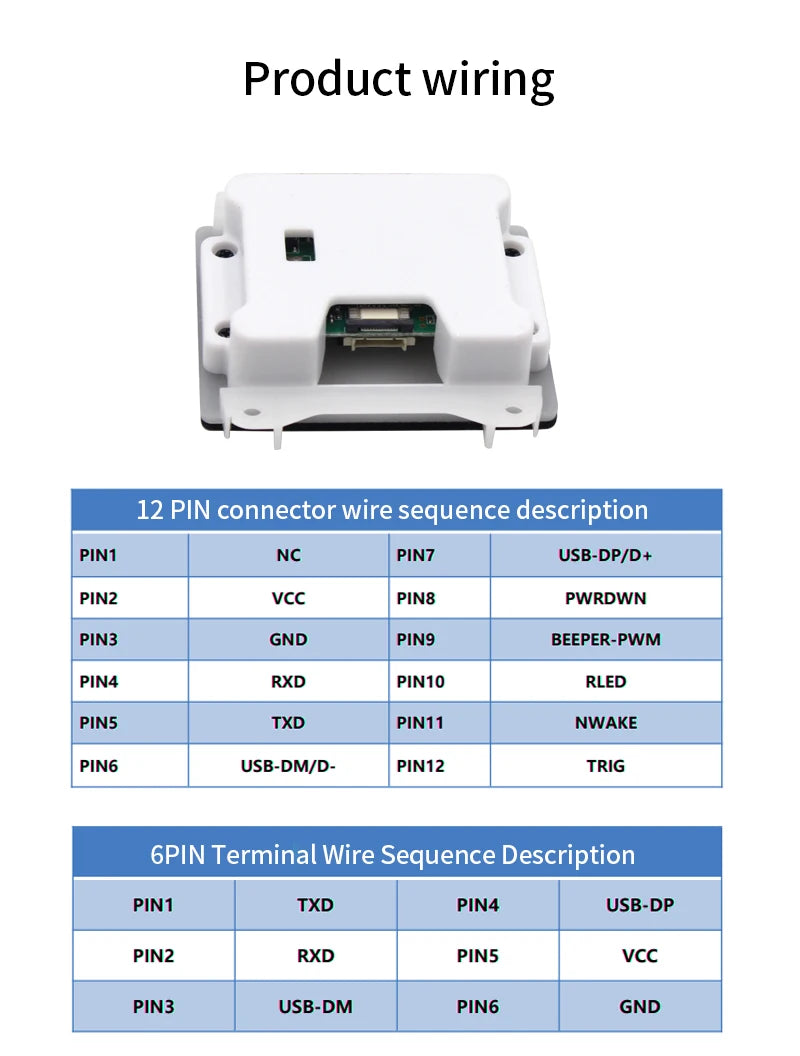

PIN1: TXD

PIN2: RXD

PIN3: USB-DM

PIN4: USB-DP

PIN5: VCC

PIN6: GND

Print Contrast: 20% minimum refective difference

RTI: 130℃

Roll /Pitch/Yaw: 360°,+65°,±60°

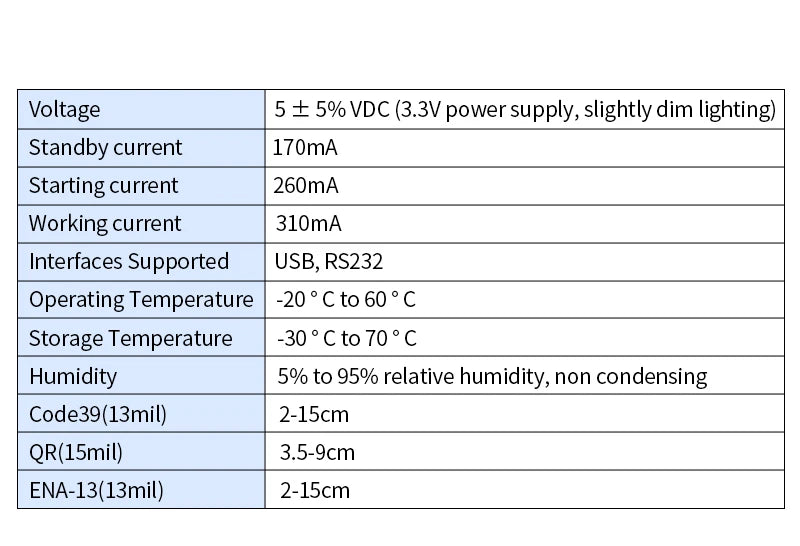

Stand-by Current: 170mA

Starting Current: 260mA

Voltage: 5±5% VDC(If powered by 3.3V, the lighting is slightly dim)

Weight: 12g

Work Current: 310mA

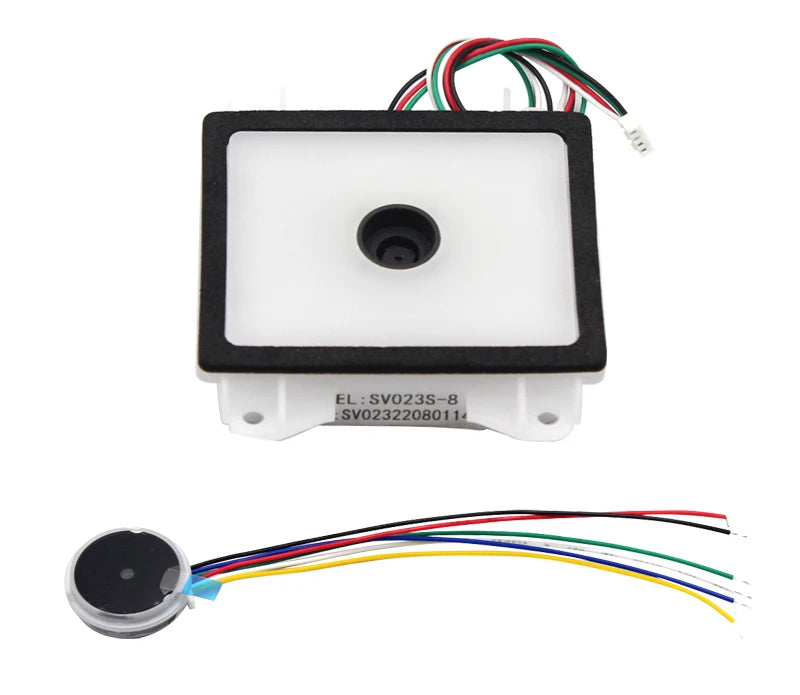

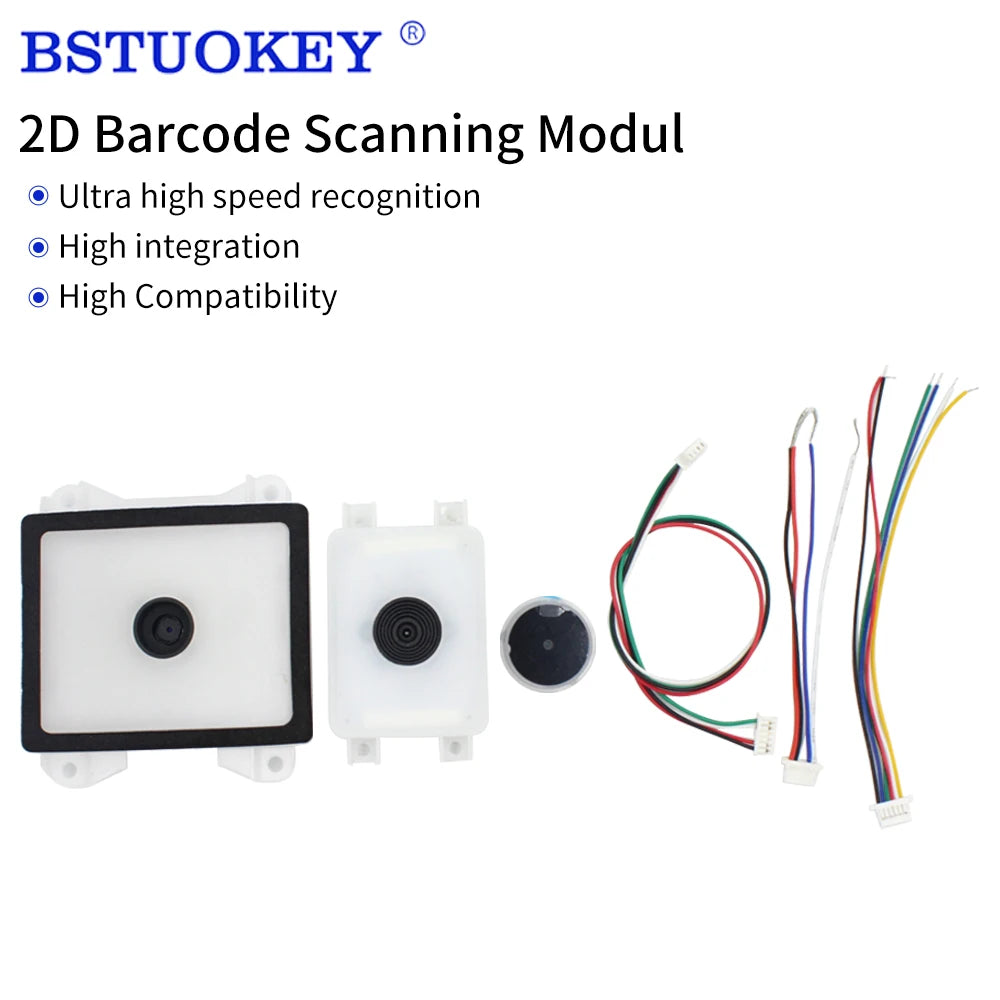

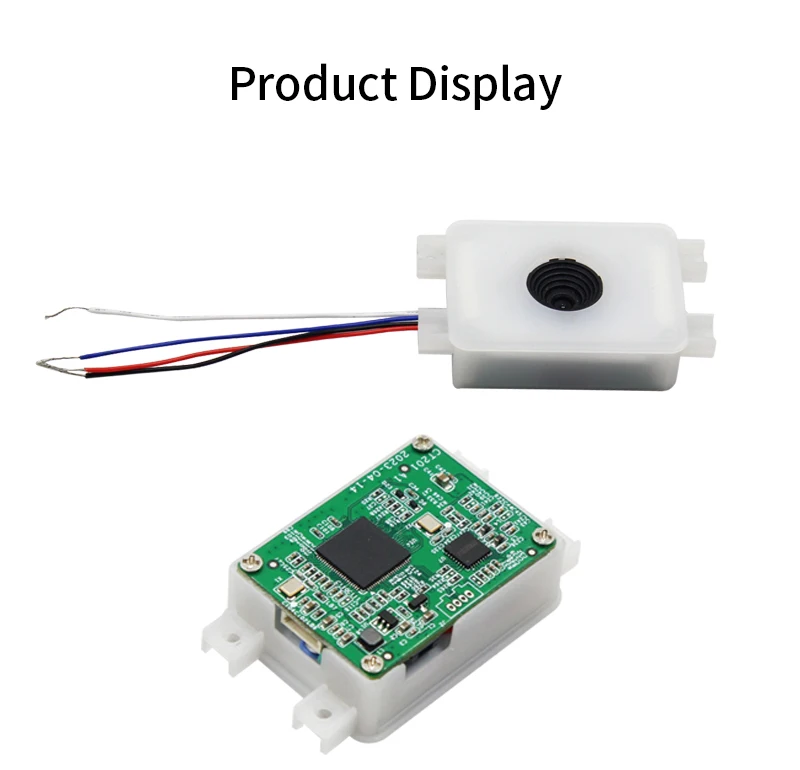

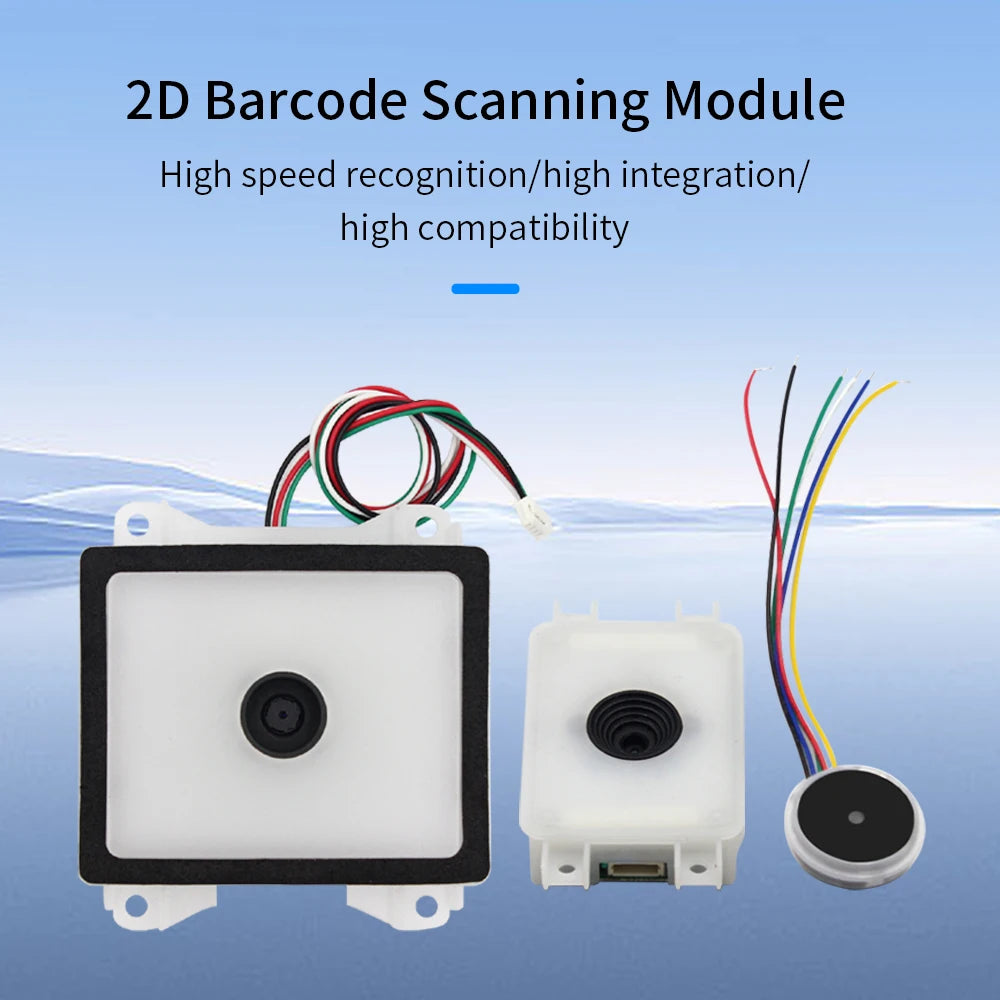

Scanning Module Bar Code Scanner USB Uart Embedded 1D 2D Barcode Reader QRCode Scanner Module for Vending machine Access Control

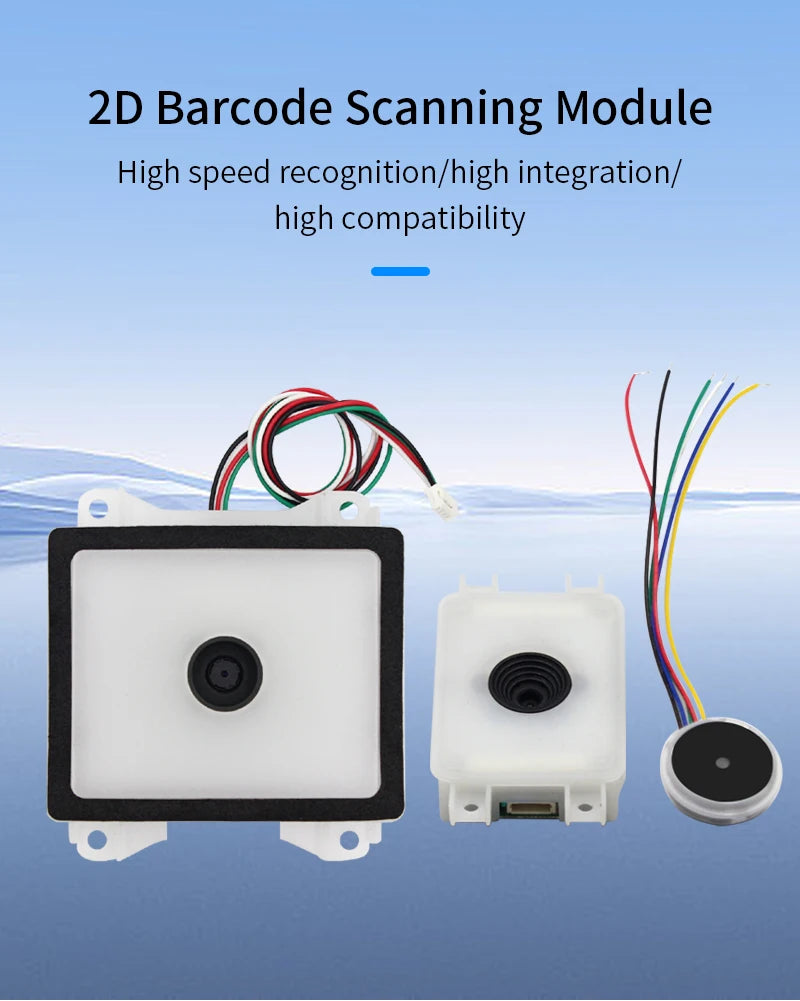

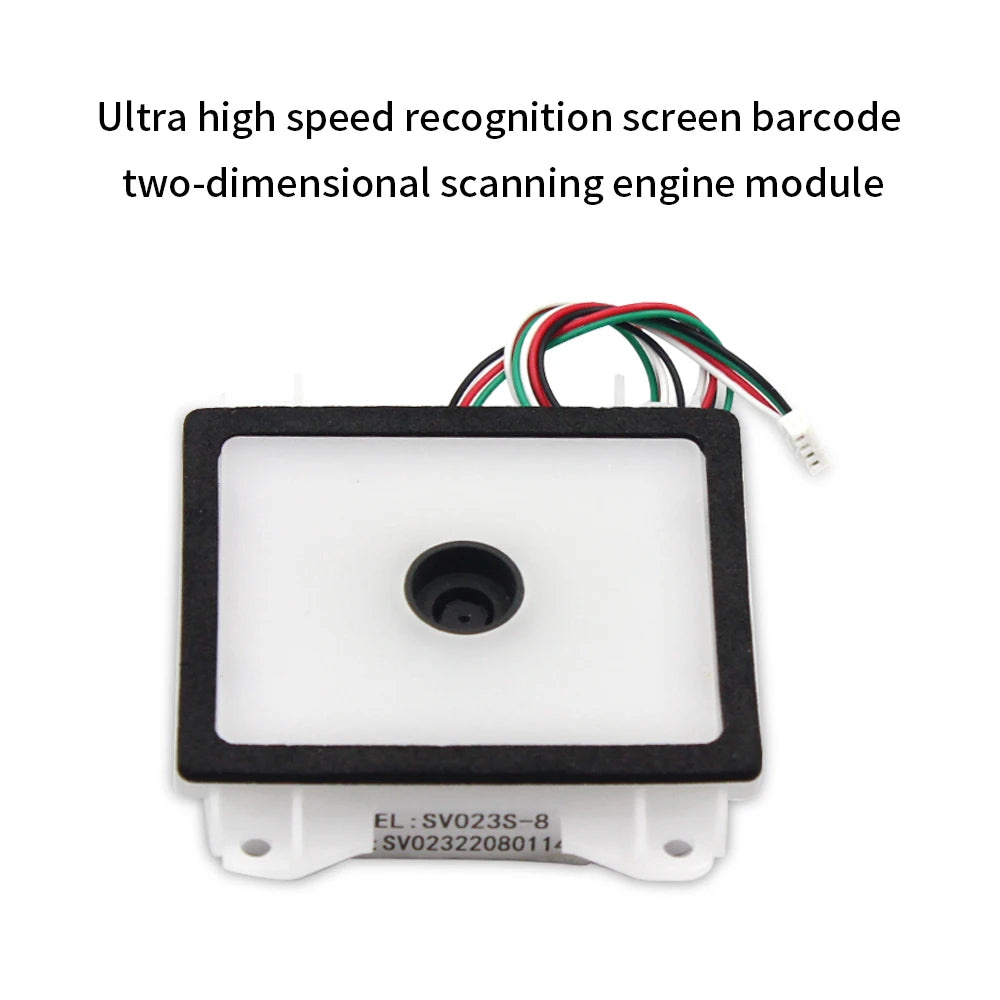

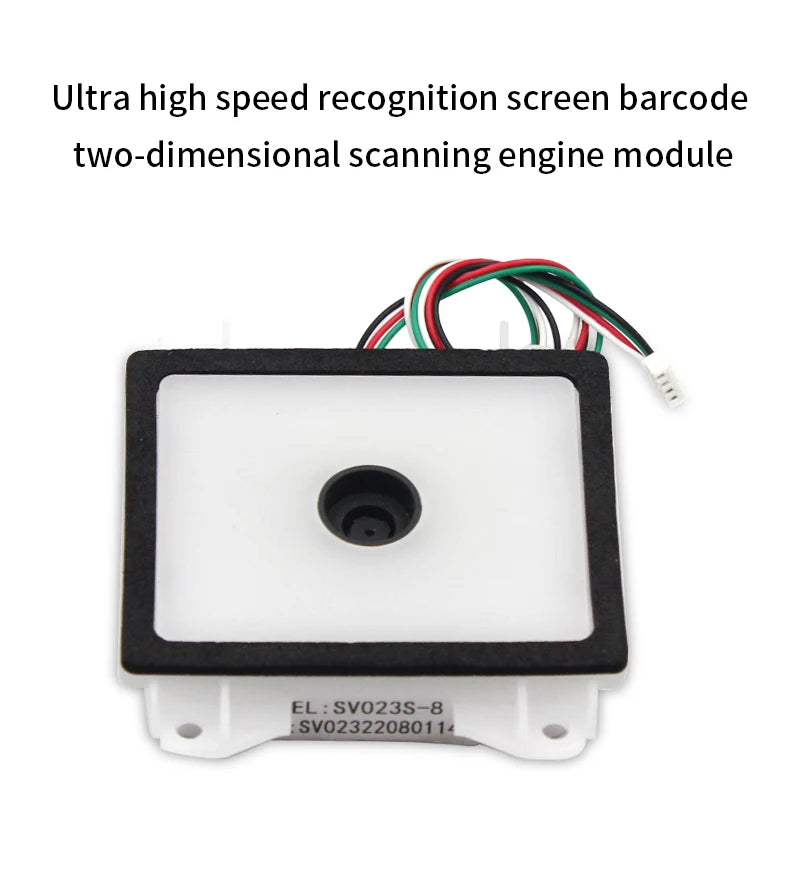

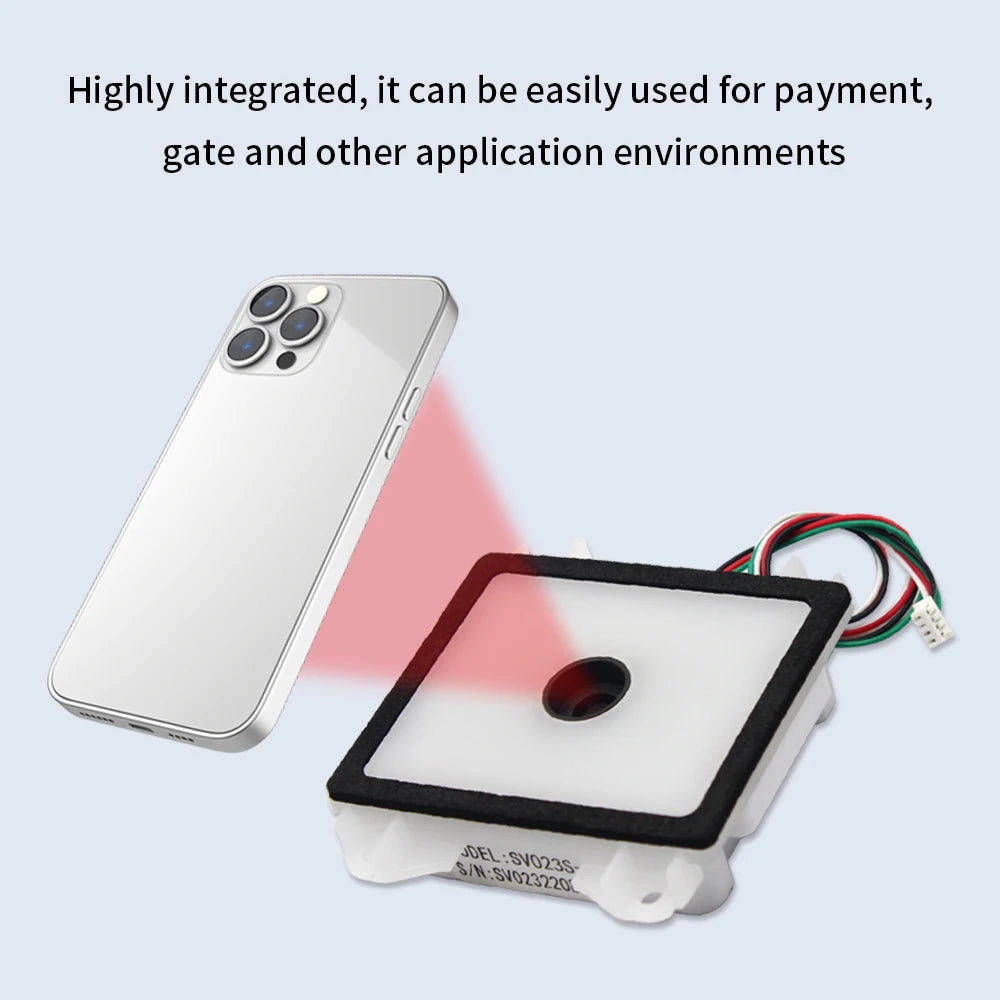

High speed identification screen bar code two-dimensional scanning engine module integration,

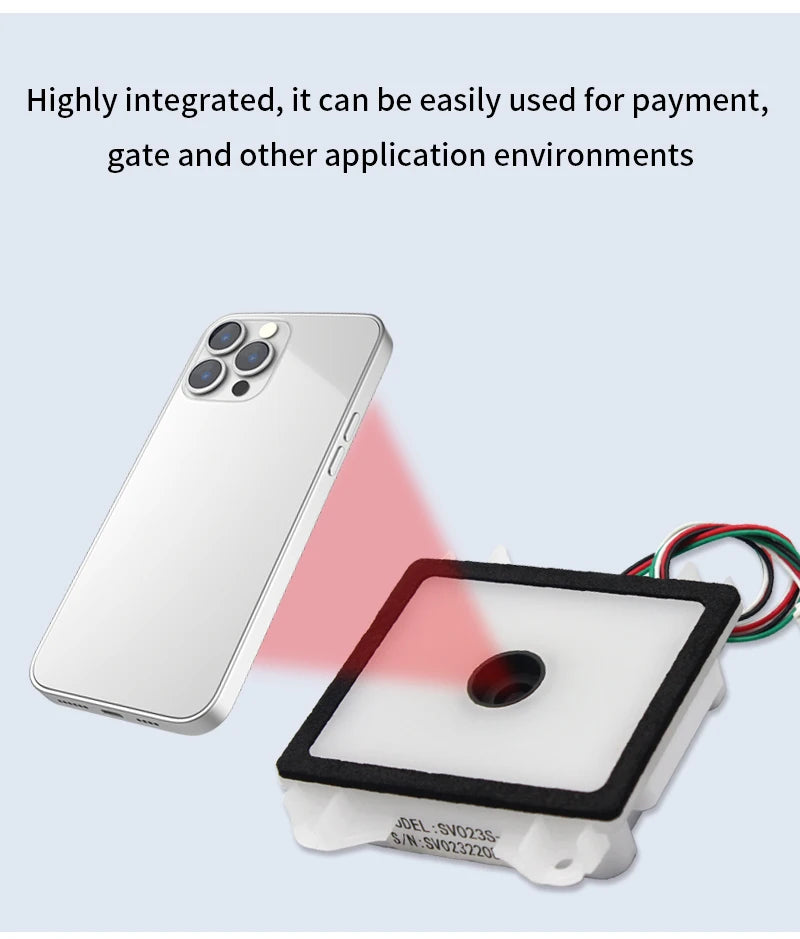

Can be very convenient for payment, gate and other application environment

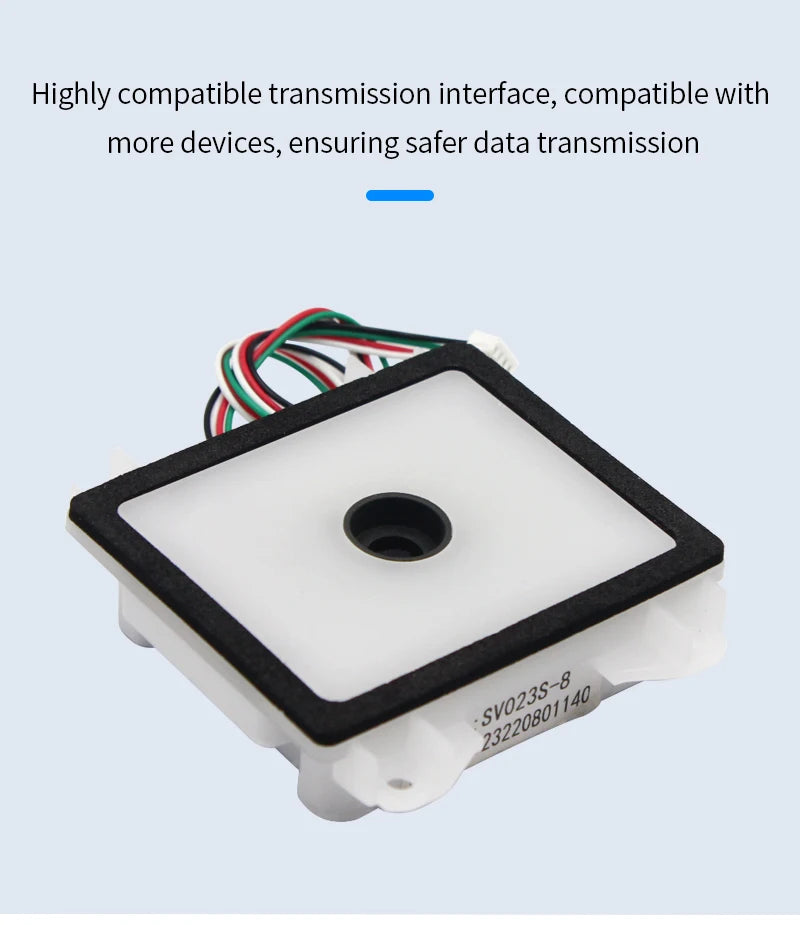

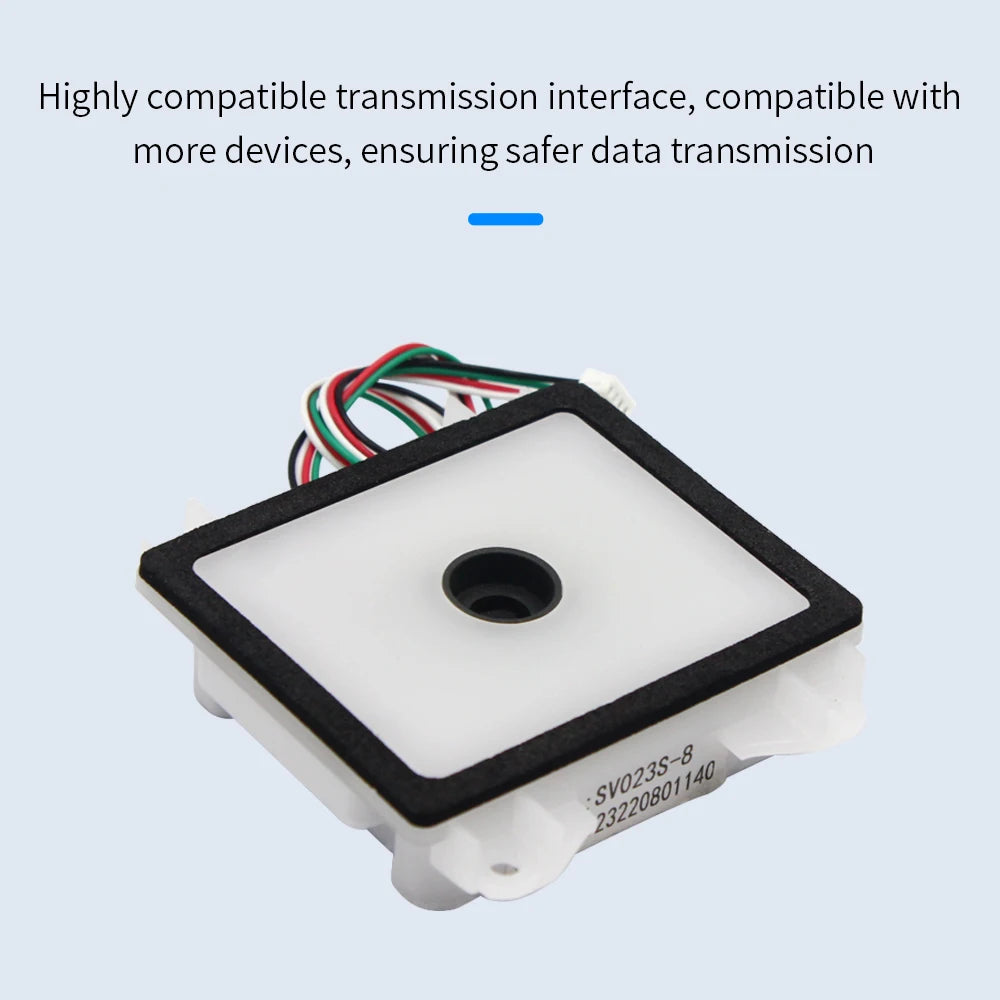

Highly compatible transmission interface for more devices and more secure data transmission

Symbology Decode Capability

1-D: Codabar、 Code 39、 Code 32 Pharmaceutical (PARAF). Interleaved 2 of 5、 NEc 2 of 5、 Code 93. Straight2 of 5 Industial, Straight 2 of 5 IATA , Matrix 2 of 5 ,Code 11、Code 128、GS1-128、UPC-A.UPC-E.EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、 GS1 DataBar Limited、 Gs1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post.

2-D: Codeblock A.CpdeblockF、PDF417、Micro PDF417.Gs1 Composite Codes,QR Code、 Data Matrix.MaxiCode、Aztec、HANXIN.
