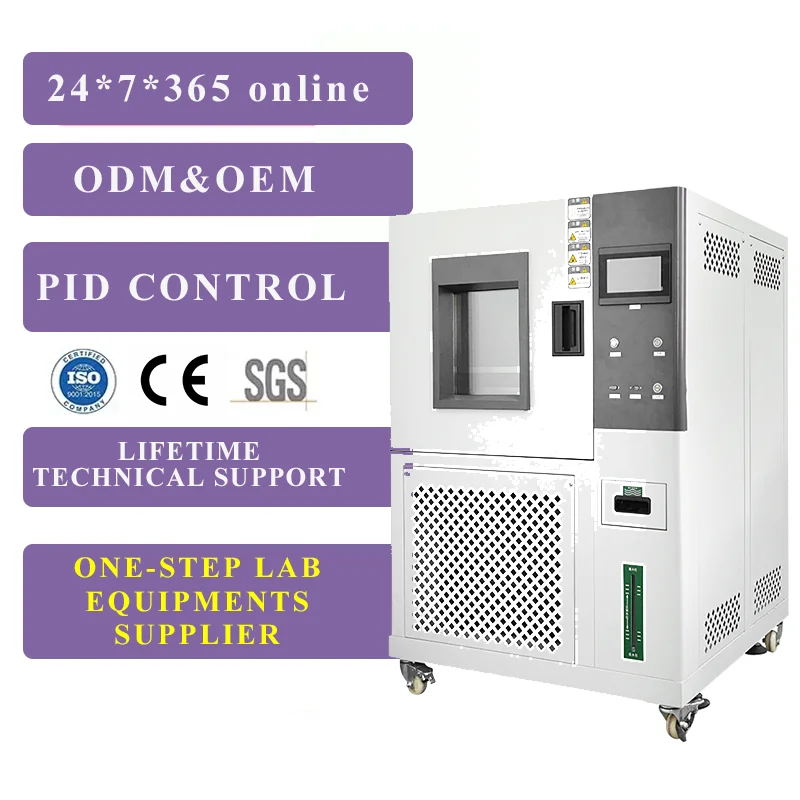

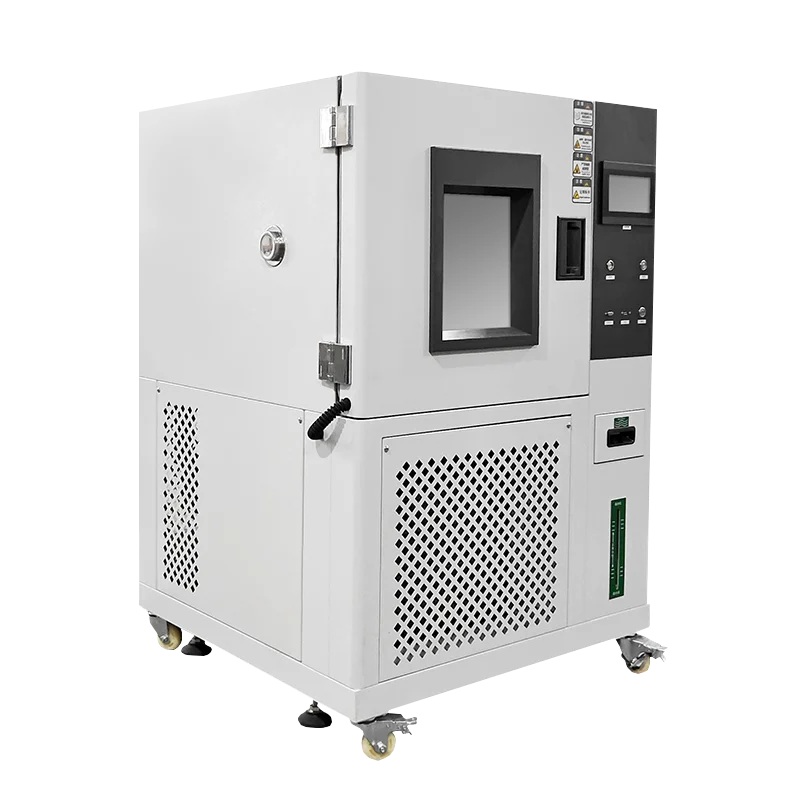

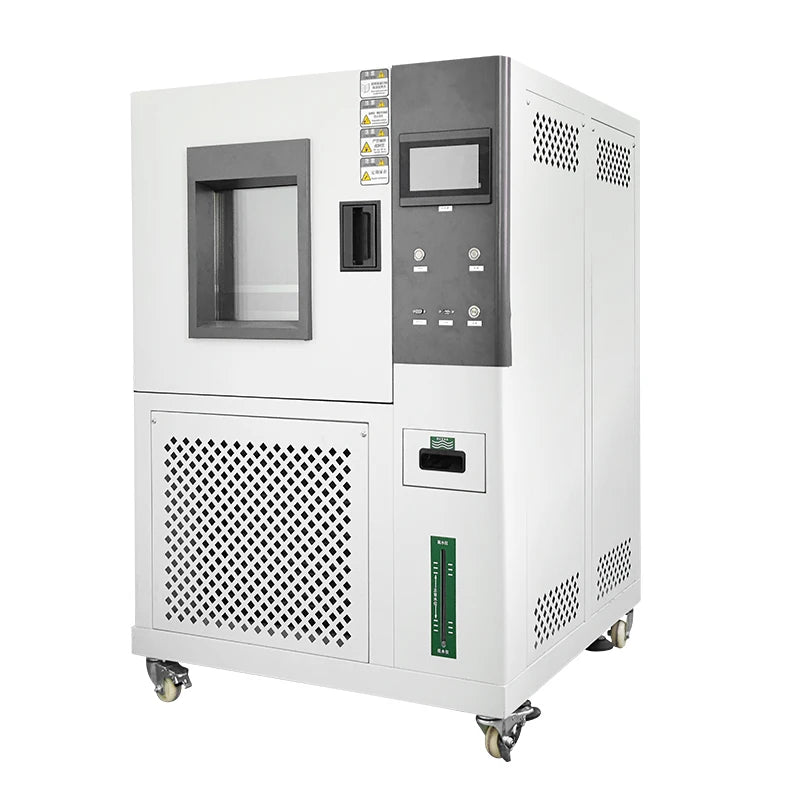

Temperature Alternating Test Chamber Constant Temperature Humidity Thermostatic Devices For Laboratory Environments

Default Title

€11.020,95

Temperature Alternating Test Chamber Constant Temperature Humidity Thermostatic Devices For Laboratory Environments

€11.020,95

🔒 B2B Purchasing Managers: Log in via our Wholesale Portal to unlock contracted tier discounts (Up to 12% off). / Inicie sesión para desbloquear precios de mayoreo.

📋 Register as a Company 🔑 Wholesale Login

100% Encrypted Payment | 📦 Insured Shipping

SPECIFICATIONS

Accuracy / volatility: ±0.5℃;±2.0%R.H./ ±0.5℃;±2.0%R.H.

Accuracy/ uniformly: ±0.01℃;±0.1%R.H./ 2℃;±3.0%R.H.

Brand Name: NONE

Capacity(L): 50/80/100/150/225/408/800/1000L

Classification: Laboratory Thermostatic Devices,Laboratory Thermostatic Devices

Cooling system: wind cooled/one-stage compressor

Electricity: 30A/22A/32A

Heating / cooling time: About 3.0℃/min;about 1.0℃/min(4~8℃/mm is the specific condition)

High-concerned chemical: None

Humidity range: 20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific condition)

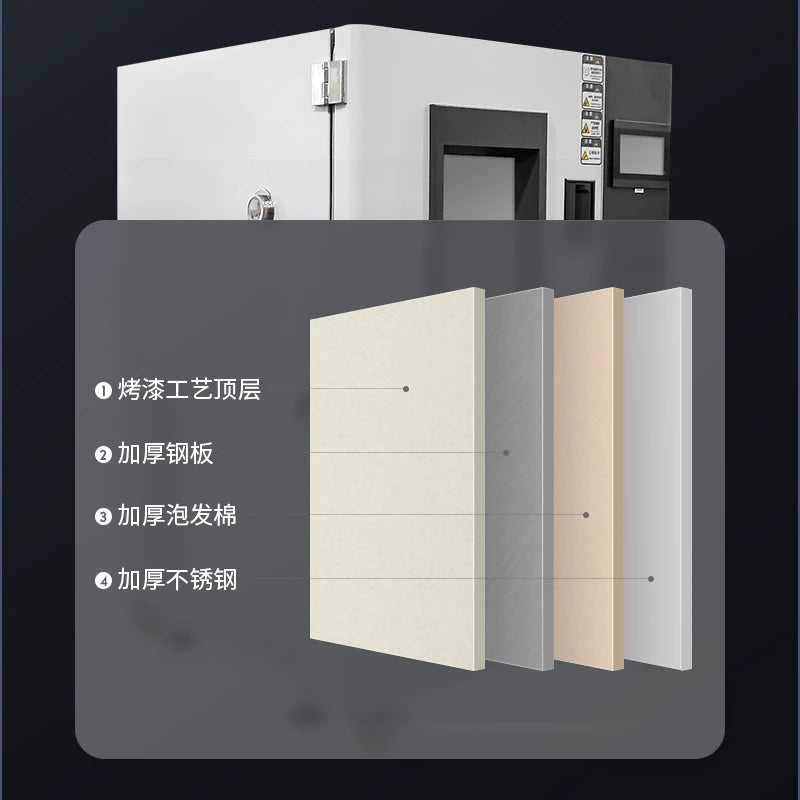

Inside material: SUS304# (1.2mm thick) stainless steel plate

Origin: Mainland China

Rated power: 6.5kw/7kw/11kw/16kw

Temperature range: -70℃ ~ + 150℃

brand name: WEF

customized support: OEM, ODM, OBM

model number: WEF.LH-D

place of origin: Henan, China

warranty: 1 years

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:132.1875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:132.1875px}#detail_decorate_root .magic-3{width:750px;border-collapse:collapse}#detail_decorate_root .magic-4{min-height:28px;padding:5px 10px;width:78px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-5{text-align:center}#detail_decorate_root .magic-6{min-height:28px;padding:5px 10px;width:60px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-7{min-height:28px;padding:5px 10px;width:67px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-8{min-height:28px;padding:5px 10px;width:71px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-9{min-height:28px;padding:5px 10px;width:72px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:28px;padding:5px 10px;width:92px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-11{min-height:28px;padding:5px 10px;width:624px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-12{display:none}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;width:93px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-14{overflow:hidden;width:750px;height:135.9375px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:0;margin-left:0;width:750px;height:135.9375px}#detail_decorate_root .magic-16{width:446px}#detail_decorate_root .magic-17{overflow:hidden;width:446px;height:446px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-18{margin-top:0;margin-left:0;width:446px;height:446px}#detail_decorate_root .magic-19{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-20{font-size:26px}#detail_decorate_root .magic-21{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-23{overflow:hidden;width:750px;height:136.875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:750px;height:136.875px}#detail_decorate_root .magic-25{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:135px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:135px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:596.5396188565697px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:596.5396188565697px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:137.8125px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:137.8125px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:684.7402597402598px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:684.7402597402598px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:1535.625px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:1535.625px}#detail_decorate_root .magic-36{overflow:hidden;width:750px;height:622.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:750px;height:622.5px}#detail_decorate_root .magic-38{overflow:hidden;width:750px;height:599.0625px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:750px;height:599.0625px}#detail_decorate_root .magic-40{overflow:hidden;width:750px;height:164.0625px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:750px;height:164.0625px}#detail_decorate_root .magic-42{vertical-align:top}#detail_decorate_root .magic-43{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-44{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-45{width:245px;height:220px;overflow:hidden}#detail_decorate_root .magic-46{position:relative;left:-44px;top:-14px;width:287px;height:522px}#detail_decorate_root .magic-47{padding:0;margin:0;color:#333;font-size:14px;line-height:20px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-48{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-49{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-50{position:relative;left:0;top:0;width:245px;height:245px}#detail_decorate_root .magic-51{overflow:hidden;width:750px;height:183.46774193548387px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-52{margin-top:0;margin-left:0;width:750px;height:183.46774193548387px}#detail_decorate_root .magic-53{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-54{overflow:hidden;width:750px;height:998.4375px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-55{margin-top:0;margin-left:0;width:750px;height:998.4375px}#detail_decorate_root .magic-56{overflow:hidden;width:750px;height:661.875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-57{margin-top:0;margin-left:0;width:750px;height:661.875px}#detail_decorate_root .magic-58{overflow:hidden;width:750px;height:363.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-59{margin-top:0;margin-left:0;width:750px;height:363.75px}#detail_decorate_root .magic-60{overflow:hidden;width:750px;height:538.125px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-61{margin-top:0;margin-left:0;width:750px;height:538.125px}#detail_decorate_root .magic-62{overflow:hidden;width:750px;height:151.875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-63{margin-top:0;margin-left:0;width:750px;height:151.875px}#detail_decorate_root .magic-64{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-65{font-size:20px}

Model number

LH-80LD

LH-100LD

LH-150LD

LH-225LD

LH-408LD

LH-800LD

LH-1000LD

Nominal content product

80L

100L

150L

225L

408L

800L

1000L

Box size锛圵×H×D锛�

400×500×400mm

500×500×400mm

500×600×500mm

600×750×500mm

800*850*600mm

1000×1000×800mm

1000×1000×1000mm

Overall dimension锛圵×H×D锛�

850×1420×955mm

950×1420×955mm

950×1520×1055mm

1050×1670×1055mm

1250*1770*1155mm

1450*1920*1355mm

1450×1920×1555mm

Temperature range

(锛�70鈩� 锝� + 150鈩�

Humidity range

20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific condition)

Control accuracy

Temperature resolution: 0.01鈩� Humidity resolution: 0.1%R.H
Temperature deviation: ±0.5鈩� Humidity deviation: ±2%R.H
Temperature uniformity: 鈮� 2鈩� Humidity uniformity: ±3%R.H
Temperature fluctuation: ±0.5鈩� Humidity fluctuation: ± 2%R.H

Rate of rise and fall

Heating time: -60鈩� → + 150鈩� The whole process average 鈮� 3鈩� / min
Cooling time: 150鈩� → -60鈩� The whole process average 鈮� 1鈩� / min

weight

185kg

195kg

205kg

250kg

295kg

430kg

455kg

Electric current

30A

30/14A

22A

32A

Rated power

6.5kw

7kw

11kw

16kw

Power source

uniphase锛�220V

Three-phase, 380V

Application

This series of constant temperature and humidity testing machine is mainly used to simulate the harsh high temperature, low
temperature or humid heat environment that may be encountered in the transportation, storage and use of electronic instruments,
new materials, electricians, vehicles, metals, electronic products, aerospace materials, etc. Or under high temperature, low
temperature, wet and heat alternating environment, check the high temperature, cold, wet and heat resistance of materials,
accessories or instruments and equipment and the possible damage life reduction.

Screenshot of customer chat

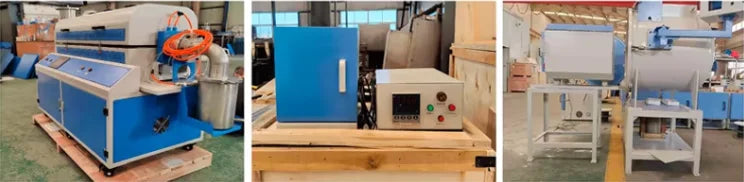

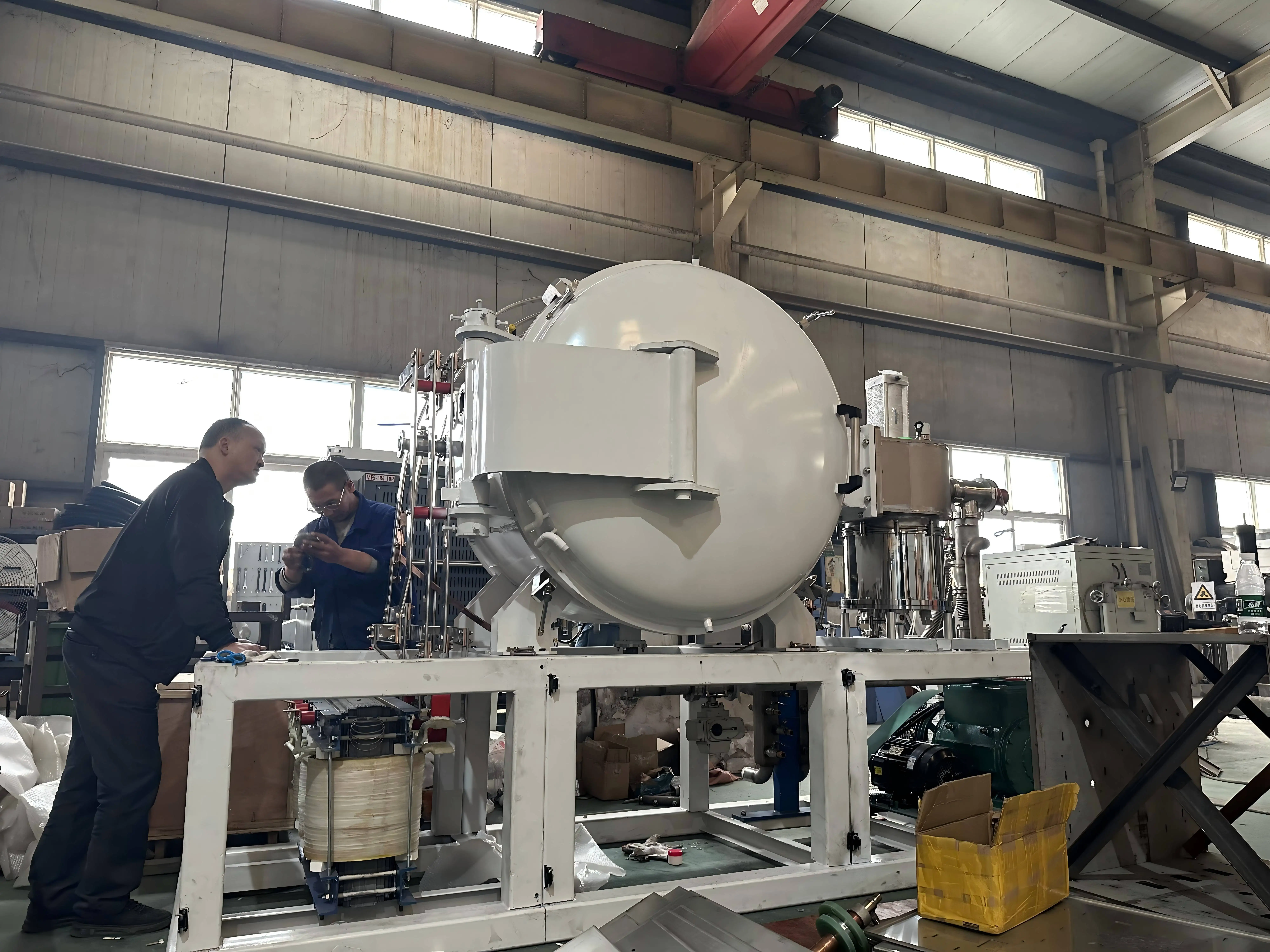

Recent customized product photos

Recent Client Solutions Jigsaw Puzzle

The foreign customer was very satisfied with our products after receiving them. He helped us record an unboxing video to showcase the products and expressed his hope for continued cooperation in the future.

1: Are you a factory?

Yes. We are located in Luoyang, Henan Province, China, and we are a comprehensive laboratory equipment Co., Ltd. We have been producing laboratory furnaces and ovens, incubators etc. for more than 20 years.

2: Do you have ODM and OEM service?

Of course, we can make the furnace you want according to your needs. The temperature, volume, color, vacuum degree etc. can all be customized.

3: What is the delivery time?

It is 10 days for standard muffle furnace . And it can be negotiated for customized muffle furnace before receiving the advanced payment.Delivery time also can be confirmed as you need .

4: How can you guarantee the production quality?

Firstly, all customized products will have technical solutions provided by engineers before production, and production will only begin when the technical requirements and product design meet the customer's needs. Secondly, we have CE and ISO9001 certificates, and our products have passed the testing of relevant quality departments.

5: How long is your furnace warranty period?

The warranty period is one year, and the consumable quality warranty period is three months. However, due to the special nature of international trade, it is recommended that customers prepare multiple spare parts at the same time when purchasing products銆�

6: What payment terms does your company support?

T/T, Paypal锛孡/C and so on.

7.Can I send the sample to test the Furnace before I buy it ?

Yes, we have built a 1000銕� shared laboratory, which is open to the public. In this laboratory, 0-2500鈩� sintering experiments, melting point test experiments, and mechanical properties test experiments can be carried out. All experiments can be carried out according to customized requirements. Before purchasing a furnace, you are welcome to come to our laboratory for testing.
